ferrari 512 m wheels parts diagram

049 - Wheels

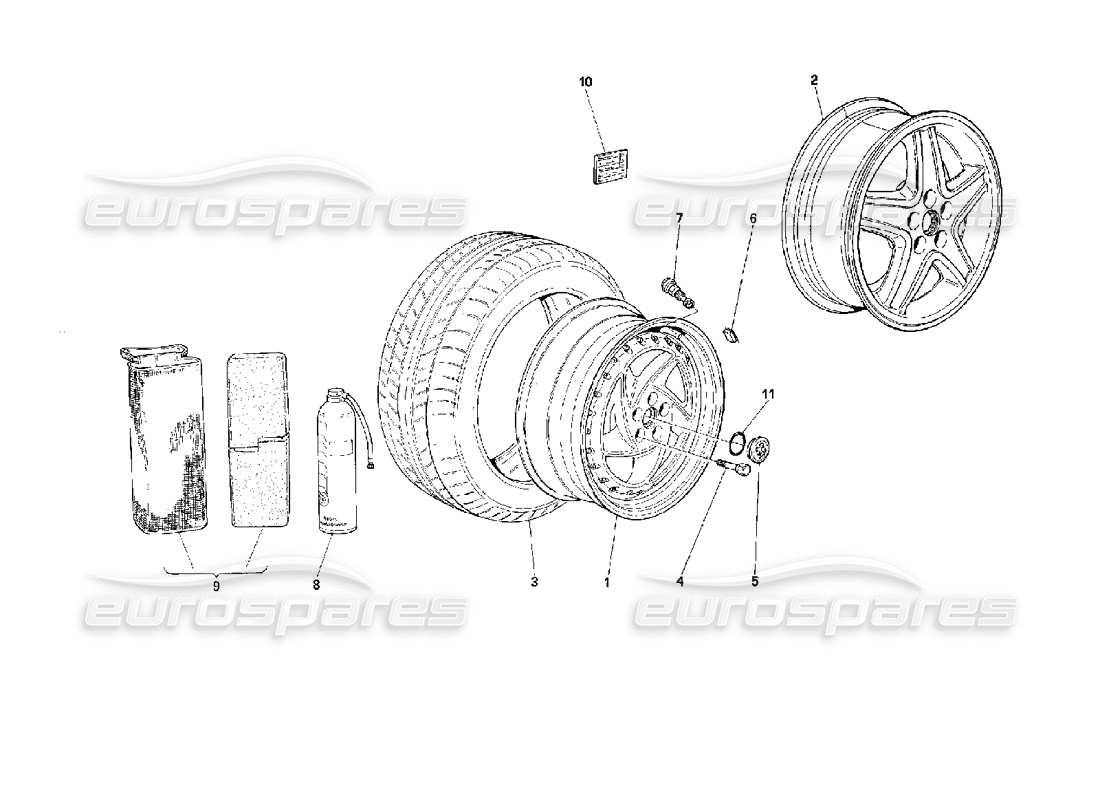

Ferrari 512 M Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 161007
              RH FRONT BUILD UP RIM
              - 8Jx18
              from £1,265.39
              from £1,265.39
              # 001
              MPN: 161008
              LH FRONT BUILD UP RIM
              - 8Jx18
              from £1,265.39
              from £1,265.39
              # 001
              MPN: 161009
              RH REAR BUILD UP RIM
              - 10 1/2Jx18
              from £1,979.00
              from £1,979.00
              # 001
              MPN: 161010
              LH REAR BUILD UP RIM
              - 10 1/2Jx18
              from £1,439.79
              from £1,439.79
              # 002
              MPN: 149550
              8JX18 FRONT RIM
              from £995.00
              from £995.00
              # 002
              MPN: 149551
              10 1/2JX18 REAR RIM
              from £2,552.58
              from £2,552.58
              # 003
              MPN: 149845
              PIRELLI 235/40 ZR18 FRONT TYRE
              - Not for CH
              from £447.47
              from £447.47
              # 003
              MPN: 149846
              PIRELLI 295/35 ZR18 REAR TYRE
              - Not for CH
              from £629.37
              from £629.37
              # 003
              MPN: 153005
              GOOD YEAR 235/40 ZR18 FRONT TYRE
              - Not for AUS, CH, J
              # 003
              MPN: 153006
              GOOD YEAR 295/35 ZR18 REAR TYRE
              - Not for AUS, CH, J
              # 003
              MPN: 153007
              BRIDGESTONE 235/40 ZR18 FRONT TYRE
              - Not for USA, CDN, AUS, J
              # 003
              MPN: 153008
              BRIDGESTONE 295/35 ZR18 REAR TYRE
              - Not for USA, CDN, AUS, J
              # 003
              MPN: 159072
              MICHELIN 235/40 ZR18 FRONT TYRE
              - Not for USA, CDN, AUS
              from £432.18
              from £432.18
              # 003
              MPN: 159073
              MICHELIN 295/35 ZR18 REAR TYRE
              - Not for USA, CDN, AUS
              from £613.29
              from £613.29
              # 004
              MPN: 176426
              COLUMN
              from £25.20
              from £25.20
              This part replaces part number 146989 - and 1 more. Click to view details
              # 005
              MPN: 340066

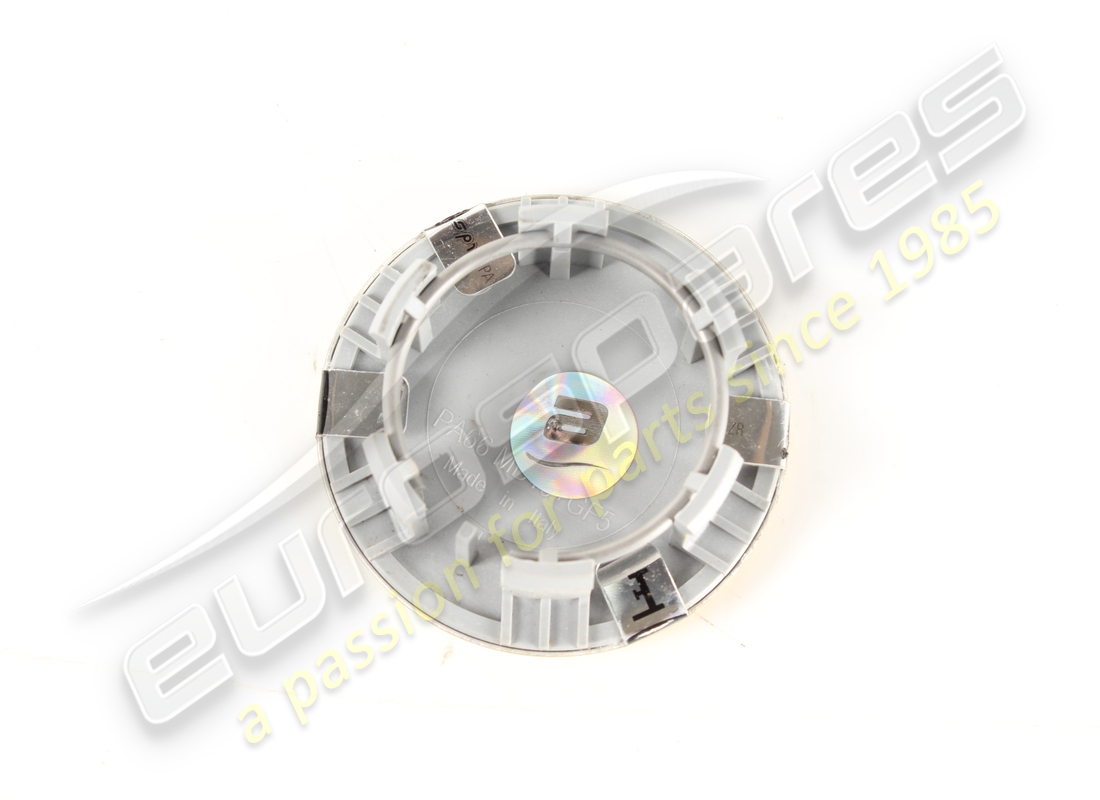

              WHEEL BADGE
              from £5.29
              from £5.29
              This part replaces part number 226245 - and 3 more. Click to view details
              # 006
              MPN: 155302
              COUNTERWEIGHT (60 GR.)
              Supersession
              Supersession
              This part replaces part number 108851 - and 1 more. Click to view details
              # 006
              MPN: 162677
              COUNTERWEIGHT (90 GR.)
              from £5.64
              from £5.64
              # 007
              MPN: 174166
              VALVE
              from £5.20
              from £5.20
              This part replaces part number 105069 - and 1 more. Click to view details
              # 007
              MPN: 70002212
              VALVE CAP KIT
              (includes 4x Ferrari logo chromium valve caps)
              from £43.08
              from £43.08
              # 008
              MPN: 152367
              TYRE REPAIR CYLINDER BOTTLE
              (UK shipment only or Collection)
              from £495.42
              from £495.42
              This part replaces part number 171576 - and 1 more. Click to view details
              # 008
              MPN: 68926600
              TYRE REPAIR CYLINDER BOTTLE
              (UK shipment only or Collection)
              Supersession
              Supersession
              This part replaces part number 152367 which we have in stock - and 3 more. Click to view details
              # 009
              MPN: 145506
              BOMB PORTFOLIO AGIP
              from £595.00
              from £595.00
              # 009
              MPN: 171577
              BOMB PORTFOLIO SHELL
              from £84.09
              from £84.09
              # 010
              MPN: 147259
              TYRE PRESSURE PLATE
              - GOOD YEAR - Valid for USA and CDN
              from £2.74
              from £2.74
              # 010
              MPN: 150186
              TYRE PRESSURE PLATE
              - PIRELLI - Valid for USA and CDN
              from £4.96
              from £4.96
              # 010
              MPN: 150600
              TYRE PRESSURE PLATE
              - BRIDGESTONE - Not for USA, CDN, AUS, J
              from £2.36
              from £2.36
              # 010
              MPN: 150602
              TYRE PRESSURE PLATE
              - GOOD YEAR - Not for USA, CDN, AUS, CH, J
              from £2.25
              from £2.25
              # 010
              MPN: 150603
              TYRE PRESSURE PLATE
              - PIRELLI - Not for USA, CDN, AUS, CH
              from £2.74
              from £2.74
              # 010
              MPN: 151481
              TYRE PRESSURE PLATE
              - Not as spare parts now - Replaced by 154796 - Valid for AUS
              from £7.06
              from £7.06
              # 010
              MPN: 154796
              TYRE PRESSURE PLATE
              - Valid for AUS
              from £10.01
              from £10.01
              # 010
              MPN: 159078
              TYRE PRESSURE PLATE
              - MICHELIN - Not for USA, CDN, AUS
              from £2.10
              from £2.10
              # 011
              MPN: 120065
              GASKET
              from £0.85
              from £0.85
