106 - Bumpers

Ferrari 512 M Bumpers Parts Diagram

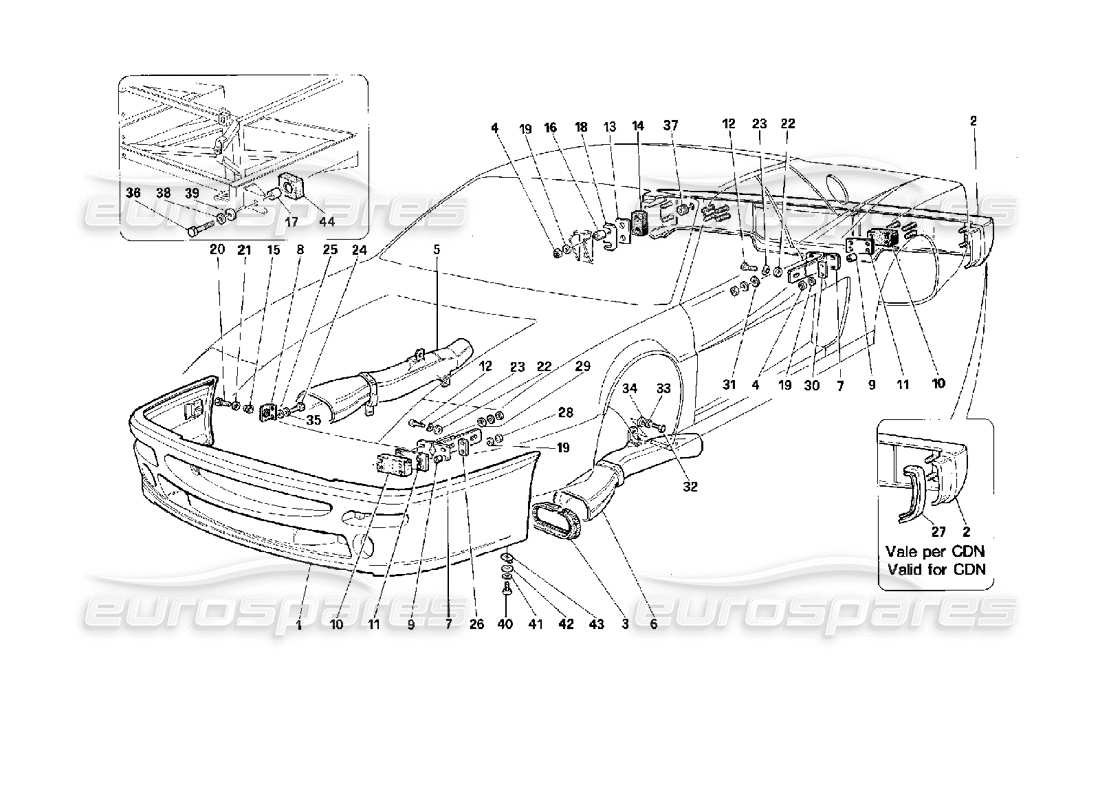

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 64440510

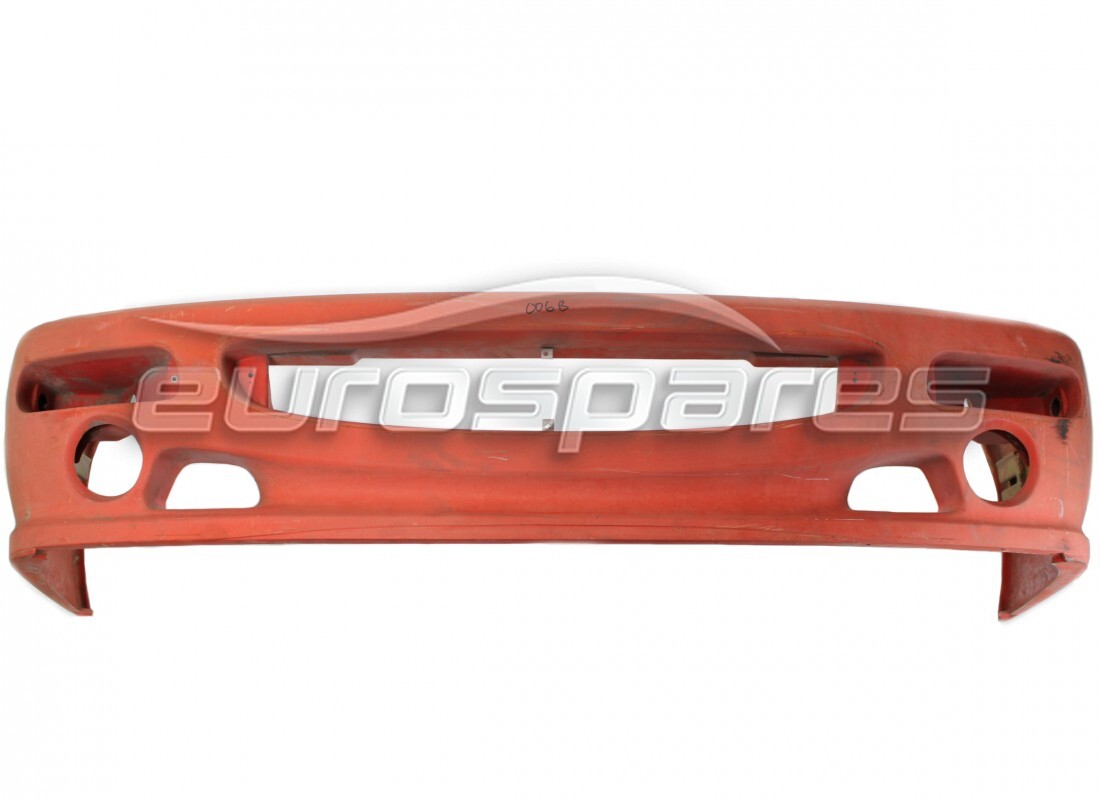

                                              FRONT BUMPER
                                              - Not for USA and CDN
                                              from £2,724.66
                                              from £2,724.66
                                              # 001
                                              MPN: 64456410

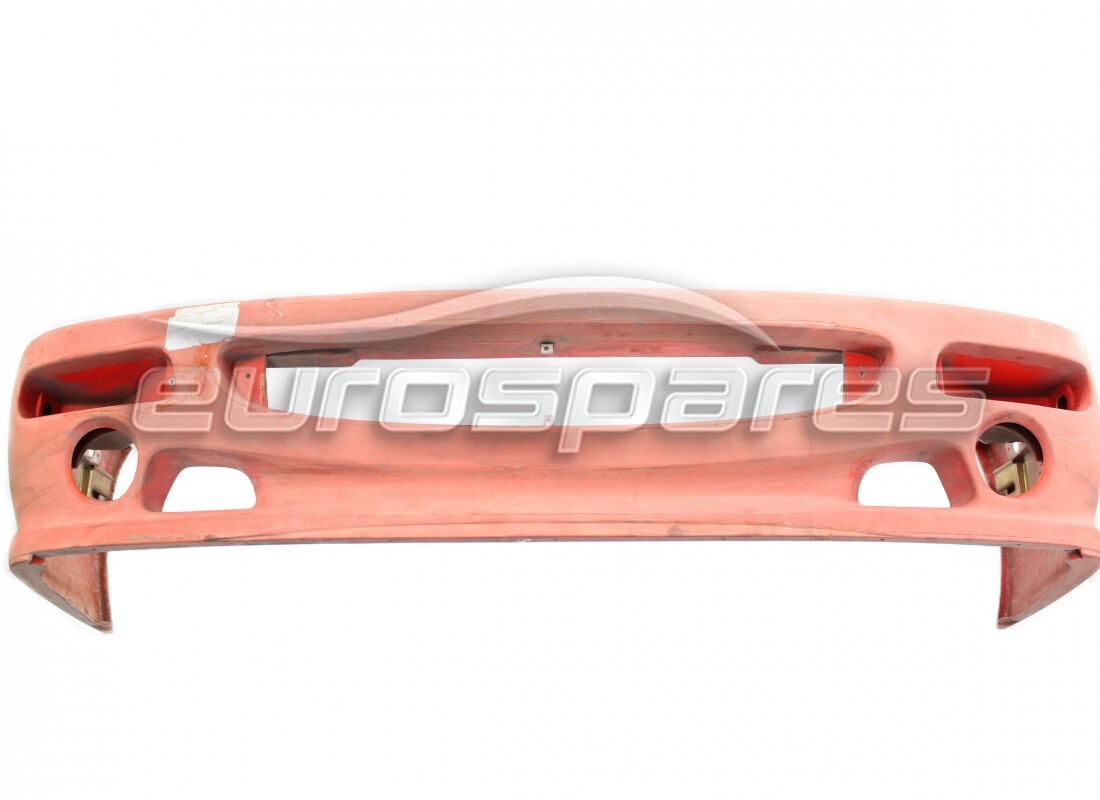

                                              FRONT BUMPER
                                              - Valid for USA
                                              from £3,174.19
                                              from £3,174.19
                                              # 001
                                              MPN: 64477210
                                              FRONT BUMPER
                                              - Valid for CDN
                                              # 002
                                              MPN: 63102010

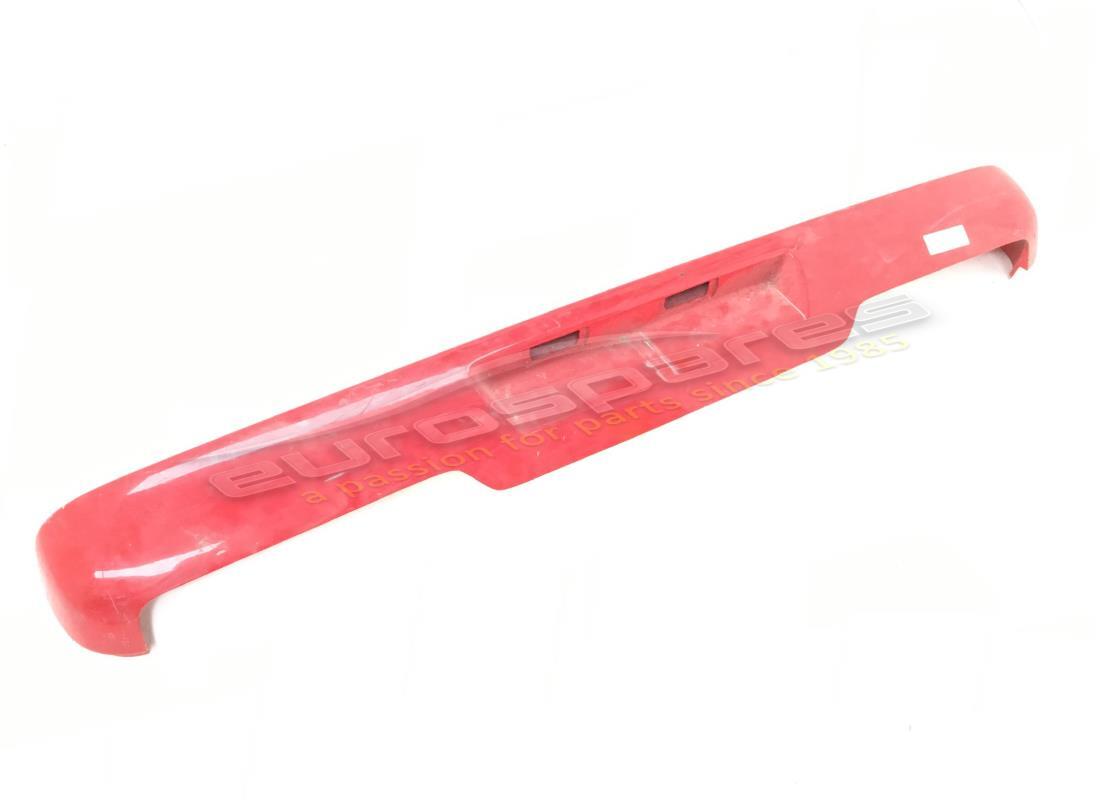

                                              REAR BUMPER
                                              - Valid for CDN
                                              from £3,020.46
                                              from £3,020.46
                                              # 002
                                              MPN: 63687610
                                              REAR BUMPER
                                              - Valid for USA and J, SA
                                              from £2,197.27
                                              from £2,197.27
                                              # 002
                                              MPN: 63692410
                                              REAR BUMPER
                                              - Not for USA, CDN and J, SA
                                              from £1,295.00
                                              from £1,295.00
                                              This part replaces part number 63021500 - and 3 more. Click to view details
                                              # 003
                                              MPN: 63087600
                                              GASKET FOR AIR CONVEYOR
                                              from £4.76
                                              from £4.76
                                              # 004
                                              MPN: 12577211
                                              NUT
                                              from £0.47
                                              from £0.47
                                              # 005
                                              MPN: 64641800
                                              AIR CONVEYOR FOR RH FRONT BRAKE
                                              from £132.14
                                              from £132.14
                                              # 006
                                              MPN: 64641900
                                              AIR CONVEYOR FOR LH FRONT BRAKE
                                              from £93.92
                                              from £93.92
                                              # 007
                                              MPN: 63022500
                                              SUPPORT FOR FRONT AND REAR BUMPER
                                              - Not for CDN
                                              from £227.93
                                              from £227.93
                                              # 007
                                              MPN: 63106200
                                              SUPPORT FOR RH REAR BUMPER
                                              - Valid for CDN
                                              from £114.85
                                              from £114.85
                                              # 007
                                              MPN: 63106300
                                              SUPPORT FOR LH REAR BUMPER
                                              - Valid for CDN
                                              from £123.49
                                              from £123.49
                                              # 007
                                              MPN: 64737300
                                              Support for RH front bumper
                                              - Valid for CDN
                                              from £94.61
                                              from £94.61
                                              # 007
                                              MPN: 64737400
                                              Support for LH front bumper
                                              - Valid for CDN
                                              from £94.61
                                              from £94.61
                                              # 008
                                              MPN: 64453900
                                              SLIDING SUPPORT BRACKET
                                              - Not for CDN
                                              from £18.04
                                              from £18.04
                                              # 009
                                              MPN: 61492100
                                              SPACER
                                              - Valid for CDN
                                              from £1.81
                                              from £1.81
                                              # 009
                                              MPN: 61547600
                                              SPACER
                                              from £1.37
                                              from £1.37
                                              # 010
                                              MPN: 61492200
                                              PAD
                                              from £52.35
                                              from £52.35
                                              # 011
                                              MPN: 61492300
                                              PLATE
                                              from £10.95
                                              from £10.95
                                              # 012
                                              MPN: 14309434
                                              SCREW
                                              from £0.85
                                              from £0.85
                                              This part replaces part number 14309431
                                              # 013
                                              MPN: 61532500
                                              PLATE
                                              - Valid for USA, J, CDN and SA
                                              from £4.70
                                              from £4.70
                                              # 014
                                              MPN: 61532400
                                              PAD
                                              - Valid for USA, J, CDN and SA
                                              from £10.72
                                              from £10.72
                                              # 015
                                              MPN: 61543900
                                              BUSHING
                                              from £35.69
                                              from £35.69
                                              This part replaces part number 62766900
                                              # 016
                                              MPN: 63049600
                                              SPACER
                                              - Valid for USA, J, CDN and SA
                                              from £0.93
                                              from £0.93
                                              This part replaces part number 61532300
                                              # 017
                                              MPN: 61564900
                                              BUSHING
                                              - Valid for CDN
                                              from £0.63
                                              from £0.63
                                              # 018
                                              MPN: 63677100
                                              SPACER
                                              - Valid for USA, J, CDN and SA
                                              from £20.78
                                              from £20.78
                                              This part replaces part number 63111900
                                              # 019
                                              MPN: 12626224
                                              WASHER
                                              from £0.50
                                              from £0.50
                                              This part replaces part number 12626221
                                              # 020
                                              MPN: 62766400
                                              PIN
                                              from £8.79
                                              from £8.79
                                              # 021
                                              MPN: 12646801
                                              WASHER
                                              from £0.78
                                              from £0.78
                                              This part replaces part number 12644682
                                              # 022
                                              MPN: 12646970
                                              WASHER
                                              from £2.52
                                              from £2.52
                                              This part replaces part number 112873
                                              # 023
                                              MPN: 127498
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 106854
                                              # 024
                                              MPN: 10902424
                                              SCREW
                                              from £0.51
                                              from £0.51
                                              This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                              # 025
                                              MPN: 12643770
                                              WASHER
                                              from £0.71
                                              from £0.71
                                              # 026
                                              MPN: 63049900
                                              PLATE
                                              - Not for CDN
                                              from £30.75
                                              from £30.75
                                              # 026
                                              MPN: 63460200
                                              PLATE
                                              - Valid for CDN
                                              from £7.19
                                              from £7.19
                                              # 027
                                              MPN: 63104000
                                              RH SIDE PLATE
                                              - Valid for CDN
                                              from £22.67
                                              from £22.67
                                              # 027
                                              MPN: 63104100
                                              LH SIDE PLATE
                                              - Valid for CDN
                                              from £11.12
                                              from £11.12
                                              # 028
                                              MPN: 149719
                                              NUT
                                              - Not for CDN
                                              Supersession
                                              Supersession
                                              # 029
                                              MPN: 12644301
                                              WASHER
                                              - Not for CDN
                                              from £0.62
                                              from £0.62
                                              # 030
                                              MPN: 63049900
                                              PLATE
                                              - Valid for CDN
                                              from £30.75
                                              from £30.75
                                              # 030
                                              MPN: 63460200
                                              PLATE
                                              from £7.19
                                              from £7.19
                                              # 031
                                              MPN: 12646801
                                              WASHER
                                              from £0.76
                                              from £0.76
                                              This part replaces part number 12644682
                                              # 032
                                              MPN: 10902424
                                              SCREW
                                              from £0.50
                                              from £0.50
                                              This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                              # 033
                                              MPN: 127494
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.52
                                              from £0.52
                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                              # 034
                                              MPN: 12640624
                                              WASHER
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 12640601 - and 1 more. Click to view details
                                              # 035
                                              MPN: 127494
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                              # 036
                                              MPN: 16043621
                                              SCREW
                                              - Valid for CDN
                                              from £1.07
                                              from £1.07
                                              # 037
                                              MPN: 62770500
                                              CABLE GROMMET
                                              from £1.37
                                              from £1.37
                                              This part replaces part number 52770500
                                              # 038
                                              MPN: 127496
                                              WASHER
                                              - Valid for CDN
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 10516671 - and 2 more. Click to view details
                                              # 039
                                              MPN: 12647021
                                              WASHER
                                              - Valid for CDN
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12640721 - and 2 more. Click to view details
                                              # 040
                                              MPN: 10902424
                                              SCREW
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
                                              # 041
                                              MPN: 127494
                                              WASHER
                                              (minimum order quantity = 20)
                                              from £0.53
                                              from £0.53
                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                              # 042
                                              MPN: 12640624
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 12640601 - and 1 more. Click to view details
                                              # 043
                                              MPN: 60758600
                                              NUT
                                              from £0.53
                                              from £0.53
                                              # 044
                                              MPN: 61547700
                                              PAD
                                              - Valid for CDN - Not as spare parts now for F512M
                                              from £33.11
                                              from £33.11
