108 - Front Hood

Ferrari 512 M Front Hood Parts Diagram

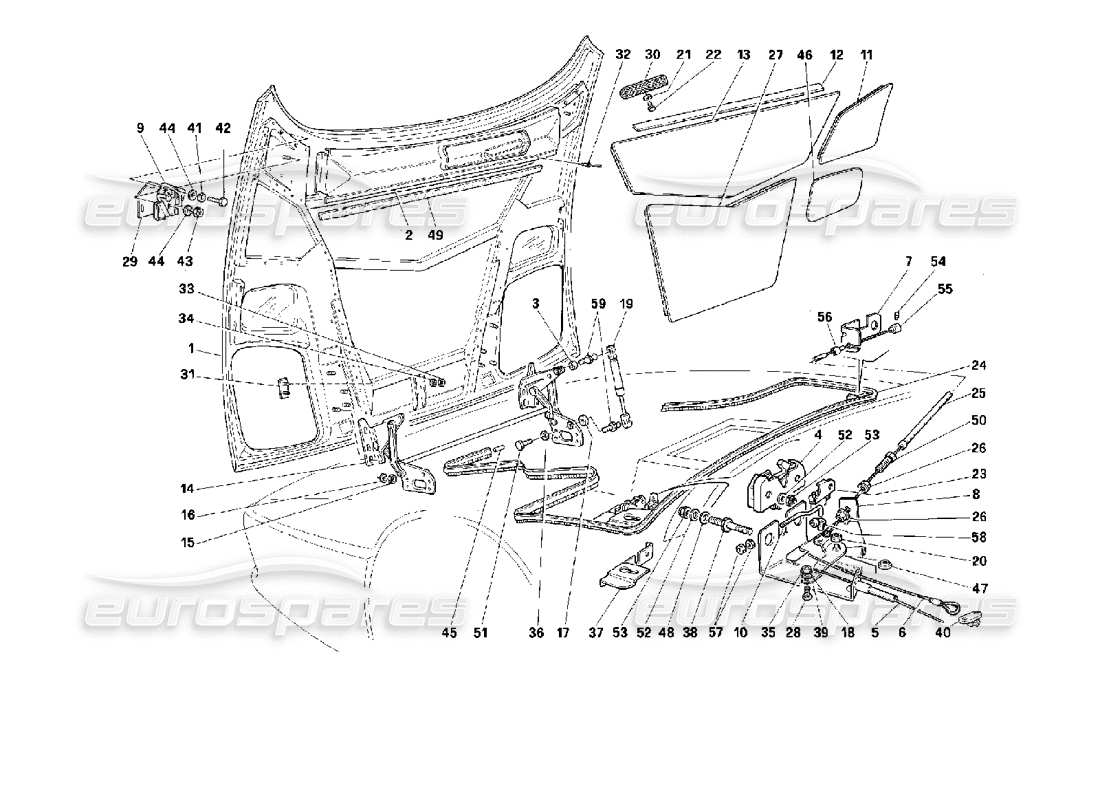

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 64630600
                                                                                                      FRONT BONNET
                                                                                                      - Not for GD
                                                                                                      from £4,531.67
                                                                                                      from £4,531.67
                                                                                                      This part replaces part number 64630700
                                                                                                      # 001
                                                                                                      MPN: 64630700
                                                                                                      FRONT BONNET
                                                                                                      - Not as spare pars now - Replaced by 64630600 - Valid for GD
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 002
                                                                                                      MPN: 64441500
                                                                                                      WATER SHIELD PANEL
                                                                                                      - Not for GD
                                                                                                      from £357.21
                                                                                                      from £357.21
                                                                                                      # 002
                                                                                                      MPN: 64543800
                                                                                                      WATER SHIELD PANEL
                                                                                                      - Valid for GD
                                                                                                      from £473.67
                                                                                                      from £473.67
                                                                                                      # 003
                                                                                                      MPN: 64687100
                                                                                                      UPPER SPACER
                                                                                                      from £3.98
                                                                                                      from £3.98
                                                                                                      # 004
                                                                                                      MPN: 60277407
                                                                                                      BONNET LOCK
                                                                                                      from £278.31
                                                                                                      from £278.31
                                                                                                      This part replaces part number 60023405 - and 13 more. Click to view details
                                                                                                      # 005
                                                                                                      MPN: 63088400
                                                                                                      CABLE FOR OPENING BONNET
                                                                                                      from £47.17
                                                                                                      from £47.17
                                                                                                      # 006
                                                                                                      MPN: 63088500
                                                                                                      EMERGENCY CABLE
                                                                                                      from £7.93
                                                                                                      from £7.93
                                                                                                      # 007
                                                                                                      MPN: 61495900
                                                                                                      SHEATH SUPPORT PLATE
                                                                                                      - Passenger side
                                                                                                      from £24.93
                                                                                                      from £24.93
                                                                                                      # 008
                                                                                                      MPN: 63114300
                                                                                                      SHEATH SUPPORT PLATE
                                                                                                      - Driver side
                                                                                                      from £50.53
                                                                                                      from £50.53
                                                                                                      # 009
                                                                                                      MPN: 63051600
                                                                                                      RH LOCK STRIKER
                                                                                                      from £108.20
                                                                                                      from £108.20
                                                                                                      # 009
                                                                                                      MPN: 63051700
                                                                                                      LH LOCK STRIKER
                                                                                                      from £115.41
                                                                                                      from £115.41
                                                                                                      # 010
                                                                                                      MPN: 61496200
                                                                                                      LH STRIKER ROD
                                                                                                      - Not for GD
                                                                                                      from £9.91
                                                                                                      from £9.91
                                                                                                      # 010
                                                                                                      MPN: 61532900
                                                                                                      RH STRIKER ROD
                                                                                                      - Valid for GD
                                                                                                      from £4.23
                                                                                                      from £4.23
                                                                                                      # 011
                                                                                                      MPN: 64454000
                                                                                                      LH LATERAL INSULATING
                                                                                                      from £154.14
                                                                                                      from £154.14
                                                                                                      # 011
                                                                                                      MPN: 64454600
                                                                                                      RH LATERAL INSULATING
                                                                                                      from £63.44
                                                                                                      from £63.44
                                                                                                      # 012
                                                                                                      MPN: 64454200
                                                                                                      ADHESIVE POLYURETHAN
                                                                                                      - L. mm 2000
                                                                                                      from £22.07
                                                                                                      from £22.07
                                                                                                      # 012
                                                                                                      MPN: 64641700
                                                                                                      ADHESIVE POLYURETHAN
                                                                                                      - L. mm 1000
                                                                                                      from £41.30
                                                                                                      from £41.30
                                                                                                      # 013
                                                                                                      MPN: 64454300
                                                                                                      CENTRAL UPPER INSULATING
                                                                                                      from £49.61
                                                                                                      from £49.61
                                                                                                      # 014
                                                                                                      MPN: 64685400
                                                                                                      HINGE
                                                                                                      from £625.03
                                                                                                      from £625.03
                                                                                                      # 015
                                                                                                      MPN: 104030
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16104125
                                                                                                      # 016
                                                                                                      MPN: 12642024
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12642020 - and 1 more. Click to view details
                                                                                                      # 017
                                                                                                      MPN: 64687200
                                                                                                      LOWER SPACER
                                                                                                      from £5.09
                                                                                                      from £5.09
                                                                                                      # 018
                                                                                                      MPN: 62764900
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 019
                                                                                                      MPN: 63671500
                                                                                                      FRONT COVER STRUT
                                                                                                      from £57.61
                                                                                                      from £57.61
                                                                                                      # 020
                                                                                                      MPN: 102948
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                      # 021
                                                                                                      MPN: 10615474
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 10615470 - and 3 more. Click to view details
                                                                                                      # 021
                                                                                                      MPN: 12643777
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
                                                                                                      # 022
                                                                                                      MPN: 10902287
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 023
                                                                                                      MPN: 61501200
                                                                                                      WARNING LIGHT SWITCH
                                                                                                      from £28.68
                                                                                                      from £28.68
                                                                                                      This part replaces part number 61496900 - and 1 more. Click to view details
                                                                                                      # 024
                                                                                                      MPN: 64441000
                                                                                                      BONNET GASKET
                                                                                                      from £88.84
                                                                                                      from £88.84
                                                                                                      # 025
                                                                                                      MPN: 61497100
                                                                                                      OPEN BONNET CABLE
                                                                                                      from £17.97
                                                                                                      from £17.97
                                                                                                      # 026
                                                                                                      MPN: 14084211
                                                                                                      NUT
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 027
                                                                                                      MPN: 64454800
                                                                                                      SOUND INSULATION, CENTRAL LOWER
                                                                                                      from £43.37
                                                                                                      from £43.37
                                                                                                      # 028
                                                                                                      MPN: 62764700
                                                                                                      SCREW
                                                                                                      from £0.61
                                                                                                      from £0.61
                                                                                                      # 029
                                                                                                      MPN: 153956
                                                                                                      RH ZINCFOIL
                                                                                                      from £3.40
                                                                                                      from £3.40
                                                                                                      # 029
                                                                                                      MPN: 153957
                                                                                                      LH ZINCFOIL
                                                                                                      from £3.40
                                                                                                      from £3.40
                                                                                                      # 030
                                                                                                      MPN: 64453700
                                                                                                      RH NET FOR AIR INTAKE
                                                                                                      from £86.09
                                                                                                      from £86.09
                                                                                                      # 030
                                                                                                      MPN: 64454100
                                                                                                      LH NET FOR AIR INTAKE
                                                                                                      from £86.09
                                                                                                      from £86.09
                                                                                                      # 031
                                                                                                      MPN: 60795400
                                                                                                      FRONT ORNAMENT
                                                                                                      Two pin type.
                                                                                                      from £123.60
                                                                                                      from £123.60
                                                                                                      This part replaces part number 60043007
                                                                                                      # 032
                                                                                                      MPN: 64386000
                                                                                                      RIVET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 033
                                                                                                      MPN: 15896470
                                                                                                      NUT
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.78
                                                                                                      from £0.78
                                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                      # 034
                                                                                                      MPN: 149951
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                                      # 035
                                                                                                      MPN: 14084111
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 14084100
                                                                                                      # 036
                                                                                                      MPN: 12625201
                                                                                                      WASHER
                                                                                                      from £1.62
                                                                                                      from £1.62
                                                                                                      # 037
                                                                                                      MPN: 63094500
                                                                                                      RH BRACKET FOR LOCK
                                                                                                      from £50.28
                                                                                                      from £50.28
                                                                                                      # 037
                                                                                                      MPN: 63094600
                                                                                                      LH BRACKET FOR LOCK
                                                                                                      from £50.28
                                                                                                      from £50.28
                                                                                                      # 038
                                                                                                      MPN: 62770900
                                                                                                      SCREW
                                                                                                      from £2.74
                                                                                                      from £2.74
                                                                                                      # 039
                                                                                                      MPN: 63114100
                                                                                                      LEVER
                                                                                                      from £45.21
                                                                                                      from £45.21
                                                                                                      # 040
                                                                                                      MPN: 63435000
                                                                                                      HOOK
                                                                                                      from £1.64
                                                                                                      from £1.64
                                                                                                      # 041
                                                                                                      MPN: 127494
                                                                                                      WASHER
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                      # 042
                                                                                                      MPN: 10902221
                                                                                                      SCREW
                                                                                                      from £0.52
                                                                                                      from £0.52
                                                                                                      # 044
                                                                                                      MPN: 12643724
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                      # 045
                                                                                                      MPN: 62781300
                                                                                                      GASKET CONNECTION PIPE
                                                                                                      from £32.04
                                                                                                      from £32.04
                                                                                                      # 046
                                                                                                      MPN: 64454400
                                                                                                      RH FRONT INSULATING
                                                                                                      from £52.10
                                                                                                      from £52.10
                                                                                                      # 046
                                                                                                      MPN: 64454500
                                                                                                      LH FRONT INSULATING
                                                                                                      from £34.73
                                                                                                      from £34.73
                                                                                                      # 047
                                                                                                      MPN: 63117400
                                                                                                      BUSHING
                                                                                                      from £4.94
                                                                                                      from £4.94
                                                                                                      # 048
                                                                                                      MPN: 14496701
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 049
                                                                                                      MPN: 64454200
                                                                                                      ADHESIVE POLYURETHAN
                                                                                                      from £22.07
                                                                                                      from £22.07
                                                                                                      # 050
                                                                                                      MPN: 62764800
                                                                                                      DRILLED SCREW
                                                                                                      from £1.20
                                                                                                      from £1.20
                                                                                                      # 051
                                                                                                      MPN: 16043211
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 052
                                                                                                      MPN: 12640624
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                                      # 053
                                                                                                      MPN: 102948
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                      # 054
                                                                                                      MPN: 60276805
                                                                                                      DOWEL
                                                                                                      from £0.71
                                                                                                      from £0.71
                                                                                                      # 055
                                                                                                      MPN: 60276607
                                                                                                      CLAMP
                                                                                                      from £11.87
                                                                                                      from £11.87
                                                                                                      This part replaces part number 60276707 - and 4 more. Click to view details
                                                                                                      # 056
                                                                                                      MPN: 63434400
                                                                                                      BUSHING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 057
                                                                                                      MPN: 10794011
                                                                                                      NUT
                                                                                                      from £0.26
                                                                                                      from £0.26
                                                                                                      # 058
                                                                                                      MPN: 14578180
                                                                                                      SPRING
                                                                                                      from £8.99
                                                                                                      from £8.99
                                                                                                      This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                      # 059
                                                                                                      MPN: 64537400

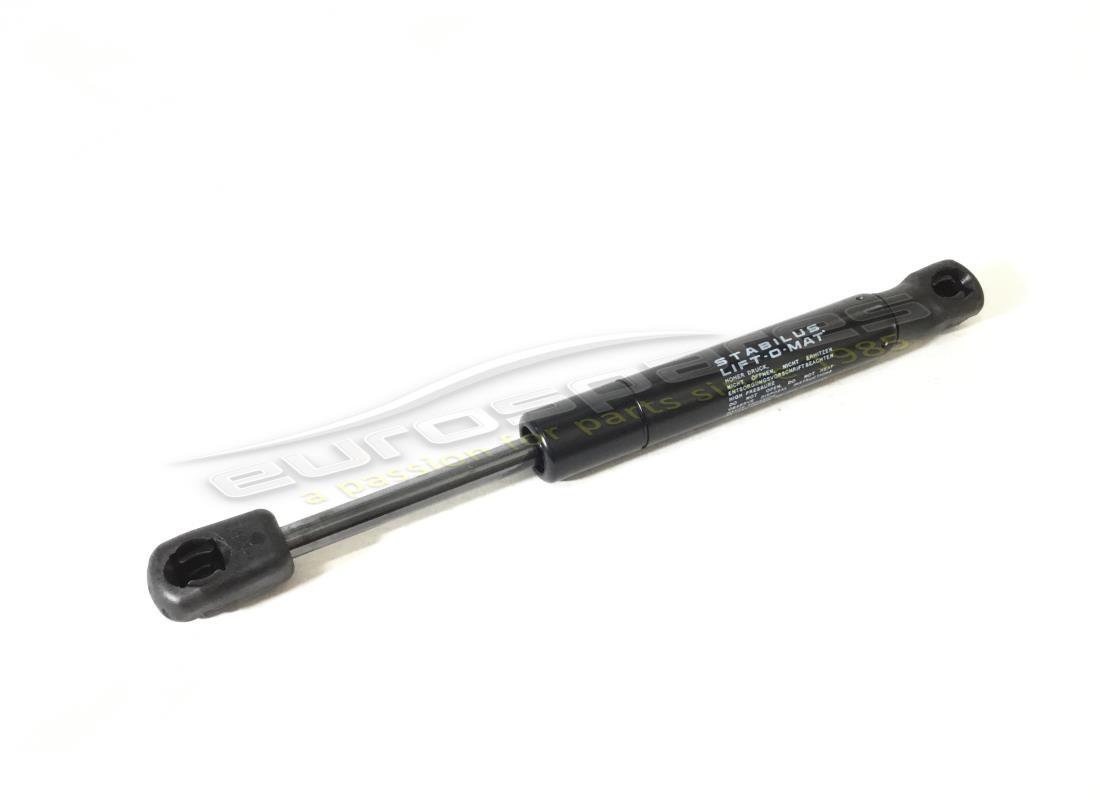

                                                                                                      PIN FOR STABILUS
                                                                                                      from £18.04
                                                                                                      from £18.04
