111 - Door - Locking Device

Ferrari 512 M Door - Locking Device Parts Diagram

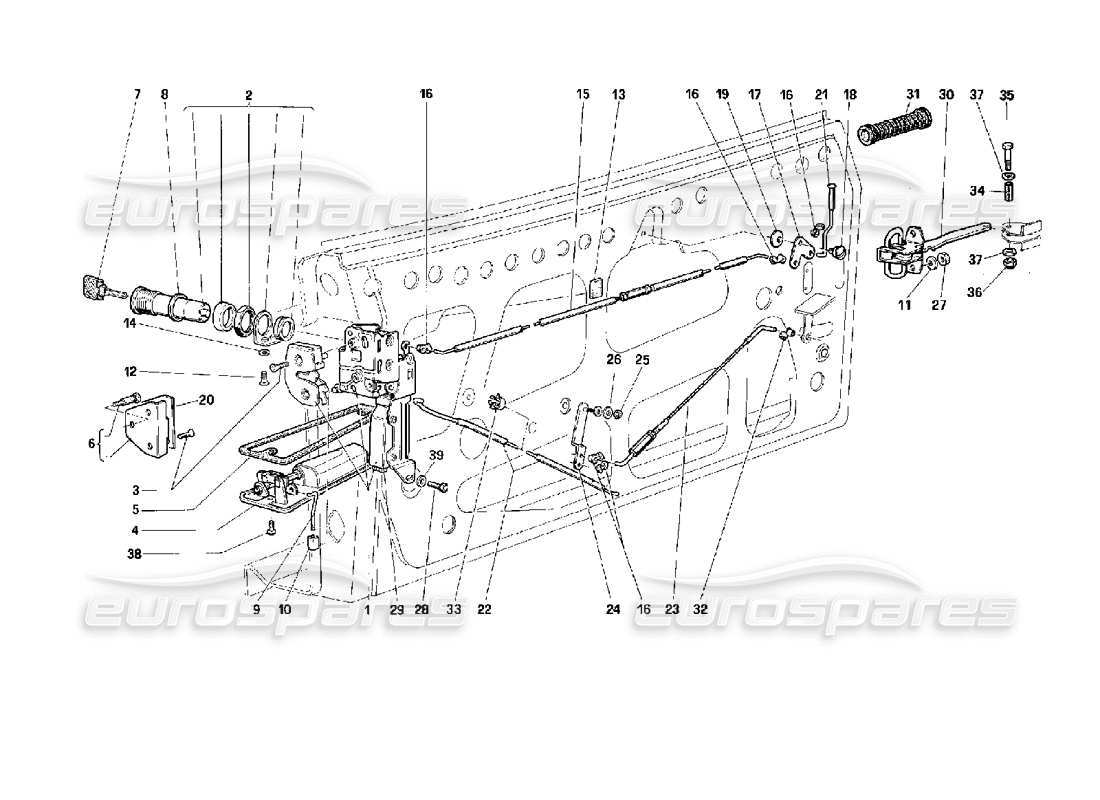

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 000
                                                                              MPN: 164282
                                                                              LOCK SET WITH KEYS
                                                                              - Not for USA, CDN
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 61507000 which we have in stock - and 1 more. Click to view details
                                                                              # 000
                                                                              MPN: 164283
                                                                              LOCKS SET WITH KEY
                                                                              - Valid for USA, CDN
                                                                              from £640.34
                                                                              from £640.34
                                                                              This part replaces part number 164282 - and 3 more. Click to view details
                                                                              # 001
                                                                              MPN: 63094800
                                                                              LOCK FOR RH DOOR COMPLETE
                                                                              from £521.20
                                                                              from £521.20
                                                                              This part replaces part number 61506100 which we have in stock
                                                                              # 001
                                                                              MPN: 63094900
                                                                              LOCK FOR LH DOOR COMPLETE
                                                                              from £361.20
                                                                              from £361.20
                                                                              This part replaces part number 61506200 which we have in stock
                                                                              # 002
                                                                              -
                                                                              lock
                                                                              # 003
                                                                              MPN: 62764600
                                                                              SCREW
                                                                              from £0.72
                                                                              from £0.72
                                                                              # 004
                                                                              MPN: 61506700
                                                                              OUTER HANDLE FOR LH DOOR
                                                                              from £343.98
                                                                              from £343.98
                                                                              # 005
                                                                              MPN: 61506800
                                                                              GASKET FOR RH HANDLE
                                                                              from £2.42
                                                                              from £2.42
                                                                              # 005
                                                                              MPN: 61506900
                                                                              GASKET FOR LH HANDLE
                                                                              from £2.42
                                                                              from £2.42
                                                                              # 006
                                                                              MPN: 61506500
                                                                              LOCK STRIKER COMPLETE
                                                                              from £27.11
                                                                              from £27.11
                                                                              # 007
                                                                              MPN: 95401152
                                                                              BLANK KEY
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 61507100
                                                                              # 008
                                                                              MPN: 61507200
                                                                              LOCK GASKET
                                                                              from £0.54
                                                                              from £0.54
                                                                              # 009
                                                                              MPN: 61507300
                                                                              ROD
                                                                              from £2.44
                                                                              from £2.44
                                                                              # 010
                                                                              MPN: 61507400
                                                                              SLEEVE
                                                                              from £0.51
                                                                              from £0.51
                                                                              # 011
                                                                              MPN: 12624101
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 012
                                                                              MPN: 13271811
                                                                              SCREW
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 013
                                                                              MPN: 62782800
                                                                              SPONGE
                                                                              from £0.56
                                                                              from £0.56
                                                                              # 014
                                                                              MPN: 10615274
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10615270 - and 2 more. Click to view details
                                                                              # 015
                                                                              MPN: 61507600
                                                                              ROD
                                                                              from £9.39
                                                                              from £9.39
                                                                              # 016
                                                                              MPN: 14578180
                                                                              CLIP
                                                                              from £8.99
                                                                              from £8.99
                                                                              This part replaces part number 14578283 - and 1 more. Click to view details
                                                                              # 017
                                                                              MPN: 61507700
                                                                              LEVER
                                                                              from £0.39
                                                                              from £0.39
                                                                              # 018
                                                                              MPN: 62764500
                                                                              SPECIAL SCREW
                                                                              from £2.49
                                                                              from £2.49
                                                                              # 019
                                                                              MPN: 12541874
                                                                              WASHER
                                                                              from £1.14
                                                                              from £1.14
                                                                              # 020
                                                                              MPN: 61507800
                                                                              STRIKER PROTECTION
                                                                              from £5.83
                                                                              from £5.83
                                                                              # 021
                                                                              MPN: 63402500
                                                                              SECURITY ROD FOR DOOR
                                                                              from £137.82
                                                                              from £137.82
                                                                              # 022
                                                                              MPN: 63094700
                                                                              RH ROD
                                                                              from £28.81
                                                                              from £28.81
                                                                              # 022
                                                                              MPN: 63101600
                                                                              LH ROD
                                                                              from £23.60
                                                                              from £23.60
                                                                              # 023
                                                                              MPN: 63093500
                                                                              ROD
                                                                              from £24.09
                                                                              from £24.09
                                                                              # 024
                                                                              MPN: 61508100
                                                                              LEVER
                                                                              from £3.34
                                                                              from £3.34
                                                                              # 025
                                                                              MPN: 14084211
                                                                              NUT
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 026
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                              # 027
                                                                              MPN: 12574115
                                                                              NUT
                                                                              from £1.08
                                                                              from £1.08
                                                                              # 028
                                                                              MPN: 10977821
                                                                              SCREW
                                                                              Supersession
                                                                              Supersession
                                                                              # 029
                                                                              MPN: 150040
                                                                              LOCKING DEVICE
                                                                              from £483.75
                                                                              from £483.75
                                                                              # 031
                                                                              MPN: 148654
                                                                              BELOWS FOR ELECTRIC CABLES
                                                                              from £12.13
                                                                              from £12.13
                                                                              # 032
                                                                              MPN: 14578180
                                                                              SPRINGS
                                                                              from £8.99
                                                                              from £8.99
                                                                              This part replaces part number 14578283 - and 1 more. Click to view details
                                                                              # 033
                                                                              MPN: 14569680
                                                                              CLIP
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 034
                                                                              MPN: 65859300
                                                                              ROD PIN
                                                                              from £9.42
                                                                              from £9.42
                                                                              This part replaces part number 60730200
                                                                              # 035
                                                                              MPN: 15210480
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 036
                                                                              MPN: 62790300
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12574011 - and 1 more. Click to view details
                                                                              # 037
                                                                              MPN: 63677900
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 038
                                                                              MPN: 13312970
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 039
                                                                              MPN: 13577701
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
