ferrari 512 m door - power window parts diagram

112 - Door - Power Window

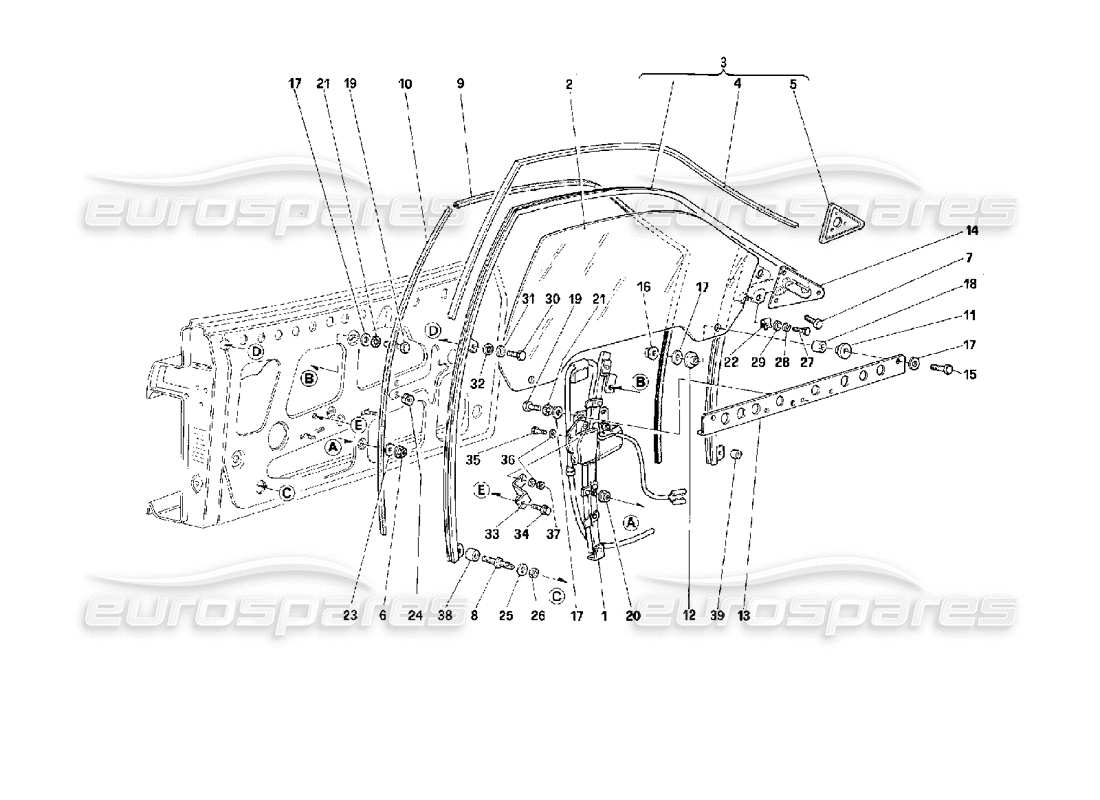

Ferrari 512 M Door - Power Window Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                          #
                                                                          Part number
                                                                          Description
                                                                          Price
                                                                          # 001
                                                                          MPN: 63096100
                                                                          RH WINDOW REGULATOR
                                                                          from £716.97
                                                                          from £716.97
                                                                          # 001
                                                                          MPN: 63096200
                                                                          LH WINDOW REGULATOR
                                                                          from £1,984.50
                                                                          from £1,984.50
                                                                          # 002
                                                                          MPN: 61533600
                                                                          LH GLASS
                                                                          from £282.58
                                                                          from £282.58
                                                                          This part replaces part number 61509000 - and 2 more. Click to view details
                                                                          # 002
                                                                          MPN: 61533700
                                                                          RH GLASS
                                                                          from £282.58
                                                                          from £282.58
                                                                          This part replaces part number 61508900 which we have in stock - and 2 more. Click to view details
                                                                          # 003
                                                                          MPN: 63057100
                                                                          RH FRAME WORK COMPLETE
                                                                          from £1,522.44
                                                                          from £1,522.44
                                                                          # 003
                                                                          MPN: 63057200
                                                                          LH FRAME WORK COMPLETE
                                                                          from £1,457.61
                                                                          from £1,457.61
                                                                          # 004
                                                                          MPN: 61548500
                                                                          GASKET FOR RH DOOR
                                                                          from £182.63
                                                                          from £182.63
                                                                          # 004
                                                                          MPN: 61548600
                                                                          GASKET FOR LH DOOR
                                                                          from £965.79
                                                                          from £965.79
                                                                          # 005
                                                                          MPN: 61573900
                                                                          SUPPORT FOR RH EXTERNAL REAR VIEW MIRROR
                                                                          from £233.38
                                                                          from £233.38
                                                                          # 005
                                                                          MPN: 61574000
                                                                          SUPPORT FOR LH EXTERNAL REAR VIEW MIRROR
                                                                          from £233.38
                                                                          from £233.38
                                                                          # 006
                                                                          MPN: 101139
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 16104425
                                                                          # 007
                                                                          MPN: 61568600
                                                                          button
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 008
                                                                          MPN: 62771300
                                                                          COLUMN
                                                                          from £5.58
                                                                          from £5.58
                                                                          # 009
                                                                          MPN: 61509800
                                                                          RUN CHANNEL
                                                                          Supersession
                                                                          Supersession
                                                                          This part replaces part number 60509800 - and 1 more. Click to view details
                                                                          # 010
                                                                          MPN: 61509900
                                                                          REAR RUN CHANNEL
                                                                          Supersession
                                                                          Supersession
                                                                          # 011
                                                                          MPN: 62106600
                                                                          INNER BUSH
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 012
                                                                          MPN: 62106700
                                                                          EXTERNAL BUSH
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 013
                                                                          MPN: 63108400
                                                                          RH GLASS BASE
                                                                          from £21.43
                                                                          from £21.43
                                                                          # 013
                                                                          MPN: 63108500
                                                                          LH GLASS BASE
                                                                          from £20.41
                                                                          from £20.41
                                                                          # 014
                                                                          MPN: 63111200
                                                                          COVER TO FIX RH MIRROR
                                                                          from £6.82
                                                                          from £6.82
                                                                          # 014
                                                                          MPN: 63111300
                                                                          COVER TO FIX LH MIRROR
                                                                          from £6.36
                                                                          from £6.36
                                                                          # 015
                                                                          MPN: 10902324
                                                                          SCREW
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                          # 017
                                                                          MPN: 12643724
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 109684 - and 4 more. Click to view details
                                                                          # 018
                                                                          MPN: 62766200
                                                                          BUSHING
                                                                          from £6.44
                                                                          from £6.44
                                                                          # 019
                                                                          MPN: 10902221
                                                                          SCREW
                                                                          from £0.52
                                                                          from £0.52
                                                                          # 020
                                                                          MPN: 14084411
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 021
                                                                          MPN: 127494
                                                                          WASHER
                                                                          (minimum order quantity = 20)
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                          # 022
                                                                          MPN: 62766300
                                                                          SPRING
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 023
                                                                          MPN: 10519624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 10519601 - and 3 more. Click to view details
                                                                          # 024
                                                                          MPN: 103549
                                                                          CABLE GROMMET
                                                                          from £0.70
                                                                          from £0.70
                                                                          # 025
                                                                          MPN: 12640624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12640601 - and 1 more. Click to view details
                                                                          # 026
                                                                          MPN: 13832101
                                                                          NUT
                                                                          from £0.47
                                                                          from £0.47
                                                                          # 027
                                                                          MPN: 10902221
                                                                          SCREW
                                                                          from £0.52
                                                                          from £0.52
                                                                          # 028
                                                                          MPN: 127494
                                                                          WASHER
                                                                          (minimum order quantity = 20)
                                                                          from £0.52
                                                                          from £0.52
                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                          # 029
                                                                          MPN: 12640624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12640601 - and 1 more. Click to view details
                                                                          # 030
                                                                          MPN: 10902124
                                                                          SCREW
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10902111 - and 1 more. Click to view details
                                                                          # 031
                                                                          MPN: 127494
                                                                          WASHER
                                                                          (minimum order quantity = 20)
                                                                          from £0.53
                                                                          from £0.53
                                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                                          # 032
                                                                          MPN: 12640624
                                                                          WASHER
                                                                          from £0.47
                                                                          from £0.47
                                                                          This part replaces part number 12640601 - and 1 more. Click to view details
                                                                          # 033
                                                                          MPN: 63951200
                                                                          BRACKET
                                                                          from £4.46
                                                                          from £4.46
                                                                          # 034
                                                                          MPN: 13836371
                                                                          SCREW
                                                                          from £1.49
                                                                          from £1.49
                                                                          # 035
                                                                          MPN: 10977511
                                                                          SCREW
                                                                          Supersession
                                                                          Supersession
                                                                          # 036
                                                                          MPN: 12638101
                                                                          WASHER
                                                                          from £0.71
                                                                          from £0.71
                                                                          # 037
                                                                          MPN: 12574115
                                                                          NUT
                                                                          from £1.08
                                                                          from £1.08
                                                                          # 038
                                                                          MPN: 64536300
                                                                          SPACER
                                                                          from £1.14
                                                                          from £1.14
                                                                          # 039
                                                                          MPN: 64536200
                                                                          SPACER
                                                                          from £1.51
                                                                          from £1.51
