ferrari 512 m seats and safety belts -not for usa- parts diagram

117 - Seats and Safety Belts -Not for USA-

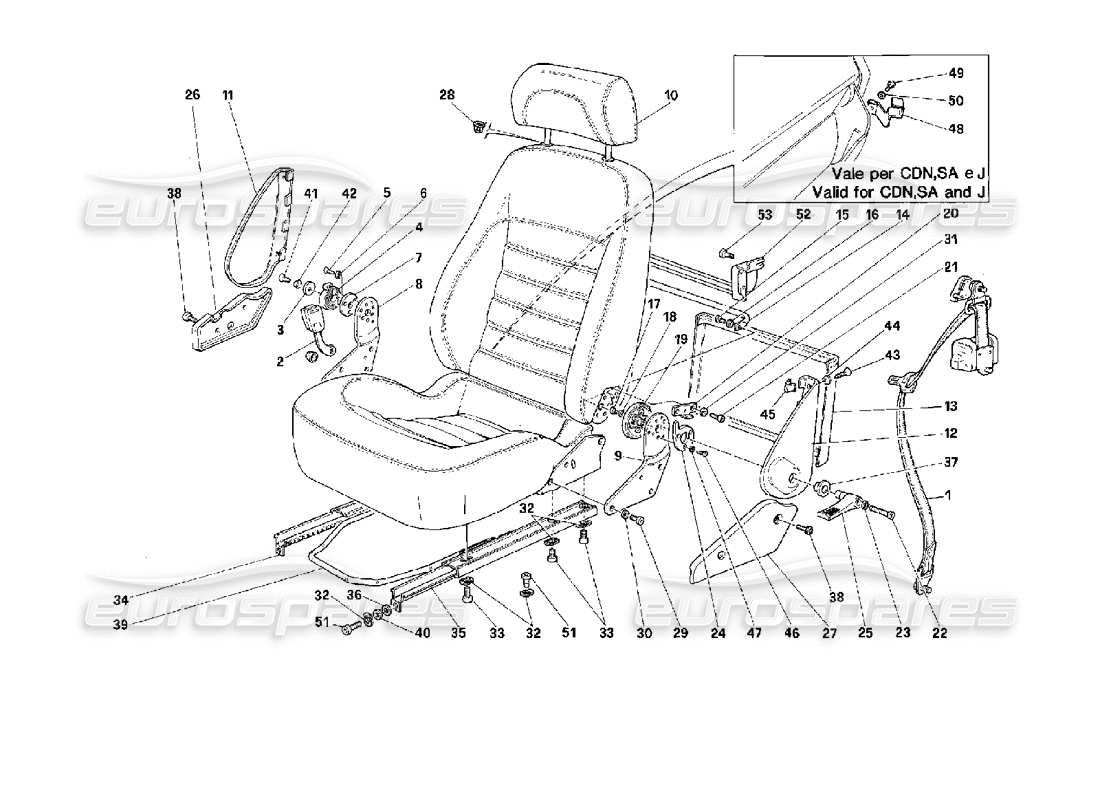

Ferrari 512 M Seats and Safety Belts -Not for USA- Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                          #
                                                                                          Part number
                                                                                          Description
                                                                                          Price
                                                                                          # 000
                                                                                          MPN: 630157..
                                                                                          RH SEAT WITH GUIDES
                                                                                          - Valid for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 630158..
                                                                                          LH SEAT WITH GUIDES
                                                                                          - Valid for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 636505..
                                                                                          PILLOW LINING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 636524..
                                                                                          LH
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 636621..
                                                                                          HEADREST LINING
                                                                                          - RH back seat lining
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 646023..
                                                                                          RH SEAT WITH GUIDES
                                                                                          - Not for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 000
                                                                                          MPN: 646024..
                                                                                          LH SEAT WITH GUIDES
                                                                                          - Not for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 001
                                                                                          MPN: 63100000
                                                                                          ABDOMINAL BELT SET ASSEMBLY
                                                                                          - Not for CDN, SA, J
                                                                                          from £416.80
                                                                                          from £416.80
                                                                                          # 002
                                                                                          MPN: 63433900
                                                                                          BELTS WHIPS KIT
                                                                                          - Not for CDN
                                                                                          from £58.59
                                                                                          from £58.59
                                                                                          # 002
                                                                                          MPN: 63459200
                                                                                          BELTS WHIPS KIT
                                                                                          - Valid for CDN
                                                                                          from £54.80
                                                                                          from £54.80
                                                                                          # 003
                                                                                          MPN: 13578305
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 004
                                                                                          MPN: 62651900
                                                                                          SPRING
                                                                                          from £10.27
                                                                                          from £10.27
                                                                                          # 005
                                                                                          MPN: 14441127
                                                                                          SCREW
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 006
                                                                                          MPN: 12606876
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 007
                                                                                          MPN: 63314300
                                                                                          BUSH FOR SPRING
                                                                                          from £14.71
                                                                                          from £14.71
                                                                                          # 008
                                                                                          MPN: 63288900
                                                                                          RH JOINT FASTENING PLATE
                                                                                          - Valid for CDN
                                                                                          from £91.75
                                                                                          from £91.75
                                                                                          # 008
                                                                                          MPN: 64602100
                                                                                          RH JOINT FASTENING PLATE
                                                                                          - Not for CDN
                                                                                          from £94.61
                                                                                          from £94.61
                                                                                          # 009
                                                                                          MPN: 63289000
                                                                                          LH JOINT FASTENING PLATE
                                                                                          - Valid for CDN
                                                                                          from £91.75
                                                                                          from £91.75
                                                                                          # 009
                                                                                          MPN: 64602200
                                                                                          LH JOINT FASTENING PLATE
                                                                                          - Not for CDN
                                                                                          from £94.61
                                                                                          from £94.61
                                                                                          # 010
                                                                                          MPN: 630180..
                                                                                          LINED HEADREST
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 011
                                                                                          MPN: 630184..
                                                                                          RH INNER BACK SEAT JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 011
                                                                                          MPN: 630187..
                                                                                          LH INNER BACK SEAT JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 012
                                                                                          MPN: 630185..
                                                                                          LH OUTER BACK SEAT JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 012
                                                                                          MPN: 630186..
                                                                                          RH OUTER BACK SEAT JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 013
                                                                                          MPN: 630188..
                                                                                          BACK SEAT FOR REAR SIDE LINING
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 014
                                                                                          MPN: 63294300
                                                                                          JOINT CONNECTION
                                                                                          from £9.51
                                                                                          from £9.51
                                                                                          This part replaces part number 62651800
                                                                                          # 015
                                                                                          MPN: 14302931
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 016
                                                                                          MPN: 160920
                                                                                          WASHER
                                                                                          from £0.50
                                                                                          from £0.50
                                                                                          # 017
                                                                                          MPN: 63325100
                                                                                          SCREW
                                                                                          from £2.88
                                                                                          from £2.88
                                                                                          # 018
                                                                                          MPN: 10615470
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 019
                                                                                          MPN: 62652200
                                                                                          RH SIDE BACK SEAT ADJUSTER
                                                                                          from £128.56
                                                                                          from £128.56
                                                                                          # 019
                                                                                          MPN: 62652400
                                                                                          LH SIDE BACK SEAT ADJUSTER
                                                                                          from £39.76
                                                                                          from £39.76
                                                                                          # 020
                                                                                          MPN: 62887300
                                                                                          PLATE FOR BACK SEAT STOP
                                                                                          from £14.58
                                                                                          from £14.58
                                                                                          # 021
                                                                                          MPN: 40294308
                                                                                          SCREW
                                                                                          from £2.52
                                                                                          from £2.52
                                                                                          This part replaces part number 20293306
                                                                                          # 022
                                                                                          MPN: 14358927
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 023
                                                                                          MPN: 149951
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10615301 - and 4 more. Click to view details
                                                                                          # 024
                                                                                          MPN: 62955700
                                                                                          RH BACK SEAT LOCK
                                                                                          from £5.83
                                                                                          from £5.83
                                                                                          # 024
                                                                                          MPN: 62955800
                                                                                          LH BACK SEAT LOCK
                                                                                          from £23.21
                                                                                          from £23.21
                                                                                          # 025
                                                                                          MPN: 62743900
                                                                                          RH SEAT RELEASE HANDLE
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 025
                                                                                          MPN: 63294200
                                                                                          LH SEAT RELEASE HANDLE
                                                                                          from £50.91
                                                                                          from £50.91
                                                                                          This part replaces part number 62743800
                                                                                          # 026
                                                                                          MPN: 632396..
                                                                                          RH INNER PILLOW JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 026
                                                                                          MPN: 632398..
                                                                                          LH INNER PILLOW JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 027
                                                                                          MPN: 632397..
                                                                                          RH OUTER PILLOW JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 027
                                                                                          MPN: 632399..
                                                                                          LH OUTER PILLOW JOINT COVER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 028
                                                                                          MPN: 20058905
                                                                                          HEADREST PLASTIC INSERT
                                                                                          from £19.41
                                                                                          from £19.41
                                                                                          # 029
                                                                                          MPN: 40294308
                                                                                          SCREW
                                                                                          from £2.52
                                                                                          from £2.52
                                                                                          This part replaces part number 20293306
                                                                                          # 030
                                                                                          MPN: 12601374
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                          # 031
                                                                                          MPN: 12601374
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                          # 032
                                                                                          MPN: 63395300
                                                                                          PLATE
                                                                                          from £0.87
                                                                                          from £0.87
                                                                                          # 033
                                                                                          MPN: 40294308
                                                                                          SCREW
                                                                                          from £2.52
                                                                                          from £2.52
                                                                                          This part replaces part number 20293306
                                                                                          # 034
                                                                                          MPN: 62655200
                                                                                          RH GUIDE
                                                                                          - Valid for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 034
                                                                                          MPN: 64339300
                                                                                          RH GUIDE
                                                                                          - Not for CDN
                                                                                          from £198.28
                                                                                          from £198.28
                                                                                          This part replaces part number 62655200
                                                                                          # 035
                                                                                          MPN: 62655300
                                                                                          LH GUIDE
                                                                                          - Valid for CDN
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 035
                                                                                          MPN: 64339400
                                                                                          LH GUIDE
                                                                                          - Not for CDN
                                                                                          from £198.28
                                                                                          from £198.28
                                                                                          This part replaces part number 62655300
                                                                                          # 036
                                                                                          MPN: 14496506
                                                                                          WASHER
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 037
                                                                                          MPN: 62752500
                                                                                          BUSH
                                                                                          from £3.22
                                                                                          from £3.22
                                                                                          # 038
                                                                                          MPN: 20297602
                                                                                          SCREW
                                                                                          from £5.72
                                                                                          from £5.72
                                                                                          # 039
                                                                                          MPN: 629838..
                                                                                          GUIDES CONTROL FORK
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 040
                                                                                          MPN: 12601374
                                                                                          WASHER
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                          # 041
                                                                                          MPN: 14441127
                                                                                          SCREW
                                                                                          from £0.54
                                                                                          from £0.54
                                                                                          # 042
                                                                                          MPN: 12606876
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 043
                                                                                          MPN: 15915277
                                                                                          SCREW
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          This part replaces part number 15915202 - and 1 more. Click to view details
                                                                                          # 044
                                                                                          MPN: 62823200
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 045
                                                                                          MPN: 62773500
                                                                                          CLIP
                                                                                          from £0.47
                                                                                          from £0.47
                                                                                          # 046
                                                                                          MPN: 63622600
                                                                                          SCREW
                                                                                          from £1.11
                                                                                          from £1.11
                                                                                          # 046
                                                                                          MPN: 63622700
                                                                                          SCREW
                                                                                          from £0.75
                                                                                          from £0.75
                                                                                          # 047
                                                                                          MPN: 12606876
                                                                                          WASHER
                                                                                          from £0.71
                                                                                          from £0.71
                                                                                          # 048
                                                                                          MPN: 153982
                                                                                          BRACKET TO SUPPORT BELT CONNECTOR
                                                                                          - Valid for CDN, SA, J
                                                                                          from £9.17
                                                                                          from £9.17
                                                                                          # 049
                                                                                          MPN: 20297602
                                                                                          SCREW
                                                                                          - Valid for CDN, SA, J
                                                                                          from £5.72
                                                                                          from £5.72
                                                                                          # 050
                                                                                          MPN: 12601179
                                                                                          WASHER
                                                                                          - Valid for CDN, SA, J
                                                                                          Supersession
                                                                                          Supersession
                                                                                          This part replaces part number 12601171 - and 1 more. Click to view details
                                                                                          # 051
                                                                                          MPN: 20293306
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
                                                                                          # 052
                                                                                          MPN: 62651700
                                                                                          ARTICULATED JOINTS TRANSM. COVER
                                                                                          # 053
                                                                                          MPN: 14302331
                                                                                          SCREW
                                                                                          Supersession
                                                                                          Supersession
