ferrari 512 m windshield wiper, washer and horns parts diagram

128 - Windshield Wiper, Washer and Horns

Ferrari 512 M Windshield Wiper, Washer and Horns Parts Diagram

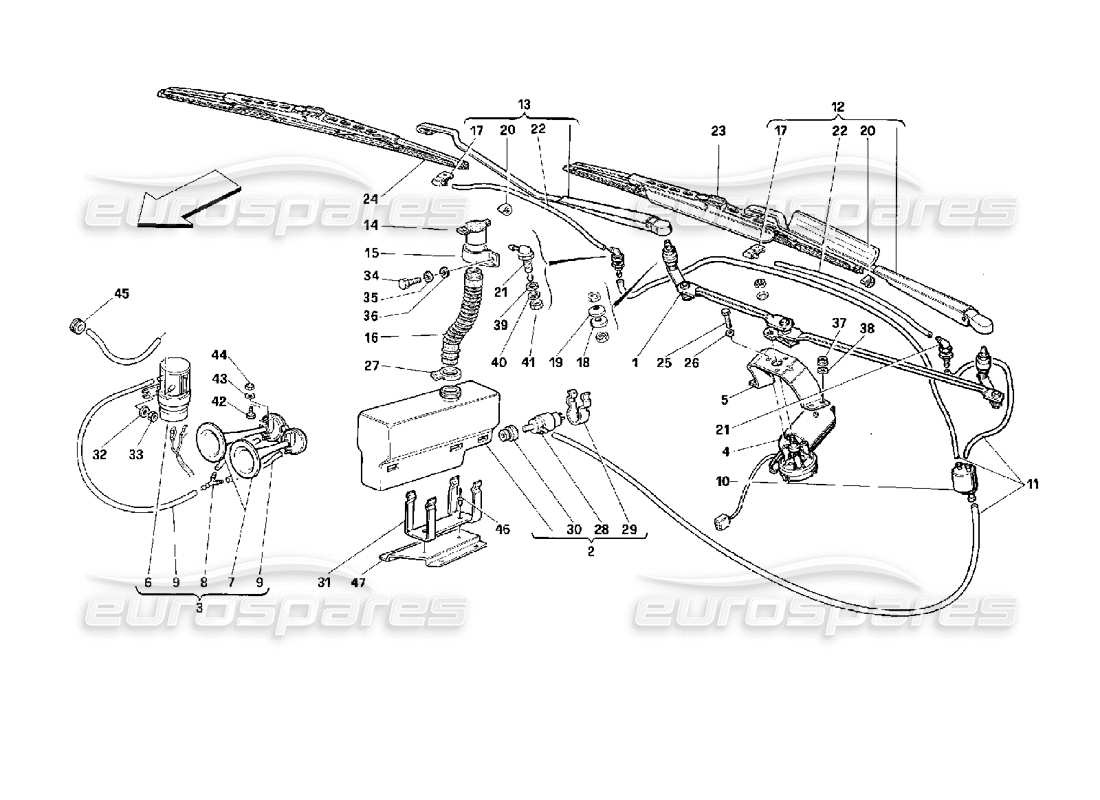

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                              #
                                                                              Part number
                                                                              Description
                                                                              Price
                                                                              # 001
                                                                              MPN: 63467900
                                                                              WINDSHIELD WIPER LEVERAGE
                                                                              - Not for GD
                                                                              from £317.32
                                                                              from £317.32
                                                                              # 001
                                                                              MPN: 63468000
                                                                              WINDSHIELD WIPER LEVERAGE
                                                                              - Valid for GD
                                                                              from £212.92
                                                                              from £212.92
                                                                              # 002
                                                                              MPN: 63112200
                                                                              WATER RESERVOIR, COMPLETE
                                                                              from £862.22
                                                                              from £862.22
                                                                              # 003
                                                                              MPN: 189428
                                                                              HORN, COMPLETE
                                                                              from £33.88
                                                                              from £33.88
                                                                              This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                                              # 004
                                                                              MPN: 61528100
                                                                              wiper motor
                                                                              from £413.59
                                                                              from £413.59
                                                                              This part replaces part number 144491 - and 8 more. Click to view details
                                                                              # 005
                                                                              MPN: 63080900
                                                                              PLATE
                                                                              from £40.77
                                                                              from £40.77
                                                                              # 006
                                                                              MPN: 225757
                                                                              ELECTRO COMPRESSOR
                                                                              from £136.05
                                                                              from £136.05
                                                                              This part replaces part number 139920
                                                                              # 007
                                                                              MPN: 162304
                                                                              ELECTROPNEUMATIC HORN
                                                                              - Valid for CH
                                                                              from £18.95
                                                                              from £18.95
                                                                              # 007
                                                                              MPN: 189428
                                                                              ELECTROPNEUMATIC HORN
                                                                              - Not for CH
                                                                              from £33.88
                                                                              from £33.88
                                                                              This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                                              # 008
                                                                              MPN: 60741100
                                                                              3 WAY UNION
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 61741100
                                                                              # 009
                                                                              MPN: 63243200
                                                                              AIR DUCT
                                                                              from £0.83
                                                                              from £0.83
                                                                              # 011
                                                                              MPN: 61648200
                                                                              PIPE
                                                                              - Not for GD
                                                                              from £9.45
                                                                              from £9.45
                                                                              # 011
                                                                              MPN: 63991900
                                                                              PIPE
                                                                              - Valid for GD
                                                                              from £26.34
                                                                              from £26.34
                                                                              # 012
                                                                              MPN: 61725600
                                                                              WIPER ARM DRIVER SEAT SIDE COMPLETE
                                                                              - Valid for GD
                                                                              from £126.13
                                                                              from £126.13
                                                                              # 012
                                                                              MPN: 62461600
                                                                              WIPER ARM DRIVER SEAT SIDE COMPLETE
                                                                              - Not for GD
                                                                              from £271.63
                                                                              from £271.63
                                                                              This part replaces part number 61647700 which we have in stock - and 2 more. Click to view details
                                                                              # 013
                                                                              MPN: 61647600
                                                                              WIPER ARM PASSENGER SIDE COMPLETE
                                                                              - Not for GD
                                                                              from £100.00
                                                                              from £100.00
                                                                              # 013
                                                                              MPN: 61725700
                                                                              WIPER ARM PASSENGER SIDE COMPLETE
                                                                              - Valid for GD
                                                                              from £34.69
                                                                              from £34.69
                                                                              # 014
                                                                              MPN: 63118500
                                                                              PLUG WITH FILTER
                                                                              from £1.55
                                                                              from £1.55
                                                                              # 015
                                                                              MPN: 63449500
                                                                              TANK UNION
                                                                              from £82.26
                                                                              from £82.26
                                                                              # 016
                                                                              MPN: 63969500
                                                                              TANK PIPE
                                                                              from £8.21
                                                                              from £8.21
                                                                              # 017
                                                                              MPN: 61537500
                                                                              WINDSCREEN WASHER JET
                                                                              -Valid for GD-
                                                                              from £18.56
                                                                              from £18.56
                                                                              # 017
                                                                              MPN: 61541500
                                                                              WINDSCREEN WASHER JET
                                                                              - Not for GD
                                                                              from £17.91
                                                                              from £17.91
                                                                              # 018
                                                                              MPN: 61537600
                                                                              CAP
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 019
                                                                              MPN: 61537700
                                                                              SPACER
                                                                              from £0.59
                                                                              from £0.59
                                                                              # 020
                                                                              MPN: 61559400
                                                                              CLIP
                                                                              from £1.27
                                                                              from £1.27
                                                                              # 021
                                                                              MPN: 61648000
                                                                              UNION
                                                                              from £26.63
                                                                              from £26.63
                                                                              This part replaces part number 64290900
                                                                              # 022
                                                                              MPN: 63432500
                                                                              PIPE FROM UNION TO NOZZLE
                                                                              from £11.77
                                                                              from £11.77
                                                                              # 023
                                                                              MPN: 61647800
                                                                              Wiper brushes driver side
                                                                              - Valid for GD
                                                                              Supersession
                                                                              Supersession
                                                                              # 023
                                                                              MPN: 62461700
                                                                              Wiper brushes driver side
                                                                              - Not for GD - USE 65661700
                                                                              Supersession
                                                                              Supersession
                                                                              # 023
                                                                              MPN: 65661700
                                                                              WINDSHIELD WIPER (PAIR)
                                                                              from £29.39
                                                                              from £29.39
                                                                              This part replaces part number 62461700 - and 3 more. Click to view details
                                                                              # 024
                                                                              MPN: 61647800
                                                                              WIPER BRUSHES PASSENGER SIDE
                                                                              - Valid for GD
                                                                              Supersession
                                                                              Supersession
                                                                              # 024
                                                                              MPN: 62461800
                                                                              WIPER BRUSHES PASSENGER SIDE
                                                                              - Not for GD
                                                                              from £55.64
                                                                              from £55.64
                                                                              # 025
                                                                              MPN: 10902211
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 026
                                                                              MPN: 127494
                                                                              WASHER
                                                                              (minimum order quantity = 20)
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10516470 - and 4 more. Click to view details
                                                                              # 027
                                                                              MPN: 63453700
                                                                              PLUG
                                                                              from £1.85
                                                                              from £1.85
                                                                              # 028
                                                                              MPN: 61535400
                                                                              PUMP FOR WATER RESERVOIR
                                                                              from £80.00
                                                                              from £80.00
                                                                              # 029
                                                                              MPN: 63290800
                                                                              FIX. PUMP SPRING
                                                                              from £13.26
                                                                              from £13.26
                                                                              # 030
                                                                              MPN: 63290900
                                                                              RUBBER BUSH
                                                                              from £0.80
                                                                              from £0.80
                                                                              # 031
                                                                              MPN: 60630000
                                                                              WATER RESERVOIR RETAINER SPRING
                                                                              from £19.18
                                                                              from £19.18
                                                                              # 032
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                              # 033
                                                                              MPN: 102948
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                                              # 034
                                                                              MPN: 10902421
                                                                              SCREW
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 035
                                                                              MPN: 10615474
                                                                              WASHER
                                                                              Supersession
                                                                              Supersession
                                                                              This part replaces part number 10615470 - and 3 more. Click to view details
                                                                              # 036
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                              # 037
                                                                              MPN: 14084211
                                                                              NUT
                                                                              from £0.71
                                                                              from £0.71
                                                                              # 038
                                                                              MPN: 12643724
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 109684 - and 4 more. Click to view details
                                                                              # 039
                                                                              MPN: 64291000
                                                                              SEAL RING
                                                                              from £1.46
                                                                              from £1.46
                                                                              # 040
                                                                              MPN: 64291100
                                                                              WASHER
                                                                              from £1.04
                                                                              from £1.04
                                                                              # 041
                                                                              MPN: 64291200
                                                                              NUT
                                                                              Supersession
                                                                              Supersession
                                                                              # 042
                                                                              MPN: 10902424
                                                                              SCREW
                                                                              from £0.53
                                                                              from £0.53
                                                                              This part replaces part number 10902324 - and 3 more. Click to view details
                                                                              # 043
                                                                              MPN: 10519424
                                                                              WASHER
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 10519401 - and 3 more. Click to view details
                                                                              # 044
                                                                              MPN: 102948
                                                                              NUT
                                                                              from £0.47
                                                                              from £0.47
                                                                              This part replaces part number 12574211 - and 3 more. Click to view details
                                                                              # 045
                                                                              MPN: 10396380
                                                                              PIPE GROMMET RING
                                                                              from £0.47
                                                                              from £0.47
                                                                              # 046
                                                                              MPN: 60310703
                                                                              RIVET
                                                                              from £1.18
                                                                              from £1.18
                                                                              # 047
                                                                              MPN: 64475200
                                                                              BRACKET
                                                                              from £5.09
                                                                              from £5.09
