004 - RH cylinder head

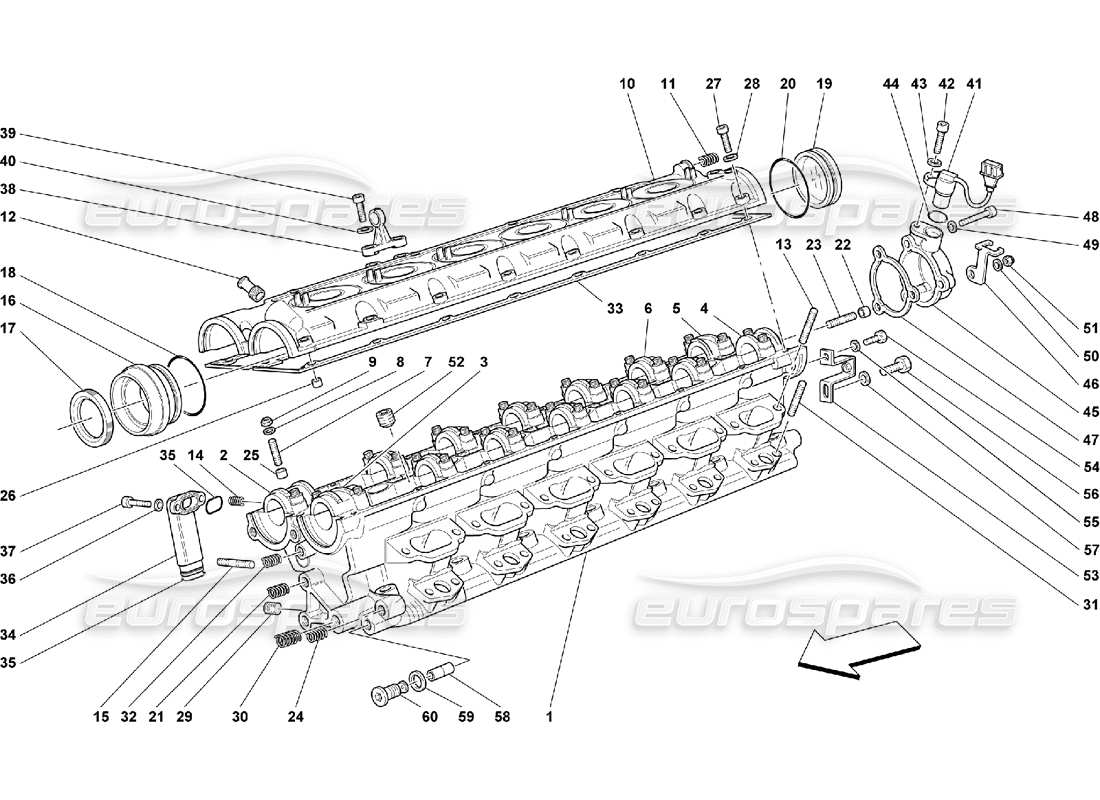

Ferrari 550 Maranello R.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 173494
COMPLETE RH CYLINDERS HEAD
Supersession
Supersession
This part replaces part number 167399
# 001
MPN: 167399
RH HEAD
- With complete cylinder head
Supersession
Supersession
# 002
MPN: 154203
RIGHT FRONT CAP
- With complete cylinder head
# 003
MPN: 154205
LEFT FRONT CAP
- With complete cylinder head
# 004
MPN: 154204
LEFT REAR CAP
- With complete cylinder head
# 005
MPN: 154206
RIGHT REAR CAP
- With complete cylinder head
# 006
MPN: 154207
INTERMEDIATE CAP
- With complete cylinder head
# 007
MPN: 13541424
STUD
from £0.47
from £0.47
This part replaces part number 13541421
# 008
MPN: 11197774
WASHER
from £0.50
from £0.50
This part replaces part number 11197770 - and 3 more. Click to view details
# 009
MPN: 15896214
NUT
from £0.50
from £0.50
This part replaces part number 15896211
# 010
MPN: 171719
RH CYLINDERS HEAD COVER
- With complete cylinder head
# 011
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 012
MPN: 154525
THREADED UNION
from £24.94
from £24.94
# 013
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 014
MPN: 13525170
THREADED INSERT
from £0.51
from £0.51
# 015
MPN: 13516824
STUD
from £0.48
from £0.48
This part replaces part number 13516821
# 016
MPN: 148022
FRONT COVER
from £24.78
from £24.78
# 017
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 018
MPN: 117275
O.R. GASKET
from £2.93
from £2.93
# 019
MPN: 148023
REAR SMALL COVER
from £6.82
from £6.82
# 020
MPN: 117275
O.R. GASKET
from £2.93
from £2.93
# 021
MPN: 13525770
THREADED INSERT
from £1.54
from £1.54
This part replaces part number 103830
# 022
MPN: 102725
DOWEL
from £0.64
from £0.64
# 023
MPN: 13541324
STUD
from £1.01
from £1.01
This part replaces part number 13541321
# 024
MPN: 13525870
THREADED INSERT
from £1.90
from £1.90
This part replaces part number 105510
# 025
MPN: 102725
DOWEL
from £0.59
from £0.59
# 026
MPN: 102725
DOWEL
from £0.64
from £0.64
# 027
MPN: 156834
SCREW
from £1.54
from £1.54
# 028
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 14326150
PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 030
MPN: 13524670
THREADED INSERT
from £0.71
from £0.71
# 031
MPN: 11500224
STUD
from £0.48
from £0.48
This part replaces part number 11500221 - and 1 more. Click to view details
# 032
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 033
MPN: 140753
COVER GASKET
from £26.66
from £26.66
# 033
MPN: FCCG016
CAM COVER GASKET SET
(140753 x2 - 140787 x2)
from £75.00
from £75.00
# 034
MPN: 154647
OIL EXHAUST DUCTING
from £27.93
from £27.93
# 035
MPN: 142599
O.R. GASKET
from £0.66
from £0.66
# 036
MPN: 12601174
WASHER
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 037
MPN: 14304224
SCREW
from £0.53
from £0.53
# 038
MPN: 151688
SUPPORT FOR ACCELERATOR CABLE
from £23.43
from £23.43
# 039
MPN: 14305224
SCREW
from £0.53
from £0.53
# 040
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 041
MPN: 150866
PHASE SENSOR
from £135.82
from £135.82
# 042
MPN: 14305224
SCREW
from £0.53
from £0.53
# 043
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 044
MPN: 150867
SEAL RING
from £1.21
from £1.21
# 045
MPN: 151275
RH PHASE SENSOR SUPPORT
from £437.83
from £437.83

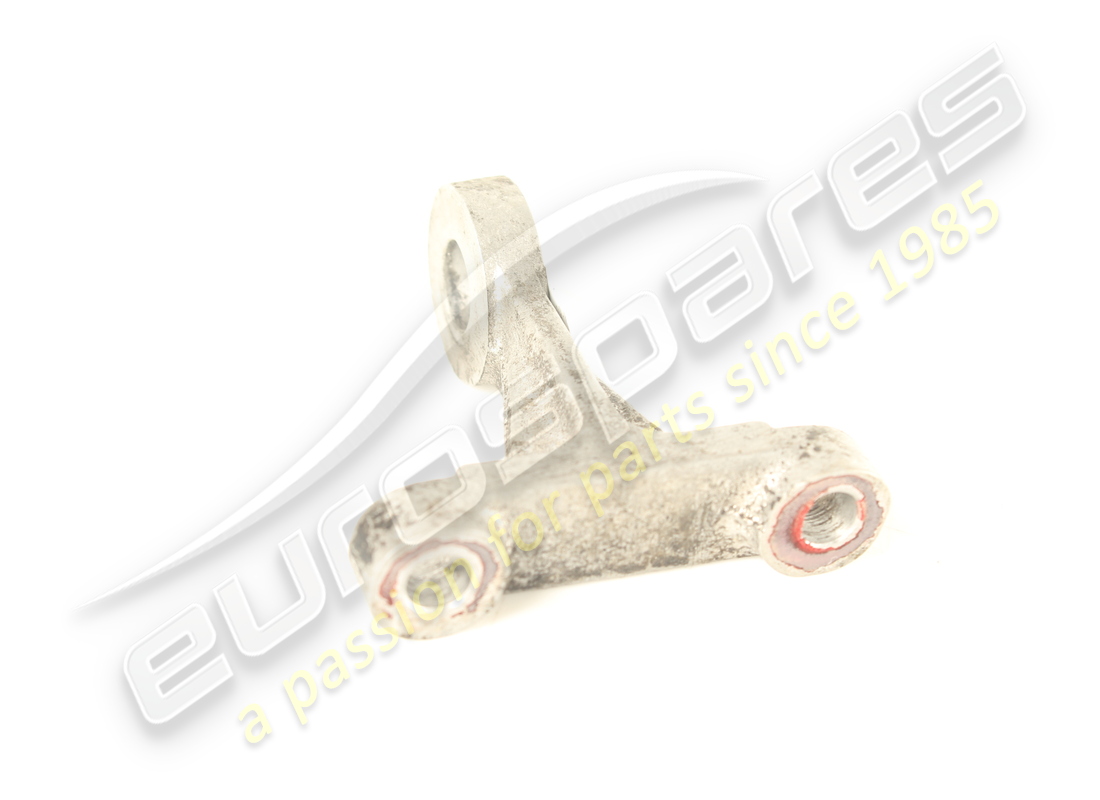

# 046
MPN: 160867
BRACKET
from £20.12
from £20.12
This part replaces part number 178717
# 047
MPN: 140787
GASKET
(minimum order quantity = 4)
from £6.44
from £6.44
# 048
MPN: 14305521
SCREW
from £0.53
from £0.53
# 049
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 050
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 051
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 052
MPN: 127635
THREADED PLUG
from £1.47
from £1.47
This part replaces part number 183447
# 053
MPN: 157910
BRACKET
from £19.39
from £19.39
# 054
MPN: 10977524
SCREW
from £0.53
from £0.53
# 055
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 056
MPN: 16043124
SCREW
from £0.30
from £0.30
This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
# 057
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 058
MPN: 156862
NONRETURN VALVE
from £5.10
from £5.10
# 059
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 060
MPN: 163714
PLUG
from £17.35
from £17.35
