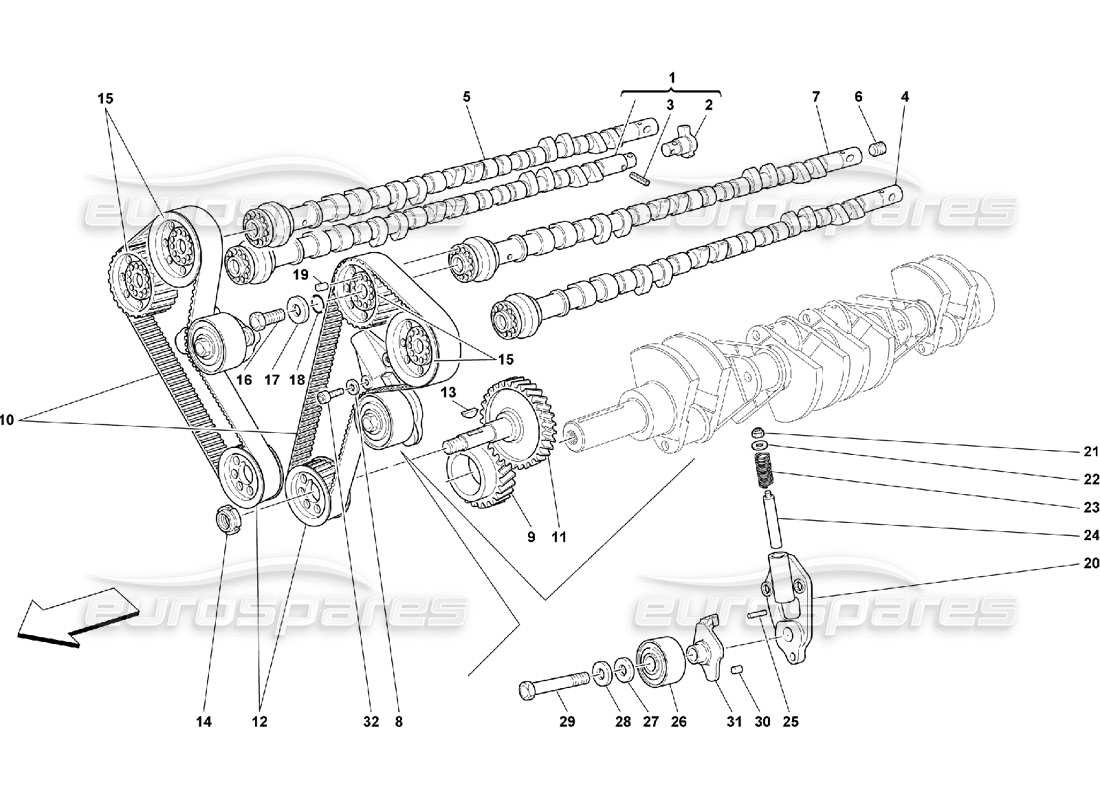

Ferrari 550 Maranello Timing - Controls Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 171460

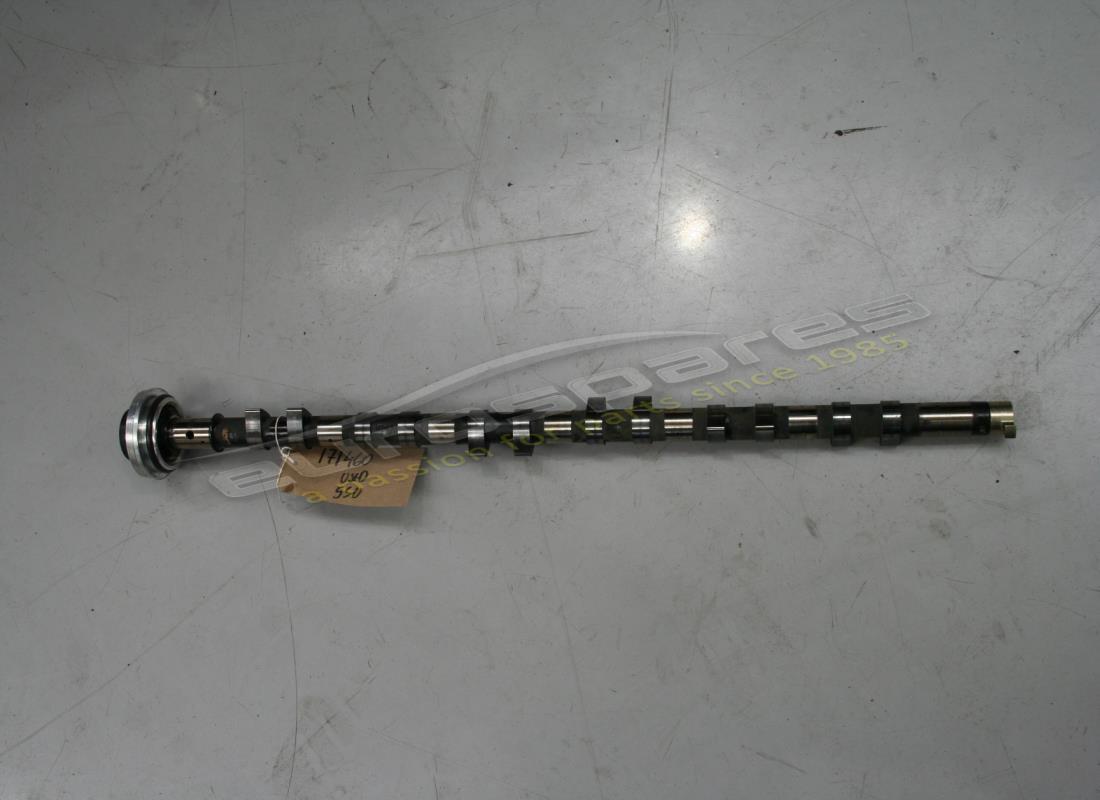

COMPLETE RH EXHAUST CAM SHAFT
from £281.79
from £281.79
This part replaces part number 167555 - and 2 more. Click to view details
# 002
MPN: 171450
COUPLING ON THE CAM SHAFT
from £198.93
from £198.93
# 003
MPN: 149859
PIN
from £1.52
from £1.52
# 004
MPN: 168952

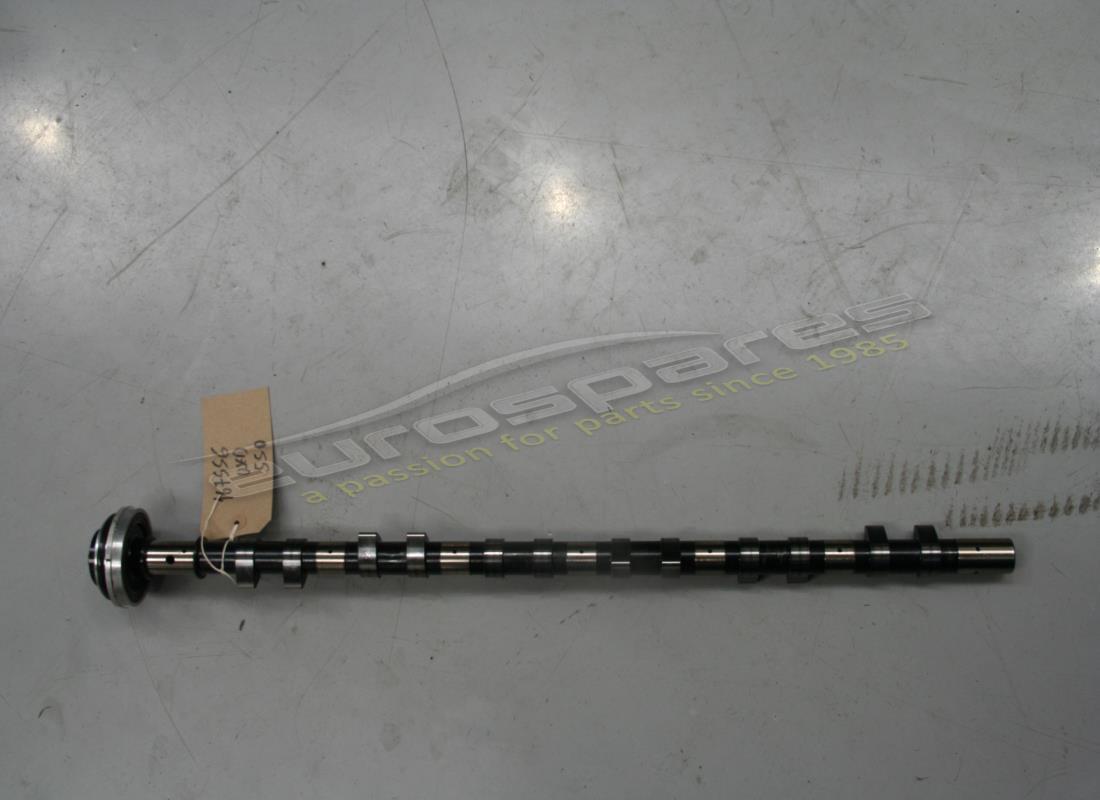

COMPLETE LH EXHAUST CAM SHAFT
from £260.80
from £260.80
# 005
MPN: 167556
COMPLETE RH INDUCTION DISTRIBUTION CAM SHAFT
from £254.93
from £254.93
# 006
MPN: 10269550
THREADED PLUG
from £1.55
from £1.55
# 007
MPN: 167558
COMPLETE LH INDUCTION DISTRIBUTION CAM SHAFT
from £255.72
from £255.72
# 008
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 009
MPN: 168702
DRIVING GEAR
Supersession
Supersession
# 010
MPN: 187744
TIMING CONTROL BELT
from £33.52
from £33.52
This part replaces part number 148515
# 011
MPN: 168701
DRIVEN GEAR
Supersession
Supersession
# 012
MPN: 149928
CONTROL TIMING GEAR
from £146.35
from £146.35
# 013
MPN: 10206320
DISC KEY
from £0.87
from £0.87
# 014
MPN: 104919
RING NUT
from £3.02
from £3.02
# 015
MPN: 159382
DRIVEN GEAR
from £51.75
from £51.75
This part replaces part number 149927 which we have in stock - and 2 more. Click to view details
# 016
MPN: 146540
SCREW
from £9.06
from £9.06
This part replaces part number 16326431 - and 3 more. Click to view details
# 017
MPN: 114802
WASHER
from £6.15
from £6.15
# 018
MPN: 114808
SEAL RING
from £2.53
from £2.53
# 019
MPN: 114803
DOWEL
from £18.02
from £18.02
# 020
MPN: 149346
BELT TIGHTENER BODY
from £130.45
from £130.45
# 021
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 022
MPN: 121558
WASHER
from £1.08
from £1.08
# 023
MPN: 121249
SPRING FOR BELT STRETCHER
from £11.62
from £11.62
# 024
MPN: 121047
PIN
from £7.98
from £7.98
# 025
MPN: 13933570
PIN
from £0.51
from £0.51
# 026
MPN: 171057
TIMING BEARING
from £146.76
from £146.76
# 026
MPN: 70000933
TIMING PULLEY KIT
(quantity required = 2)
from £133.51
from £133.51
This part replaces part number 130872
# 027
MPN: 111460
SPACER
from £12.60
from £12.60
# 028
MPN: 102824
WASHER
from £14.96
from £14.96
# 029
MPN: 149461
SCREW
from £57.75
from £57.75
# 030
MPN: 125717
DOWEL
from £1.54
from £1.54
# 031
MPN: 121045
PLATE
- Valid till engine Nr. 48766
from £315.57
from £315.57
# 031
MPN: 171060
PLATE
- Valid from engine Nr. 48767
from £52.04
from £52.04
# 032
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
