010 - Fuel Cooling System -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

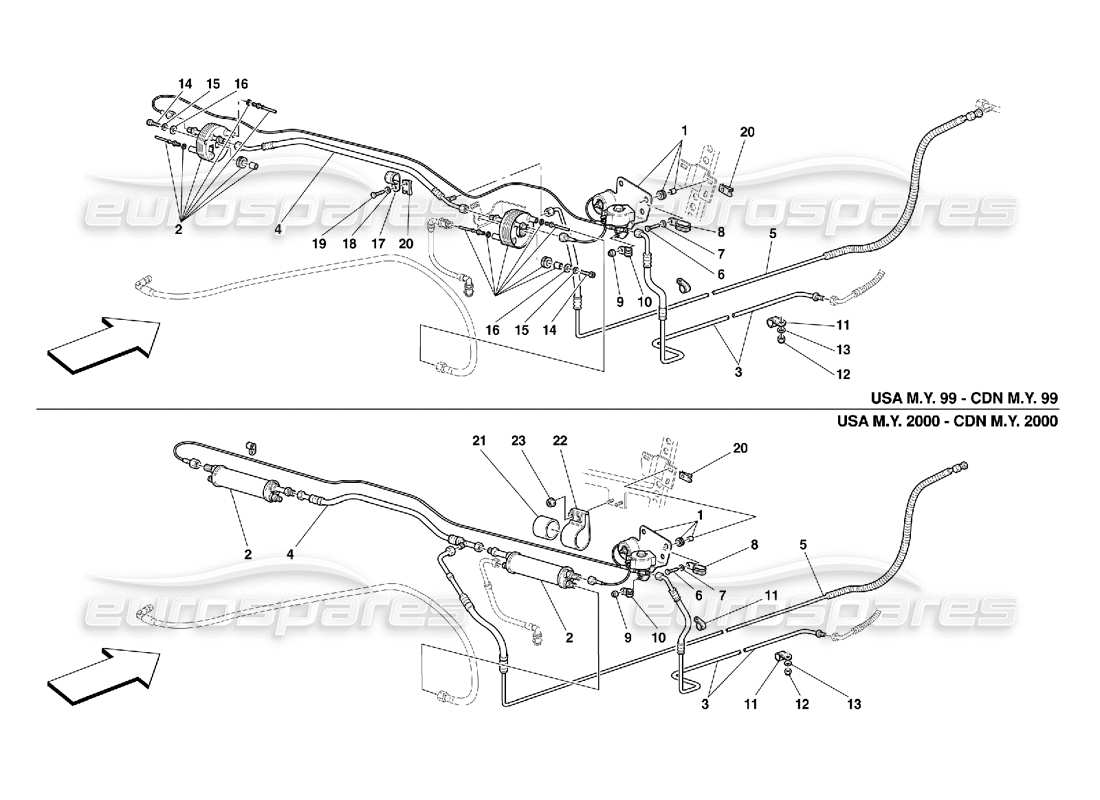

Ferrari 550 Maranello Fuel Cooling System -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65864300
COMPLETE SOLENOID VALVE BODY
from £342.69
from £342.69
# 002
MPN: 179811
FUEL/FREON HEAT EXCHANGER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £884.74
from £884.74
# 002
MPN: 180838
FUEL/FREON HEAT EXCHANGER
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
Supersession
Supersession
# 003
MPN: 65857000
INLET GAS PIPE TO VALVE
from £84.91
from £84.91
# 004
MPN: 65857400
EXCHANGER PIPE CONNECTION
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £106.08
from £106.08
# 004
MPN: 65930200
EXCHANGER PIPE CONNECTION
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £84.91
from £84.91
# 005
MPN: 65857500
UNDERFLOOR SUCTION GAS PIPE
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £254.64
from £254.64
# 005
MPN: 65930300
UNDERFLOOR SUCTION GAS PIPE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £122.31
from £122.31
# 006
MPN: 10902624
SCREW
from £0.52
from £0.52
This part replaces part number 10902621
# 007
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 008
MPN: 61712500
BRACKET
from £1.04
from £1.04
# 009
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 010
MPN: 10440990
BRACKET
from £0.85
from £0.85
# 011
MPN: 10441290
BRACKET
from £0.48
from £0.48
# 012
MPN: 102948
NUT
from £0.52
from £0.52
This part replaces part number 12574211 - and 3 more. Click to view details
# 013
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 014
MPN: 14306374
SCREW
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.53
from £0.53
This part replaces part number 14306334
# 015
MPN: 127496
WASHER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 016
MPN: 12646724
WASHER
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.54
from £0.54
This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
# 017
MPN: 10441790
BRACKET
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.53
from £0.53
# 018
MPN: 127494
WASHER
- Valid for USA M.Y. 99 and CDN M.Y. 99 - (minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 019
MPN: 10902124
SCREW
- Valid for USA M.Y. 99 and CDN M.Y. 99
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 020
MPN: 62766300
CLIP
- For USA M.Y. 2000 and CDN M.Y. 2000 q.ty 3
from £0.52
from £0.52
# 021
MPN: 181267

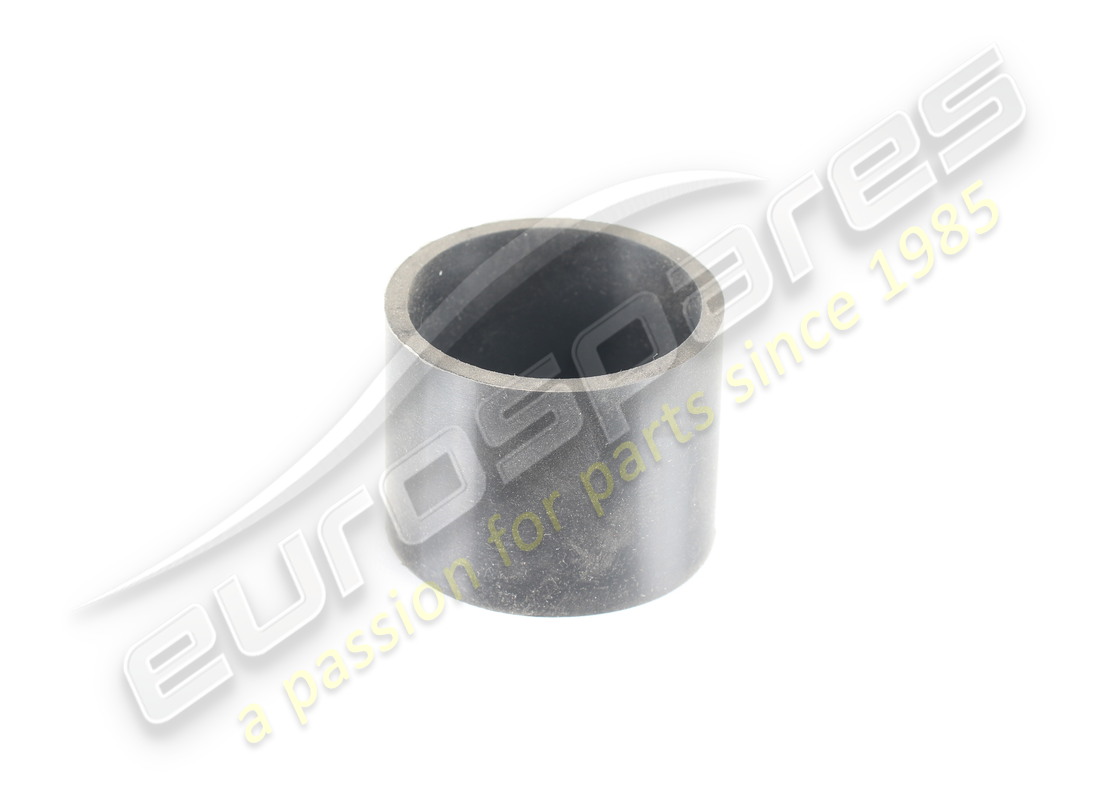

SLEEVE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £24.24
from £24.24
# 022
MPN: 180941
CLAMP
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £4.00
from £4.00
# 023
MPN: 14058411
NUT
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £0.53
from £0.53
