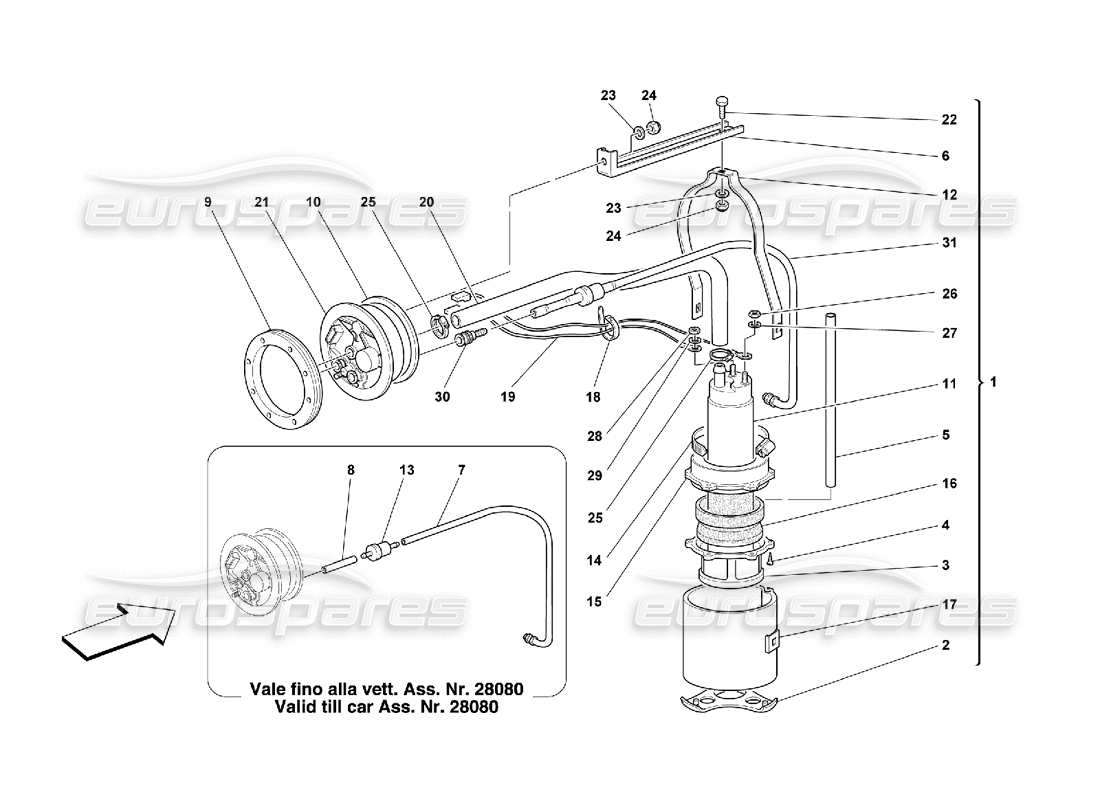

Ferrari 550 Maranello Fuel Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 173894
COMPLETE FUEL PUMP
Supersession
Supersession
This part replaces part number 170428
# 002
MPN: 126807
ANTI VIBRATION PAD
from £20.98
from £20.98
# 003
MPN: 126808
FILTER INSIDE CHAMBER
Supersession
Supersession
# 004
MPN: 15671101
SCREW
from £1.37
from £1.37
# 005
MPN: 166582
PIPE
- Valid for fuel pump 170428
Supersession
Supersession
# 005
MPN: 173892
PIPE
- Valid for fuel pump 173894
from £6.51
from £6.51
This part replaces part number 166582
# 006
MPN: 166520
BRACKET
from £48.57
from £48.57
This part replaces part number 162722
# 007
MPN: 169144
FUEL FLOWING BACK PIPE
- Valid till car Ass. Nr. 28080
Supersession
Supersession
# 008
MPN: 169143
FUEL FLOWING BACK PIPE
- Valid till car Ass. Nr. 28080
Supersession
Supersession
# 009
MPN: 126838
RING NUT
from £47.29
from £47.29
# 010
MPN: 897696
GASKET
alternative 126835
from £47.37
from £47.37
This part replaces part number 126835
# 011
MPN: 173891

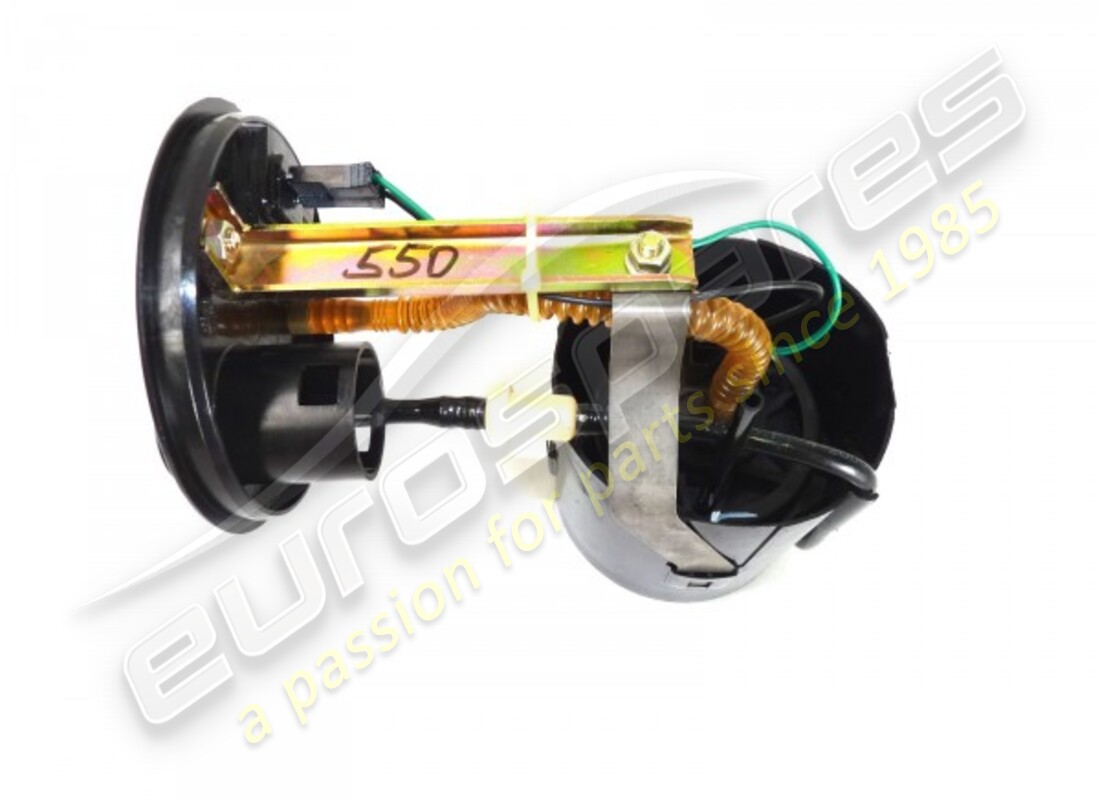

fuel pump
from £275.04
from £275.04
This part replaces part number 170427 - and 1 more. Click to view details
# 012
MPN: 166512
ANTI-VIBRATING SPRING
from £70.09
from £70.09
This part replaces part number 162722
# 013
MPN: 166540
NONRETURN VALVE
- Valid till car Ass. Nr. 28080
from £17.68
from £17.68
This part replaces part number 170503
# 014
MPN: 13000890
SCREW COLLAR
from £0.63
from £0.63
This part replaces part number 12173290 - and 2 more. Click to view details
# 015
MPN: 170512
FUEL FILTER COVER
from £12.17
from £12.17
# 016
MPN: 170511
GASKET
from £84.76
from £84.76
# 017
MPN: 153189
PAN
from £56.88
from £56.88
# 018
MPN: 14560480
CLAMP
from £4.62
from £4.62
# 019
MPN: 173678
FUEL PUMP CABLES ASSY
- Valid for fuel pump 170428
from £1,010.25
from £1,010.25
# 019
MPN: 173893
FUEL PUMP CABLES ASSY
- Valid for fuel pump 173894
from £30.84
from £30.84
# 020
MPN: 170513
FEEDING PIPE
- Valid for fuel pump 170428
from £23.63
from £23.63
# 020
MPN: 173493
FEEDING PIPE
- Valid for fuel pump 173894
from £97.34
from £97.34
# 021
MPN: 170510
COMPLETE COVER
- Valid for fuel pump 170428
from £237.32
from £237.32
# 021
MPN: 173890
COMPLETE COVER
- Valid for fuel pump 173894
from £139.83
from £139.83
# 022
MPN: 10902124
SCREW
- Valid till car Ass. Nr. 28080
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 022
MPN: 10977524
SCREW
from £0.53
from £0.53
# 023
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 024
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 025
MPN: 13125470
CLAMP
from £0.51
from £0.51
# 026
MPN: 15896411
NUT
Supersession
Supersession
This part replaces part number 15896401
# 027
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 028
MPN: 10794011
NUT
from £0.30
from £0.30
# 029
MPN: 10615274
WASHER
from £0.53
from £0.53
This part replaces part number 10615270 - and 2 more. Click to view details
# 030
MPN: 177352
UNION
- Valid from car Ass. Nr. 28081
from £25.49
from £25.49
# 031
MPN: 177353
RECOVERY COMPLETE TUBE
- Valid from car Ass. Nr. 28081
from £129.03
from £129.03
This part replaces part number 169143 - and 1 more. Click to view details
