ferrari 550 maranello fuel tank -valid for usa m.y. 99, usa m.y. 2000, cdn m.y. 99 and cdn m.y. 2000 parts diagram

013 - Fuel Tank -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

Ferrari 550 Maranello Fuel Tank -Valid for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram

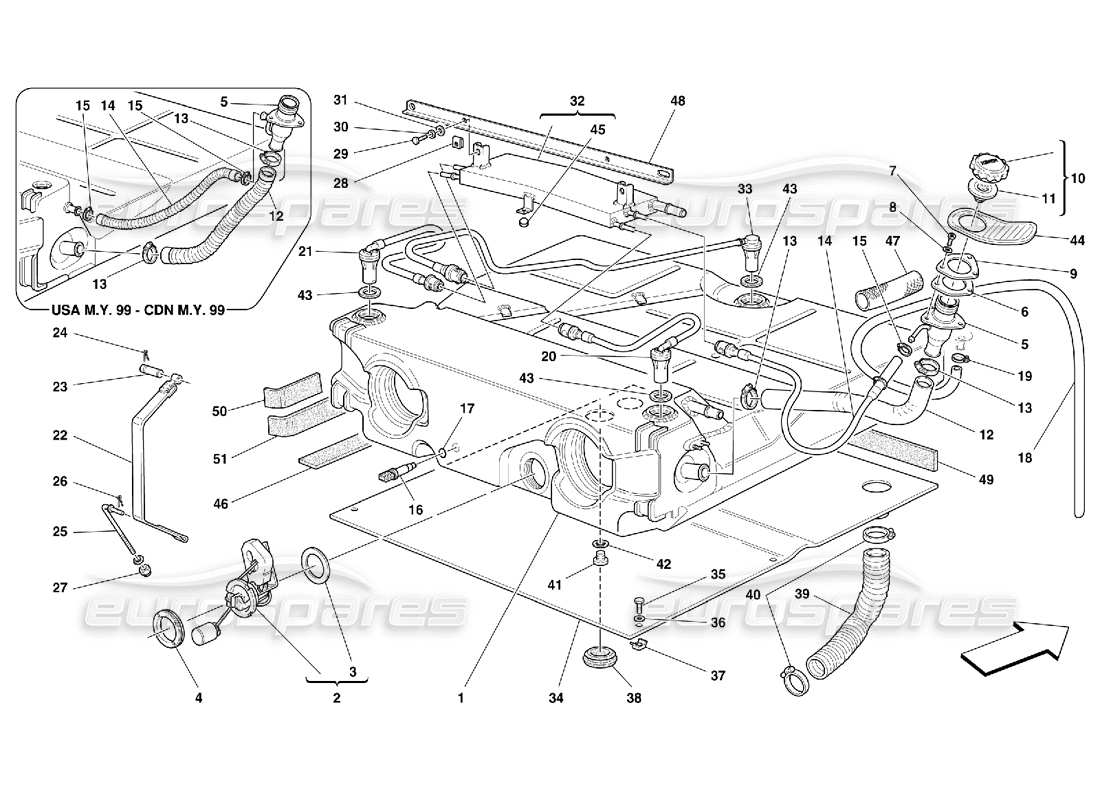

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 179178
                                                                  FUEL TANK
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £1,711.85
                                                                  from £1,711.85
                                                                  # 001
                                                                  MPN: 181926
                                                                  FUEL TANK
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000 - Not as spare part now - Replaced by 186103
                                                                  Supersession
                                                                  Supersession
                                                                  # 001
                                                                  MPN: 186103
                                                                  FUEL TANK
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £1,443.53
                                                                  from £1,443.53
                                                                  This part replaces part number 181926 - and 1 more. Click to view details
                                                                  # 002
                                                                  MPN: 168238
                                                                  COMPLETE FUEL LEVEL INDICATOR CONTROL
                                                                  from £390.00
                                                                  from £390.00
                                                                  # 003
                                                                  MPN: 154802
                                                                  GASKET
                                                                  from £17.11
                                                                  from £17.11
                                                                  This part replaces part number 116792 - and 2 more. Click to view details
                                                                  # 004
                                                                  MPN: 121435
                                                                  RING NUT
                                                                  from £44.76
                                                                  from £44.76
                                                                  This part replaces part number 116012 - and 6 more. Click to view details
                                                                  # 005
                                                                  MPN: 171278
                                                                  FILLER
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £79.01
                                                                  from £79.01
                                                                  # 005
                                                                  MPN: 181932
                                                                  FILLER
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £85.98
                                                                  from £85.98
                                                                  # 006
                                                                  MPN: 174095
                                                                  GASKET
                                                                  from £3.57
                                                                  from £3.57
                                                                  This part replaces part number 123897
                                                                  # 007
                                                                  MPN: 62926700
                                                                  SCREW
                                                                  from £0.71
                                                                  from £0.71
                                                                  This part replaces part number 13276470 which we have in stock - and 1 more. Click to view details
                                                                  # 008
                                                                  MPN: 12601274
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                  # 009
                                                                  MPN: 174093
                                                                  FLANGE
                                                                  from £4.26
                                                                  from £4.26
                                                                  # 010
                                                                  MPN: 180321
                                                                  PLUG
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 175706
                                                                  # 012
                                                                  MPN: 167131
                                                                  FILLER-TANK CONNECTING PIPE
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £16.88
                                                                  from £16.88
                                                                  # 012
                                                                  MPN: 181977
                                                                  FILLER-TANK CONNECTING PIPE
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  Supersession
                                                                  Supersession
                                                                  # 013
                                                                  MPN: 170127
                                                                  SCREW COLLAR
                                                                  from £0.99
                                                                  from £0.99
                                                                  # 014
                                                                  MPN: 165132
                                                                  VENT PIPE FROM TANK TO FILLER
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  Supersession
                                                                  Supersession
                                                                  # 014
                                                                  MPN: 182265
                                                                  VENT PIPE FROM VAPOR SEPARATOR TO FILLER
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £65.95
                                                                  from £65.95
                                                                  # 015
                                                                  MPN: 13432070
                                                                  COLLAR FOR SLEEVE
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 13125570
                                                                  # 015
                                                                  MPN: 164015
                                                                  SCREW COLLAR
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12181290
                                                                  # 016
                                                                  MPN: 125769
                                                                  TEMPERATURE SENSOR
                                                                  from £18.81
                                                                  from £18.81
                                                                  # 017
                                                                  MPN: 179321
                                                                  GASKET
                                                                  from £6.29
                                                                  from £6.29
                                                                  # 018
                                                                  MPN: 179851
                                                                  RUBBER HOSE
                                                                  from £27.05
                                                                  from £27.05
                                                                  # 019
                                                                  MPN: 161490
                                                                  SCREW COLLAR
                                                                  from £1.02
                                                                  from £1.02
                                                                  # 020
                                                                  MPN: 179191
                                                                  RH VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £56.14
                                                                  from £56.14
                                                                  # 020
                                                                  MPN: 181936
                                                                  RH VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £93.90
                                                                  from £93.90
                                                                  # 021
                                                                  MPN: 179191
                                                                  LH VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £56.14
                                                                  from £56.14
                                                                  # 021
                                                                  MPN: 181935
                                                                  LH VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £93.90
                                                                  from £93.90
                                                                  # 022
                                                                  MPN: 172340
                                                                  FUEL TANK FASTENER
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £26.36
                                                                  from £26.36
                                                                  # 022
                                                                  MPN: 181692
                                                                  FUEL TANK FASTENER
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £37.66
                                                                  from £37.66
                                                                  This part replaces part number 211324 - and 1 more. Click to view details
                                                                  # 023
                                                                  MPN: 103447
                                                                  PIN
                                                                  from £12.86
                                                                  from £12.86
                                                                  # 024
                                                                  MPN: 10796440
                                                                  SPLIT PIN
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 264555
                                                                  # 025
                                                                  MPN: 127529
                                                                  THREADED TIE ROD
                                                                  from £121.96
                                                                  from £121.96
                                                                  This part replaces part number 12311271 - and 15 more. Click to view details
                                                                  # 026
                                                                  MPN: 10796440
                                                                  SPLIT PIN
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 264555
                                                                  # 027
                                                                  MPN: 104030
                                                                  NUT
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 16104125
                                                                  # 028
                                                                  MPN: 62766300
                                                                  CLIP
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 029
                                                                  MPN: 10902124
                                                                  SCREW
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                  # 029
                                                                  MPN: 10902224
                                                                  SCREW
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 030
                                                                  MPN: 12639724
                                                                  WASHER
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                                  # 030
                                                                  MPN: 127494
                                                                  WASHER
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99 - (minimum order quantity = 20)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                  # 031
                                                                  MPN: 10519424
                                                                  WASHER
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10519401 - and 3 more. Click to view details
                                                                  # 031
                                                                  MPN: 127494
                                                                  WASHER
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000 - (minimum order quantity = 20)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                  # 032
                                                                  MPN: 178866
                                                                  DISAREATOR
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £131.25
                                                                  from £131.25
                                                                  # 032
                                                                  MPN: 181931
                                                                  DISAREATOR
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £106.87
                                                                  from £106.87
                                                                  # 033
                                                                  MPN: 169937
                                                                  VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £122.33
                                                                  from £122.33
                                                                  # 033
                                                                  MPN: 180469
                                                                  VALVE COMPLETED WITH PIPING
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  Supersession
                                                                  Supersession
                                                                  # 034
                                                                  MPN: 65083800
                                                                  UNDER TANK SHIELD
                                                                  from £368.12
                                                                  from £368.12
                                                                  # 035
                                                                  MPN: 10902424
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 10902324 - and 3 more. Click to view details
                                                                  # 036
                                                                  MPN: 12643724
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                  # 037
                                                                  MPN: 60659100
                                                                  NUT WITH CAGE
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                  # 038
                                                                  MPN: 64783600
                                                                  RUBBER PLUG
                                                                  from £3.00
                                                                  from £3.00
                                                                  # 039
                                                                  MPN: 65084500
                                                                  AIR DELIVERY TUBE TO TANK
                                                                  from £27.30
                                                                  from £27.30
                                                                  # 040
                                                                  MPN: 13000790
                                                                  SCREW COLLAR
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 12173190 - and 1 more. Click to view details
                                                                  # 041
                                                                  MPN: 148045
                                                                  THREADED PLUG
                                                                  from £9.18
                                                                  from £9.18
                                                                  # 042
                                                                  MPN: 123622
                                                                  O.R. GASKET
                                                                  from £0.79
                                                                  from £0.79
                                                                  # 043
                                                                  MPN: 195049
                                                                  GASKET
                                                                  from £2.40
                                                                  from £2.40
                                                                  This part replaces part number 169938
                                                                  # 044
                                                                  MPN: 62943200
                                                                  RUBBER PROTECTION
                                                                  Alternative use : 60134202
                                                                  from £14.54
                                                                  from £14.54
                                                                  This part replaces part number 60134202
                                                                  # 045
                                                                  MPN: 14622387
                                                                  PLUG
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £1.83
                                                                  from £1.83
                                                                  # 046
                                                                  MPN: 156682
                                                                  LOWER THICKNESS
                                                                  from £12.62
                                                                  from £12.62
                                                                  # 047
                                                                  MPN: 171163
                                                                  PROTECTION SHEATH
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £25.64
                                                                  from £25.64
                                                                  # 048
                                                                  MPN: 183850
                                                                  BRACKET
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £12.49
                                                                  from £12.49
                                                                  # 049
                                                                  MPN: 167025
                                                                  FRONT THICKNESS
                                                                  from £3.19
                                                                  from £3.19
                                                                  # 050
                                                                  MPN: 183685
                                                                  REAR THICKNESS
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £2.49
                                                                  from £2.49
                                                                  # 051
                                                                  MPN: 157411
                                                                  REAR THICKNESS
                                                                  - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                  from £1.08
                                                                  from £1.08
                                                                  # 051
                                                                  MPN: 183387
                                                                  REAR THICKNESS
                                                                  - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                  from £4.88
                                                                  from £4.88
