014 - Antievaporation Device -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000

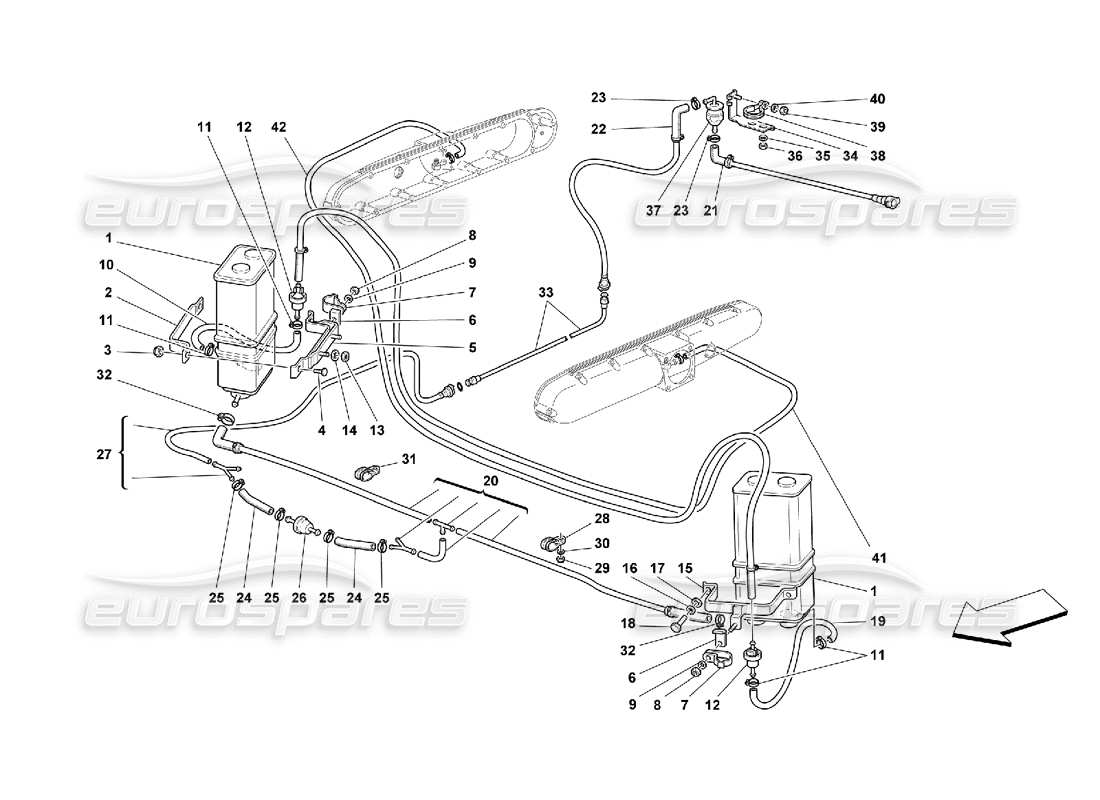

Ferrari 550 Maranello Antievaporation Device -Not for USA M.Y. 99, USA M.Y. 2000, CDN M.Y. 99 and CDN M.Y. 2000 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 173791
FUEL VAPOR FILTER
from £108.80
from £108.80
This part replaces part number 168366 - and 2 more. Click to view details
# 002
MPN: 154385
BRACKET
from £15.75
from £15.75
# 003
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 004
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 005
MPN: 156452
BRACKET
from £9.55
from £9.55
# 006
MPN: 137716
PLATE
from £12.50
from £12.50
# 007
MPN: 164437
BRACKET
from £2.05
from £2.05
# 008
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 009
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 010
MPN: 170993
RUBBER HOSE
Supersession
Supersession
# 011
MPN: 13431870
SCREW COLLAR
from £0.51
from £0.51
# 012
MPN: 162412
ANTI-EVAPORATION VALVE
from £39.06
from £39.06
# 013
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 014
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 015
MPN: 169917
BRACKET
from £10.72
from £10.72
# 016
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 017
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 018
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 019
MPN: 139602
RUBBER HOSE
Supersession
Supersession
# 020
MPN: 169903
COMPLETE PLASTIC PIPE
from £99.09
from £99.09
# 021
MPN: 171853
COMPLETE PLASTIC HOSE
from £78.27
from £78.27
This part replaces part number 165146 - and 1 more. Click to view details
# 022
MPN: 165149
COMPLETE PLASTIC HOSE
- Not as spare part now - Replaced by 183809 to assembly with 183489 - See position 33
from £88.97
from £88.97
# 022
MPN: 183809
COMPLETE PLASTIC HOSE
from £38.48
from £38.48
# 023
MPN: 13434670
SCREW COLLAR
from £0.53
from £0.53
# 024
MPN: 116761
RUBBER PIPE
from £56.22
from £56.22
This part replaces part number 116760
# 025
MPN: 13434670
SCREW COLLAR
from £0.48
from £0.48
# 026
MPN: 170442
TANK VENTILATION VALVE
from £59.14
from £59.14
This part replaces part number 159478 - and 2 more. Click to view details
# 026
MPN: 170442
TANK VENTILATION VALVE
from £59.14
from £59.14
This part replaces part number 159478 - and 2 more. Click to view details
# 027
MPN: 169897
PLASTIC HOSE
from £63.00
from £63.00
# 028
MPN: 10441290
RH AND LH FIXING BRACKET
from £0.48
from £0.48
# 029
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 030
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 031
MPN: 10441690
RH FIXING BRACKET
from £1.08
from £1.08
This part replaces part number 1044690
# 032
MPN: 13434670
SCREW COLLAR
from £0.53
from £0.53
# 033
MPN: 165147
INTERMEDIATE UNDERFLOOR TUBE
- Valid till car Ass. Nr. 30266
from £74.31
from £74.31
# 033
MPN: 178858
INTERMEDIATE UNDERFLOOR TUBE
- Valid from car Ass. Nr. 30267 - Not as spare part now - Replaced by 183489 to assembly with 183809 - See position 22
Supersession
Supersession
# 033
MPN: 183489
INTERMEDIATE UNDERFLOOR TUBE
from £8.20
from £8.20
This part replaces part number 178858
# 034
MPN: 172458
BRACKET FOR ANTI FLOWING BACK VALVE FIXING
from £5.68
from £5.68
# 035
MPN: 14499324
WASHER
from £0.47
from £0.47
This part replaces part number 14499301 which we have in stock
# 036
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details

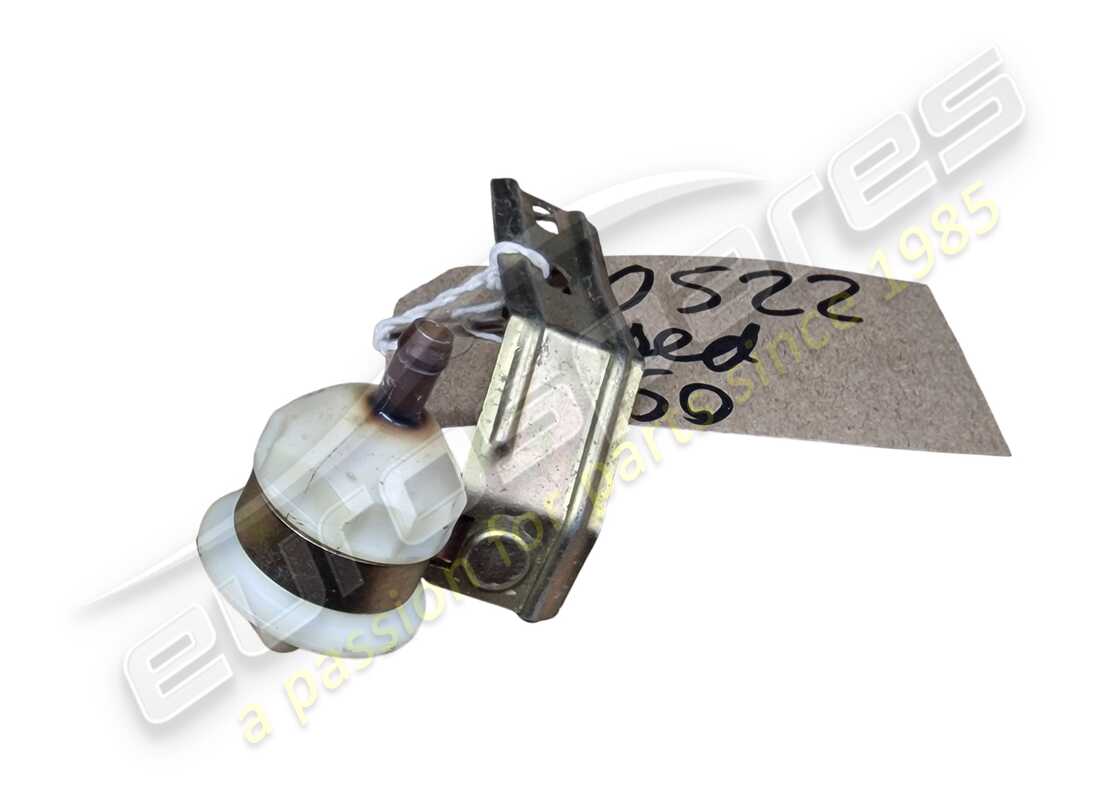

# 037
MPN: 170522
ANTI FLOWING BACK VALVE
from £17.85
from £17.85
# 038
MPN: 172460
FIXING BRACKET
from £1.67
from £1.67
# 039
MPN: 113647
NUT
from £0.54
from £0.54
# 040
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 041
MPN: 173418
PIPE FROM RH VALVE TO LH SUCTION MANIFOLD
from £59.49
from £59.49
# 042
MPN: 173420
PIPE FROM LH VALVE TO RH SUCTION MANIFOLD
from £60.67
from £60.67
