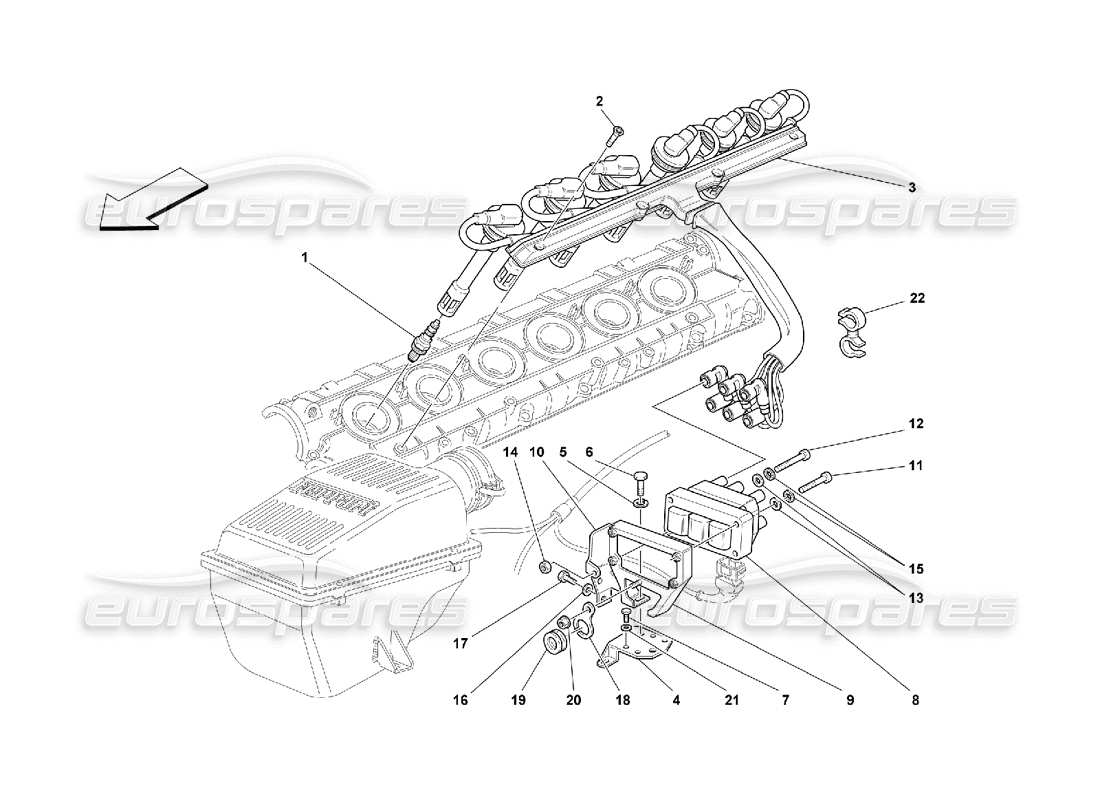

018 - Ignition Device

Ferrari 550 Maranello Ignition Device Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 001
                                      MPN: 156441
                                      SPARK PLUG
                                      (for NGK use part number: 174954 )
                                      from £12.42
                                      from £12.42
                                      # 001
                                      MPN: 174954
                                      SPARK PLUG
                                      NGK Iridium
                                      from £11.20
                                      from £11.20
                                      # 001
                                      MPN: 174954
                                      SPARK PLUG
                                      from £11.20
                                      from £11.20
                                      # 001
                                      MPN: 174954
                                      SPARK PLUG
                                      NGK Iridium
                                      from £11.20
                                      from £11.20
                                      # 002
                                      MPN: 14440834
                                      SCREW
                                      from £0.48
                                      from £0.48
                                      This part replaces part number 14440821 - and 1 more. Click to view details
                                      # 003
                                      MPN: 10455
                                      HT LEADS SET (BOTH SIDE)
                                      (replace 155788 & 155789)
                                      from £1,464.75
                                      from £1,464.75
                                      # 004
                                      MPN: 155305

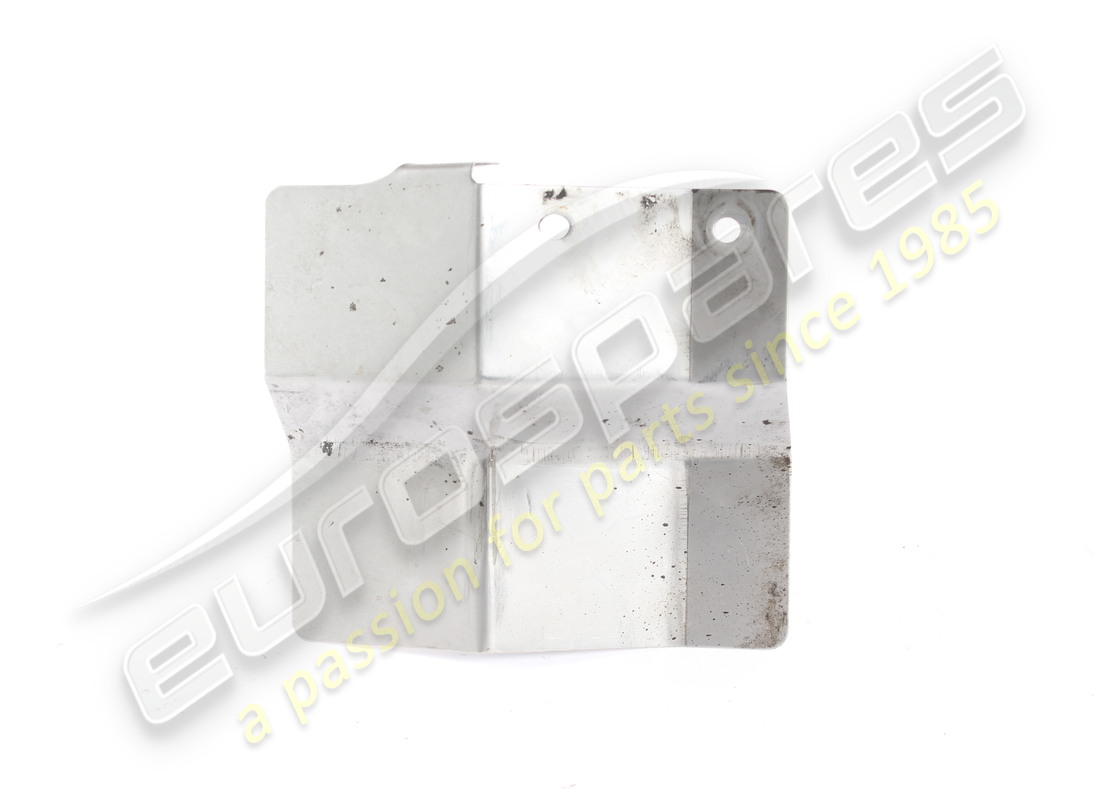

                                      RH PLATE
                                      from £3.23
                                      from £3.23
                                      # 004
                                      MPN: 155306
                                      LH PLATE
                                      from £3.23
                                      from £3.23
                                      # 005
                                      MPN: 127496
                                      WASHER
                                      from £0.53
                                      from £0.53
                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                      # 006
                                      MPN: 16043124
                                      SCREW
                                      from £0.26
                                      from £0.26
                                      This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details

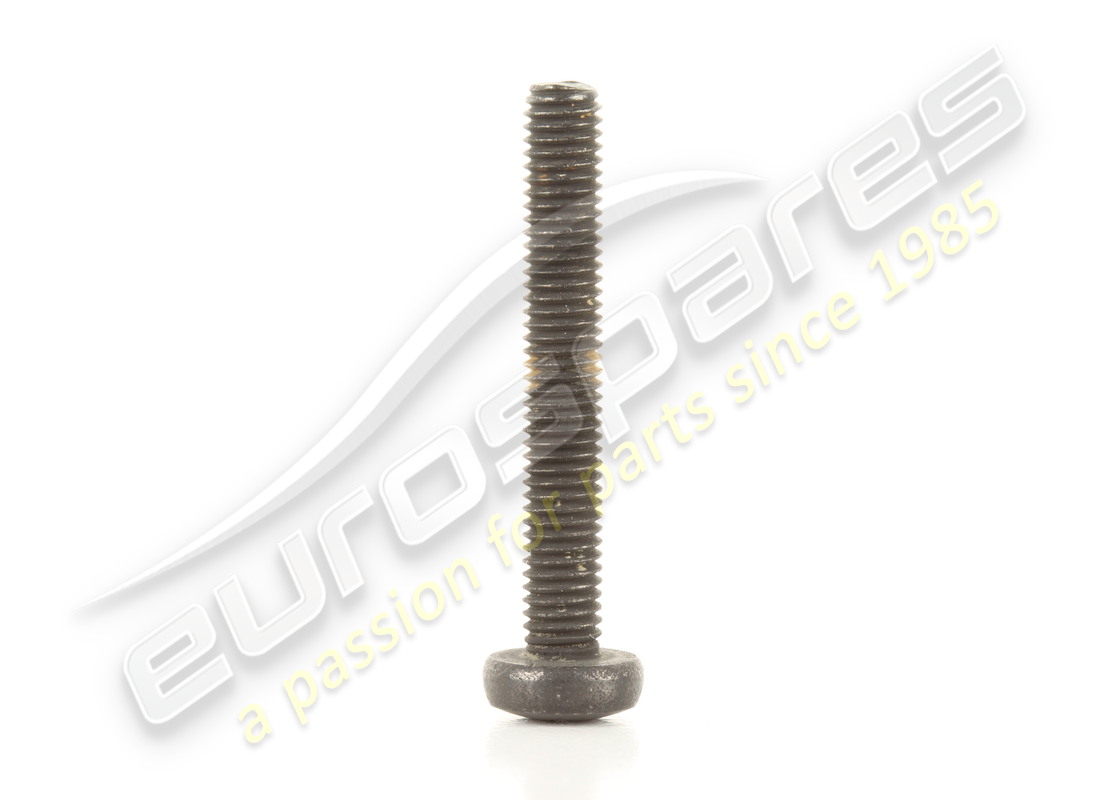

                                      SCREW Genuine Ferrari Part - Used In stock
                                      Removed from 458 engine 178999
                                      # 007
                                      MPN: 10977524
                                      SCREW
                                      from £0.48
                                      from £0.48
                                      # 008
                                      MPN: 138224
                                      IGNITION COIL
                                      from £295.40
                                      from £295.40
                                      # 009
                                      MPN: 155319
                                      RH BRACKET FOR IGNITION COIL SUPPORT
                                      from £42.61
                                      from £42.61
                                      # 009
                                      MPN: 155320
                                      LH BRACKET FOR IGNITION COIL SUPPORT
                                      from £42.61
                                      from £42.61
                                      # 010
                                      MPN: 154953
                                      LH PROTECTION
                                      from £29.56
                                      from £29.56
                                      # 010
                                      MPN: 154955
                                      RH PROTECTION
                                      from £7.69
                                      from £7.69
                                      # 011
                                      MPN: 13274872
                                      SCREW
                                      from £1.85
                                      from £1.85
                                      # 012
                                      MPN: 13274972
                                      SCREW
                                      from £1.15
                                      from £1.15
                                      This part replaces part number 13274911 - and 1 more. Click to view details
                                      # 013
                                      MPN: 10519378
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10519377 which we have in stock - and 2 more. Click to view details
                                      # 014
                                      MPN: 15896470
                                      NUT
                                      (minimum order quantity = 20)
                                      from £0.76
                                      from £0.76
                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                      # 015
                                      MPN: 149951
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                      # 016
                                      MPN: 12601174
                                      WASHER
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                      # 017
                                      MPN: 10856821
                                      SCREW
                                      from £0.47
                                      from £0.47
                                      # 018
                                      MPN: 165792
                                      BRACKET FOR SECONDARY AIR PIPE
                                      from £2.02
                                      from £2.02
                                      # 019
                                      MPN: 10396780
                                      INSULATING RING
                                      from £1.07
                                      from £1.07
                                      # 020
                                      MPN: 14059211
                                      NUT
                                      from £0.47
                                      from £0.47
                                      # 021
                                      MPN: 127494
                                      WASHER
                                      (minimum order quantity = 20)
                                      from £0.51
                                      from £0.51
                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                      # 022
                                      MPN: 155960
                                      FLEXIBLE CLIP
                                      from £0.47
                                      from £0.47
                                      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
