021 - AIR INTAKE

Ferrari 550 Maranello Air Intake Parts Diagram

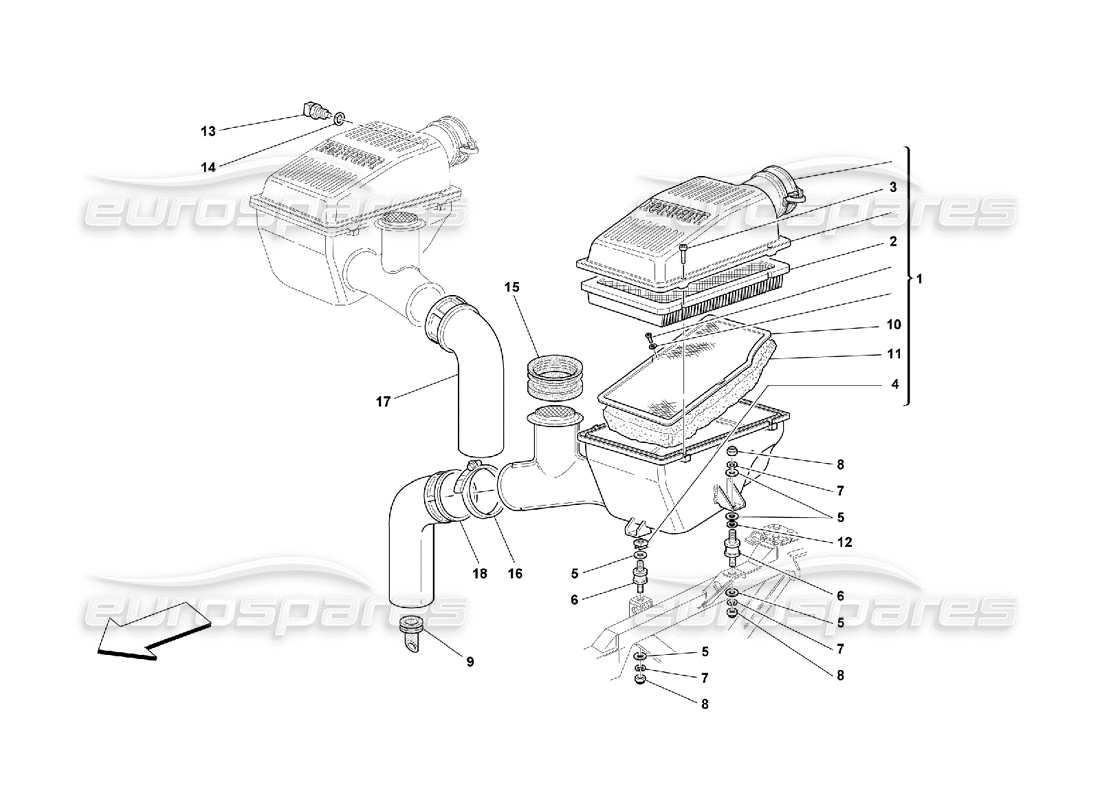

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 000
                                    MPN: 70001326/A
                                    SERVICE KIT
                                    (x2 oil filters 206166, x2 air filters 151562, x2 fuel filters 152212, x1 sump washer 10261860)
                                    # 001
                                    MPN: 168087
                                    COMPLETE RH AIR INTAKE
                                    from £237.29
                                    from £237.29
                                    This part replaces part number 163161 - and 2 more. Click to view details
                                    # 001
                                    MPN: 168088
                                    COMPLETE LH AIR INTAKE
                                    from £237.29
                                    from £237.29
                                    This part replaces part number 163162 - and 1 more. Click to view details
                                    # 002
                                    MPN: 151562
                                    AIR FILER
                                    from £33.15
                                    from £33.15
                                    # 003
                                    MPN: 157757/A
                                    SCREW
                                    from £8.99
                                    from £8.99
                                    # 004
                                    MPN: 14074790
                                    NUT
                                    from £1.31
                                    from £1.31
                                    # 005
                                    MPN: 12643724
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 109684 - and 4 more. Click to view details
                                    # 006
                                    MPN: 142202
                                    ANTI-VIBRATION SUPPORT
                                    from £14.50
                                    from £14.50
                                    # 007
                                    MPN: 127494
                                    WASHER
                                    (minimum order quantity = 20)
                                    from £0.51
                                    from £0.51
                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                    # 008
                                    MPN: 15896214
                                    NUT
                                    from £0.53
                                    from £0.53
                                    This part replaces part number 15896211
                                    # 009
                                    MPN: 169404
                                    RUBBER END
                                    from £9.79
                                    from £9.79
                                    # 010
                                    MPN: 152579
                                    AIR INTAKE SHIELD
                                    from £38.85
                                    from £38.85
                                    # 011
                                    MPN: 152578
                                    FILTER
                                    from £112.68
                                    from £112.68
                                    # 012
                                    MPN: 12640624
                                    WASHER
                                    from £0.47
                                    from £0.47
                                    This part replaces part number 12640601 - and 1 more. Click to view details
                                    # 013
                                    MPN: 162419
                                    AIR TEMPERATURE SENSOR
                                    from £36.00
                                    from £36.00
                                    # 014
                                    MPN: 10296160
                                    GASKET
                                    from £0.47
                                    from £0.47
                                    # 015
                                    MPN: 165855
                                    CONVEYOR BELLOWS
                                    from £24.59
                                    from £24.59
                                    # 016
                                    MPN: 13001190
                                    SCREW COLLAR
                                    from £0.62
                                    from £0.62
                                    # 017
                                    MPN: 168089

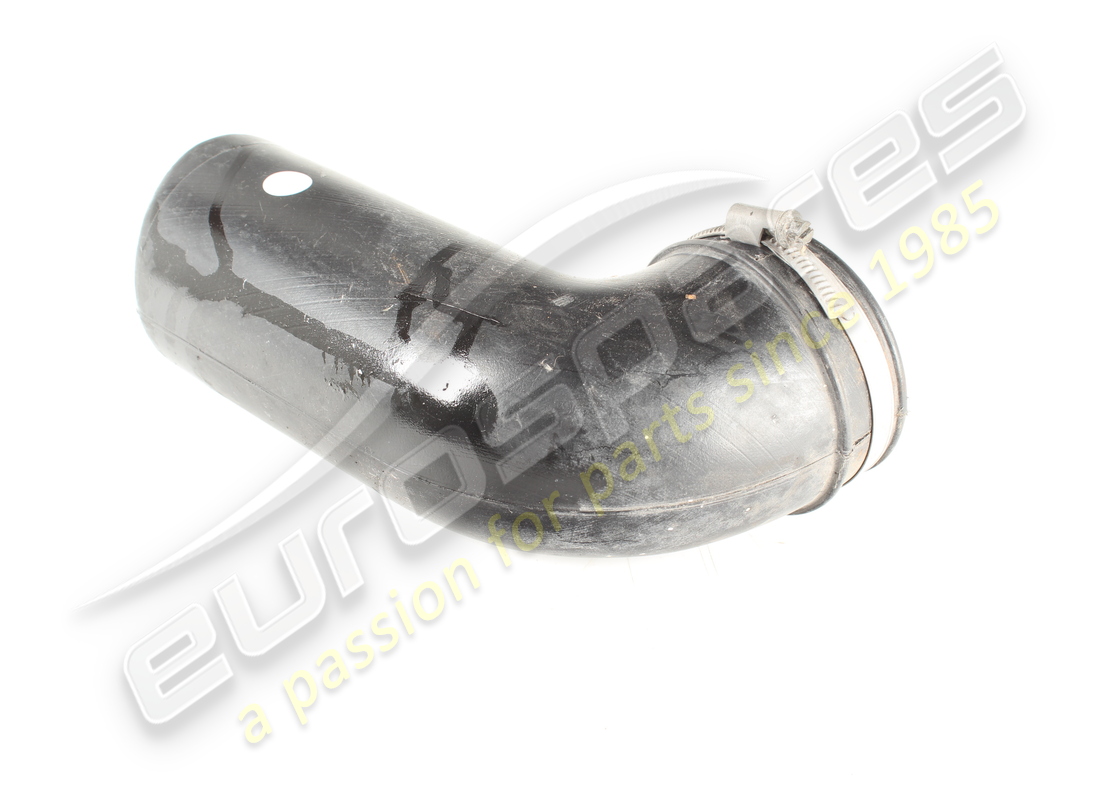

                                    RH DUCT
                                    from £5.65
                                    from £5.65
                                    # 018
                                    MPN: 172957

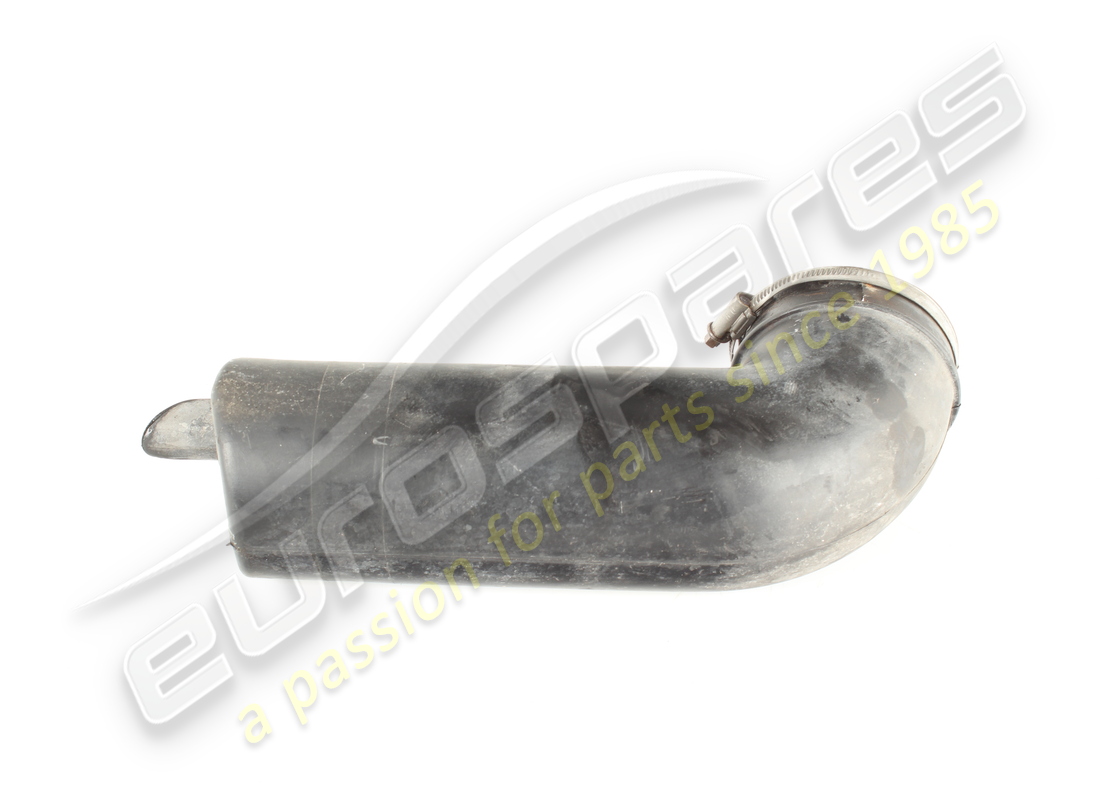

                                    LH DUCT
                                    from £9.75
                                    from £9.75
