030 - GEARBOX

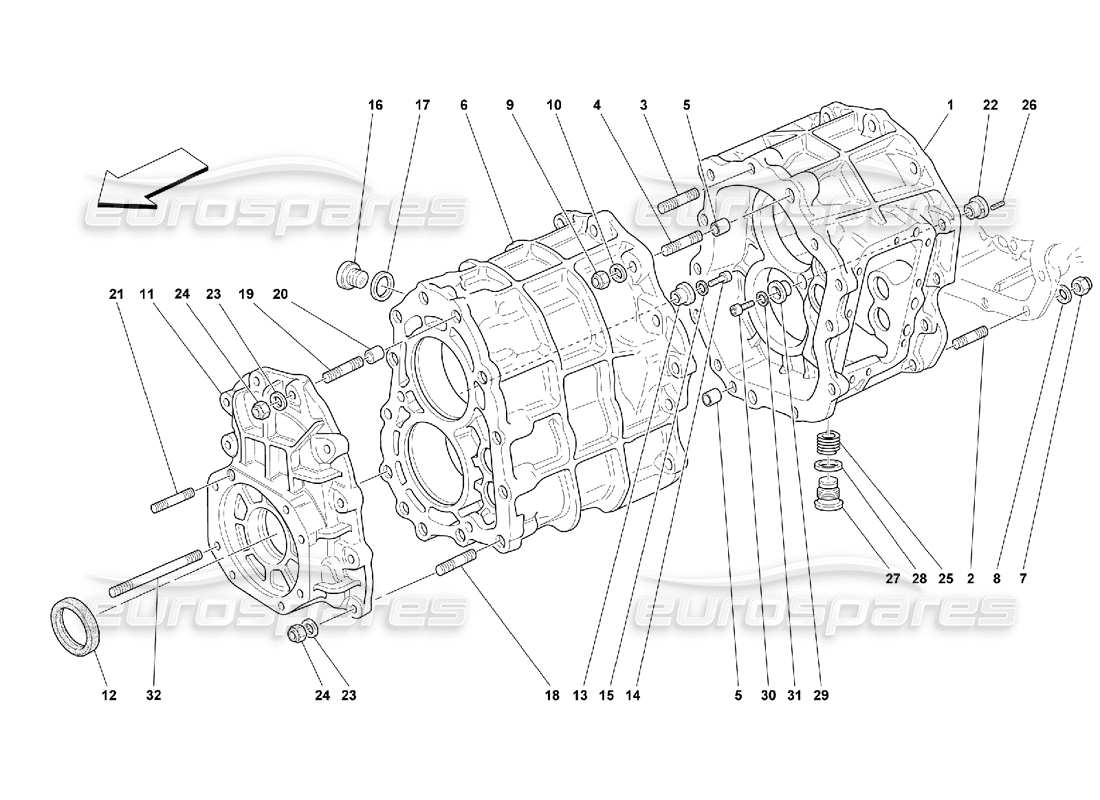

Ferrari 550 Maranello Gearbox Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 172617
GEARBOX CASING
from £1,815.15
from £1,815.15
# 001
MPN: 168634

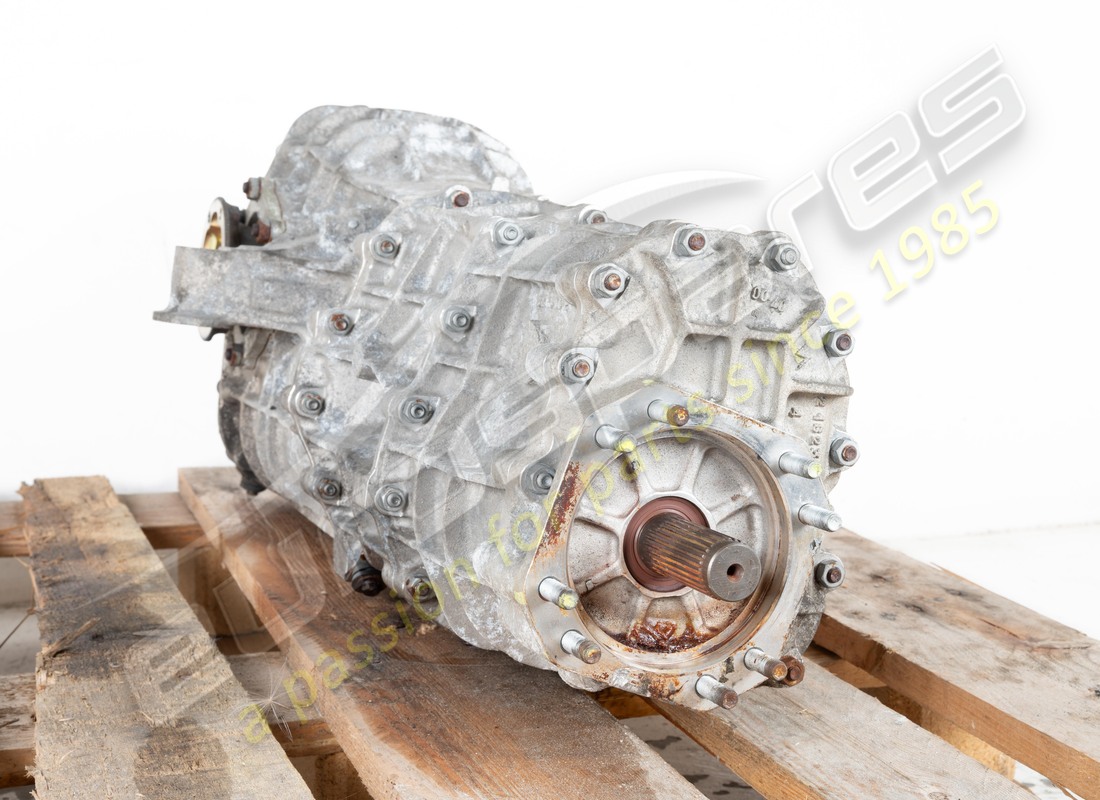

COMPLETE GEARBOX (MANUAL)
Vaild for Manual
from £13,899.48
from £13,899.48
# 001
MPN: 172620
GEAR BOX 3RD ELEMENT
- With the complete gearbox 172617
# 002
MPN: 13543524
STUD
from £2.01
from £2.01
This part replaces part number 13543521
# 003
MPN: 13543524
STUD
from £2.01
from £2.01
This part replaces part number 13543521
# 004
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 005
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 006
MPN: 162306
GEAR BOX 2ND ELEMENT
- With the complete gearbox 172617
# 007
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 008
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 009
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 010
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 162308
GEAR BOX 1ST ELEMENT
- With the complete gearbox 172617
Supersession
Supersession
# 012
MPN: 162311
GASKET
from £10.32
from £10.32
# 013
MPN: 131757
BUSHING
from £3.63
from £3.63
# 014
MPN: 14305724
SCREW
from £0.54
from £0.54
This part replaces part number 11567624 - and 2 more. Click to view details
# 015
MPN: 10569273
WASHER
Supersession
Supersession
# 016
MPN: 10275011
PLUG
from £1.08
from £1.08
This part replaces part number 10275001 - and 3 more. Click to view details
# 017
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 018
MPN: 13543424
STUD
from £1.04
from £1.04
This part replaces part number 13543421
# 019
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 020
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 021
MPN: 13546334
STUD
from £0.61
from £0.61
This part replaces part number 13546331
# 022
MPN: 157010
BUSHING
from £5.34
from £5.34
# 023
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 024
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 025
MPN: 112254
THREADED INSERT
from £2.41
from £2.41
# 026
MPN: 14159470
PIN
from £2.85
from £2.85
# 027
MPN: 104280
OIL OUTLET PLUG
from £4.95
from £4.95
This part replaces part number 523977
# 028
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 029
MPN: 157009
BUSHING
from £4.48
from £4.48
# 030
MPN: 14305724
SCREW
from £0.54
from £0.54
This part replaces part number 11567624 - and 2 more. Click to view details
# 031
MPN: 10569273
WASHER
Supersession
Supersession
# 032
MPN: 13547334
STUD
from £3.67
from £3.67
