031 - Differential Carrier and Clutch Cooling Radiator

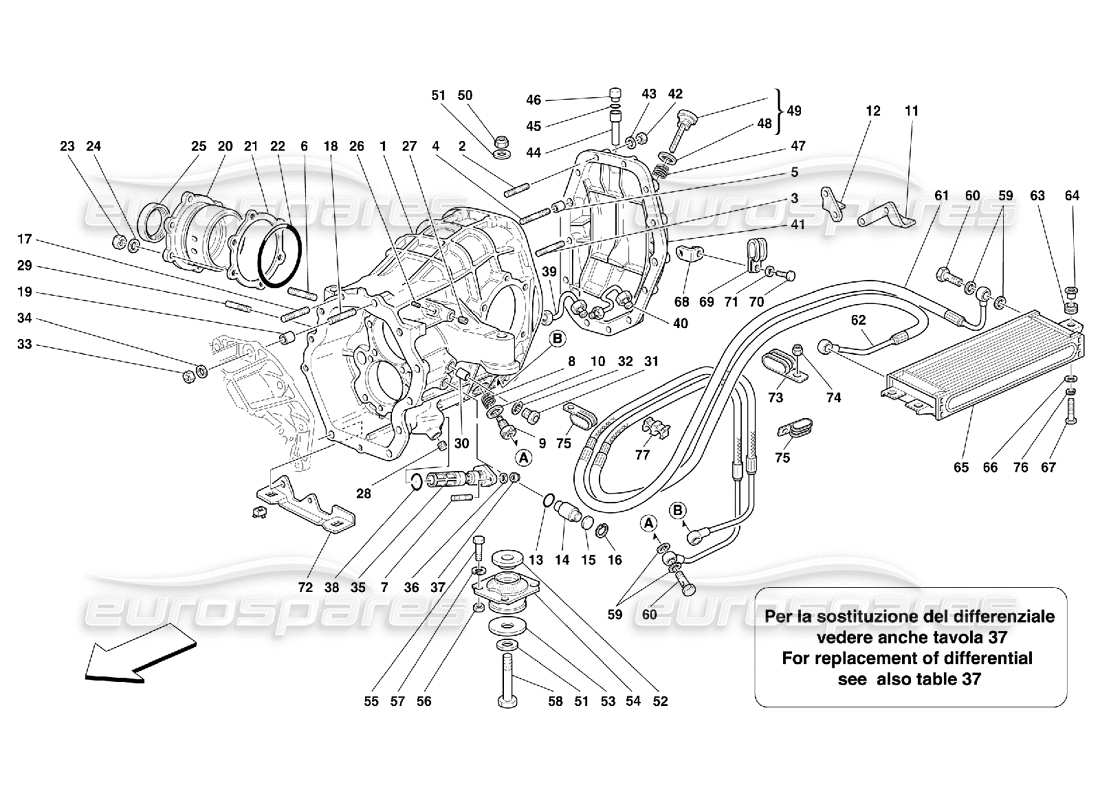

Ferrari 550 Maranello Differential Carrier and Clutch Cooling Radiator Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 172617
GEARBOX CASING
from £1,815.15
from £1,815.15
# 001
MPN: 161980
GEAR BOX 4TH ELEMENT
- With complete gear box
# 002
MPN: 13543624
STUD
from £0.47
from £0.47
This part replaces part number 13543621
# 003
MPN: 13543724
STUD
from £0.86
from £0.86
This part replaces part number 13543721
# 004
MPN: 13543824
STUD
from £2.20
from £2.20
This part replaces part number 13543821
# 005
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 006
MPN: 13546224
STUD
from £7.87
from £7.87
This part replaces part number 13546124 which we have in stock - and 1 more. Click to view details
# 007
MPN: 11001024
STUD
(minimum order quantity = 5)
from £1.42
from £1.42
This part replaces part number 11001011 - and 1 more. Click to view details
# 008
MPN: 112254
THREADED INSERT
from £2.34
from £2.34
# 009
MPN: 150853
UNION
from £8.51
from £8.51
# 010
MPN: 10263460
GASKET
from £0.53
from £0.53
This part replaces part number 95119
# 011
MPN: 169466
LH BRACKET
from £9.66
from £9.66
# 012
MPN: 169465
RH BRACKET
from £9.66
from £9.66
# 013
MPN: 134232
O.R. GASKET
from £0.65
from £0.65
This part replaces part number 153718 which we have in stock
# 014
MPN: 153719
PIN
from £16.98
from £16.98
# 015
MPN: 154698
PAD
from £1.93
from £1.93
This part replaces part number 153709
# 016
MPN: 11057476
STOP RING
from £0.53
from £0.53
# 017
MPN: 13543524
STUD
from £2.01
from £2.01
This part replaces part number 13543521
# 018
MPN: 13543624
STUD
from £0.51
from £0.51
This part replaces part number 13543621
# 019
MPN: 102704
CENTERING DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 020
MPN: 145531
DIFFERENTIAL COVER
- Not as spare part now - Replaced by 177438
Supersession
Supersession
# 020
MPN: 177438
DIFFERENTIAL COVER WITH BEARING
- Valid for ZF differential
from £349.29
from £349.29
This part replaces part number 145531
# 020
MPN: 181626
RH DIFFERENTIAL COVER WITH BEARING
- Valid for GRAZIANO Trasmissioni differential
from £666.78
from £666.78
# 020
MPN: 181627
LH DIFFERENTIAL COVER WITH BEARING
- Valid for GRAZIANO Trasmissioni differential
from £666.78
from £666.78
# 021
MPN: 150099
DIFFERENTIAL COVER THRUST THINCKNESS MM. 1,3
from £66.06
from £66.06
# 021
MPN: 150100
DITTO THINCKNESS MM. 1.4
from £30.05
from £30.05
# 021
MPN: 150101
DITTO THINCKNESS MM. 1.5
from £54.64
from £54.64
# 021
MPN: 150102
DITTO THINCKNESS MM. 1.6
from £54.64
from £54.64
# 021
MPN: 150103
DITTO THINCKNESS MM. 1.7
from £63.07
from £63.07
# 021
MPN: 150104
DITTO THINCKNESS MM. 1.8
from £66.06
from £66.06
# 021
MPN: 150105
DITTO THINCKNESS MM. 1.9
from £62.89
from £62.89
# 021
MPN: 150106
DITTO THINCKNESS MM. 1.45
from £57.69
from £57.69
# 021
MPN: 150107
DITTO THINCKNESS MM. 1.55
from £54.95
from £54.95
# 021
MPN: 150108
DITTO THINCKNESS MM. 1.65
from £54.64
from £54.64
# 021
MPN: 175378
DITTO THINCKNESS MM. 1.75
from £31.19
from £31.19
# 022
MPN: 139453
O.R. GASKET
from £4.15
from £4.15
# 023
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 024
MPN: 12601474
WASHER
from £0.52
from £0.52
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 025
MPN: 133628
OIL SEAL
from £29.85
from £29.85
This part replaces part number 125077 - and 1 more. Click to view details
# 025
MPN: 141509
LH GASKET
- Valid for ZF differential
from £70.78
from £70.78
This part replaces part number 125077
# 025
MPN: 181617
LH GASKET
- Valid for GRAZIANO Trasmissioni differential
from £26.03
from £26.03
This part replaces part number 182105 which we have in stock
# 025
MPN: 181618
RH GASKET
- Valid for GRAZIANO Trasmissioni differential
from £28.93
from £28.93
This part replaces part number 182103
# 026
MPN: 65928500
PLUG
from £23.78
from £23.78
This part replaces part number 10267550
# 027
MPN: 14326150
PLUG
from £0.53
from £0.53
This part replaces part number 12326150
# 028
MPN: 14326050
PLUG
from £1.00
from £1.00
# 029
MPN: 16183021
SCREW
from £0.57
from £0.57
# 030
MPN: 115376
BUSHING
from £29.06
from £29.06
# 031
MPN: 150731
PLUG
from £2.32
from £2.32
# 032
MPN: 10282460
GASKET
from £0.57
from £0.57
# 033
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 034
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 035
MPN: 143939
OIL FILTER ON THE GEAR BOX
from £49.86
from £49.86
# 036
MPN: 14496324
WASHER
from £1.39
from £1.39
This part replaces part number 14496301 which we have in stock
# 037
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 038
MPN: 147278
O.R. GASKET
from £0.98
from £0.98
# 039
MPN: 162321
OIL DELIVERY TUBE
from £35.91
from £35.91
# 040
MPN: 162322
OIL RETURN TUBE
from £46.37
from £46.37
# 041
MPN: 168107
GEARBOX REAR COVER
from £171.84
from £171.84
This part replaces part number 143846 - and 1 more. Click to view details
# 042
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 043
MPN: 12601374
WASHER
from £0.52
from £0.52
This part replaces part number 10615474 - and 6 more. Click to view details
# 044
MPN: 153500
EXTENSION FOR OIL EXHAUST
from £5.99
from £5.99
# 045
MPN: 13415400
OIL DEFLECTOR DISC FOR VENT
from £0.47
from £0.47
# 046
MPN: 13414691
OIL BREATHER
from £5.57
from £5.57
# 047
MPN: 112254
THREADED INSERT
from £2.41
from £2.41
# 048
MPN: 10261860
GASKET
from £0.54
from £0.54
This part replaces part number 10279550 which we have in stock - and 1 more. Click to view details
# 049
MPN: 172478
PLUG
from £28.82
from £28.82
# 050
MPN: 169193
NUT
from £1.26
from £1.26
# 051
MPN: 10520224
WASHER
from £0.47
from £0.47
This part replaces part number 10520221 which we have in stock
# 052
MPN: 172935
UPPER SPACER
from £5.52
from £5.52
# 053
MPN: 132269
LOWER SPACER
from £32.09
from £32.09
This part replaces part number 154997
# 054
MPN: 169492
WICK BODY
from £34.13
from £34.13
# 055
MPN: 15970634
SCREW
from £1.55
from £1.55
# 056
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 057
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 058
MPN: 156458
SCREW
from £6.71
from £6.71
# 059
MPN: 10261060
GASKET
from £0.48
from £0.48
# 060
MPN: 132559
UNION
from £40.23
from £40.23
# 061
MPN: 172323
OIL DELIVERY TUBE TO RADIATOR
- Not as spare part now replaced by 173862
Supersession
Supersession
# 061
MPN: 173862
OIL DELIVERY TUBE TO RADIATOR
from £305.33
from £305.33
This part replaces part number 172323 - and 1 more. Click to view details
# 062
MPN: 173863
OIL RETURN TUBE FROM RADIATOR
from £371.13
from £371.13
This part replaces part number 172324 - and 1 more. Click to view details
# 063
MPN: 103549
RUBBER BUSH
from £0.69
from £0.69
# 064
MPN: 149707
SPACER
from £0.77
from £0.77
# 065
MPN: 168744
OIL RADIATOR
from £175.79
from £175.79
# 066
MPN: 12643724
WASHER
from £0.52
from £0.52
This part replaces part number 109684 - and 4 more. Click to view details
# 067
MPN: 10902521
SCREW
from £0.71
from £0.71
# 068
MPN: 142060
BRACKET
from £3.53
from £3.53
# 069
MPN: 10441290
BRACKET WITH SHEATH
from £0.51
from £0.51
# 070
MPN: 10902124
SCREW
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 071
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 072
MPN: 169464
FRONT BRACKET
from £10.42
from £10.42
# 073
MPN: 138478
CLAMP
from £2.75
from £2.75
# 074
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 075
MPN: 61712500
BRACKET WITH SHEATH
from £1.03
from £1.03
# 076
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 077
MPN: 140728
FIXING CLIP
from £0.54
from £0.54
