032 - Main Shaft Gears and Clutch Oil Pump

Ferrari 550 Maranello Main Shaft Gears and Clutch Oil Pump Parts Diagram

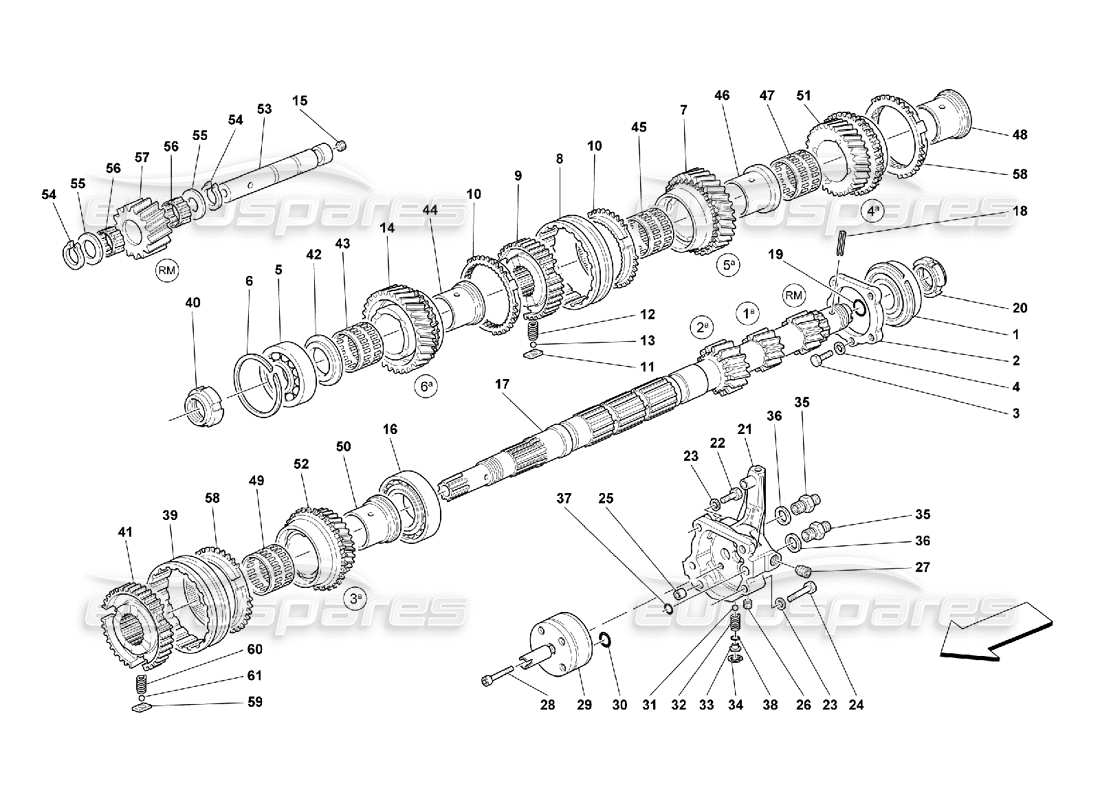

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Price
                                                                                                                        # 000
                                                                                                                        MPN: 149329
                                                                                                                        COMPLETE OIL PUMP BODY
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 001
                                                                                                                        MPN: 144502
                                                                                                                        BEARING FOR MAIN SHAFT PUMP OIL SIDE
                                                                                                                        from £88.74
                                                                                                                        from £88.74
                                                                                                                        # 002
                                                                                                                        MPN: 144444
                                                                                                                        SUPPORT RING
                                                                                                                        from £36.67
                                                                                                                        from £36.67
                                                                                                                        # 003
                                                                                                                        MPN: 16043424
                                                                                                                        SCREW
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 16043421
                                                                                                                        # 004
                                                                                                                        MPN: 127496
                                                                                                                        WASHER
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                        # 005
                                                                                                                        MPN: 103030
                                                                                                                        ROLLER BEARING
                                                                                                                        from £124.53
                                                                                                                        from £124.53
                                                                                                                        This part replaces part number 101605 - and 2 more. Click to view details
                                                                                                                        # 006
                                                                                                                        MPN: 144511
                                                                                                                        STOP RING
                                                                                                                        from £1.55
                                                                                                                        from £1.55

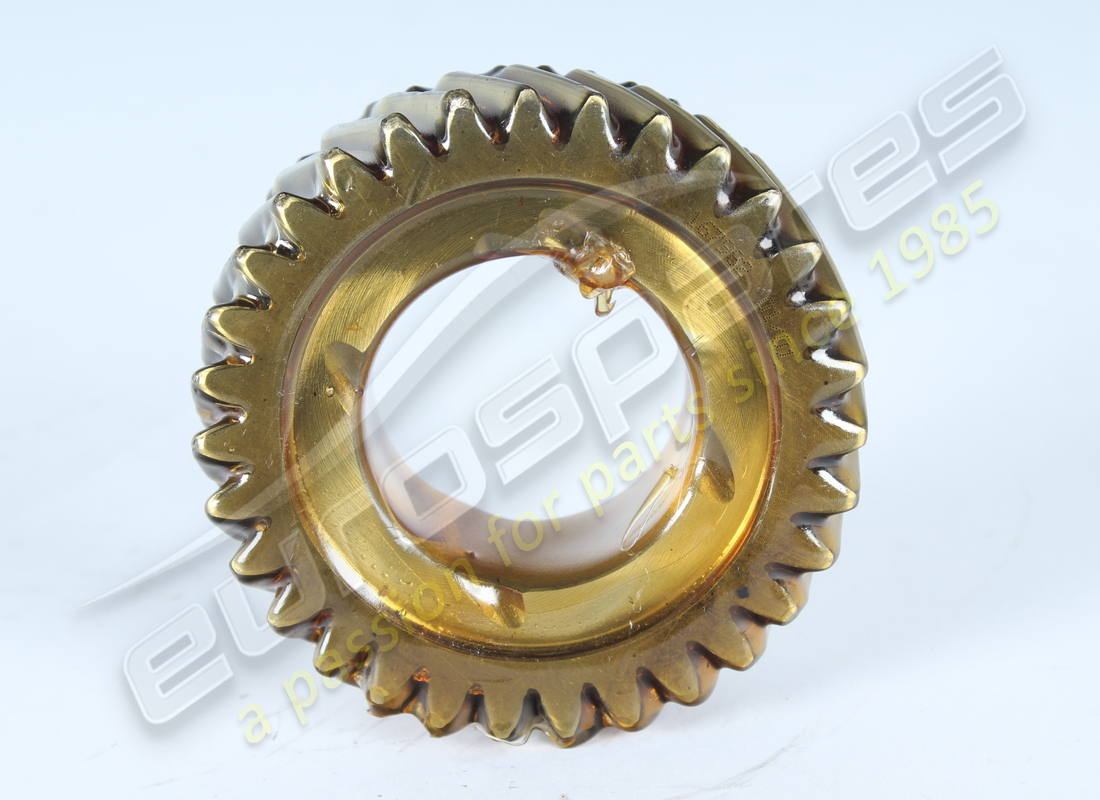

                                                                                                                        # 007
                                                                                                                        MPN: 167982
                                                                                                                        PINION FOR 5TH GEAR
                                                                                                                        - Valid till transmission Nr. 1881
                                                                                                                        from £171.37
                                                                                                                        from £171.37
                                                                                                                        # 007
                                                                                                                        MPN: 179113
                                                                                                                        PINION FOR 5TH GEAR
                                                                                                                        - Valid from transmission Nr. 1882
                                                                                                                        from £1,809.40
                                                                                                                        from £1,809.40
                                                                                                                        # 008
                                                                                                                        MPN: 152206
                                                                                                                        SLEEVE FOR SYNCHRONIZER
                                                                                                                        from £42.34
                                                                                                                        from £42.34
                                                                                                                        # 009
                                                                                                                        MPN: 152207
                                                                                                                        SYNCHRONIZER BODY
                                                                                                                        from £168.75
                                                                                                                        from £168.75
                                                                                                                        # 010
                                                                                                                        MPN: 152209
                                                                                                                        SYNCHRONIZER RING
                                                                                                                        from £89.66
                                                                                                                        from £89.66
                                                                                                                        # 011
                                                                                                                        MPN: 152195
                                                                                                                        SMALL BLOCK
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 012
                                                                                                                        MPN: 152196
                                                                                                                        SPRING
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 013
                                                                                                                        MPN: 152197
                                                                                                                        BALL
                                                                                                                        from £2.09
                                                                                                                        from £2.09
                                                                                                                        # 014
                                                                                                                        MPN: 167984
                                                                                                                        PINION FOR 6TH GEAR
                                                                                                                        from £633.50
                                                                                                                        from £633.50
                                                                                                                        # 015
                                                                                                                        MPN: 10269350
                                                                                                                        PLUG
                                                                                                                        from £1.00
                                                                                                                        from £1.00
                                                                                                                        # 016
                                                                                                                        MPN: 228055
                                                                                                                        ROLLER BEARING
                                                                                                                        from £45.99
                                                                                                                        from £45.99
                                                                                                                        This part replaces part number 131056 - and 1 more. Click to view details

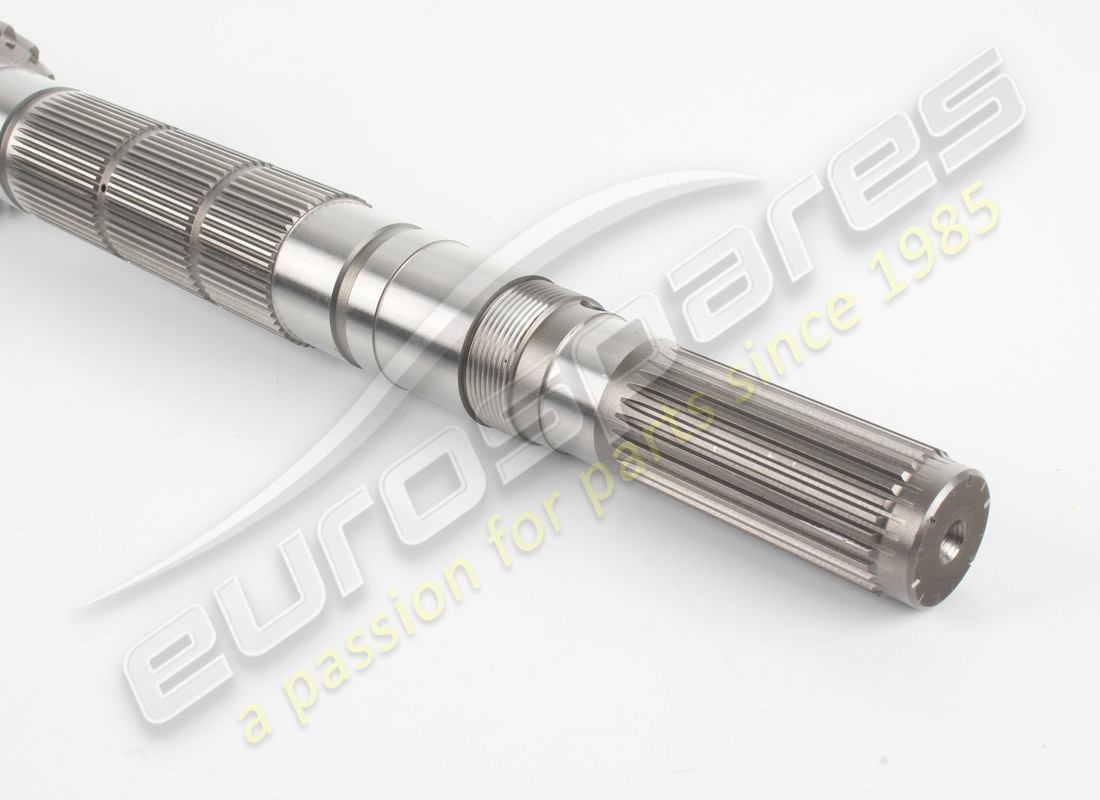

                                                                                                                        # 017
                                                                                                                        MPN: 167968
                                                                                                                        MAIN SHAFT FOR GEAR LEVER
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 018
                                                                                                                        MPN: 14601270
                                                                                                                        FLEXIBLE PIN
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 019
                                                                                                                        MPN: 109724
                                                                                                                        O.R. GASKET
                                                                                                                        from £0.65
                                                                                                                        from £0.65
                                                                                                                        # 020
                                                                                                                        MPN: 159553
                                                                                                                        RING NUT
                                                                                                                        from £46.31
                                                                                                                        from £46.31
                                                                                                                        # 021
                                                                                                                        MPN: 171712
                                                                                                                        OIL PUMP BODY
                                                                                                                        - With complete oil pump body
                                                                                                                        from £414.75
                                                                                                                        from £414.75
                                                                                                                        # 022
                                                                                                                        MPN: 16044321
                                                                                                                        SCREW
                                                                                                                        from £0.30
                                                                                                                        from £0.30
                                                                                                                        # 023
                                                                                                                        MPN: 12601374
                                                                                                                        WASHER
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                        # 024
                                                                                                                        MPN: 16044321
                                                                                                                        SCREW
                                                                                                                        from £0.30
                                                                                                                        from £0.30
                                                                                                                        # 025
                                                                                                                        MPN: 102704
                                                                                                                        CENTERING DOWEL
                                                                                                                        from £1.59
                                                                                                                        from £1.59
                                                                                                                        This part replaces part number 500805
                                                                                                                        # 026
                                                                                                                        MPN: 14326150
                                                                                                                        PLUG
                                                                                                                        from £0.51
                                                                                                                        from £0.51
                                                                                                                        This part replaces part number 12326150
                                                                                                                        # 027
                                                                                                                        MPN: 10269450
                                                                                                                        PLUG
                                                                                                                        from £16.22
                                                                                                                        from £16.22
                                                                                                                        # 028
                                                                                                                        MPN: 14303474
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47

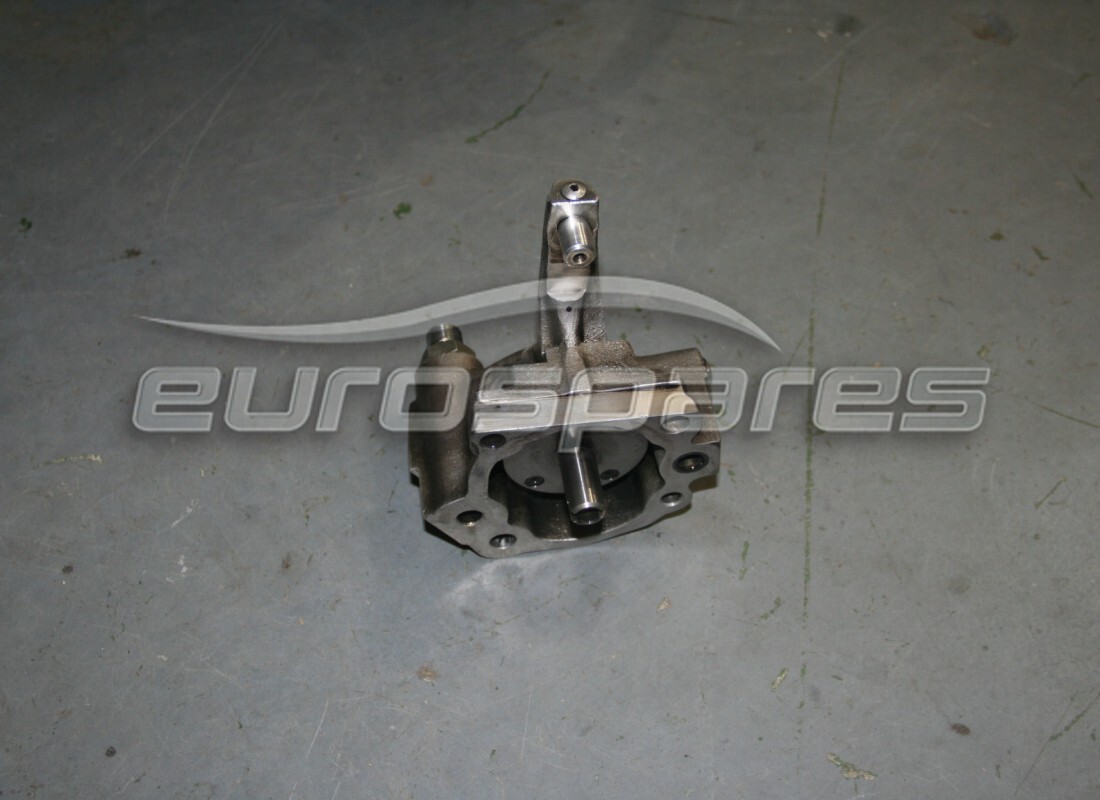

                                                                                                                        # 029
                                                                                                                        MPN: 171706
                                                                                                                        COMPLETE CLUTCH OIL PUMP
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        # 030
                                                                                                                        MPN: 137192
                                                                                                                        O.R. GASKET
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 031
                                                                                                                        MPN: 135770
                                                                                                                        BALL
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 032
                                                                                                                        MPN: 171889
                                                                                                                        SPRING
                                                                                                                        from £2.29
                                                                                                                        from £2.29
                                                                                                                        # 033
                                                                                                                        MPN: 162315
                                                                                                                        SPACER
                                                                                                                        from £1.09
                                                                                                                        from £1.09
                                                                                                                        # 034
                                                                                                                        MPN: 11057576
                                                                                                                        SEEGER RING
                                                                                                                        from £0.53
                                                                                                                        from £0.53
                                                                                                                        # 035
                                                                                                                        MPN: 150577
                                                                                                                        UNION
                                                                                                                        from £10.84
                                                                                                                        from £10.84
                                                                                                                        # 036
                                                                                                                        MPN: 10257060
                                                                                                                        GASKET
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                        # 037
                                                                                                                        MPN: 137192
                                                                                                                        GASKET
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        # 038
                                                                                                                        MPN: 128702
                                                                                                                        GASKET
                                                                                                                        from £2.45
                                                                                                                        from £2.45
                                                                                                                        # 039
                                                                                                                        MPN: 152198
                                                                                                                        SLEEVE
                                                                                                                        from £161.14
                                                                                                                        from £161.14
                                                                                                                        # 040
                                                                                                                        MPN: 153000
                                                                                                                        RING NUT
                                                                                                                        from £33.69
                                                                                                                        from £33.69
                                                                                                                        This part replaces part number 131775 - and 1 more. Click to view details
                                                                                                                        # 041
                                                                                                                        MPN: 161015
                                                                                                                        SYNCHRONIZER BODY
                                                                                                                        from £226.26
                                                                                                                        from £226.26
                                                                                                                        # 042
                                                                                                                        MPN: 143886
                                                                                                                        SPACER
                                                                                                                        from £11.20
                                                                                                                        from £11.20
                                                                                                                        # 043
                                                                                                                        MPN: 107525
                                                                                                                        ROLLER CAGE
                                                                                                                        from £7.96
                                                                                                                        from £7.96
                                                                                                                        # 044
                                                                                                                        MPN: 143893
                                                                                                                        BUSHING
                                                                                                                        from £240.31
                                                                                                                        from £240.31
                                                                                                                        # 045
                                                                                                                        MPN: 107525
                                                                                                                        ROLLER CAGE
                                                                                                                        from £7.96
                                                                                                                        from £7.96
                                                                                                                        # 046
                                                                                                                        MPN: 152094
                                                                                                                        BUSHING
                                                                                                                        from £42.75
                                                                                                                        from £42.75
                                                                                                                        # 047
                                                                                                                        MPN: 107525
                                                                                                                        ROLLER CAGE
                                                                                                                        from £7.96
                                                                                                                        from £7.96
                                                                                                                        # 048
                                                                                                                        MPN: 152093
                                                                                                                        BUSHING
                                                                                                                        from £37.53
                                                                                                                        from £37.53
                                                                                                                        # 049
                                                                                                                        MPN: 109002
                                                                                                                        ROLLER CAGE
                                                                                                                        from £16.40
                                                                                                                        from £16.40
                                                                                                                        This part replaces part number 114059
                                                                                                                        # 050
                                                                                                                        MPN: 161445
                                                                                                                        BUSHING
                                                                                                                        from £77.01
                                                                                                                        from £77.01
                                                                                                                        # 051
                                                                                                                        MPN: 161993
                                                                                                                        PINION FOR 4TH GEAR
                                                                                                                        - Valid till transmission Nr. 1881
                                                                                                                        from £1,191.41
                                                                                                                        from £1,191.41
                                                                                                                        # 051
                                                                                                                        MPN: 179110
                                                                                                                        PINION FOR 4TH GEAR
                                                                                                                        - Valid from transmission Nr. 1882
                                                                                                                        from £1,149.78
                                                                                                                        from £1,149.78
                                                                                                                        # 052
                                                                                                                        MPN: 167978
                                                                                                                        PINION FOR 3RD GEAR
                                                                                                                        from £456.09
                                                                                                                        from £456.09
                                                                                                                        # 053
                                                                                                                        MPN: 159410
                                                                                                                        PIN
                                                                                                                        from £32.29
                                                                                                                        from £32.29
                                                                                                                        # 054
                                                                                                                        MPN: 158272
                                                                                                                        FLEXIBLE RING
                                                                                                                        from £0.47
                                                                                                                        from £0.47

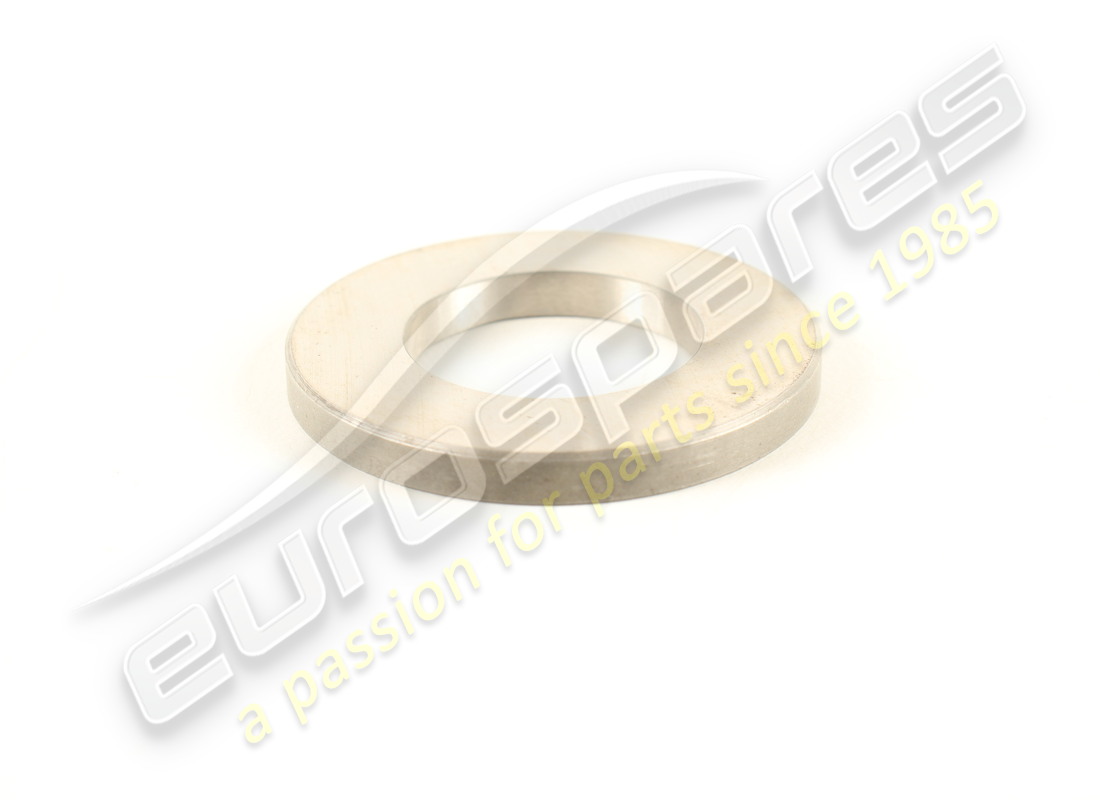

                                                                                                                        # 055
                                                                                                                        MPN: 104249
                                                                                                                        SPACER WASHER - MM. 4,0
                                                                                                                        from £37.72
                                                                                                                        from £37.72
                                                                                                                        # 055
                                                                                                                        MPN: 158257
                                                                                                                        SPACER WASHER - MM. 4,1
                                                                                                                        from £5.26
                                                                                                                        from £5.26
                                                                                                                        # 056
                                                                                                                        MPN: 104256
                                                                                                                        ROLLER CAGE
                                                                                                                        from £5.97
                                                                                                                        from £5.97
                                                                                                                        # 057
                                                                                                                        MPN: 167973
                                                                                                                        IDLE GEAR FOR REVERSE
                                                                                                                        from £746.27
                                                                                                                        from £746.27
                                                                                                                        # 058
                                                                                                                        MPN: 155155
                                                                                                                        SYNCHRONIZER RING
                                                                                                                        from £495.00
                                                                                                                        from £495.00
                                                                                                                        # 059
                                                                                                                        MPN: 152195
                                                                                                                        SMALL BLOCK
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        # 060
                                                                                                                        MPN: 161016
                                                                                                                        SPRING
                                                                                                                        from £2.85
                                                                                                                        from £2.85
                                                                                                                        # 061
                                                                                                                        MPN: 152197
                                                                                                                        BALL
                                                                                                                        from £2.09
                                                                                                                        from £2.09
