037 - Differential & Axle Shafts

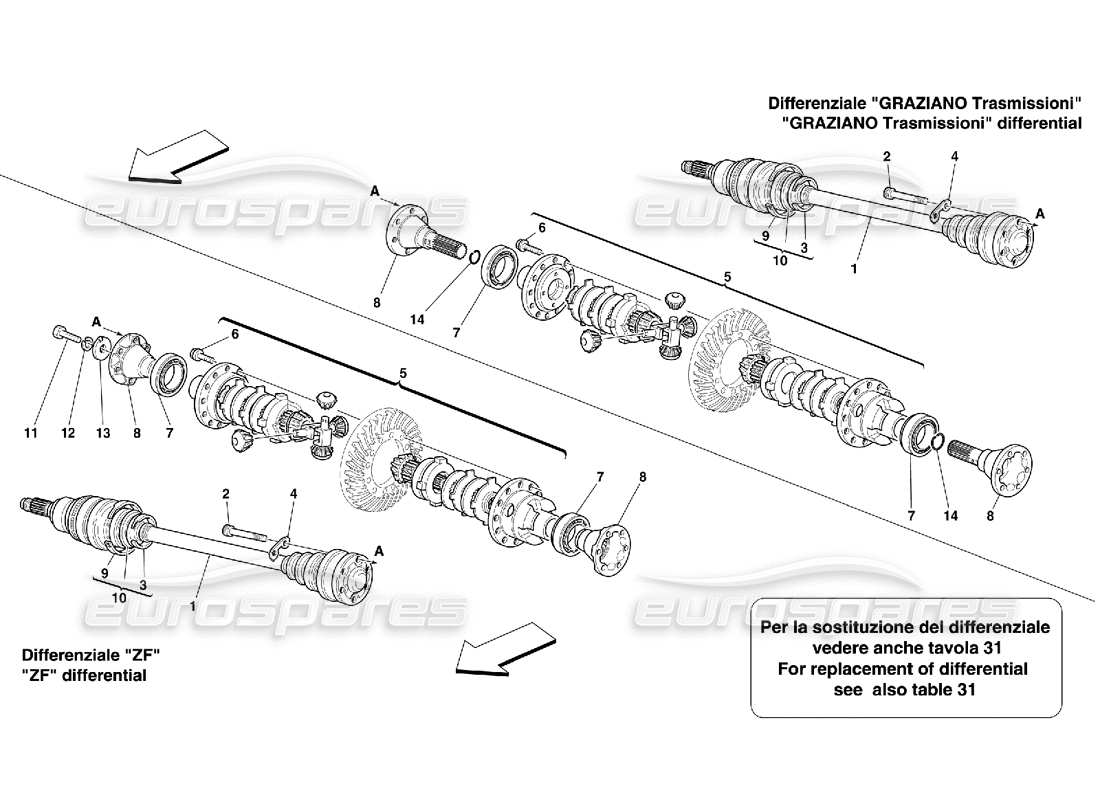

Ferrari 550 Maranello Differential & Axle Shafts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165072
AXLE SHAFT
from £357.53
from £357.53
This part replaces part number 143103 - and 1 more. Click to view details
# 002
MPN: 223916
SCREW
from £1.37
from £1.37
This part replaces part number 181910
# 002
MPN: 223916
SCREW
from £1.37
from £1.37
This part replaces part number 181910
# 003
MPN: 154213
LITTLE CLAMP
from £2.39
from £2.39
This part replaces part number 167570
# 003
MPN: 167570
LITTLE CLAMP
- Not as spare part now - Replaced by 154213
Supersession
Supersession
# 004
MPN: 149415
SCRAPING PLATE
from £1.08
from £1.08
# 005
MPN: 170764
COMPLETE DIFFERENTIAL
- Valid for ZF differential
from £1,573.25
from £1,573.25
This part replaces part number 168637
# 005
MPN: 181619
COMPLETE DIFFERENTIAL
- Valid for GRAZIANO Trasmissioni differential
from £2,541.46
from £2,541.46
# 006
MPN: 162920
SCREW
- Valid for ZF differential
from £2.01
from £2.01
# 006
MPN: 183909
SCREW
- Valid for GRAZIANO Trasmissioni differential
from £3.28
from £3.28
# 007
MPN: 125390
BEARING
from £93.74
from £93.74
# 008
MPN: 139898
FLANGE FOR AXLE COUPLING
- Valid for ZF differential
from £84.79
from £84.79
# 008
MPN: 181615
FLANGE FOR AXLE COUPLING
- Valid for GRAZIANO Trasmissioni differential
from £86.69
from £86.69
# 009
MPN: 165080
BIG CLAMP
- Not as spare part now - Replaced by 172347
Supersession
Supersession
# 009
MPN: 172347
BIG CLAMP
from £3.99
from £3.99
This part replaces part number 154214 - and 1 more. Click to view details
# 010
MPN: 70000868
PROTECTION REPLACEMENT SET
- Wheel/gearbox side
from £67.80
from £67.80
This part replaces part number 70000782
# 010
MPN: 70006022
PROTECTION REPLACEMENT SET
- Gearbox side
from £54.95
from £54.95
This part replaces part number 70000867
# 011
MPN: 153589
SCREW
- Valid for ZF differential
from £3.02
from £3.02
This part replaces part number 11399121 which we have in stock
# 012
MPN: 153590
WASHER
- Valid for ZF differential
from £2.28
from £2.28
This part replaces part number 10517070 which we have in stock
# 013
MPN: 153591
SPACER
- Valid for ZF differential
from £6.01
from £6.01
# 014
MPN: 181616
FLEXIBLE RING
- Valid for GRAZIANO Trasmissioni differential
from £1.48
from £1.48
