040 - Brake System -Not for GD

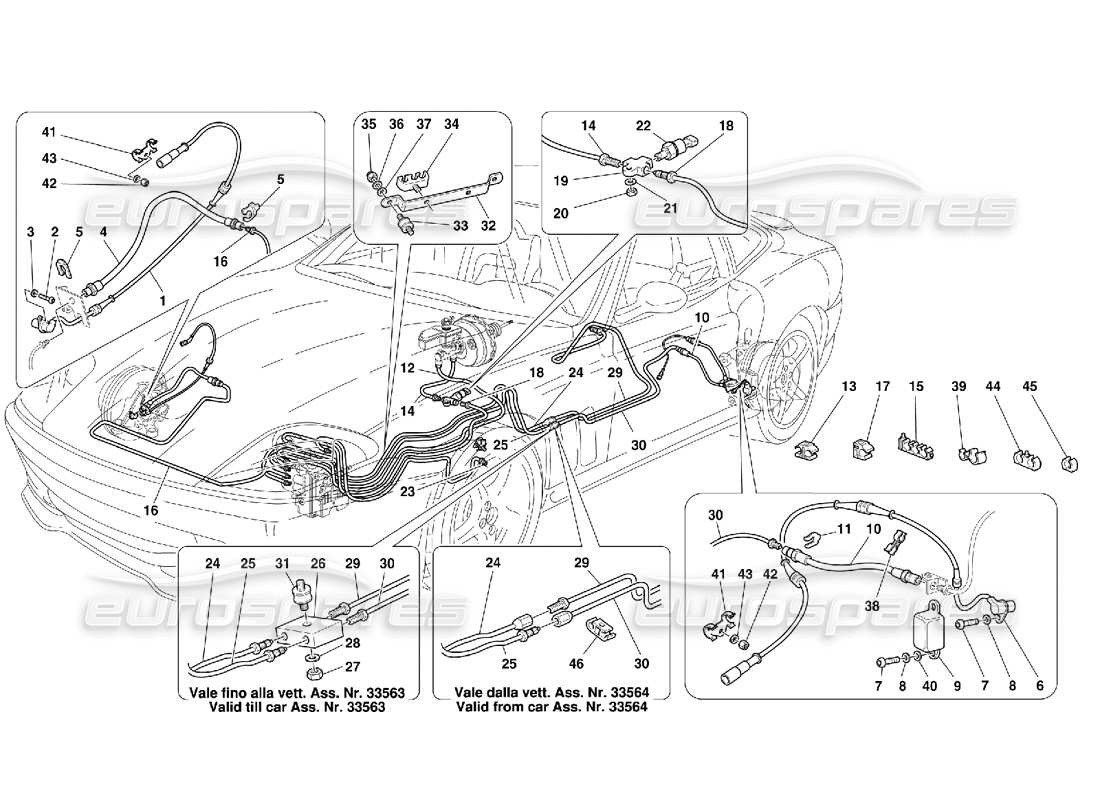

Ferrari 550 Maranello Brake System -Not for GD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 163145
                                                                      FRONT TOOTHED WHEEL SENSOR
                                                                      from £67.62
                                                                      from £67.62
                                                                      # 002
                                                                      MPN: 60909500
                                                                      SCREW
                                                                      from £1.06
                                                                      from £1.06
                                                                      # 003
                                                                      MPN: 127494
                                                                      WASHER
                                                                      (minimum order quantity = 20)
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                      # 004
                                                                      MPN: 137313
                                                                      HOSE
                                                                      from £45.00
                                                                      from £45.00
                                                                      # 005
                                                                      MPN: 116374
                                                                      FIXING CLIP
                                                                      from £1.16
                                                                      from £1.16
                                                                      # 006
                                                                      MPN: 163146
                                                                      REAR TOOTHED WHEEL SENSOR
                                                                      from £47.36
                                                                      from £47.36
                                                                      # 007
                                                                      MPN: 60909500
                                                                      SCREW
                                                                      from £1.06
                                                                      from £1.06
                                                                      # 008
                                                                      MPN: 127494
                                                                      WASHER
                                                                      (minimum order quantity = 20)
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                      # 009
                                                                      MPN: 168148
                                                                      REAR SENSOR PROTECTION
                                                                      from £17.23
                                                                      from £17.23
                                                                      # 010
                                                                      MPN: 137313
                                                                      REAR HOSE
                                                                      from £45.00
                                                                      from £45.00
                                                                      # 011
                                                                      MPN: 116374
                                                                      CLIP
                                                                      from £1.16
                                                                      from £1.16
                                                                      # 012
                                                                      MPN: 171432
                                                                      BRAKE PIPE FROM PUMP TO ABS CENTER UNIT
                                                                      from £9.20
                                                                      from £9.20
                                                                      # 013
                                                                      MPN: 143055
                                                                      FIXING CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 014
                                                                      MPN: 171430
                                                                      BRAKE PIPE FROM PUMP TO REGULATOR
                                                                      from £4.57
                                                                      from £4.57
                                                                      # 015
                                                                      MPN: 127515
                                                                      CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 016
                                                                      MPN: 164068
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO RH FRONT FLEXIBLE PIPE
                                                                      from £11.00
                                                                      from £11.00
                                                                      # 017
                                                                      MPN: 141505
                                                                      FIXING CLIP
                                                                      from £0.60
                                                                      from £0.60
                                                                      # 018
                                                                      MPN: 171431
                                                                      BRAKE PIPE FROM REGULATOR TO ABS CENTER UNIT
                                                                      from £7.36
                                                                      from £7.36
                                                                      # 020
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 021
                                                                      MPN: 12639724
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12639725 - and 1 more. Click to view details
                                                                      # 023
                                                                      MPN: 164067
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO LH FRONT FLEXIBLE PIPE
                                                                      from £8.63
                                                                      from £8.63
                                                                      # 024
                                                                      MPN: 164069
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR RH REAR BRAKE
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £15.67
                                                                      from £15.67
                                                                      # 024
                                                                      MPN: 178977
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO RH REAR JOINT
                                                                      - Valid from car Ass. Nr. 33564
                                                                      from £15.58
                                                                      from £15.58
                                                                      # 025
                                                                      MPN: 164070
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO UNION FOR LH REAR BRAKE
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £16.04
                                                                      from £16.04
                                                                      # 025
                                                                      MPN: 178978
                                                                      BRAKE PIPE FROM ABS CENTER UNIT TO LH REAR JOINT
                                                                      - Valid from car Ass. Nr. 33564
                                                                      from £14.73
                                                                      from £14.73
                                                                      # 026
                                                                      MPN: 169152
                                                                      UNION
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £138.94
                                                                      from £138.94
                                                                      # 027
                                                                      MPN: 15896470
                                                                      NUT
                                                                      - Valid till car Ass. Nr. 33563 - (minimum order quantity = 20)
                                                                      from £0.78
                                                                      from £0.78
                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                      # 028
                                                                      MPN: 127493
                                                                      WASHER
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 106849 - and 1 more. Click to view details
                                                                      # 029
                                                                      MPN: 164071
                                                                      BRAKE PIPE FROM UNION TO RH REAR FLEXIBLE PIPE
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £14.23
                                                                      from £14.23
                                                                      # 029
                                                                      MPN: 178979
                                                                      BRAKE PIPE FROM REAR JOINT TO RH REAR FLEXIBLE PIPE
                                                                      - Valid from car Ass. Nr. 33564
                                                                      from £12.27
                                                                      from £12.27
                                                                      # 030
                                                                      MPN: 164072
                                                                      BRAKE PIPE FROM UNION TO LH REAR FLEXIBLE PIPE
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £10.95
                                                                      from £10.95
                                                                      # 030
                                                                      MPN: 178980
                                                                      BRAKE PIPE FROM REAR JOINT TO LH REAR FLEXIBLE PIPE
                                                                      - Valid from car Ass. Nr. 33564
                                                                      from £9.55
                                                                      from £9.55
                                                                      # 031
                                                                      MPN: 148835
                                                                      PAD
                                                                      - Valid till car Ass. Nr. 33563
                                                                      from £7.76
                                                                      from £7.76
                                                                      # 032
                                                                      MPN: 165361
                                                                      BRACKET
                                                                      from £1.72
                                                                      from £1.72
                                                                      # 033
                                                                      MPN: 148835
                                                                      PAD
                                                                      from £7.76
                                                                      from £7.76
                                                                      # 034
                                                                      MPN: 127515
                                                                      CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 035
                                                                      MPN: 15896470
                                                                      NUT
                                                                      (minimum order quantity = 20)
                                                                      from £0.78
                                                                      from £0.78
                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                      # 036
                                                                      MPN: 127493
                                                                      WASHER
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 106849 - and 1 more. Click to view details
                                                                      # 037
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12637801 - and 1 more. Click to view details
                                                                      # 038
                                                                      MPN: 124551
                                                                      CLIP
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 039
                                                                      MPN: 150738
                                                                      CLIP
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 040
                                                                      MPN: 14496424
                                                                      WASHER
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                                      # 041
                                                                      MPN: 128292
                                                                      CLIP
                                                                      from £1.36
                                                                      from £1.36
                                                                      # 042
                                                                      MPN: 62790300
                                                                      NUT
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                      # 043
                                                                      MPN: 10519224
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 10519201
                                                                      # 044
                                                                      MPN: 169476
                                                                      CLIP
                                                                      from £1.51
                                                                      from £1.51
                                                                      # 045
                                                                      MPN: 169477
                                                                      CLIP
                                                                      from £0.99
                                                                      from £0.99
                                                                      # 046
                                                                      MPN: 169476
                                                                      CLIP
                                                                      - Valid from car Ass. Nr. 33564
                                                                      from £1.51
                                                                      from £1.51
