045 - Hand-Brake Control

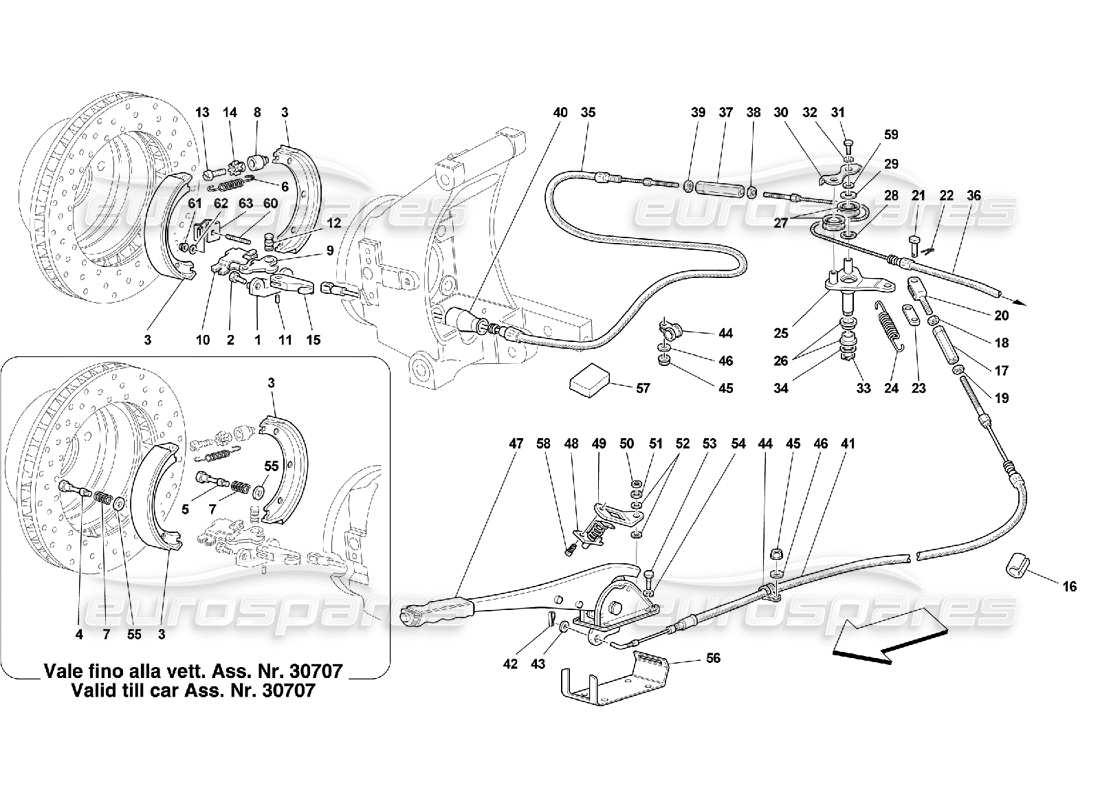

Ferrari 550 Maranello Hand-Brake Control Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 142861
SMALL BLOCK
from £147.71
from £147.71
# 002
MPN: 142856
SCREW
from £3.01
from £3.01
# 003
MPN: 170701
COMPLETE BRAKE SHOE
from £31.61
from £31.61
This part replaces part number 162820
# 003
MPN: 170701/A
COMPLETE BRAKE SHOES
from £77.85
from £77.85
This part replaces part number 178382
# 003
MPN: 178382
COMPLETE BRAKE SHOE
use part number: 170701
Supersession
Supersession
# 004
MPN: 156915
SCREW
- Valid till car Ass. Nr. 30707
from £84.35
from £84.35
# 005
MPN: 156916
SCREW
- Valid till car Ass. Nr. 30707
from £30.98
from £30.98
# 006
MPN: 101276
SPRING
from £2.28
from £2.28
This part replaces part number 680516 - and 5 more. Click to view details
# 007
MPN: 101277
SPRING
- Valid till car Ass. Nr. 30707
from £2.39
from £2.39
This part replaces part number 680517
# 008
MPN: 101279
SCREW SEAT
from £31.50
from £31.50
# 009
MPN: 101280
INNER LEVER
from £26.09
from £26.09
This part replaces part number 680538 - and 6 more. Click to view details
# 010
MPN: 101281
OUTER LEVER
from £34.13
from £34.13
This part replaces part number 680539 - and 7 more. Click to view details
# 011
MPN: 101282
PIN
from £8.00
from £8.00
This part replaces part number 680540
# 012
MPN: 101283
PIN
from £8.82
from £8.82
This part replaces part number 680541 - and 1 more. Click to view details
# 013
MPN: 101285
SCREW
from £17.70
from £17.70
This part replaces part number 680543 - and 8 more. Click to view details
# 014
MPN: 101286
NUT
from £21.62
from £21.62
This part replaces part number 680544 - and 4 more. Click to view details
# 015
MPN: 105270
FORK
from £14.71
from £14.71
# 016
MPN: 152913
RUBBER PIPE
from £23.81
from £23.81
# 017
MPN: 152302
ADJUSTMENT SLEEVE
from £7.97
from £7.97
# 018
MPN: 16102914
NUT
from £1.63
from £1.63
This part replaces part number 16102911
# 019
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 020
MPN: 152301
FORK
from £24.40
from £24.40
# 021
MPN: 10050811
PIN
from £5.22
from £5.22
This part replaces part number 10050810
# 022
MPN: 10734201
SPLIT PIN
Supersession
Supersession
# 023
MPN: 152303
SMALL PLATE
from £13.91
from £13.91
# 024
MPN: 104895
SPRING
from £2.97
from £2.97
# 025
MPN: 152279
LEVER
- Not for GD
from £40.41
from £40.41
# 025
MPN: 156122
LEVER
- Valid for GD
from £57.75
from £57.75
# 026
MPN: 152273
BUSHING
from £5.39
from £5.39
# 027
MPN: 152274
PULLEY
- Valid till stock exhaustion
Supersession
Supersession
# 027
MPN: 175780
PULLEY
- Valid after stock exhaustion of 152274
from £6.91
from £6.91
This part replaces part number 152274
# 028
MPN: 152617
WASHER
from £0.53
from £0.53
# 029
MPN: 109483
WASHER
from £1.24
from £1.24
# 030
MPN: 152299
SMALL PLATE
- Not for GD
from £4.12
from £4.12
# 030
MPN: 158694
SMALL PLATE
- Valid for GD
from £5.88
from £5.88
# 031
MPN: 10977524
SCREW
from £0.53
from £0.53
# 032
MPN: 11193274
WASHER
from £0.54
from £0.54
This part replaces part number 11193279 which we have in stock
# 033
MPN: 11066476
SEEGER RING
from £0.53
from £0.53
# 034
MPN: 152300
WASHER
from £0.92
from £0.92
# 035
MPN: 152297
RH REAR CABLE
from £116.64
from £116.64
# 036
MPN: 152298
LH REAR CABLE
from £116.64
from £116.64
# 037
MPN: 10091014
SLEEVE
from £45.04
from £45.04
This part replaces part number 10091011
# 038
MPN: 10727311
NUT
Supersession
Supersession
This part replaces part number 95560
# 039
MPN: 10725914
NUT
from £0.51
from £0.51
This part replaces part number 10725911 - and 1 more. Click to view details
# 040
MPN: 143938
STOP LIMIT FOR HAND BRAKE SHEATH
from £16.31
from £16.31
# 041
MPN: 164021
HAND-BRAKE CONTROL CABLE
from £151.20
from £151.20
# 042
MPN: 10796440
SPLIT PIN
Supersession
Supersession
This part replaces part number 264555
# 043
MPN: 10519624
WASHER
from £0.54
from £0.54
This part replaces part number 10519601 - and 3 more. Click to view details
# 044
MPN: 10441290
BRACKET WITH SHEATH
from £0.50
from £0.50
# 045
MPN: 102741
NUT
from £0.52
from £0.52
This part replaces part number 12575411 - and 1 more. Click to view details
# 046
MPN: 12639724
WASHER
from £0.53
from £0.53
This part replaces part number 12639725 - and 1 more. Click to view details
# 047
MPN: 154095
HAND BRAKE LEVER
- Without lining
from £361.82
from £361.82
This part replaces part number 141460 - and 2 more. Click to view details
# 047
MPN: 629965..
LINING
- See relevant table for leather colours
Supersession
Supersession
# 048
MPN: 169292
SWITCH
from £0.68
from £0.68
# 049
MPN: 169291
SUPPORT BRACKET
from £1.55
from £1.55
# 050
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 051
MPN: 12605274
WASHER
from £0.71
from £0.71
This part replaces part number 12605270 - and 1 more. Click to view details
# 052
MPN: 63622400
WASHER
from £24.35
from £24.35
# 053
MPN: 10902124
SCREW
from £0.51
from £0.51
This part replaces part number 10902111 - and 1 more. Click to view details
# 054
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 055
MPN: 12625224
WASHER
- Valid till car Ass. Nr. 30707
from £0.53
from £0.53
This part replaces part number 12625201 - and 2 more. Click to view details
# 056
MPN: 64051200
SUPPORT
from £8.50
from £8.50
# 057
MPN: 158346
RUBBER THICKNESS
from £0.79
from £0.79
# 058
MPN: 15915807
SCREW
from £0.47
from £0.47
# 059
MPN: 62501300
WASHER
from £0.77
from £0.77
# 060
MPN: 13539224
STUD
- Valid from car Ass. Nr. 30708
from £3.79
from £3.79
# 061
MPN: 14058314
NUT
- Valid from car Ass. Nr. 30708
from £0.53
from £0.53
# 062
MPN: 12637824
WASHER
- Valid from car Ass. Nr. 30708
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 063
MPN: 177625
SPRING
- Valid from car Ass. Nr. 30708
from £65.63
from £65.63
