047 - Steering Column

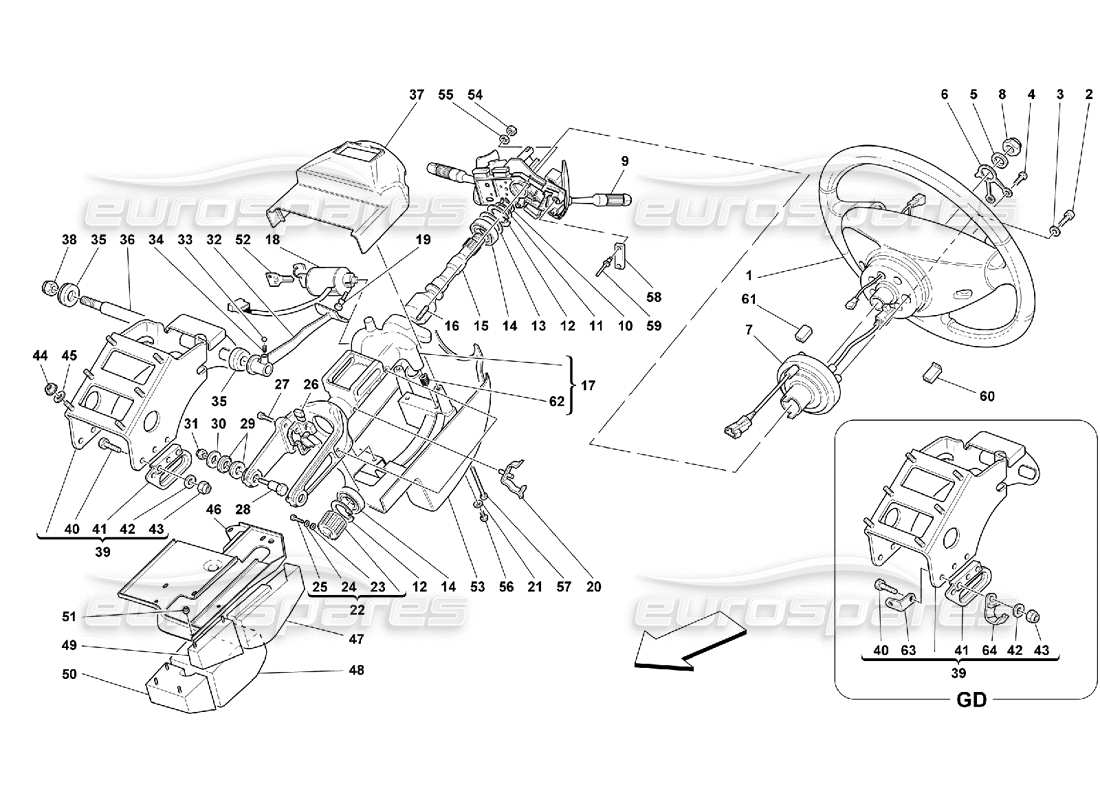

Ferrari 550 Maranello Steering Column Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165021

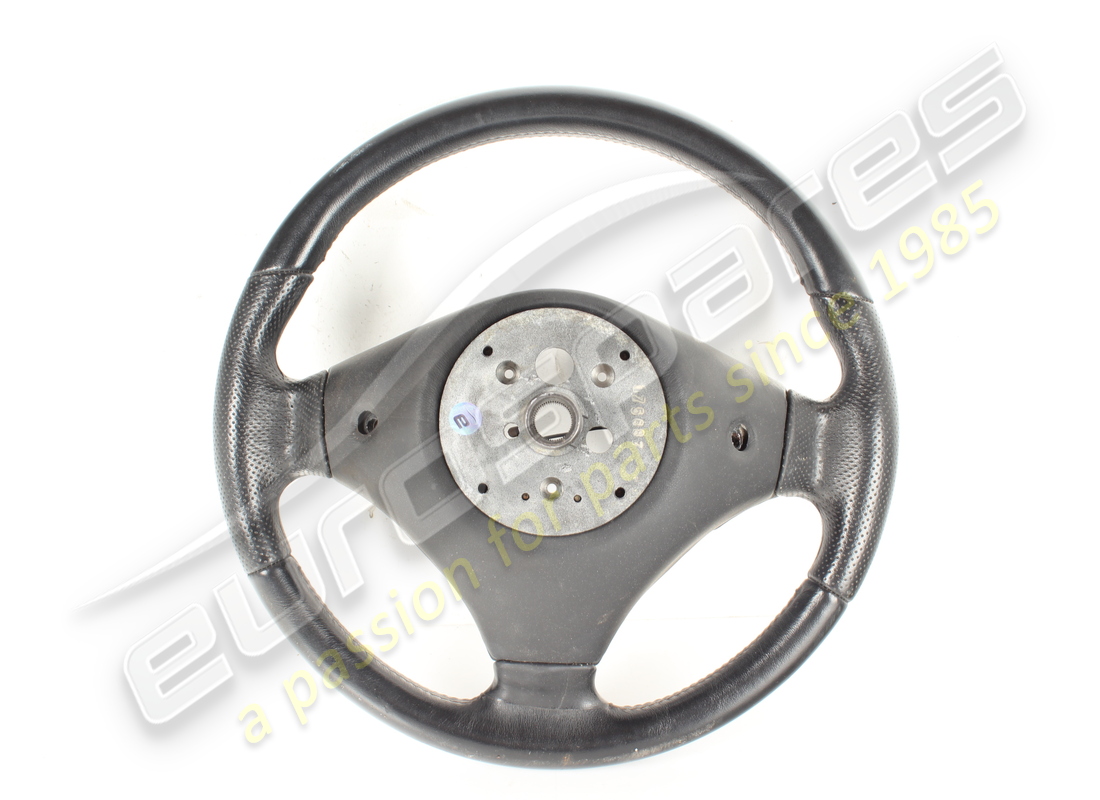

COMPLETE STEERING WHEEL
(black)
from £834.75
from £834.75
This part replaces part number 165022 - and 2 more. Click to view details
# 001
MPN: 175687
COMPLETE STEERING WHEEL
- Valid for USA, CDN, AUS and J - Valid after stock exhaustion of 165021 - Not as spare part now - Replaced by 658422..
from £760.80
from £760.80
This part replaces part number 165021 which we have in stock - and 1 more. Click to view details
# 001
MPN: 65842200
STEERING WHEEL
See also 175687
from £796.46
from £796.46
# 001
MPN: 65842202
COMPLETE STEERING WHEEL
Dark Blue
from £796.46
from £796.46
# 002
MPN: 13271914
SCREW
from £0.52
from £0.52
This part replaces part number 13271911 - and 1 more. Click to view details
# 003
MPN: 10615274
WASHER
from £0.53
from £0.53
This part replaces part number 10615270 - and 2 more. Click to view details
# 004
MPN: 11021111
SCREW
from £0.53
from £0.53
This part replaces part number 131745 which we have in stock
# 005
MPN: 10730921
WASHER
from £0.54
from £0.54
# 006
MPN: 157639
SPRING
from £4.82
from £4.82
# 007
MPN: 169471
SPIRAL CONTACT
from £107.31
from £107.31
This part replaces part number 155394
# 008
MPN: 101648
NUT
from £2.33
from £2.33
This part replaces part number 106082
# 009
MPN: 159411
UNHOOK DEVIATION ASSEMBLY
from £750.00
from £750.00
This part replaces part number 164446 - and 8 more. Click to view details
# 010
MPN: 11066876
SEEGER RING
from £0.47
from £0.47
This part replaces part number 11066875
# 011
MPN: 134070
SEEGER RING
from £2.48
from £2.48
# 011
MPN: 134071
DITTO, THICKNESS MM. 1.1
from £1.14
from £1.14
# 011
MPN: 134072
DITTO, THICKNESS MM. 1.2
from £1.13
from £1.13
# 011
MPN: 134073
DITTO, THICKNESS MM. 1.3
from £1.27
from £1.27
# 011
MPN: 134074
DITTO, THICKNESS MM. 1.4
from £4.02
from £4.02
# 012
MPN: 11060076
SEEGER RING
from £0.51
from £0.51
# 013
MPN: 134065
BEARING THRUST WASHER THINCKNESS MM. 1.0
from £1.35
from £1.35
# 013
MPN: 134066
DITTO, THICKNESS MM. 1.1
from £0.74
from £0.74
# 013
MPN: 134067
DITTO, THICKNESS MM. 1.2
from £1.16
from £1.16
# 013
MPN: 134068
DITTO, THICKNESS MM. 1.3
from £1.06
from £1.06
# 013
MPN: 134069
DITTO, THICKNESS MM. 1.4
from £1.20
from £1.20
# 014
MPN: 134061
BEARING
from £8.82
from £8.82
This part replaces part number 119213
# 015
MPN: 157968
UPPER SHAFT FOR STEERING CONTROL
from £279.43
from £279.43
This part replaces part number 151522
# 016
MPN: 11001224
STUD
from £0.51
from £0.51
This part replaces part number 11001221
# 017
MPN: 161530
COLUMN SUPPORT
- Valid till car Ass. Nr. 30647
from £742.76
from £742.76
# 017
MPN: 175817
COLUMN SUPPORT
- Valid from car Ass. Nr. 30648
from £551.25
from £551.25
# 018
MPN: 162546

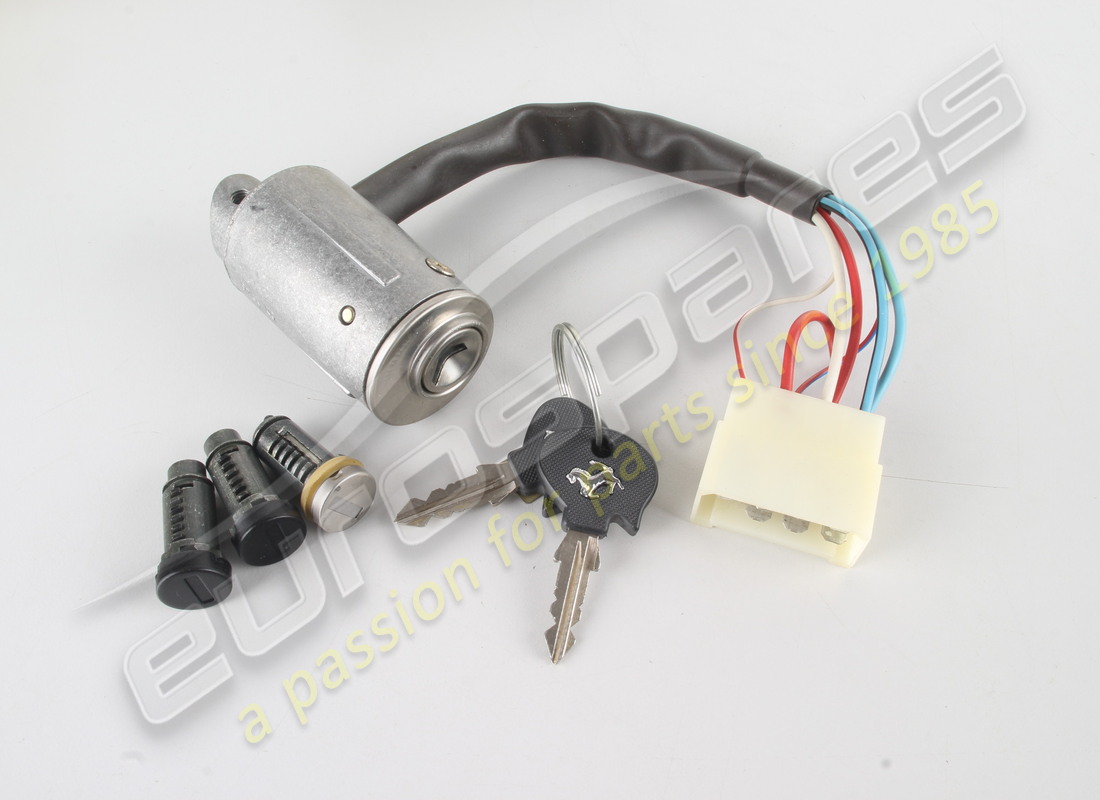

DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE
- Not for USA, CDN and AUS
from £255.84
from £255.84
This part replaces part number 150845
# 018
MPN: 162547
DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE
- Valid for USA, CDN and AUS
from £1,986.10
from £1,986.10
# 019
MPN: 168046
SCREW
from £2.98
from £2.98
This part replaces part number 156456
# 020
MPN: 157385
CLIP
from £0.48
from £0.48
# 021
MPN: 12601176
WASHER
Supersession
Supersession
# 022
MPN: 150944
THED WHEEL
Supersession
Supersession
# 023
MPN: 12604079
WASHER
from £0.84
from £0.84
# 024
MPN: 14497701
WASHER
from £0.54
from £0.54
# 025
MPN: 14303324
SCREW
from £0.53
from £0.53
This part replaces part number 014303324
# 026
MPN: 171835
TOOTHED WHEEL SENSOR
from £55.47
from £55.47
This part replaces part number 150943
# 027
MPN: 14303374
SCREW
from £0.71
from £0.71
# 028
MPN: 152044
PIN
from £15.71
from £15.71
# 029
MPN: 156061
BUSHING
from £9.30
from £9.30
# 030
MPN: 100660
WASHER
from £0.71
from £0.71
# 031
MPN: 101139
NUT
from £0.54
from £0.54
This part replaces part number 16104425
# 032
MPN: 168055
LOCK LEVER FOR STEERING COLUMN
from £106.99
from £106.99
This part replaces part number 164530 which we have in stock - and 1 more. Click to view details
# 033
MPN: 10-16-11
BALL
from £0.56
from £0.56
# 034
MPN: 155865
SPRING
from £1.98
from £1.98
# 035
MPN: 163593
SPACER
from £3.03
from £3.03
# 036
MPN: 155866
SHAFT
- Valid till car Ass. Nr. 30647
from £81.50
from £81.50
# 036
MPN: 175715
SHAFT
- Valid from car Ass. Nr. 30648
from £48.22
from £48.22
# 037
MPN: 65168000

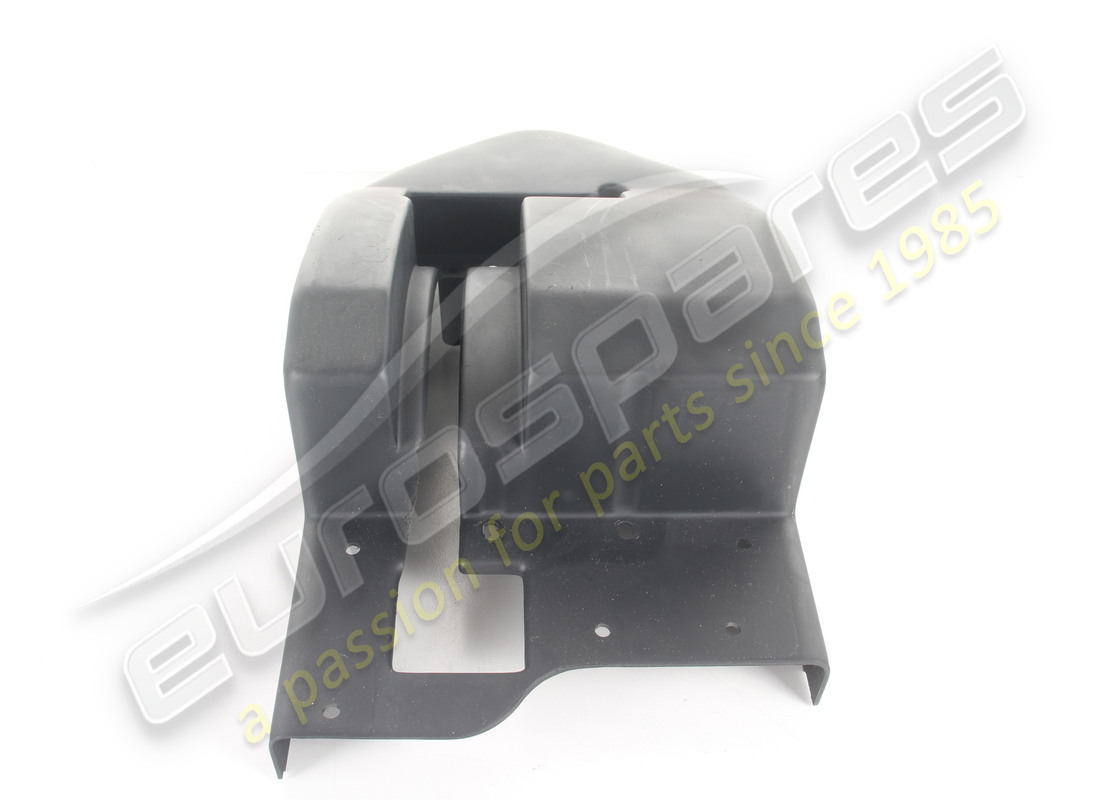

UPPER COVER FOR STEERING ROD
- Valid till car Ass. Nr. 30647
from £133.67
from £133.67
# 037
MPN: 65734700
UPPER COVER FOR STEERING ROD
- Valid from car Ass. Nr. 30648
from £102.49
from £102.49
# 038
MPN: 102825
NUT
from £0.53
from £0.53
This part replaces part number 95900617
# 039
MPN: 168742
COLUMN SUPPORT BRACKET
- Not for GD - Valid till car Ass. Nr. 30647
from £394.89
from £394.89
# 039
MPN: 171600
COLUMN SUPPORT BRACKET
- Valid for GD - Valid till car Ass. Nr. 30647
from £482.44
from £482.44
# 039
MPN: 176144
COLUMN SUPPORT BRACKET
- Not for GD - Valid from car Ass. Nr. 30648
from £204.42
from £204.42
# 039
MPN: 177992
COLUMN SUPPORT BRACKET
- Valid for GD - Valid from car Ass. Nr. 30648
from £697.28
from £697.28
# 040
MPN: 10902524
SCREW
- For GD quantity 5
from £0.50
from £0.50
# 040
MPN: 10902724
SCREW
- Valid for GD
from £0.71
from £0.71
This part replaces part number 10902721 which we have in stock
# 041
MPN: 163579
RH SLIDING ELEMENT
- Valid till car Ass. Nr. 30647
from £63.70
from £63.70
# 041
MPN: 163587
LH SLIDING ELEMENT
- Valid till car Ass. Nr. 30647
from £87.47
from £87.47
# 041
MPN: 177972
RH SLIDING ELEMENT
- Valid from car Ass. Nr. 30648
from £106.11
from £106.11
# 041
MPN: 177973
LH SLIDING ELEMENT
- Valid from car Ass. Nr. 30648
from £106.11
from £106.11
# 042
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 043
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 044
MPN: 14058411
NUT
from £0.52
from £0.52
# 045
MPN: 12647624
WASHER
from £0.50
from £0.50
This part replaces part number 12647611
# 046
MPN: 64450700
UNDER COLUMN PLATE
from £31.72
from £31.72
# 047
MPN: 64450900
LH FILLER
from £14.66
from £14.66
# 048
MPN: 64450800
RH FILLER
from £17.78
from £17.78
# 049
MPN: 64509000
LH OUTER INSERT
from £20.24
from £20.24
# 050
MPN: 64508900
RH OUTER INSERT
from £17.59
from £17.59
# 051
MPN: 13832101
NUT
from £0.52
from £0.52
# 052
MPN: 170010
BLANK KEY
from £669.90
from £669.90
This part replaces part number 170010 ASM - and 1 more. Click to view details
# 053
MPN: 63895900
LOWER COVER FOR STEERING ROD
from £210.00
from £210.00
This part replaces part number 63711700 - and 1 more. Click to view details
# 054
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.76
from £0.76
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 055
MPN: 12601174
WASHER
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 056
MPN: 13274117
SCREW
from £0.47
from £0.47
# 057
MPN: 13275217
SCREW
from £1.18
from £1.18
This part replaces part number 14063014
# 058
MPN: 164081
SMALL PLATE
from £8.73
from £8.73
# 059
MPN: 60739400
RIVET
from £0.71
from £0.71
# 060
MPN: 135355
CONNECTOR
from £0.47
from £0.47
# 061
MPN: 163816
RESISTOR FOR SPIRAL CONTACT
from £8.84
from £8.84
# 062
MPN: 13525170
THREADED INSERT
from £0.48
from £0.48
# 063
MPN: 171585
SMALL PLATE
- Valid for GD
from £17.68
from £17.68
# 064
MPN: 129544
CLIP
- Valid for GD
from £1.31
from £1.31
