048 - Hydraulic Steering Pumps

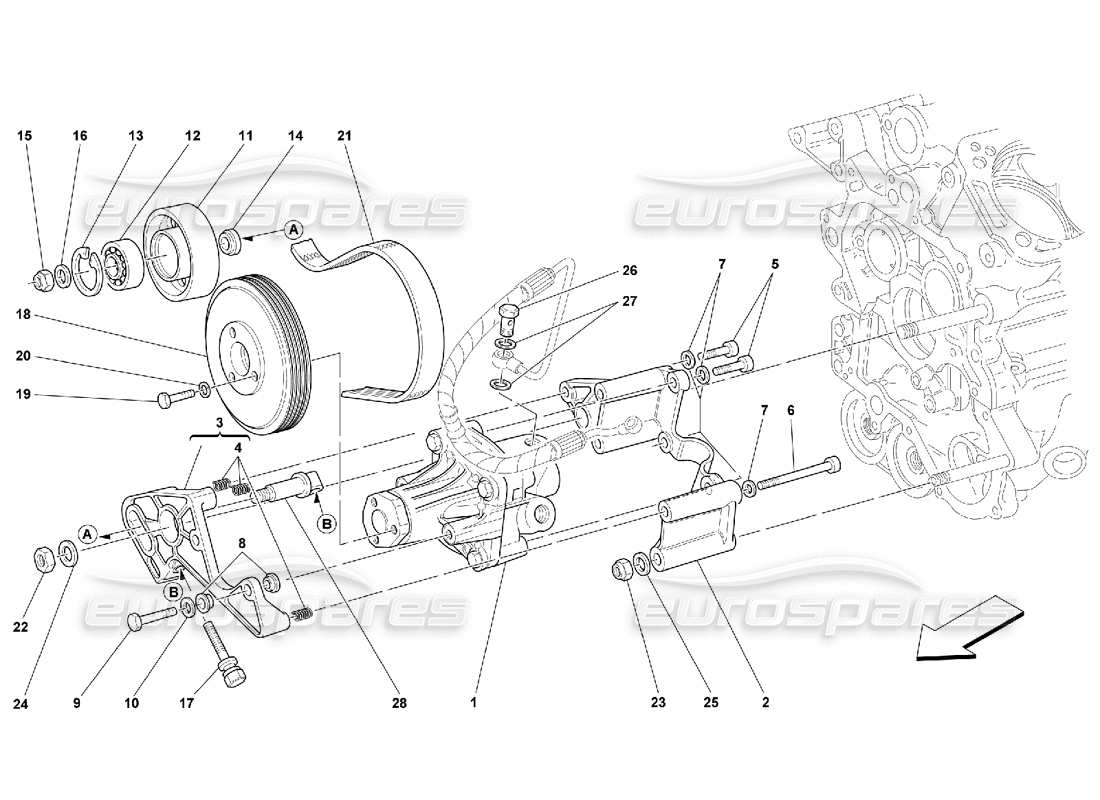

Ferrari 550 Maranello Hydraulic Steering Pumps Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 170751
HYDRAULIC SERVO-CONTROL PUMP
from £4,064.10
from £4,064.10
# 002
MPN: 170831
INNER SUPPORT
from £433.82
from £433.82
# 003
MPN: 171271
SUPPORT WITH BELT TIGHTENER
from £188.64
from £188.64
# 004
MPN: 13525770
THREADED INSERT
from £1.54
from £1.54
This part replaces part number 103830
# 005
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
# 006
MPN: 14307224
SCREW
from £0.52
from £0.52
# 007
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 008
MPN: 165975
BUSHING
from £2.25
from £2.25
# 009
MPN: 16052024
SCREW
from £1.39
from £1.39
# 010
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 011
MPN: 148631
PULLEY
from £268.28
from £268.28
# 012
MPN: 123350
BEARING
from £24.47
from £24.47
# 013
MPN: 11060076
SEEGER RING
from £0.53
from £0.53
# 014
MPN: 148638
SPACER
from £89.21
from £89.21
# 015
MPN: 102825
NUT
from £0.53
from £0.53
This part replaces part number 95900617
# 016
MPN: 10730721
WASHER
Supersession
Supersession
# 017
MPN: 157289
SCREW
from £4.11
from £4.11
# 018
MPN: 165974
PULLEY
from £219.81
from £219.81
# 019
MPN: 10902124
SCREW
from £0.52
from £0.52
This part replaces part number 10902111 - and 1 more. Click to view details
# 020
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 021
MPN: 199834
Water & Power Steering Belt
Use on Exhaustion of 171093
from £15.37
from £15.37
This part replaces part number 171093
# 021
MPN: 199834
BELT FOR HYDRAULIC SERVO-CONTROL PUMP
- Valid till engine Nr. 51922
from £15.37
from £15.37
This part replaces part number 171093
# 021
MPN: 199834
BELT FOR HYDRAULIC SERVO-CONTROL PUMP
- Valid from engine Nr. 51923
from £15.37
from £15.37
This part replaces part number 171093
# 022
MPN: 148020
NUT
from £2.51
from £2.51
This part replaces part number 102825 - and 3 more. Click to view details
# 023
MPN: 102742
NUT
from £0.54
from £0.54
This part replaces part number 12557621 - and 2 more. Click to view details
# 024
MPN: 157115
WASHER
from £1.43
from £1.43
# 025
MPN: 13550401
WASHER
from £0.71
from £0.71
# 026
MPN: 10184411
UNION-VALVE
from £29.50
from £29.50
# 027
MPN: 10278660
GASKET
from £0.47
from £0.47
# 028
MPN: 153165
PIN
from £38.13
from £38.13
