049 - Front Suspension - Shock Absorber and Brake Disc

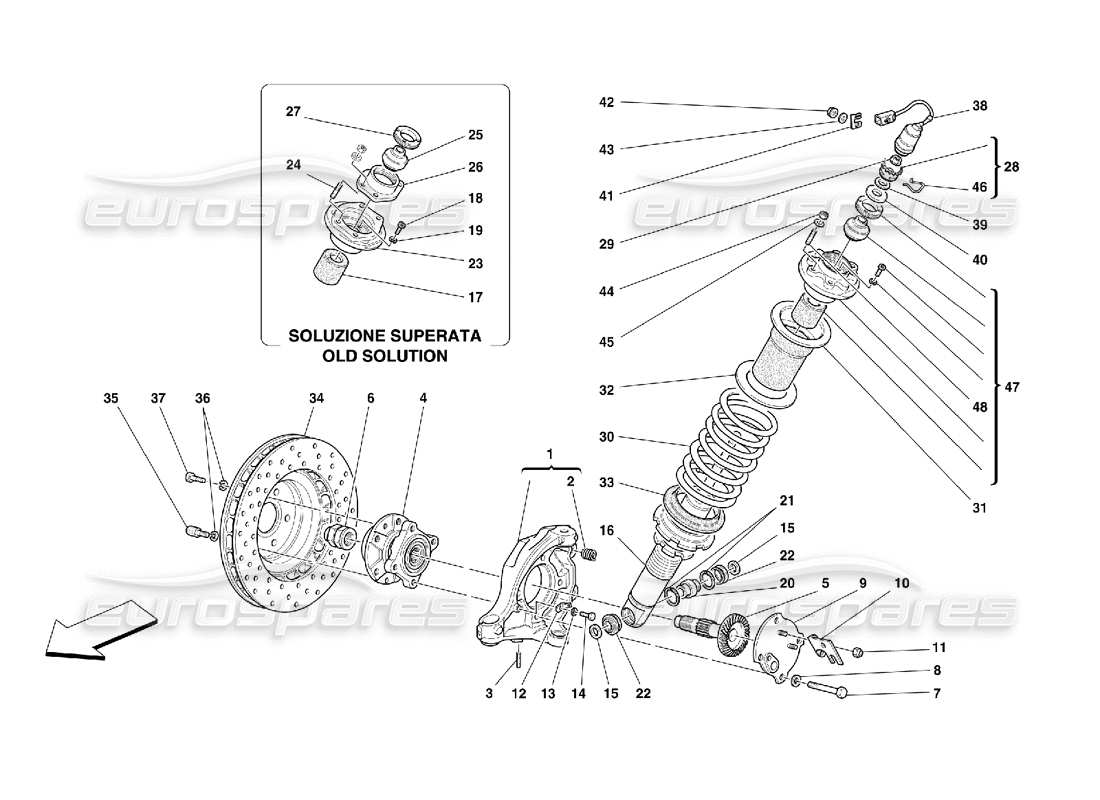

Ferrari 550 Maranello Front Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 173708
COMPLETE RH STEERING KNUCKLE
- Not as spare part now - Replaced by 178886
Supersession
Supersession
# 000
MPN: 173709
COMPLETE LH STEERING KNUCKLE
- Not as spare part now - Replaced by 178887
Supersession
Supersession
# 000
MPN: 178886
COMPLETE RH STEERING KNUCKLE
- Not as spare part now - Replaced by 185818
Supersession
Supersession
This part replaces part number 173708 - and 1 more. Click to view details
# 000
MPN: 178887
COMPLETE LH STEERING KNUCKLE
- Not as spare part now - Replaced by 185819
Supersession
Supersession
This part replaces part number 173709 - and 1 more. Click to view details
# 000
MPN: 184626
COMPLETE RH STEERING KNUCKLE
from £939.75
from £939.75
This part replaces part number 185818 - and 3 more. Click to view details
# 000
MPN: 185819
COMPLETE LH STEERING KNUCKLE
Supersession
Supersession
This part replaces part number 178887
# 001
MPN: 176184
RH STEERING KNUCKLE
- Not as spare part - With complete RH steering knuckle 178886
# 001
MPN: 176185
LH STEERING KNUCKLE
- Not as spare part - With complete LH steering knuckle 178887
# 001
MPN: 184621
RH STEERING KNUCKLE
- Not as spare part - With complete RH steering knuckle 185818
# 001
MPN: 184622
LH STEERING KNUCKLE
- Not as spare part - With complete LH steering knuckle 185819
# 002
MPN: 133771
THREADED INSERT
from £1.92
from £1.92
# 003
MPN: 11000924
STUD
from £0.77
from £0.77
This part replaces part number 11000921 which we have in stock
# 004

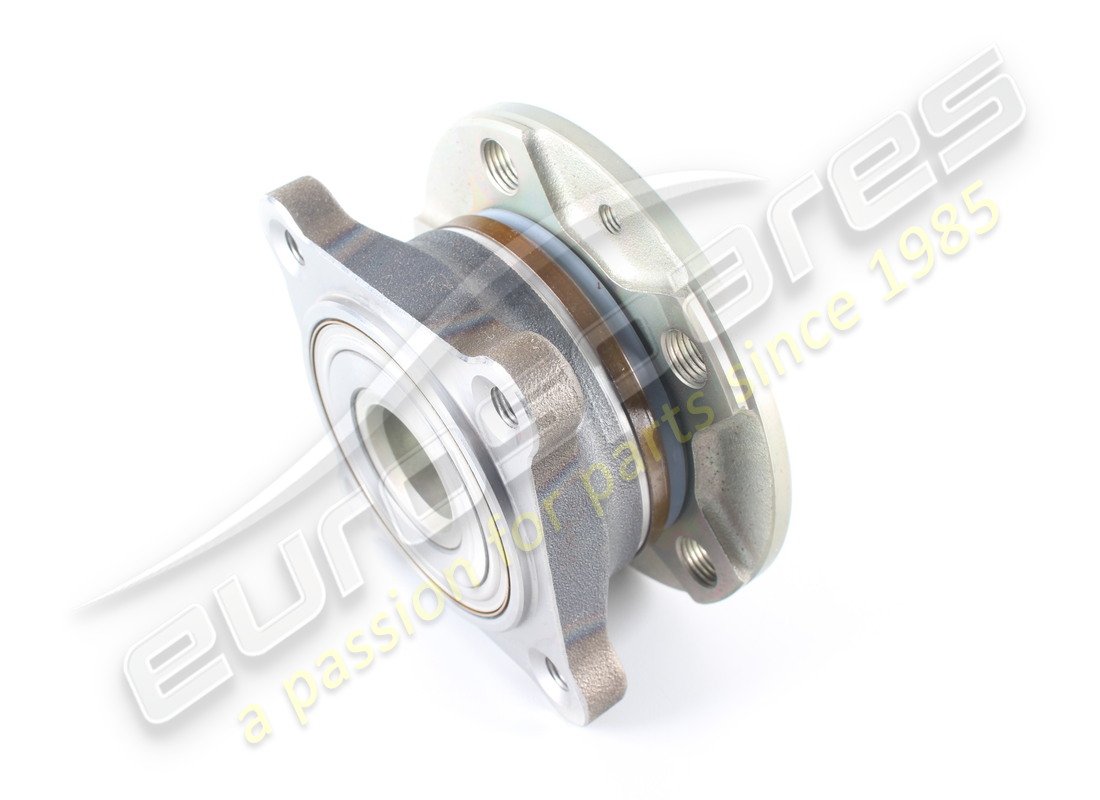

MPN: 157900
BEARING
from £595.71
from £595.71
This part replaces part number 143172 - and 6 more. Click to view details
# 005
MPN: 174045
FRONT TOOTHED WHEEL
from £204.75
from £204.75
This part replaces part number 163103 which we have in stock - and 1 more. Click to view details
# 006
MPN: 209184
NUT
from £25.32
from £25.32
This part replaces part number 167259 - and 1 more. Click to view details
# 007
MPN: 16324034
SCREW
from £3.30
from £3.30
# 008
MPN: 102901
WASHER
from £0.71
from £0.71
This part replaces part number 4146930
# 009
MPN: 164925
RH COVER
from £387.79
from £387.79
# 009
MPN: 164926
LH COVER
from £238.67
from £238.67
# 010
MPN: 170177
RH SUPPORT
from £133.54
from £133.54
# 010
MPN: 170178
LH SUPPORT
from £91.80
from £91.80
# 011
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 012
MPN: 143405
Key
from £0.53
from £0.53
# 013
MPN: 149951
WASHER
from £0.53
from £0.53
This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
# 014
MPN: 10977524
SCREW
from £0.53
from £0.53
# 015
MPN: 153495
SPACER WASHER MM. 3.00
from £2.40
from £2.40
# 015
MPN: 153496
SPACER WASHER MM. 2.90
- As an alternative of 153495
from £2.40
from £2.40
# 015
MPN: 153497
SPACER WASHER MM. 3.10
- As an alternative of 153495
from £2.42
from £2.42
# 016

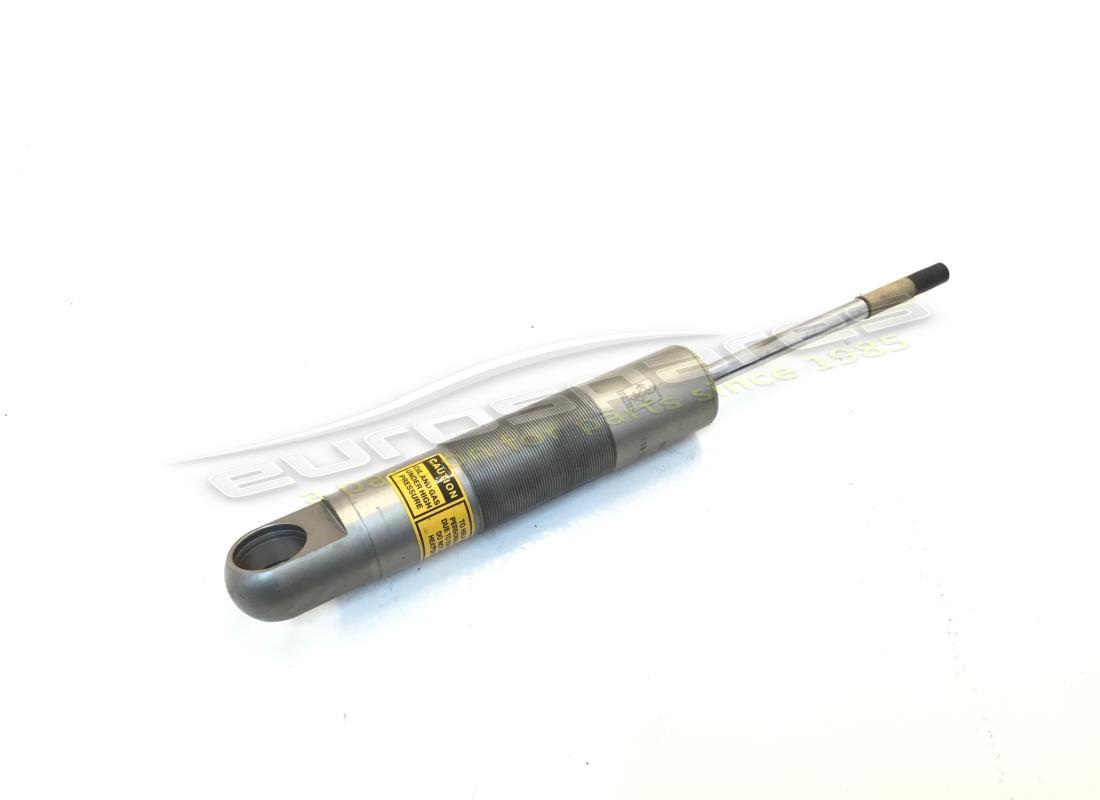

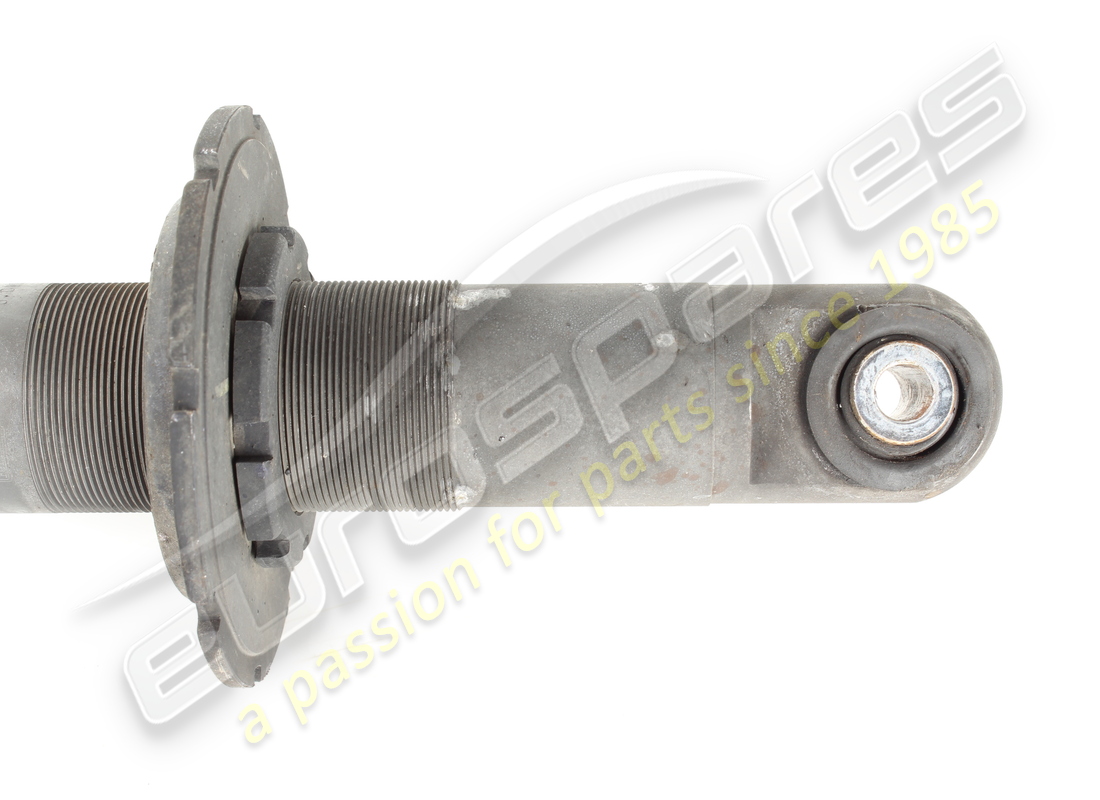

MPN: 183334
FRONT SHOCK ABSORBER
Supersession
Supersession
This part replaces part number 162395
# 016
MPN: 183334
FRONT SHOCK ABSORBER
Supersession
Supersession
This part replaces part number 162395
# 017
MPN: 152329
SHOCK ABSORBER PAD
- Not as spare now
from £18.33
from £18.33
# 018
MPN: 11021111
SCREW
- Not as spare part now
from £0.51
from £0.51
This part replaces part number 131745 which we have in stock
# 019
MPN: 10519224
WASHER
- Not as spare part now
from £0.53
from £0.53
This part replaces part number 10519201 which we have in stock
# 020
MPN: 153285
BALL JOINT
from £287.51
from £287.51
# 021
MPN: 145478
SEEGER RING
from £2.42
from £2.42
This part replaces part number 11059370
# 022
MPN: 153286
RUBBER
from £1.20
from £1.20
# 023

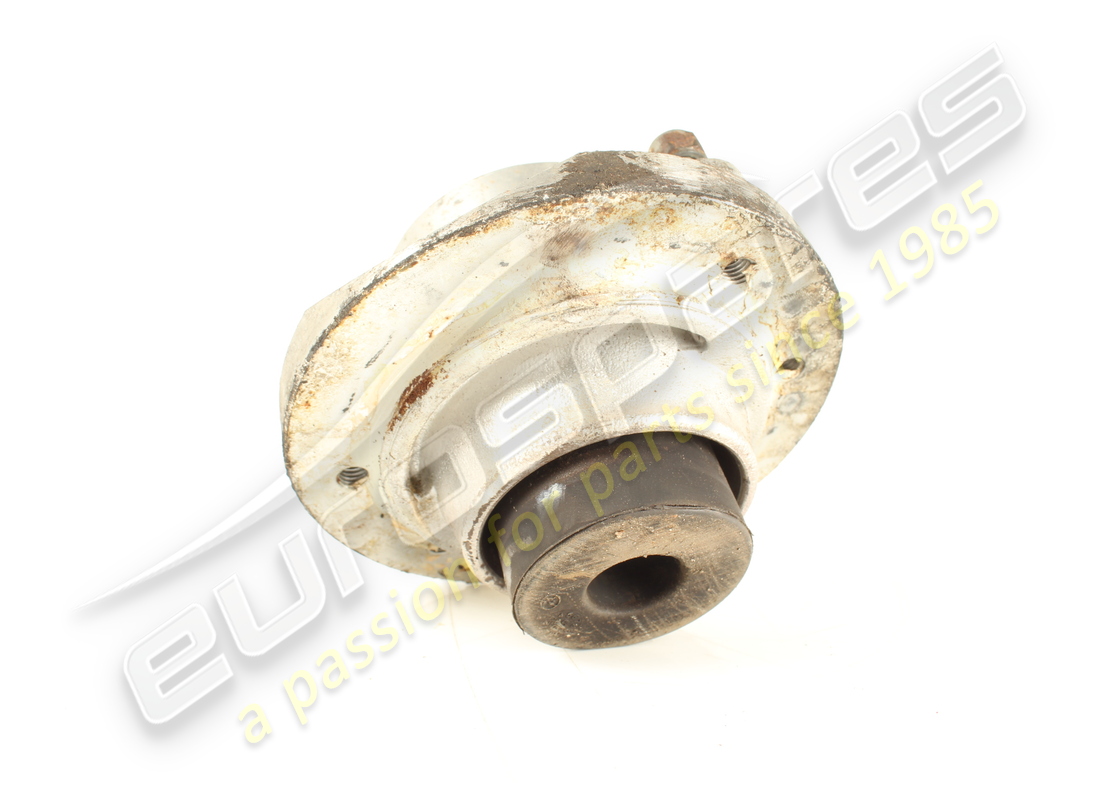

MPN: 172356
CUP
- Not as spare part now
from £194.25
from £194.25
# 024
MPN: 13543524
STUD
- Not as spare part now
from £2.09
from £2.09
This part replaces part number 13543521
# 025
MPN: 170611
BALL JOINT
- Not as spare part now
# 026
MPN: 172357
UPPER JOINT SUPPORT
- Not as spare part now
from £80.87
from £80.87
# 027
MPN: 170143
RING NUT
- Not as spare part now
from £28.23
from £28.23
# 028
MPN: 137824
SUPPORT
from £7.79
from £7.79
# 029
MPN: 137826
NUT
from £1.86
from £1.86
# 030
MPN: 163648
SPRING
- Sold in pair - Not for cars with handling Fiorano equipment
from £288.60
from £288.60
# 030
MPN: 169985
SPRING
- Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
from £279.76
from £279.76
# 030
MPN: 175886
SPRING
- Sold in pair - Valid for cars with handling Fiorano equipment - Optional
from £272.38
from £272.38
# 031
MPN: 127991
COMPLETE SPACER
from £39.70
from £39.70
# 032
MPN: 152655
WASHER
from £2.51
from £2.51
# 033
MPN: 152842
WASHER
from £24.66
from £24.66
# 034

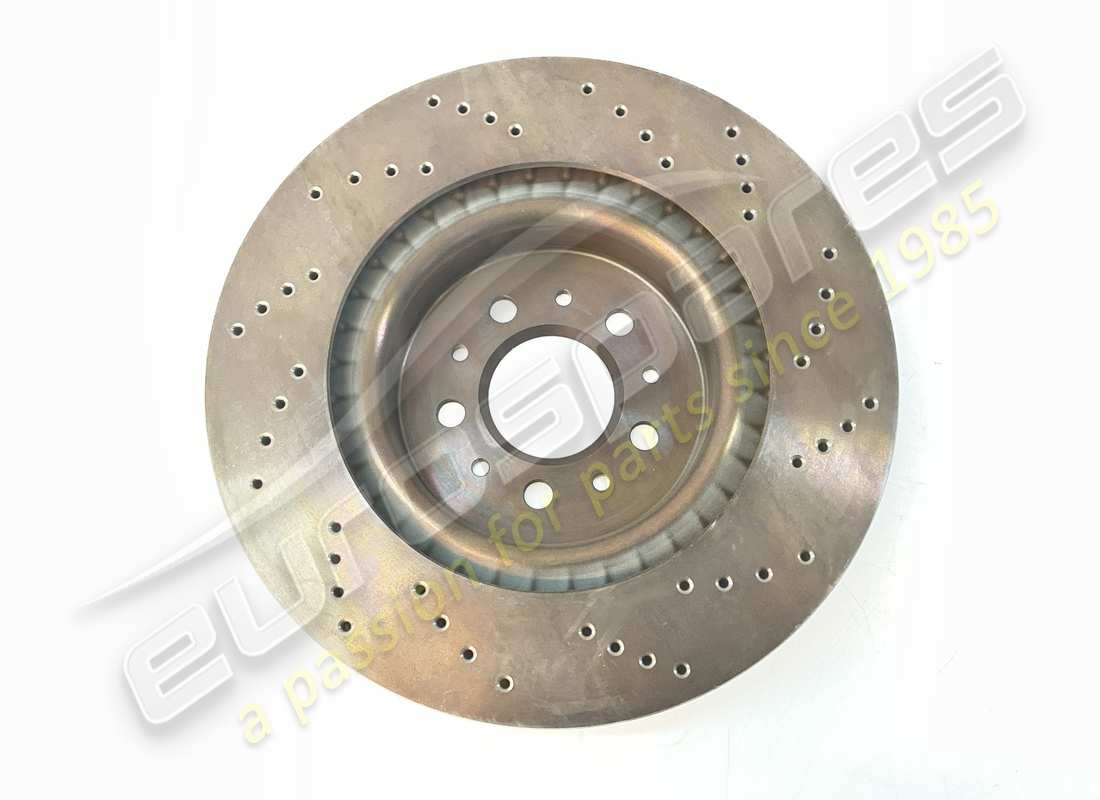

MPN: 179799
FRONT BRAKE DISC
- Valid from car Ass. Nr. 33718
Supersession
Supersession
# 034
MPN: 184652
FRONT BRAKE DISC
- Valid till car Ass. Nr. 33717
from £160.94
from £160.94
This part replaces part number 179799 - and 1 more. Click to view details
# 035
MPN: 104370
SCREW
- Valid from car Ass. Nr. 33718
from £5.70
from £5.70
This part replaces part number 139981
# 035
MPN: 157841
SCREW
- Valid till car Ass. Nr. 33717
from £4.03
from £4.03
# 036
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 037
MPN: 16043424
SCREW
from £0.53
from £0.53
This part replaces part number 16043421
# 038
MPN: 158732
ACTUATOR ON THE SHOCK ABSORBER
from £788.22
from £788.22
This part replaces part number 154449
# 039
MPN: 160461
WASHER
from £0.51
from £0.51
# 040
MPN: 170144
WASHER
from £2.07
from £2.07
# 041
MPN: 155751
CLIP
from £2.25
from £2.25
# 042
MPN: 113647
NUT
from £0.53
from £0.53
# 043
MPN: 14496324
WASHER
from £1.44
from £1.44
This part replaces part number 14496301 which we have in stock
# 044
MPN: 104030
NUT
from £0.51
from £0.51
This part replaces part number 16104125
# 045
MPN: 12638524
WASHER
from £0.52
from £0.52
This part replaces part number 12638501 - and 2 more. Click to view details
# 046
MPN: 142079
CLIP
from £5.79
from £5.79
# 047
MPN: 173900
COMPLETE SPRING RETAINING CUP
from £606.41
from £606.41
This part replaces part number 174081
# 047
MPN: 174081
COMPLETE SPRING RETAINING CUP
- Not as spare part now - Replaced by 173900
Supersession
Supersession
# 048
MPN: 12354524
STUD
from £15.66
from £15.66
This part replaces part number 12354521
# 049
MPN: SAG355
Suspension Actuator Gear & Pin
Gear & Pin
from £61.60
from £61.60
