ferrari 550 maranello rear suspension - shock absorber and brake disc parts diagram

051 - Rear Suspension - Shock Absorber and Brake Disc

Ferrari 550 Maranello Rear Suspension - Shock Absorber and Brake Disc Parts Diagram

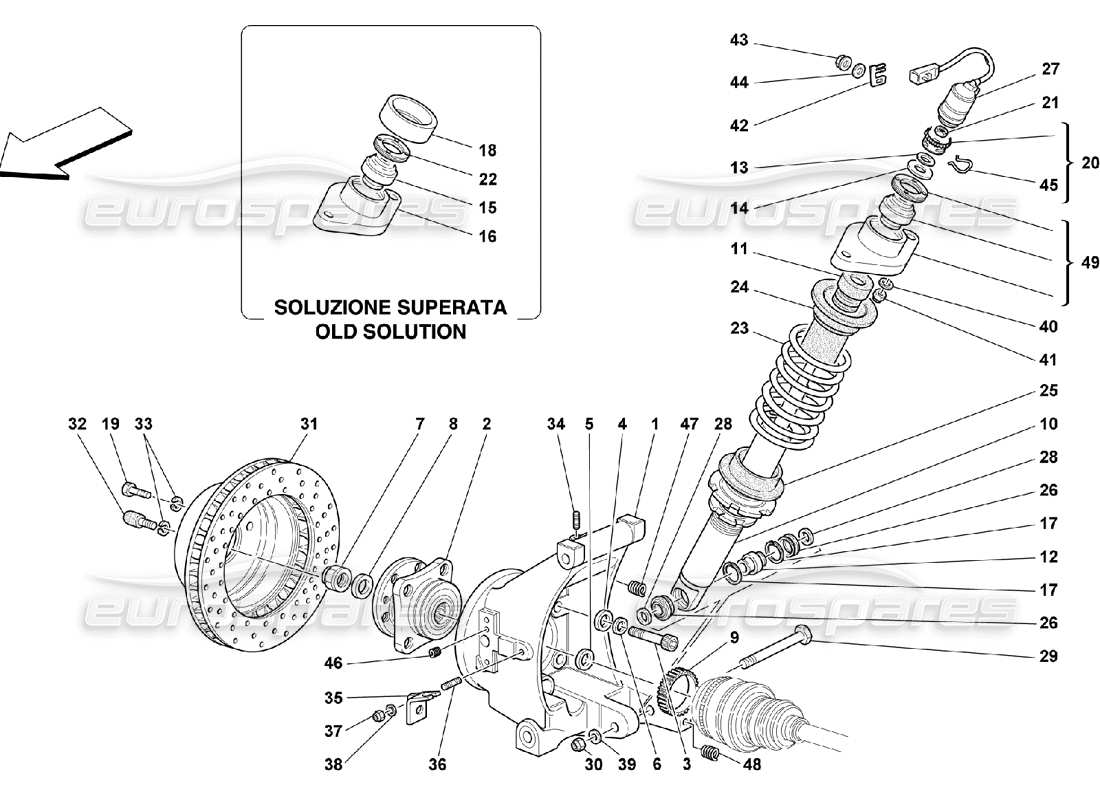

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                            #
                                                                            Part number
                                                                            Description
                                                                            Price
                                                                            # 000
                                                                            MPN: 173711
                                                                            COMPLETE RH REAR HUB HOLDER
                                                                            - Valid till car Ass. Nr. 30707
                                                                            from £3,047.96
                                                                            from £3,047.96
                                                                            This part replaces part number 168111
                                                                            # 000
                                                                            MPN: 173712
                                                                            COMPLETE LH REAR HUB HOLDER
                                                                            - Valid till car Ass. Nr. 30707
                                                                            from £1,948.97
                                                                            from £1,948.97
                                                                            This part replaces part number 168112
                                                                            # 000
                                                                            MPN: 182808
                                                                            COMPLETE RH REAR HUB HOLDER
                                                                            - Valid from car Ass. Nr. 30708
                                                                            Supersession
                                                                            Supersession
                                                                            # 000
                                                                            MPN: 182809
                                                                            COMPLETE LH REAR HUB HOLDER
                                                                            - Valid from car Ass. Nr. 30708
                                                                            Supersession
                                                                            Supersession
                                                                            # 001
                                                                            MPN: 168109
                                                                            RH REAR HUB HOLDER
                                                                            - Valid till car Ass. Nr. 30707 - Not as spare part - With complete RH hub holder
                                                                            from £1,575.00
                                                                            from £1,575.00
                                                                            # 001
                                                                            MPN: 168110
                                                                            LH REAR HUB HOLDER
                                                                            - Valid till car Ass. Nr. 30707 - Not as spare part - With complete LH hub holder
                                                                            # 001
                                                                            MPN: 178376
                                                                            RH REAR HUB HOLDER
                                                                            - Valid from car Ass. Nr. 30708 - Not as spare part - With complete RH hub holder
                                                                            from £414.75
                                                                            from £414.75
                                                                            # 001
                                                                            MPN: 178377
                                                                            LH REAR HUB HOLDER
                                                                            - Valid from car Ass. Nr. 30708 - Not as spare part - With complete LH hub holder
                                                                            # 002
                                                                            MPN: 157901
                                                                            BEARING FOR WHEEL
                                                                            from £462.70
                                                                            from £462.70
                                                                            This part replaces part number 137105 - and 3 more. Click to view details
                                                                            # 003
                                                                            MPN: 14331974
                                                                            SCREW
                                                                            from £0.85
                                                                            from £0.85
                                                                            # 004
                                                                            MPN: 10732531
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 005
                                                                            MPN: 153355
                                                                            WASHER
                                                                            from £2.58
                                                                            from £2.58
                                                                            # 006
                                                                            MPN: 152250
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            # 007
                                                                            MPN: 209184
                                                                            NUT
                                                                            from £25.62
                                                                            from £25.62
                                                                            This part replaces part number 167259 - and 1 more. Click to view details
                                                                            # 008
                                                                            MPN: 143332
                                                                            WASHER
                                                                            from £38.91
                                                                            from £38.91
                                                                            # 009
                                                                            MPN: 165101
                                                                            REAR TOOTHED WHEEL
                                                                            from £634.77
                                                                            from £634.77

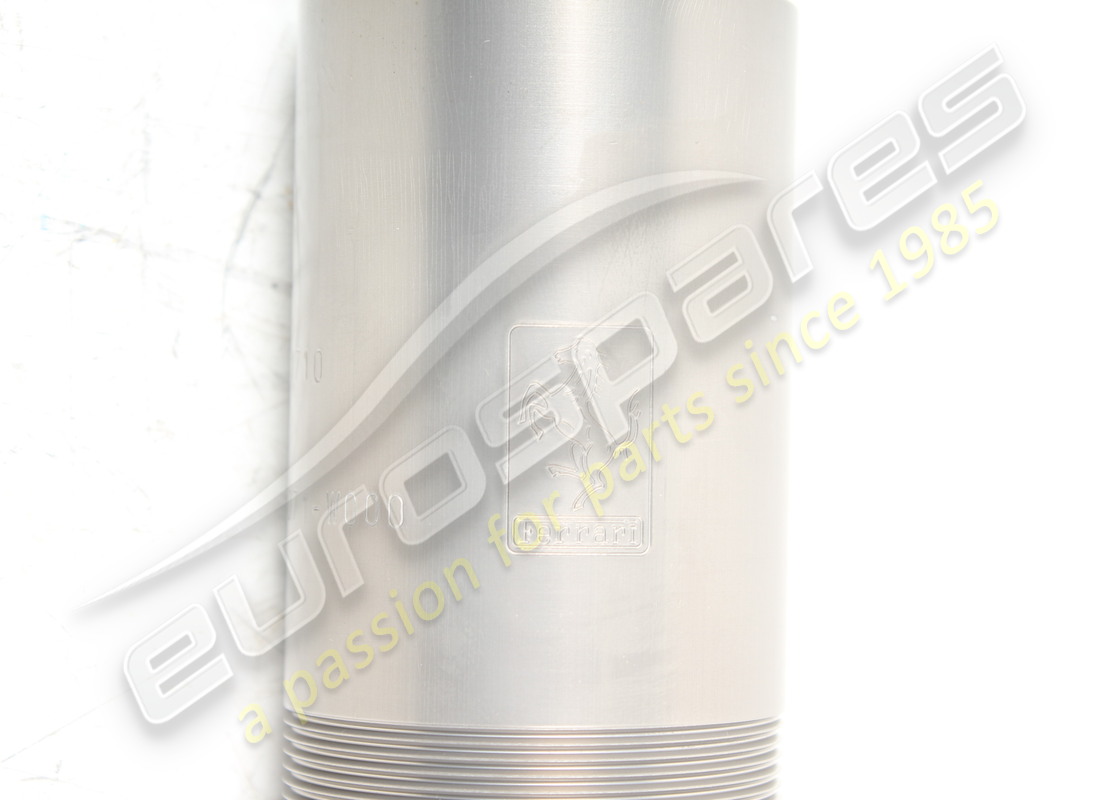

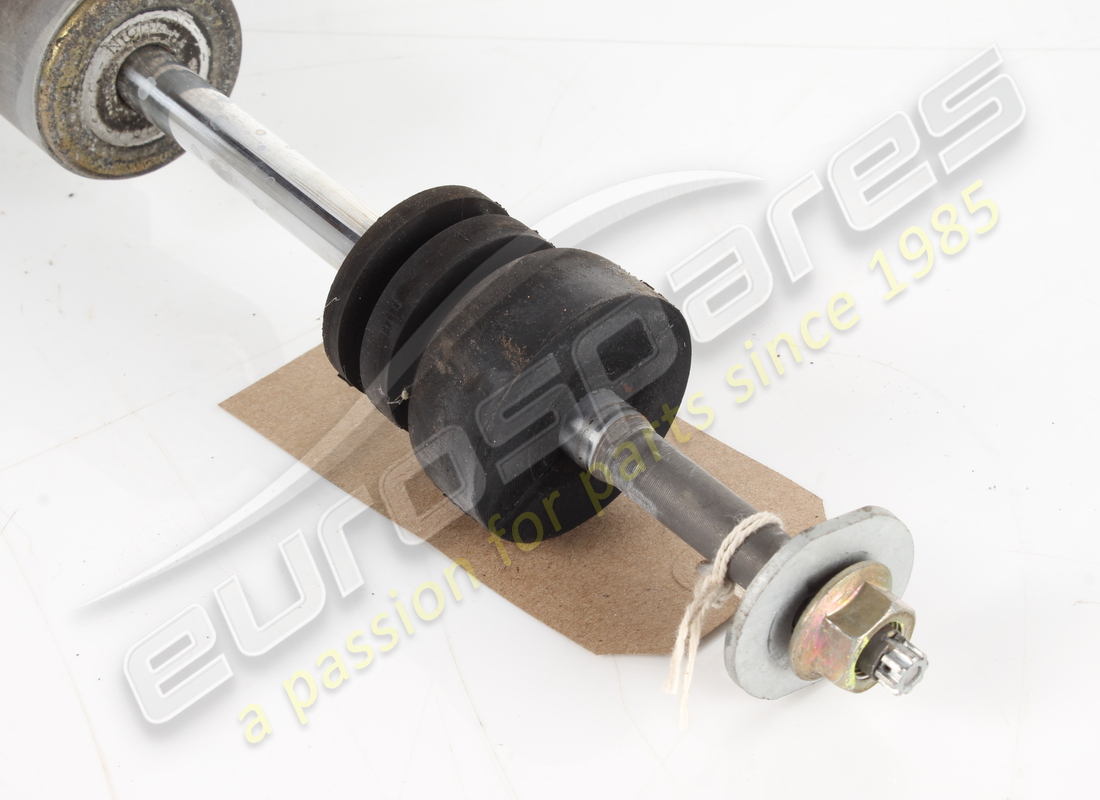

                                                                            # 010
                                                                            MPN: 163076
                                                                            REAR SHOCK ABSORBER
                                                                            - Not as spare part now - Replaced by 178289
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 172671
                                                                            # 010
                                                                            MPN: 178289
                                                                            REAR SHOCK ABSORBER
                                                                            PRICE EACH - Replaced by 181710
                                                                            Supersession
                                                                            Supersession
                                                                            This part replaces part number 163076
                                                                            # 010
                                                                            MPN: 181710
                                                                            REAR SHOCK ABSORBER
                                                                            from £1,467.06
                                                                            from £1,467.06
                                                                            This part replaces part number 178289
                                                                            # 012
                                                                            MPN: 157630
                                                                            SILENT BLOCK BUSH
                                                                            Flanblock
                                                                            from £48.50
                                                                            from £48.50
                                                                            This part replaces part number 159262
                                                                            # 013
                                                                            MPN: 160461
                                                                            WASHER
                                                                            from £0.51
                                                                            from £0.51
                                                                            # 014
                                                                            MPN: 170144
                                                                            WASHER
                                                                            from £2.10
                                                                            from £2.10
                                                                            # 015
                                                                            MPN: 170610
                                                                            UPPER BALL JOINT
                                                                            - Not as spare part now
                                                                            This part replaces part number 170629

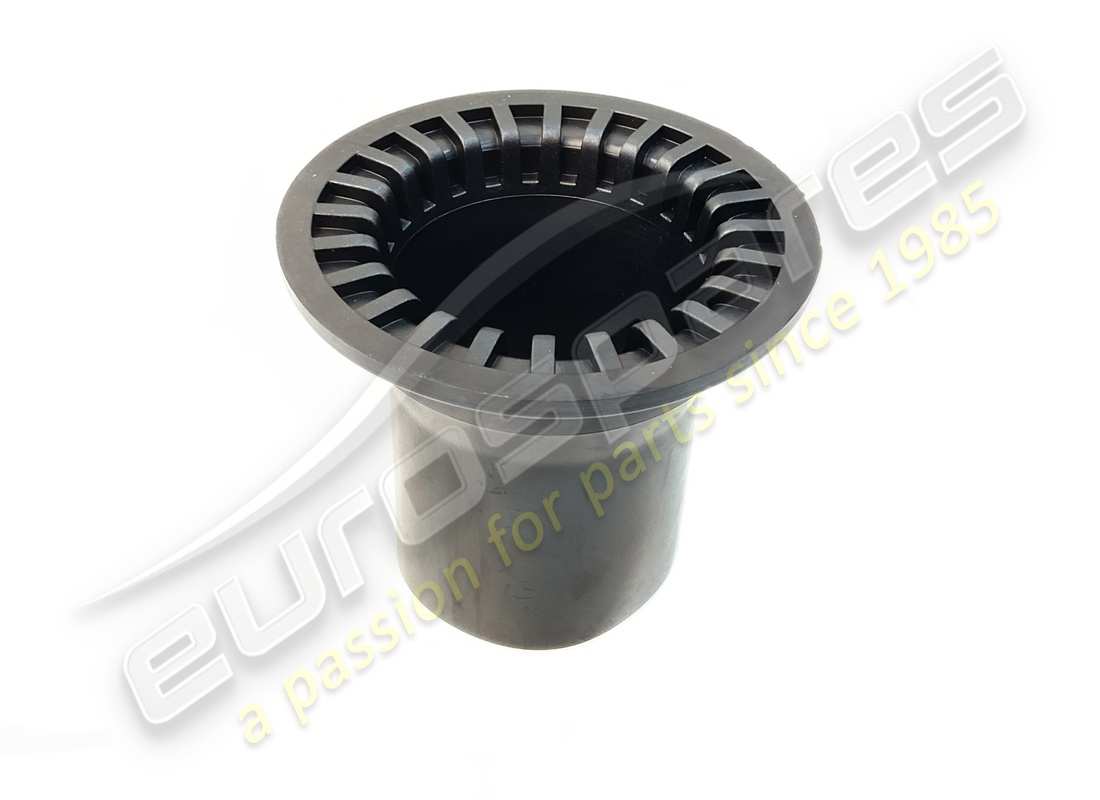

                                                                            # 016
                                                                            MPN: 172354
                                                                            CUP
                                                                            - Not as spare part now
                                                                            # 017
                                                                            MPN: 145478
                                                                            SEEGER RING
                                                                            from £2.42
                                                                            from £2.42
                                                                            This part replaces part number 11059370
                                                                            # 018
                                                                            MPN: 172355
                                                                            SEAL RING
                                                                            - Not as spare part now
                                                                            # 019
                                                                            MPN: 16043424
                                                                            SCREW
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 16043421
                                                                            # 021
                                                                            MPN: 137826
                                                                            NUT
                                                                            from £1.74
                                                                            from £1.74
                                                                            # 022
                                                                            MPN: 170143
                                                                            RING NUT
                                                                            - Not as spare part now
                                                                            from £28.23
                                                                            from £28.23
                                                                            # 023
                                                                            MPN: 163652

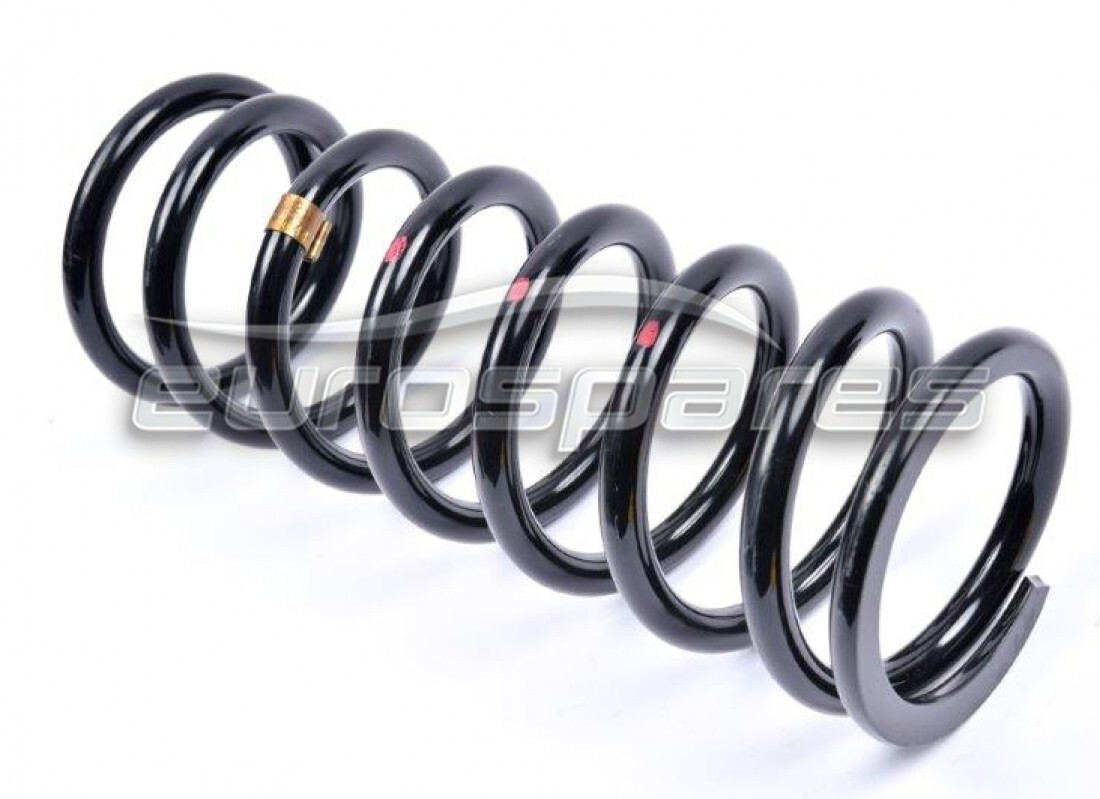

                                                                            SPRING
                                                                            - Sold in pair - Not for cars with handling Fiorano equipment
                                                                            from £75.45
                                                                            from £75.45
                                                                            # 023
                                                                            MPN: 169986
                                                                            SPRING
                                                                            - Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
                                                                            from £185.46
                                                                            from £185.46
                                                                            # 023
                                                                            MPN: 175887
                                                                            SPRING
                                                                            - Sold in pair - Valid for cars with handling Fiorano equipment - Optional
                                                                            from £294.12
                                                                            from £294.12
                                                                            # 025
                                                                            MPN: 113581
                                                                            LOWER SPACER
                                                                            from £6.34
                                                                            from £6.34
                                                                            This part replaces part number 387000338 - and 2 more. Click to view details

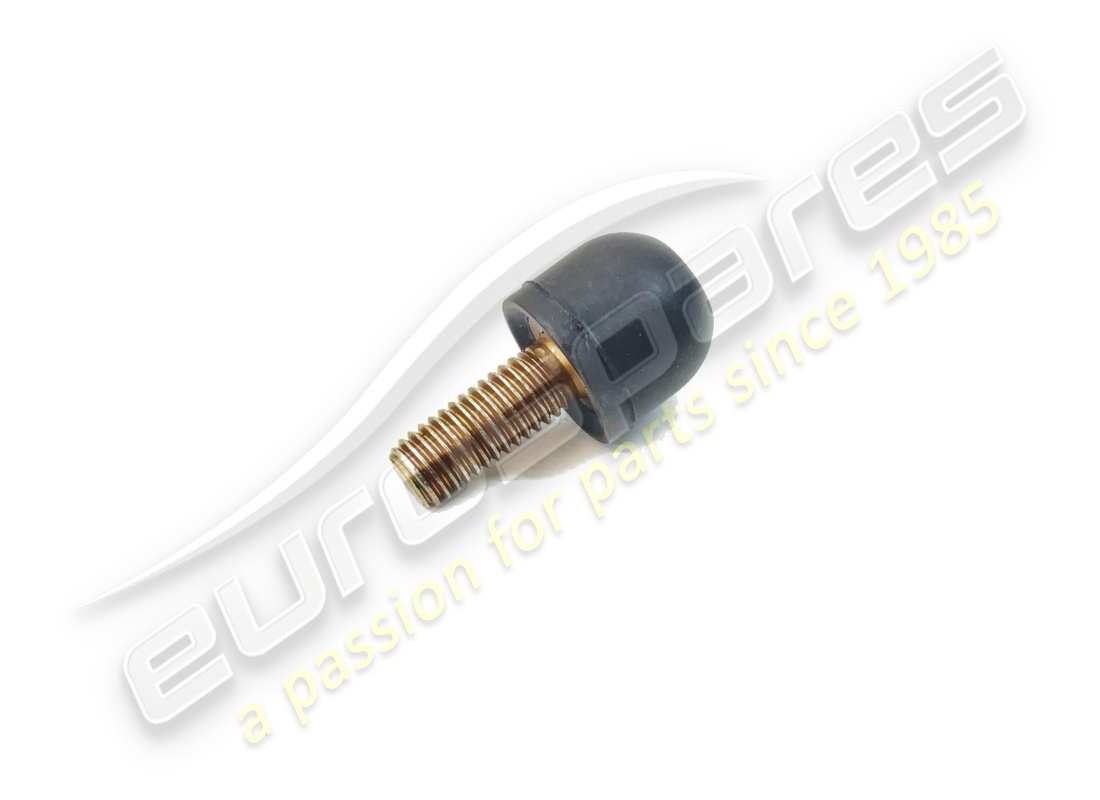

                                                                            # 026
                                                                            MPN: 153286
                                                                            RUBBER
                                                                            from £1.21
                                                                            from £1.21

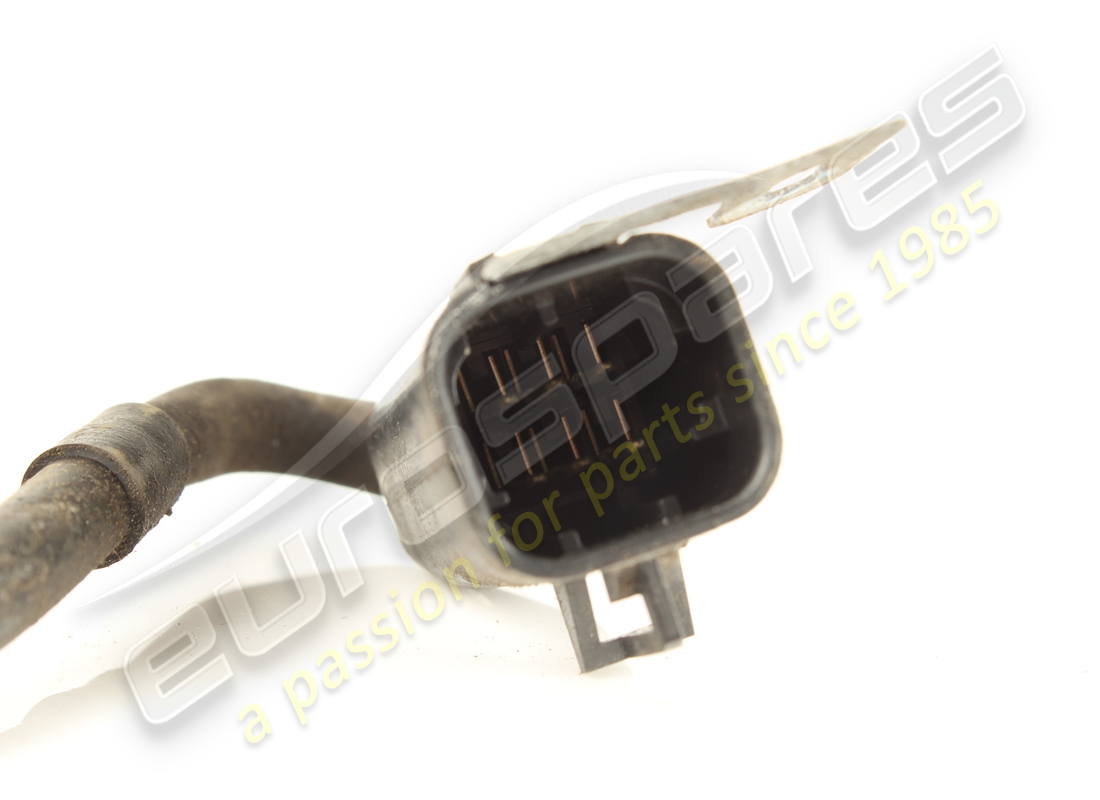

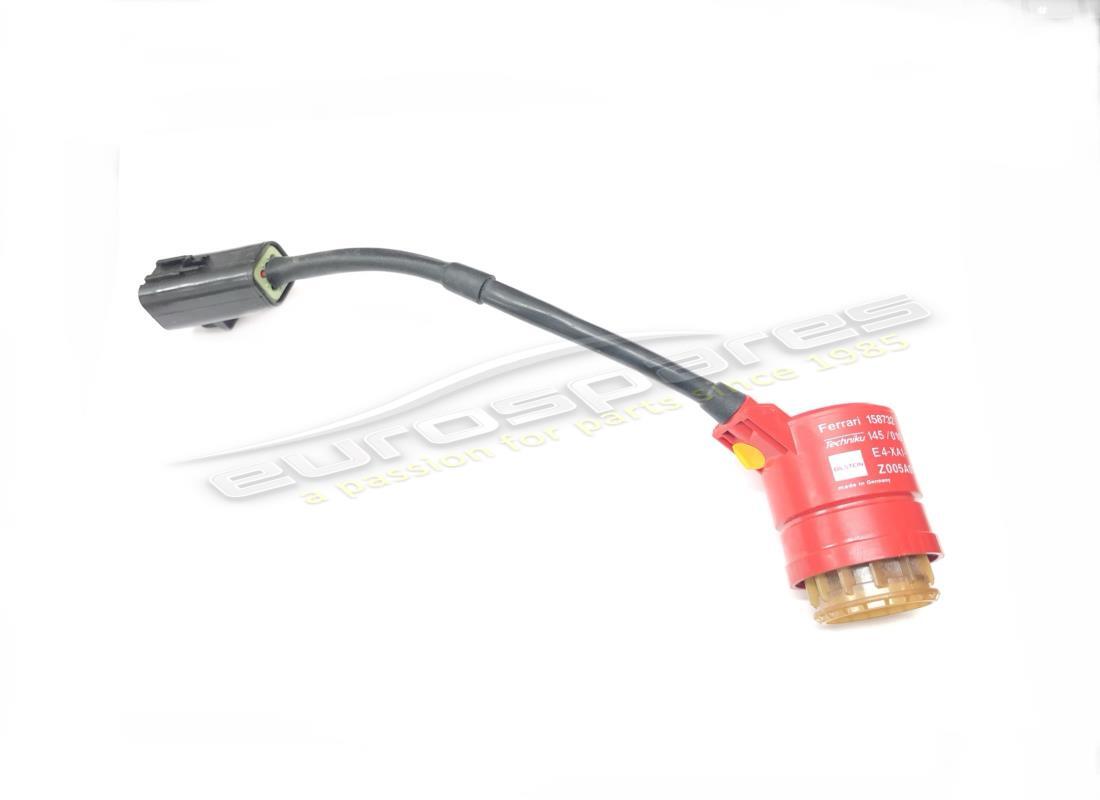

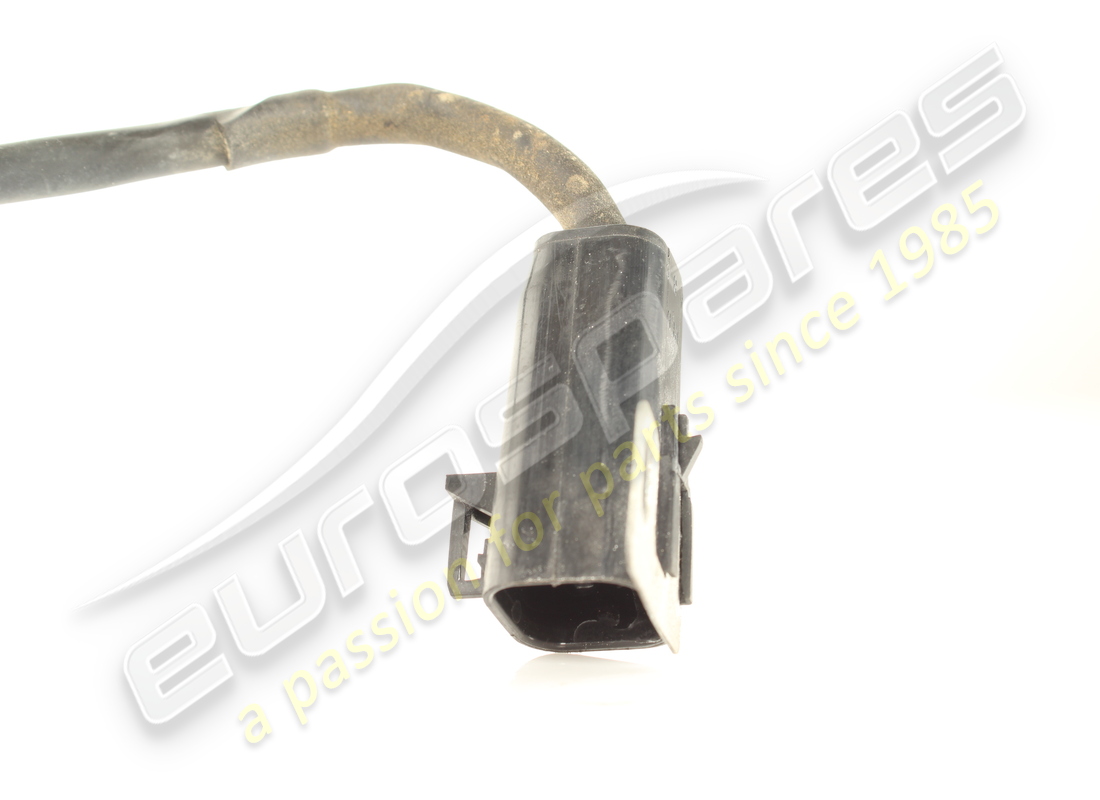

                                                                            # 027
                                                                            MPN: 158732
                                                                            ACTUATOR ON THE SHOCK ABSORBER
                                                                            from £808.44
                                                                            from £808.44
                                                                            This part replaces part number 154449
                                                                            # 028
                                                                            MPN: 153495
                                                                            SPACER WASHER MM. 3.00
                                                                            from £2.40
                                                                            from £2.40
                                                                            # 028
                                                                            MPN: 153496
                                                                            SPACER WASHER MM. 2.90
                                                                            - As an alternative of 153495
                                                                            from £2.40
                                                                            from £2.40
                                                                            # 028
                                                                            MPN: 153497
                                                                            SPACER WASHER MM. 3.10
                                                                            - As an alternative of 153495
                                                                            from £2.42
                                                                            from £2.42

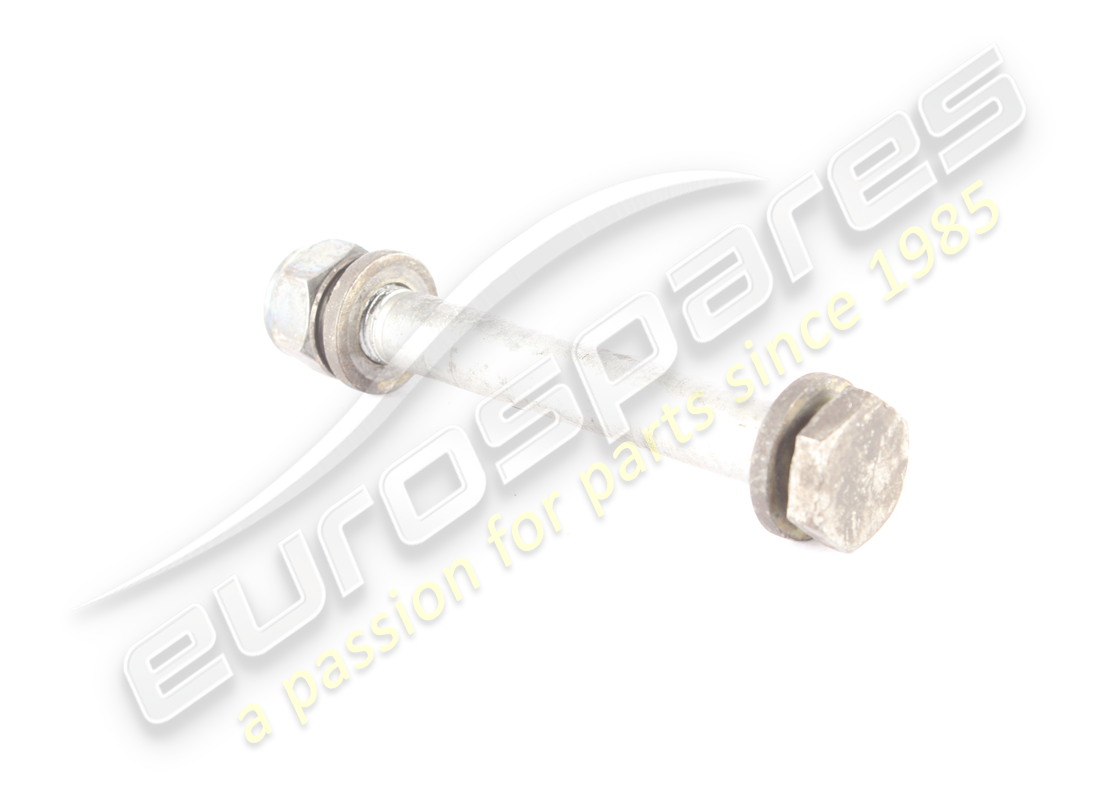

                                                                            # 029
                                                                            MPN: 159309
                                                                            SCREW
                                                                            from £20.59
                                                                            from £20.59
                                                                            # 030
                                                                            MPN: 148020
                                                                            NUT
                                                                            from £2.53
                                                                            from £2.53
                                                                            This part replaces part number 102825 - and 3 more. Click to view details

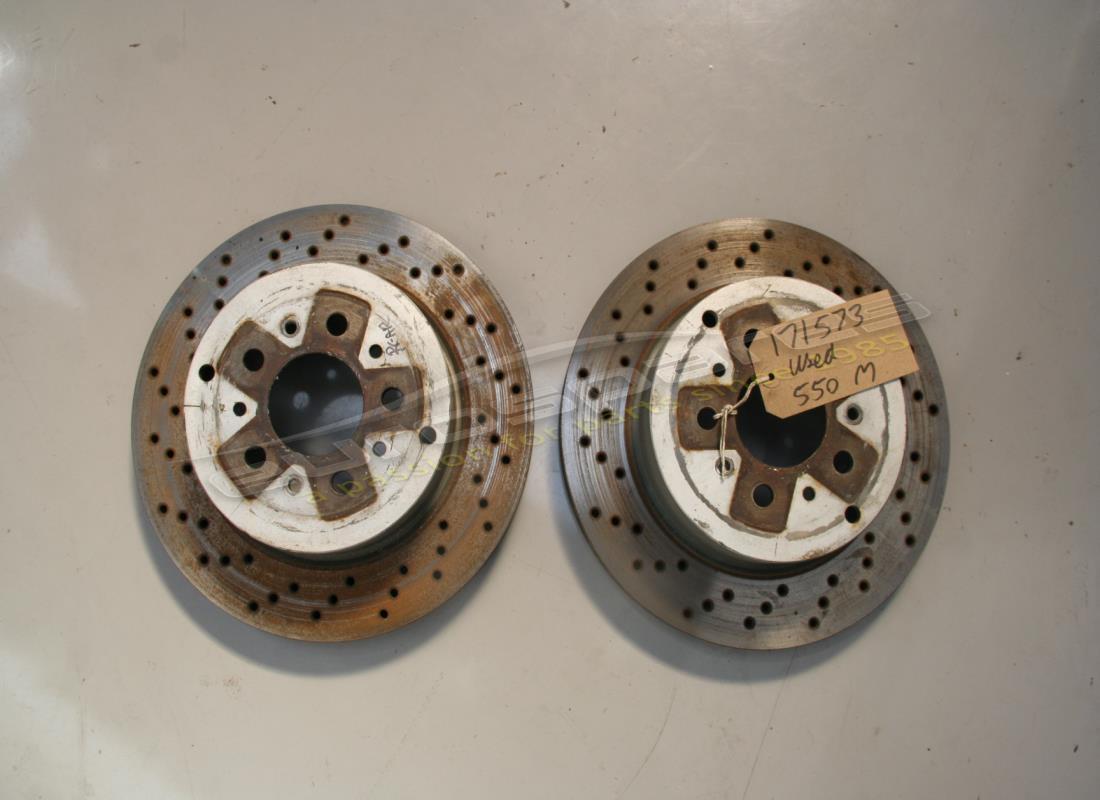

                                                                            # 031
                                                                            MPN: 171573

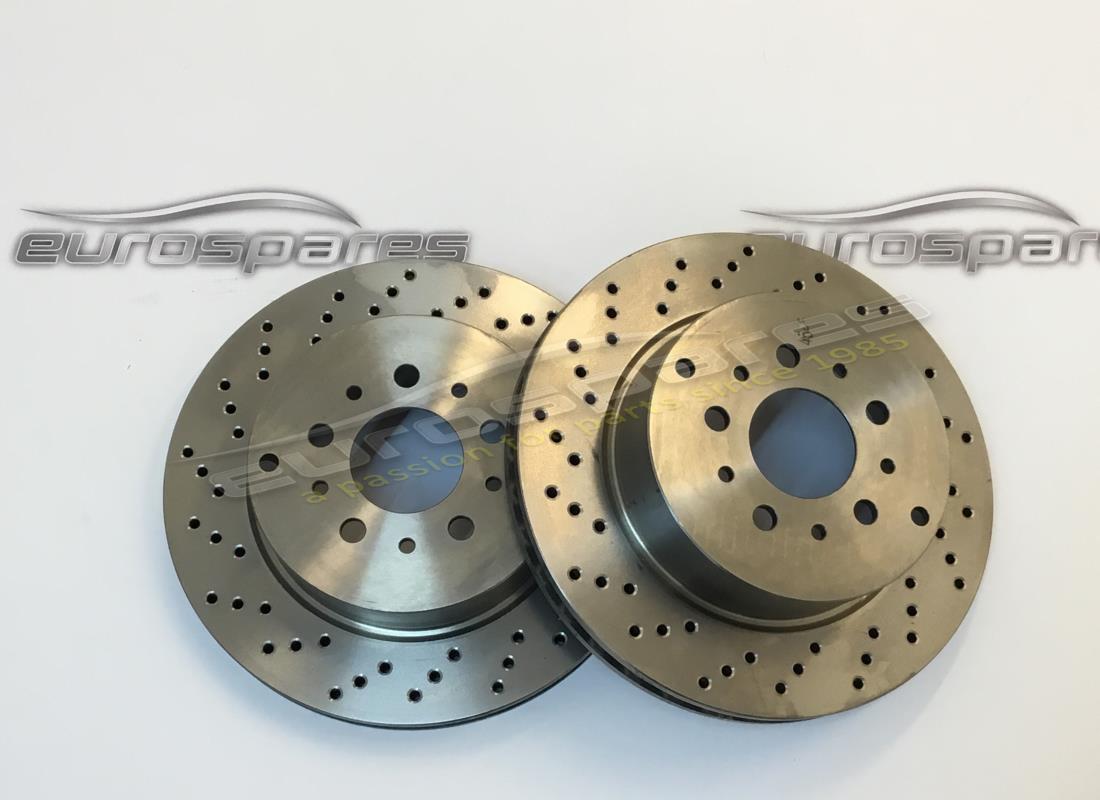

                                                                            REAR BRAKE DISC
                                                                            - Valid till car Ass. Nr. 33717
                                                                            from £183.75
                                                                            from £183.75
                                                                            This part replaces part number 169766 - and 2 more. Click to view details
                                                                            # 031
                                                                            MPN: 179800
                                                                            REAR BRAKE DISC
                                                                            - Valid from car Ass. Nr. 33718
                                                                            Supersession
                                                                            Supersession
                                                                            # 032
                                                                            MPN: 104370
                                                                            SCREW
                                                                            - Valid from car Ass. Nr. 33718
                                                                            from £5.12
                                                                            from £5.12
                                                                            This part replaces part number 139981
                                                                            # 032
                                                                            MPN: 157841
                                                                            SCREW
                                                                            - Valid till car Ass. Nr. 33717
                                                                            from £4.03
                                                                            from £4.03
                                                                            # 033
                                                                            MPN: 127496
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 10516671 - and 2 more. Click to view details
                                                                            # 034
                                                                            MPN: 11500124
                                                                            STUD
                                                                            from £0.70
                                                                            from £0.70
                                                                            This part replaces part number 11500121

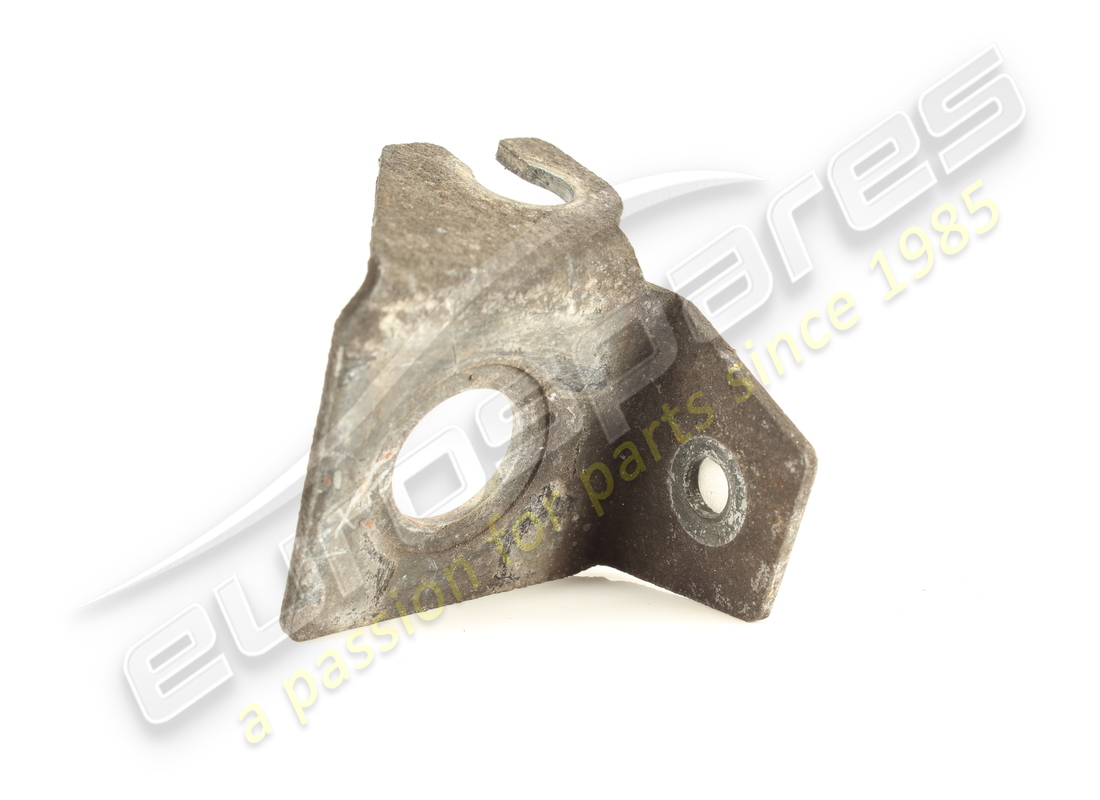

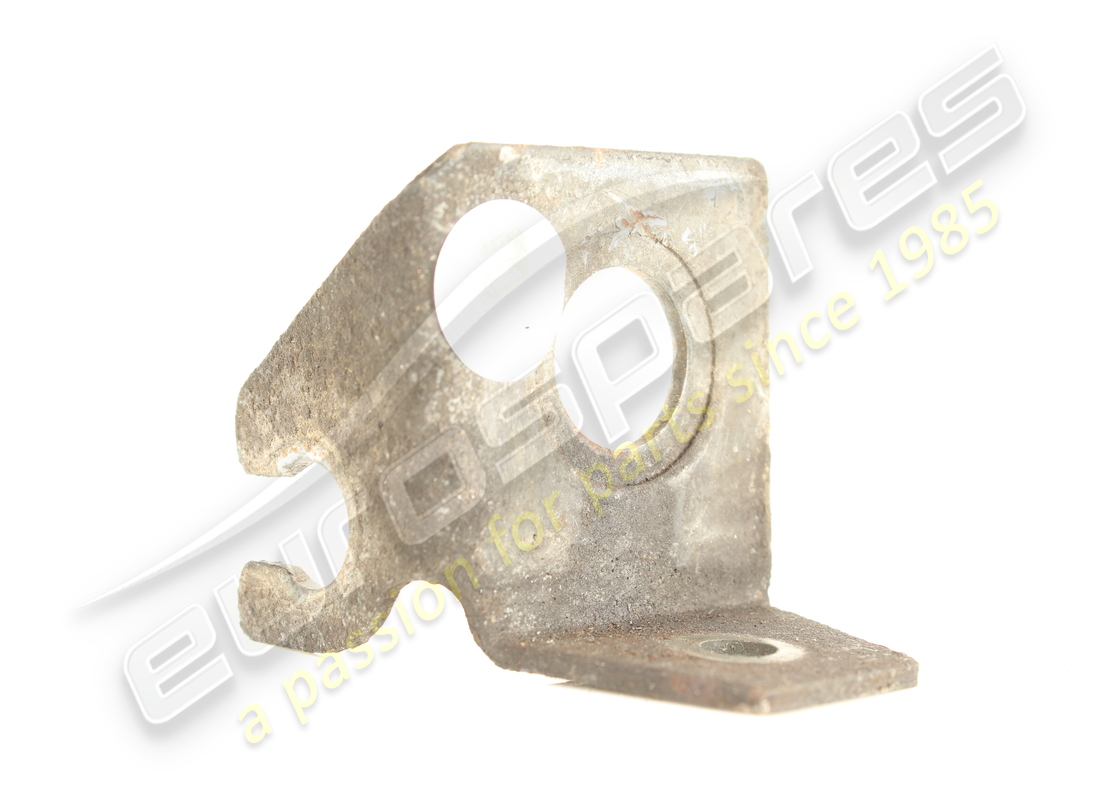

                                                                            # 035
                                                                            MPN: 168383
                                                                            RH SUPPORT
                                                                            from £2.23
                                                                            from £2.23
                                                                            # 035
                                                                            MPN: 168384
                                                                            LH SUPPORT
                                                                            from £2.23
                                                                            from £2.23
                                                                            # 036
                                                                            MPN: 11500124
                                                                            STUD
                                                                            from £0.70
                                                                            from £0.70
                                                                            This part replaces part number 11500121
                                                                            # 037
                                                                            MPN: 102741
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 12575411 - and 1 more. Click to view details
                                                                            # 038
                                                                            MPN: 10519424
                                                                            WASHER
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                            # 039
                                                                            MPN: 12601574
                                                                            WASHER
                                                                            from £0.54
                                                                            from £0.54
                                                                            This part replaces part number 106616 - and 2 more. Click to view details
                                                                            # 040
                                                                            MPN: 12601474
                                                                            WASHER
                                                                            from £0.53
                                                                            from £0.53
                                                                            This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                                            # 041
                                                                            MPN: 104114
                                                                            NUT
                                                                            from £0.47
                                                                            from £0.47
                                                                            This part replaces part number 15503711 - and 1 more. Click to view details
                                                                            # 042
                                                                            MPN: 155751
                                                                            CLIP
                                                                            from £2.29
                                                                            from £2.29
                                                                            # 043
                                                                            MPN: 113647
                                                                            NUT
                                                                            from £0.53
                                                                            from £0.53
                                                                            # 044
                                                                            MPN: 14496324
                                                                            WASHER
                                                                            from £1.39
                                                                            from £1.39
                                                                            This part replaces part number 14496301 which we have in stock
                                                                            # 045
                                                                            MPN: 142079
                                                                            CLIP
                                                                            from £5.85
                                                                            from £5.85
                                                                            # 046
                                                                            MPN: 13525470
                                                                            THREADED INSERT
                                                                            from £0.50
                                                                            from £0.50
                                                                            This part replaces part number 107333
                                                                            # 047
                                                                            MPN: 133771
                                                                            THREADED INSERT
                                                                            from £1.90
                                                                            from £1.90
                                                                            # 048
                                                                            MPN: 13526170
                                                                            THREADED INSERT
                                                                            from £2.42
                                                                            from £2.42
                                                                            This part replaces part number 105197

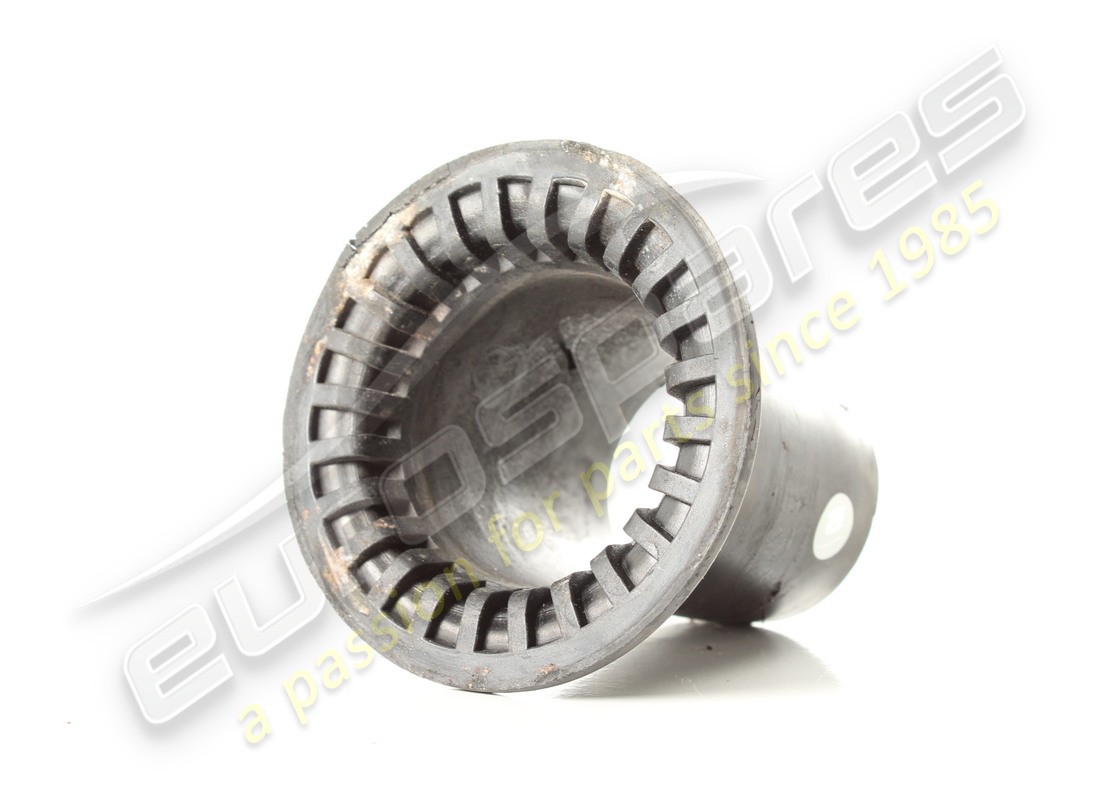

                                                                            # 049
                                                                            MPN: 173901
                                                                            COMPLETE SPRING RETAINING CUP
                                                                            from £616.45
                                                                            from £616.45
                                                                            This part replaces part number 174082
                                                                            # 049
                                                                            MPN: 174082
                                                                            COMPLETE SPRING RETAINING CUP
                                                                            - Not as spare part now - Replaced by 173901
                                                                            Supersession
                                                                            Supersession
