052 - Rear Suspension - Wishbones and Stabilizer Bar

Ferrari 550 Maranello Rear Suspension - Wishbones and Stabilizer Bar Parts Diagram

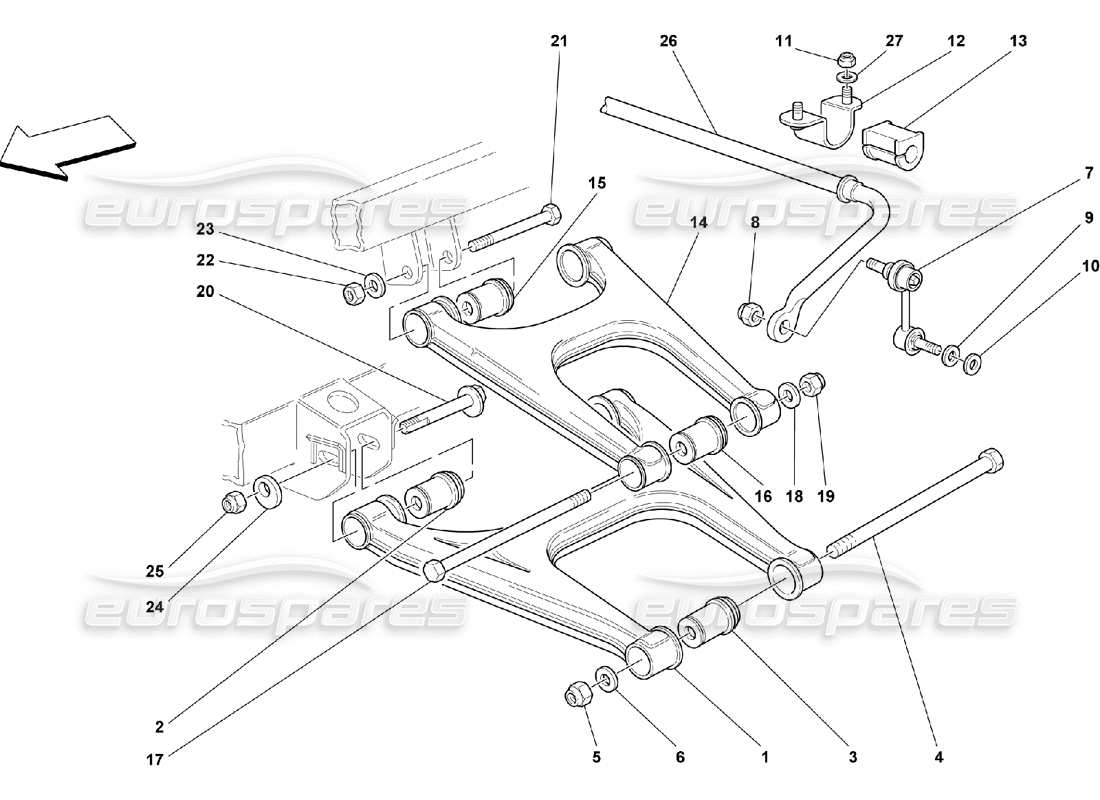

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price

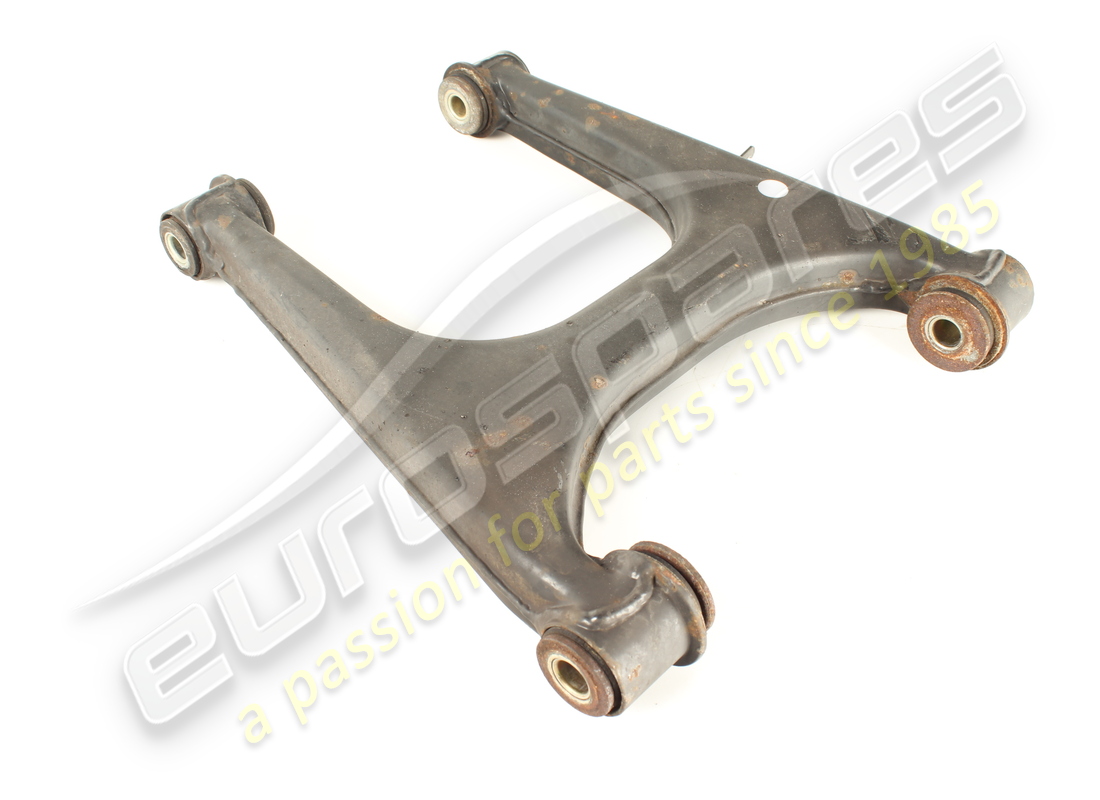

                                                  # 001
                                                  MPN: 169796
                                                  LOWER LEVER
                                                  from £288.75
                                                  from £288.75
                                                  # 002
                                                  MPN: 169573
                                                  FLAMBLOCK FOR LOWER FORK
                                                  from £159.37
                                                  from £159.37
                                                  # 003
                                                  MPN: 169574
                                                  FLAMBLOCK FOR LOWER FORK
                                                  from £73.13
                                                  from £73.13
                                                  # 004
                                                  MPN: 168445
                                                  SCREW
                                                  from £42.63
                                                  from £42.63
                                                  # 005
                                                  MPN: 150238
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                  # 006
                                                  MPN: 105434
                                                  WASHER
                                                  from £20.28
                                                  from £20.28
                                                  # 007
                                                  MPN: 171812
                                                  TIE ROD
                                                  from £42.22
                                                  from £42.22
                                                  # 008
                                                  MPN: 102742
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                  # 009
                                                  MPN: 102901
                                                  WASHER
                                                  from £0.71
                                                  from £0.71
                                                  This part replaces part number 4146930
                                                  # 010
                                                  MPN: 160092
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  # 011
                                                  MPN: 147985
                                                  NUT
                                                  from £0.47
                                                  from £0.47

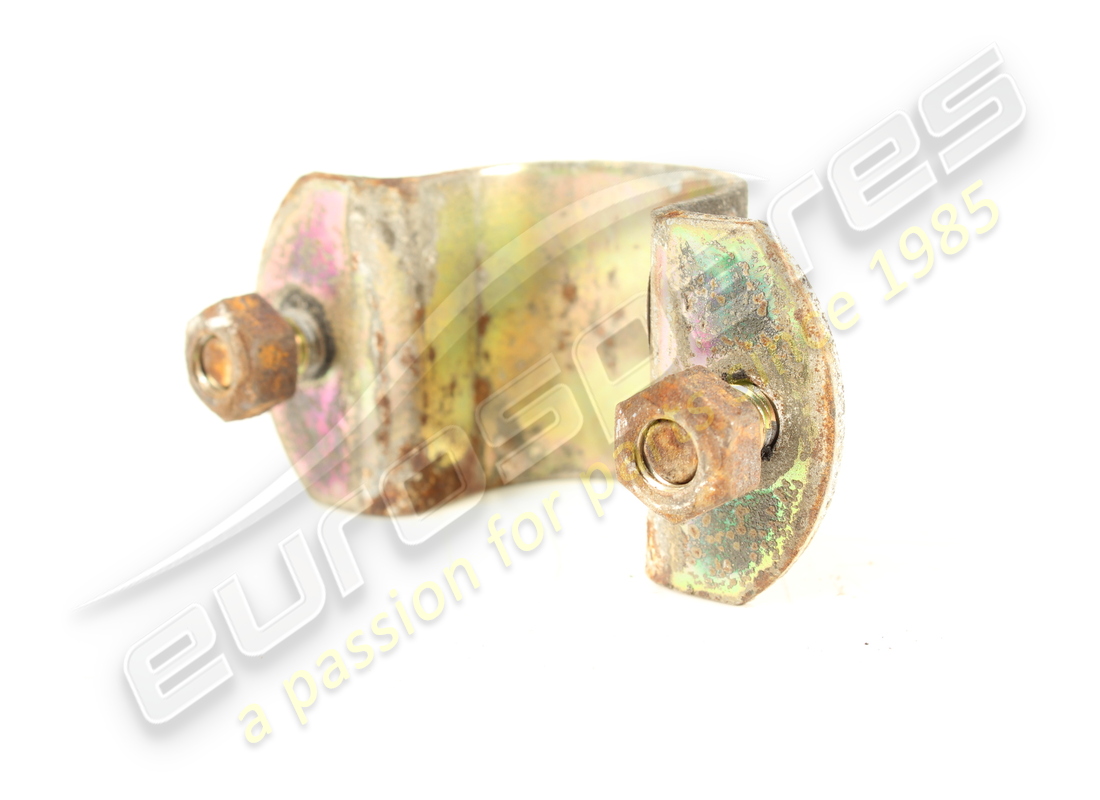

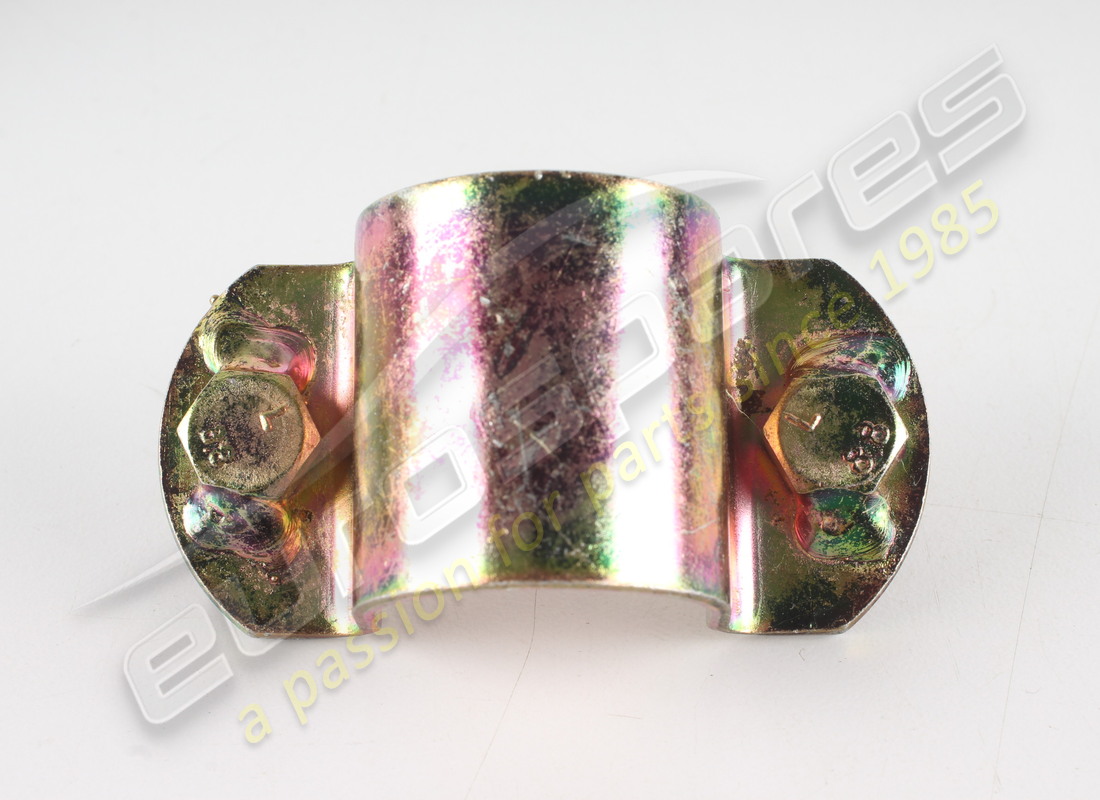

                                                  # 012
                                                  MPN: 153148
                                                  PAD FASTENING PLATE
                                                  from £4.06
                                                  from £4.06
                                                  # 013

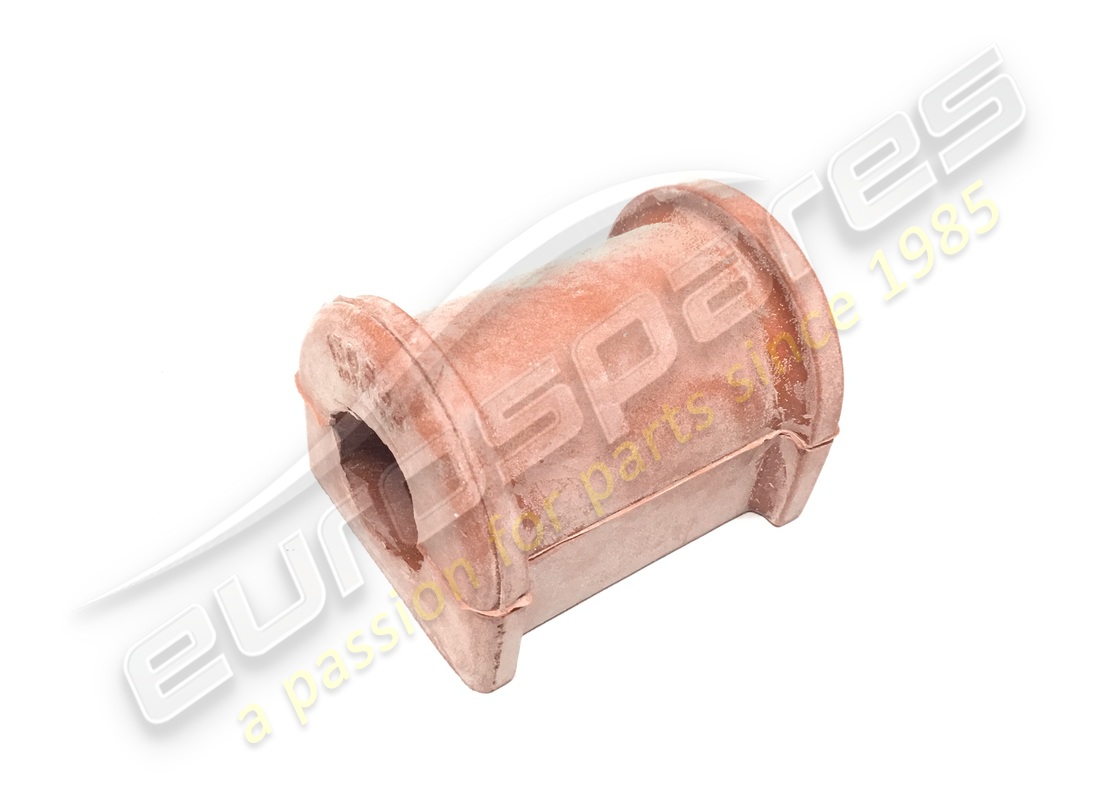

                                                  MPN: 130533
                                                  BAR BUFFER - Ø 21
                                                  - Valid for cars with handling Fiorano equipment - Optional
                                                  from £46.58
                                                  from £46.58
                                                  # 013
                                                  MPN: 153146
                                                  BAR BUFFER - Ø 17
                                                  - Not for cars with handling Fiorano equipment
                                                  Supersession
                                                  Supersession
                                                  # 014

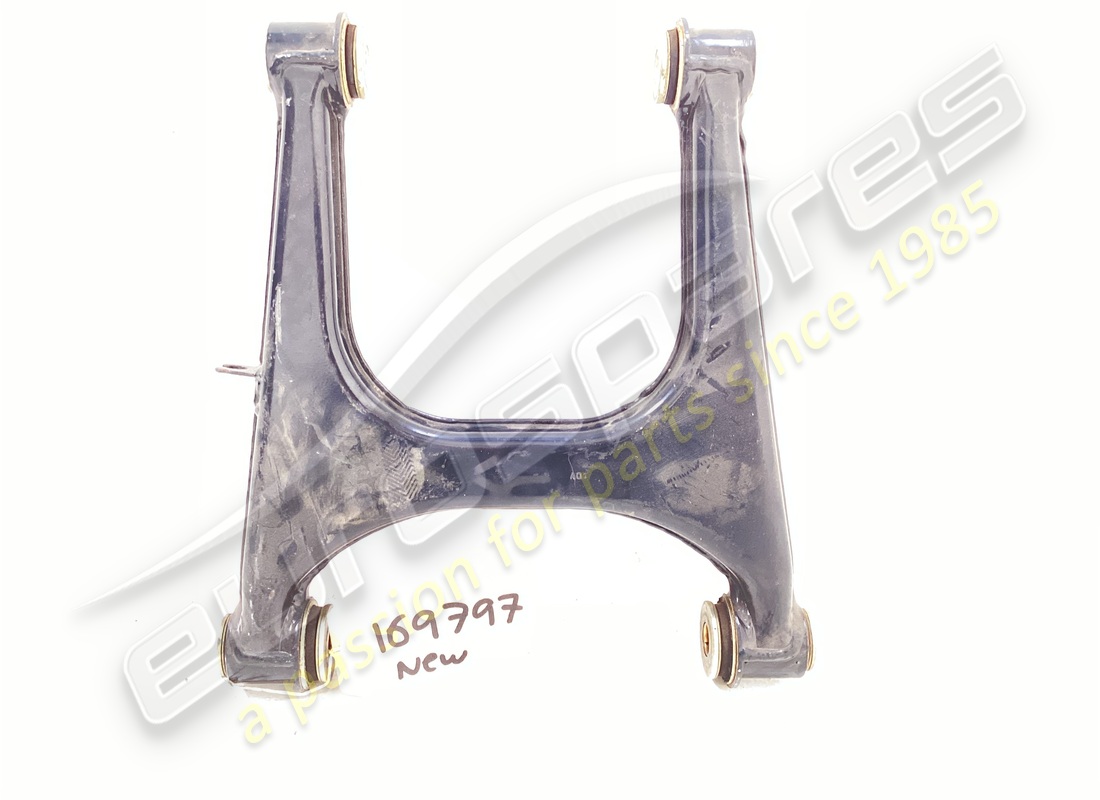

                                                  MPN: 169797
                                                  UPPER LEVER
                                                  from £304.12
                                                  from £304.12
                                                  # 015
                                                  MPN: 169574
                                                  FLAMBLOCK FOR UPPER FORK
                                                  from £73.13
                                                  from £73.13
                                                  # 017
                                                  MPN: 144747
                                                  SCREW
                                                  from £36.39
                                                  from £36.39
                                                  # 018
                                                  MPN: 12601574
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 106616 which we have in stock - and 2 more. Click to view details
                                                  # 019
                                                  MPN: 102825
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 95900617
                                                  # 020
                                                  MPN: 150789
                                                  ECCENTRIC SCREW
                                                  from £37.94
                                                  from £37.94
                                                  # 021
                                                  MPN: 106422
                                                  SCREW
                                                  from £8.37
                                                  from £8.37
                                                  # 022
                                                  MPN: 150238
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                  # 023
                                                  MPN: 128509
                                                  WASHER
                                                  from £10.15
                                                  from £10.15
                                                  # 024
                                                  MPN: 150790
                                                  ECCENTRIC WASHER
                                                  - Valid till stock exhaustion
                                                  from £5.00
                                                  from £5.00
                                                  # 024
                                                  MPN: 175077
                                                  ECCENTRIC WASHER
                                                  - Valid after stock exhaustion of 150790
                                                  from £7.43
                                                  from £7.43
                                                  This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                                  # 025
                                                  MPN: 150238
                                                  NUT
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 12575821 - and 2 more. Click to view details
                                                  # 026
                                                  MPN: 169120
                                                  REAR ANTI-ROLL BAR - Ø 17
                                                  - Not for cars with handling Fiorano equipment
                                                  from £112.25
                                                  from £112.25
                                                  # 026
                                                  MPN: 210888
                                                  REAR ANTI ROLL BAR Ø 19.5 MM
                                                  from £1,242.35
                                                  from £1,242.35
                                                  This part replaces part number 175890
                                                  # 027
                                                  MPN: 10519624
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 10519601 - and 3 more. Click to view details
