053 - Wheels

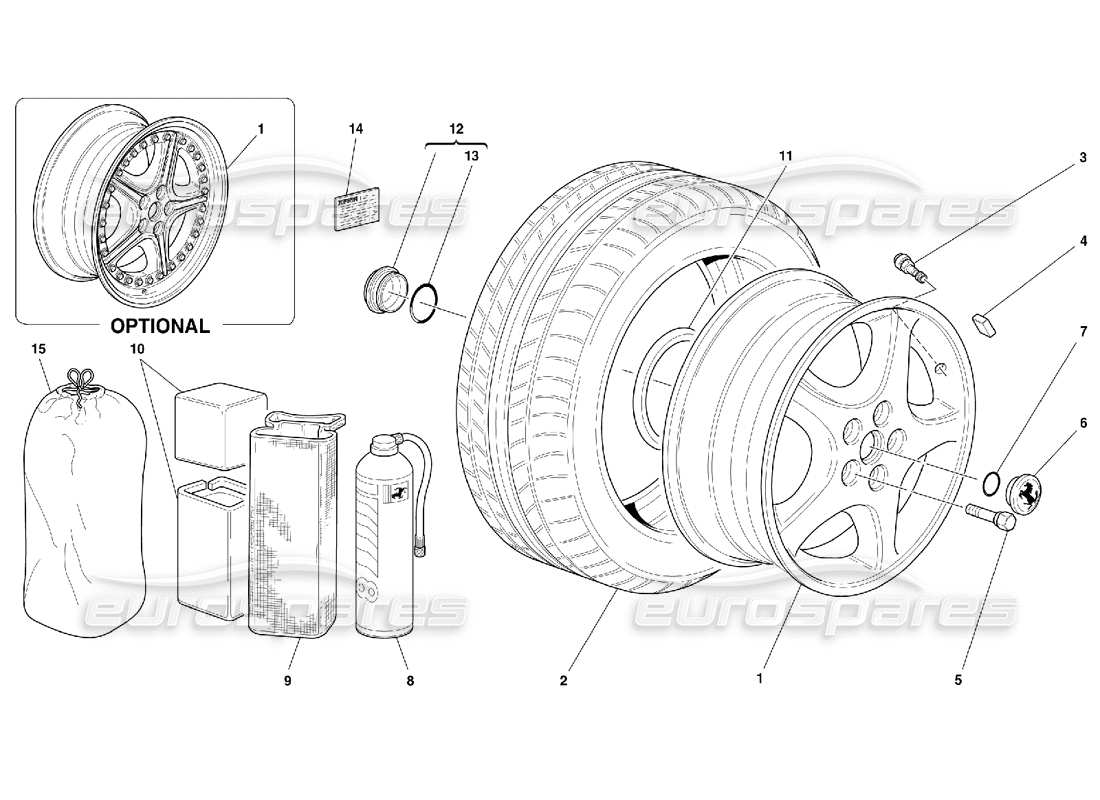

Ferrari 550 Maranello Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                          #
                          Part number
                          Description
                          Price
                          # 000
                          MPN: 171983
                          SPARE WHEEL
                          17 SPACE SAVER SPARE WHEEL & TYRE ASSY
                          from £810.35
                          from £810.35
                          This part replaces part number 171986
                          # 000
                          MPN: 179378SET
                          WHEEL SET
                          179378 x2 & 179379 x2
                          # 001
                          MPN: 176256
                          FRONT SPLIT RIM 8.5JX18
                          from £1,281.44
                          from £1,281.44
                          # 001
                          MPN: 176257
                          REAR SPLIT RIM 10.5 X 18
                          from £4,150.47
                          from £4,150.47

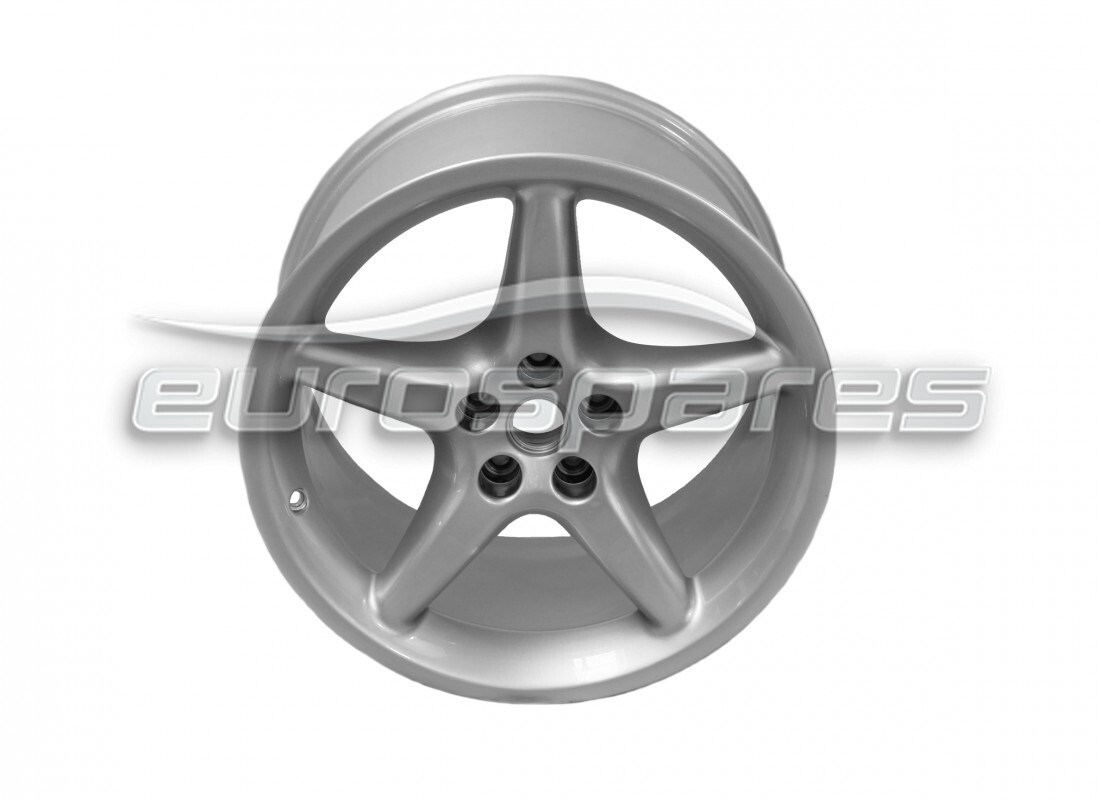

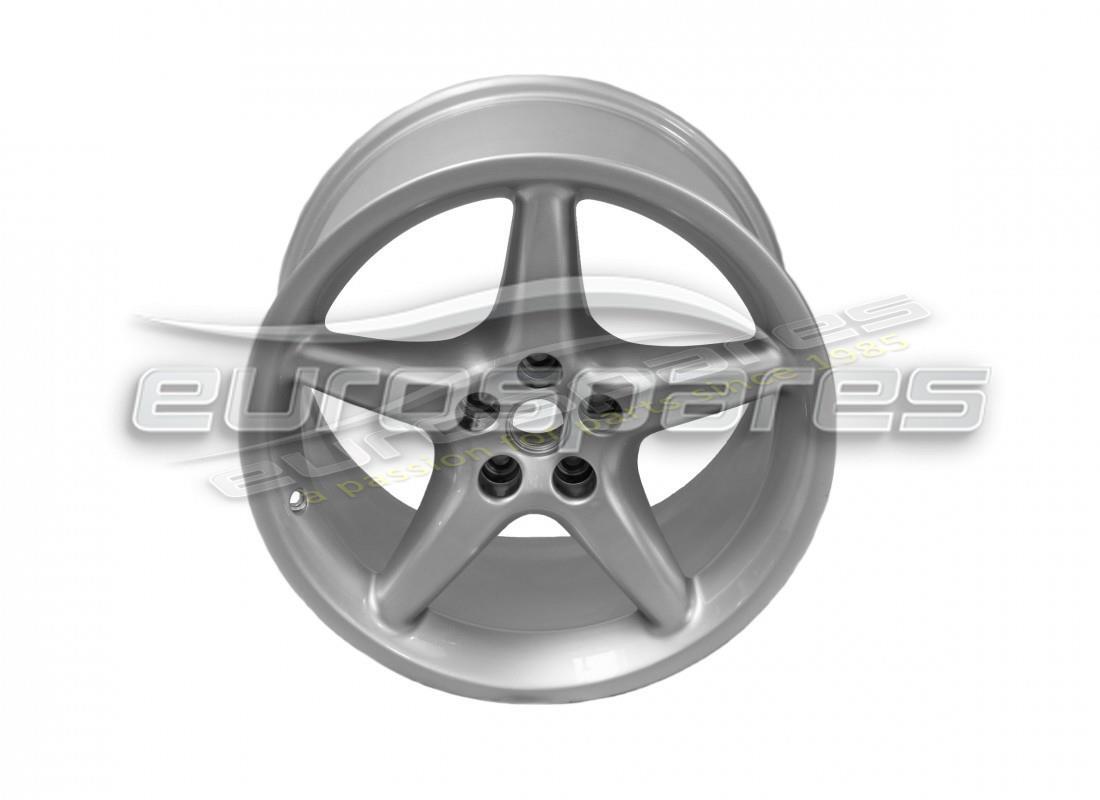

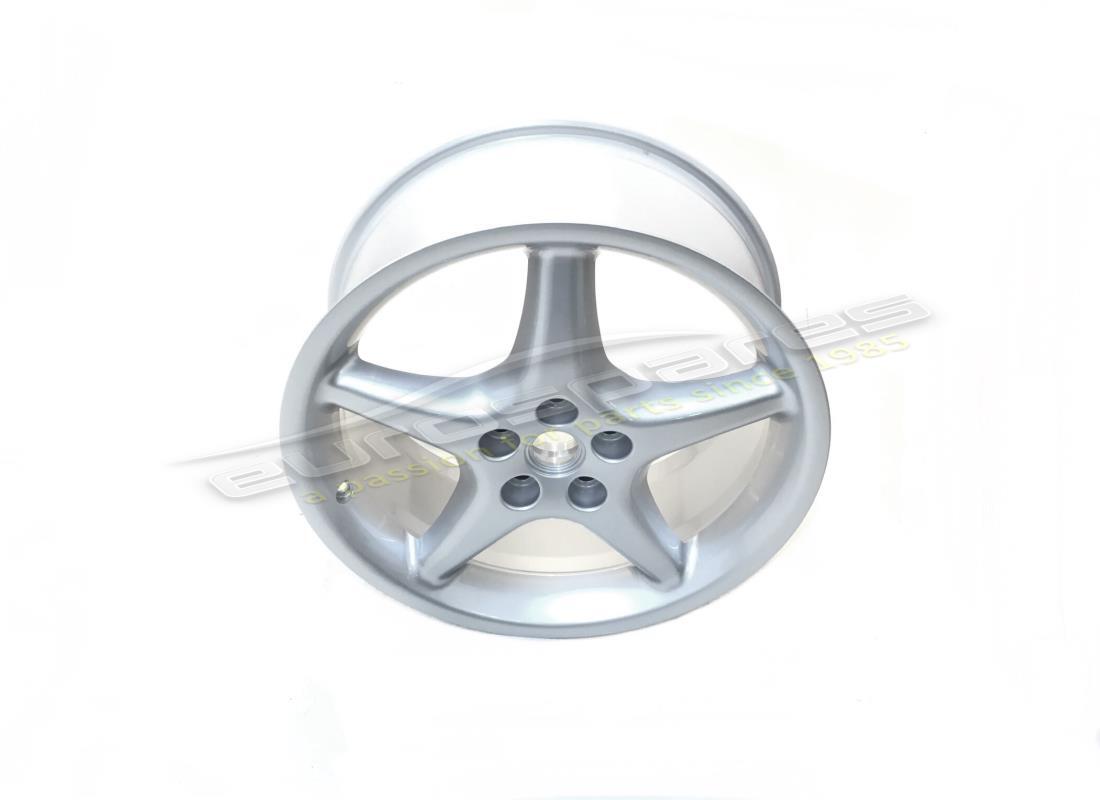

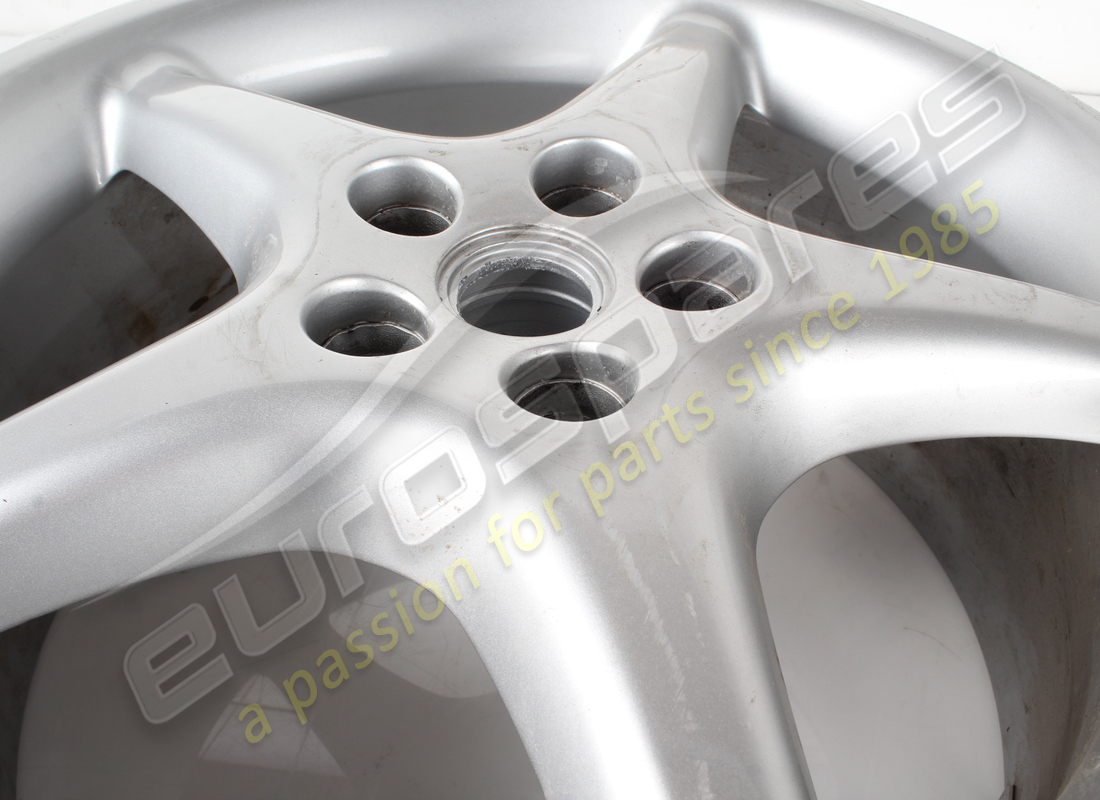

                          # 001
                          MPN: 179378
                          FRONT WHEEL 8.5 J X18
                          from £413.16
                          from £413.16
                          This part replaces part number 165110 - and 2 more. Click to view details

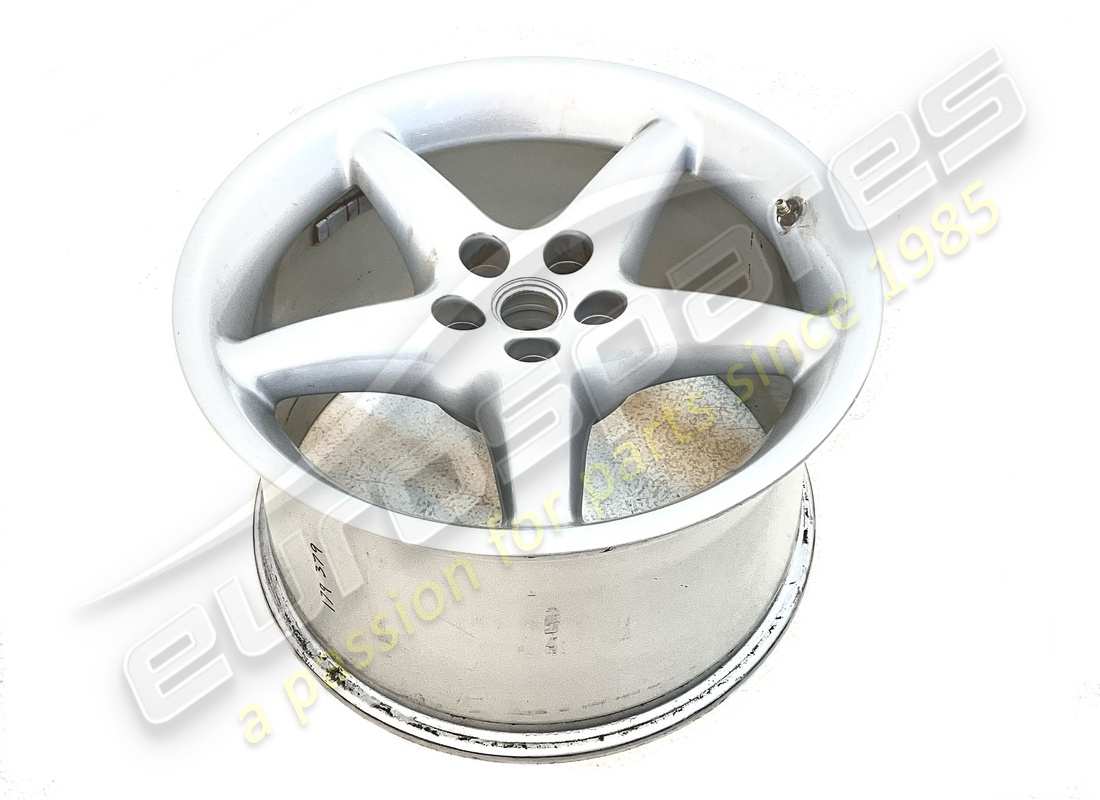

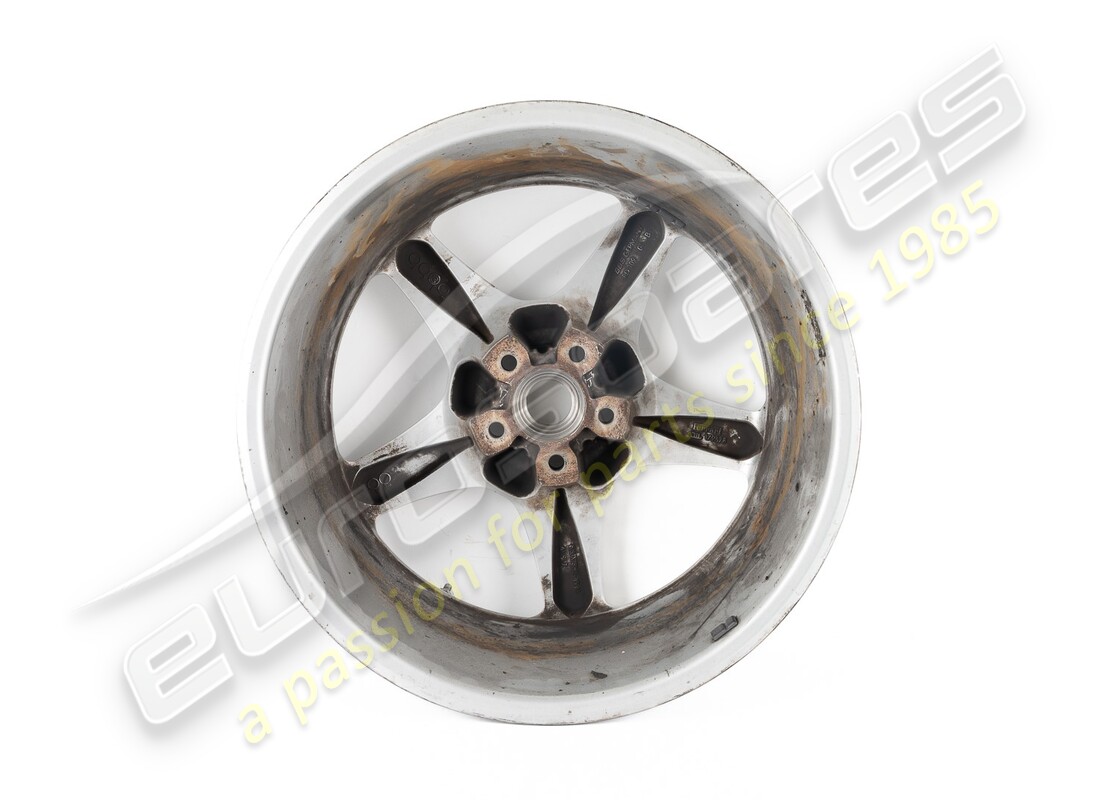

                          # 001
                          MPN: 179379
                          REAR WHEEL 10.5JX18
                          from £437.46
                          from £437.46
                          This part replaces part number 165112 - and 3 more. Click to view details
                          # 001
                          MPN: 179379
                          REAR WHEEL 10.5JX18
                          from £437.46
                          from £437.46
                          This part replaces part number 165112 - and 3 more. Click to view details
                          # 002
                          MPN: 164697
                          FRONT TYRE BRIDGESTONE 255/40 ZR 18
                          from £670.85
                          from £670.85
                          # 002
                          MPN: 164698
                          REAR TYRE BRIDGESTONE 295/35 ZR 18
                          from £863.90
                          from £863.90
                          # 002
                          MPN: 164801
                          FRONT TYRE MICHELIN 235/45 ZR 18
                          from £635.24
                          from £635.24
                          # 002
                          MPN: 164802
                          REAR TYRE MICHELIN 295/35 ZR 18
                          from £910.46
                          from £910.46
                          # 002
                          MPN: 164803
                          RH FRONT TYRE GOODYEAR 255/40 ZR 18
                          # 002
                          MPN: 164804
                          LH FRONT TYRE GOODYEAR 255/40 ZR 18
                          # 002
                          MPN: 164805
                          RH REAR TYRE GOODYEAR 295/35 ZR 18
                          # 002
                          MPN: 164806
                          LH REAR TYRE GOODYEAR 295/35 ZR 18
                          # 002
                          MPN: 164807
                          FRONT TYRE PIRELLI 255/40 ZR 18
                          from £586.97
                          from £586.97
                          # 002
                          MPN: 164808
                          REAR TYRE PIRELLI 295/35 ZR 18
                          from £714.35
                          from £714.35
                          # 003
                          MPN: 174166
                          VALVE
                          from £5.20
                          from £5.20
                          This part replaces part number 105069 - and 1 more. Click to view details
                          # 004
                          MPN: 155302
                          COUNTER-WEIGHT - 60GR.
                          Supersession
                          Supersession
                          This part replaces part number 108851 - and 1 more. Click to view details
                          # 004
                          MPN: 162677
                          COUNTER-WEIGHT - 90GR.
                          from £5.65
                          from £5.65

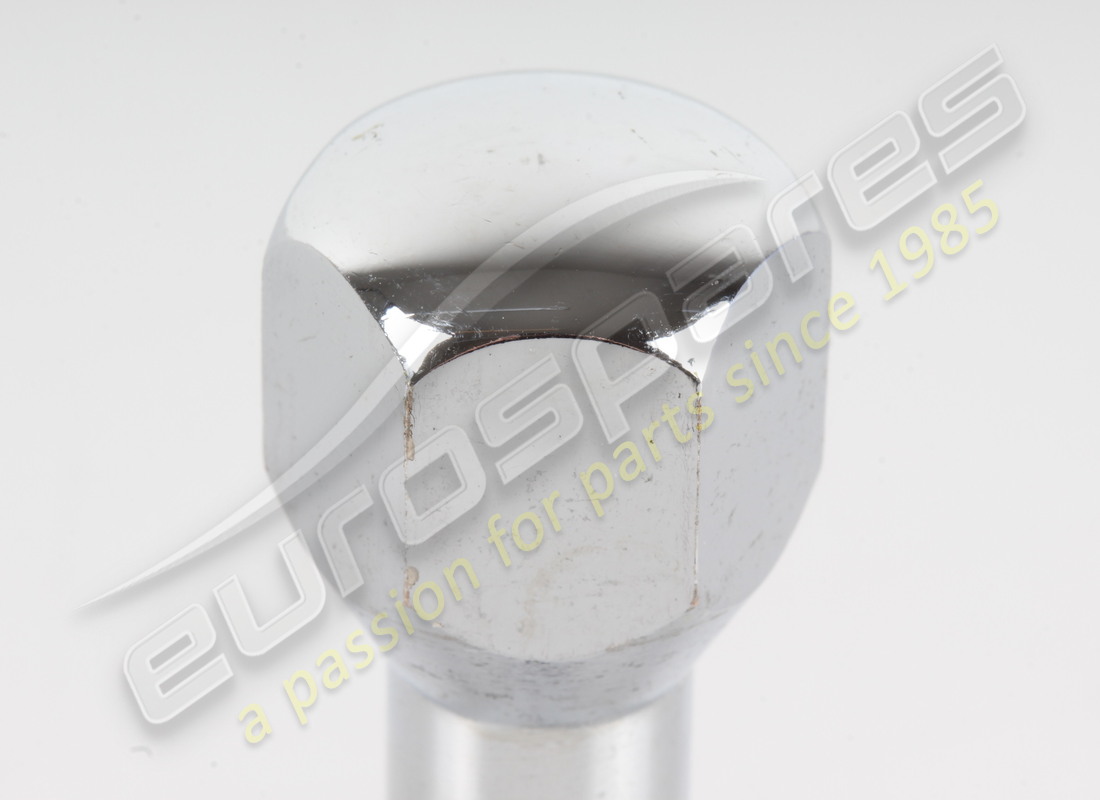

                          # 005
                          MPN: 176426
                          STUD
                          from £25.20
                          from £25.20
                          This part replaces part number 146989 - and 1 more. Click to view details
                          # 005
                          MPN: 176426
                          STUD
                          - Valid for magnesium rims
                          from £25.20
                          from £25.20
                          This part replaces part number 146989 - and 1 more. Click to view details
                          # 005
                          MPN: 181291
                          STUD
                          - Valid for aluminium rims
                          from £25.20
                          from £25.20
                          # 005
                          MPN: 70001200
                          TITANIUM WHEEL BOLT KIT
                          includes 20x titanium wheel Stud
                          from £1,178.40
                          from £1,178.40
                          # 006
                          MPN: 340066
                          WHEEL BADGE
                          from £8.23
                          from £8.23
                          This part replaces part number 226245 - and 1 more. Click to view details
                          # 007
                          MPN: 120065
                          GASKET
                          from £0.83
                          from £0.83
                          # 008
                          MPN: 152367
                          TYRE REPAIR CYLINDER BOTTLE
                          (UK shipment only or Collection)
                          from £495.42
                          from £495.42
                          This part replaces part number 171576 - and 1 more. Click to view details
                          # 009
                          MPN: 145506
                          PORTFOLIO
                          from £795.00
                          from £795.00
                          # 010
                          MPN: 166537
                          POLYSTYRENE FOAM CASE
                          from £31.55
                          from £31.55
                          # 011
                          MPN: 161927
                          GASKET
                          from £175.42
                          from £175.42
                          # 012
                          MPN: 167137
                          RIM COMPLETE PROTECTION
                          from £13.16
                          from £13.16
                          # 013
                          MPN: 167139
                          O.R. GASKET
                          from £1.94
                          from £1.94
                          # 014
                          MPN: 165122
                          TYRE PRESSURE PLATE-BRIDGESTONE
                          - Not for USA, CDN and AUS
                          from £9.90
                          from £9.90
                          # 014
                          MPN: 165123
                          TYRE PRESSURE PLATE-PIRELLI
                          - Not for USA, CDN and AUS
                          from £2.67
                          from £2.67
                          # 014
                          MPN: 165124
                          TYRE PRESSURE PLATE-GOODYEAR
                          - Not for USA, CDN and AUS
                          from £3.47
                          from £3.47
                          # 014
                          MPN: 165125
                          TYRE PRESSURE PLATE-MICHELIN
                          - Not for USA, CDN and AUS
                          from £3.56
                          from £3.56
                          # 014
                          MPN: 172681
                          TYRE PRESSURE PLATE-BRIDGESTONE
                          - Valid for USA and CDN
                          # 014
                          MPN: 172682
                          TYRE PRESSURE PLATE-PIRELLI
                          - Valid for USA and CDN
                          from £4.78
                          from £4.78
                          # 014
                          MPN: 172683
                          TYRE PRESSURE PLATE-GOODYEAR
                          - Valid for USA and CDN
                          from £4.78
                          from £4.78
                          # 014
                          MPN: 172684
                          TYRE PRESSURE PLATE-MICHELIN
                          - Valid for USA and CDN
                          from £4.78
                          from £4.78
                          # 014
                          MPN: 173388
                          TYRE PRESSURE PLATE-BRIDGESTONE
                          - Valid for AUS
                          from £4.80
                          from £4.80
                          # 014
                          MPN: 173389
                          TYRE PRESSURE PLATE-MICHELIN
                          - Valid for AUS
                          from £4.78
                          from £4.78
                          # 014
                          MPN: 173390
                          TYRE PRESSURE PLATE-GOODYEAR
                          - Valid for AUS
                          from £6.02
                          from £6.02
                          # 014
                          MPN: 173391
                          TYRE PRESSURE PLATE-PIRELLI
                          - Valid for AUS
                          from £4.80
                          from £4.80
                          # 015
                          MPN: 173688
                          BAG
                          from £28.26
                          from £28.26
                          This part replaces part number 173668
