ferrari 550 maranello battery parts diagram

054 - Battery

Ferrari 550 Maranello Battery Parts Diagram

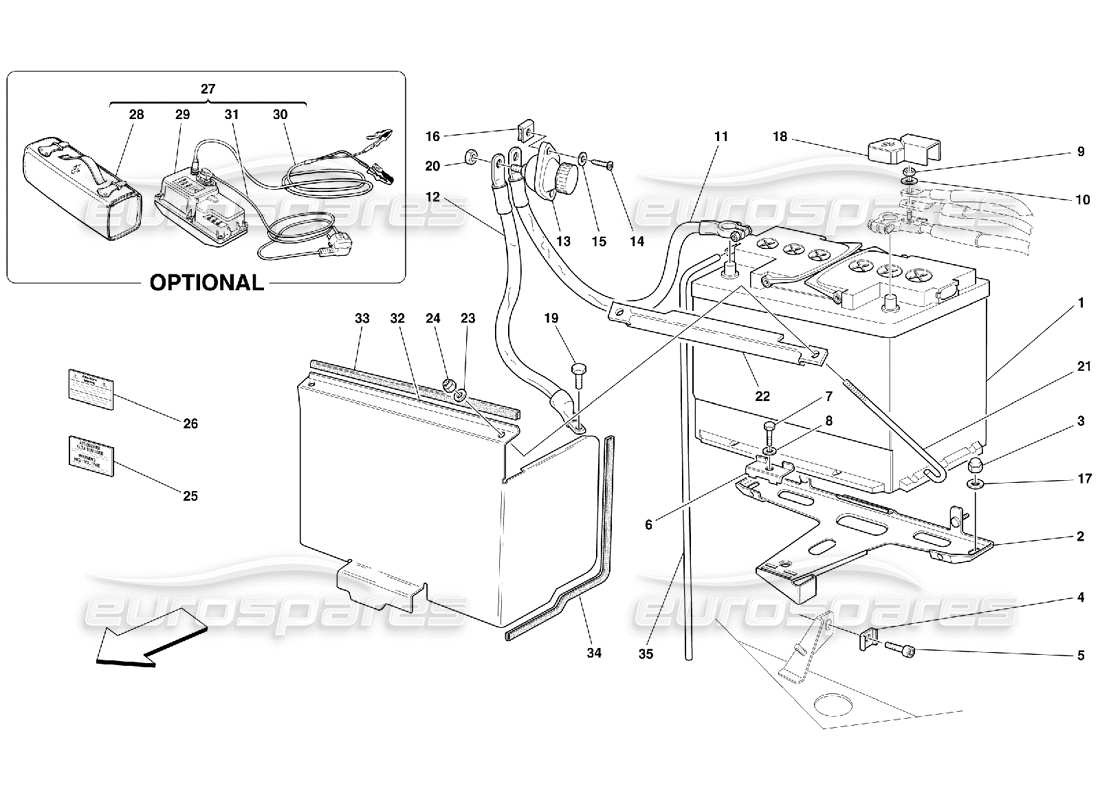

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                          #
                                          Part number
                                          Description
                                          Price
                                          # 001
                                          MPN: 156575
                                          BATTERY 12V-70AH-420A
                                          - Valid for GD
                                          Supersession
                                          Supersession
                                          This part replaces part number MC3750/2
                                          # 001
                                          MPN: 180055
                                          BATTERY 12V-74A-400A
                                          - Not for GD
                                          from £196.73
                                          from £196.73
                                          This part replaces part number 188066
                                          # 001
                                          MPN: 61933900
                                          BATTERY 12V-70AH-420A
                                          - Not for GD - Not as spare part now - Replaced by 180055
                                          Supersession
                                          Supersession
                                          This part replaces part number 118060 - and 1 more. Click to view details

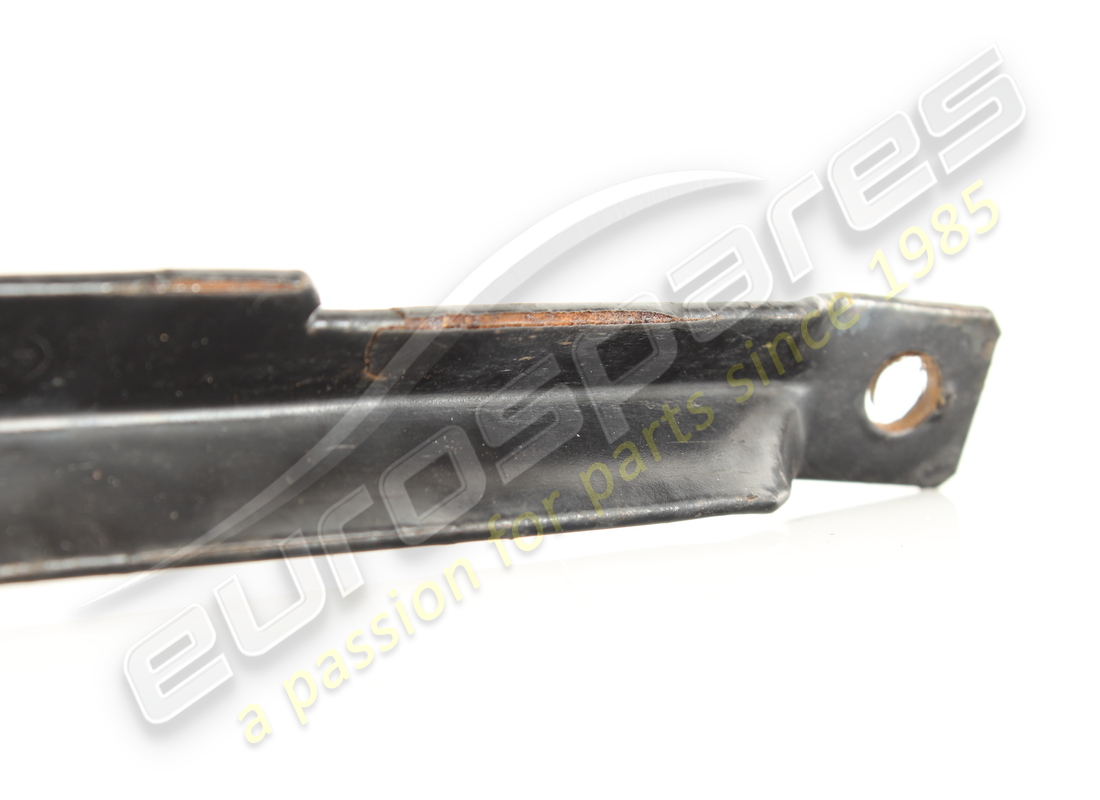

                                          # 002
                                          MPN: 154320
                                          PLATE FOR BATTERY SUPPORT
                                          - Valid till Ass. Nr. 24712 - Not for GD
                                          from £45.00
                                          from £45.00
                                          # 002
                                          MPN: 171918
                                          PLATE FOR BATTERY SUPPORT
                                          - Valid from Ass. Nr. 24713 - Not for GD
                                          from £40.40
                                          from £40.40
                                          # 002
                                          MPN: 172556
                                          PLATE FOR BATTERY SUPPORT
                                          - Valid for GD
                                          from £73.45
                                          from £73.45
                                          # 003
                                          MPN: 150595
                                          CAP NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 16109642
                                          # 004
                                          MPN: 155599
                                          BRACKET
                                          from £1.54
                                          from £1.54
                                          # 005
                                          MPN: 14306224
                                          SCREW
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14306221 - and 1 more. Click to view details
                                          # 006
                                          MPN: 154324
                                          MOBILE BRACKET
                                          from £15.99
                                          from £15.99
                                          # 007
                                          MPN: 16043724
                                          SCREW
                                          from £0.71
                                          from £0.71
                                          This part replaces part number 16043721
                                          # 008
                                          MPN: 14499421
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 14499424
                                          # 010
                                          MPN: 12638524
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12638501 - and 2 more. Click to view details

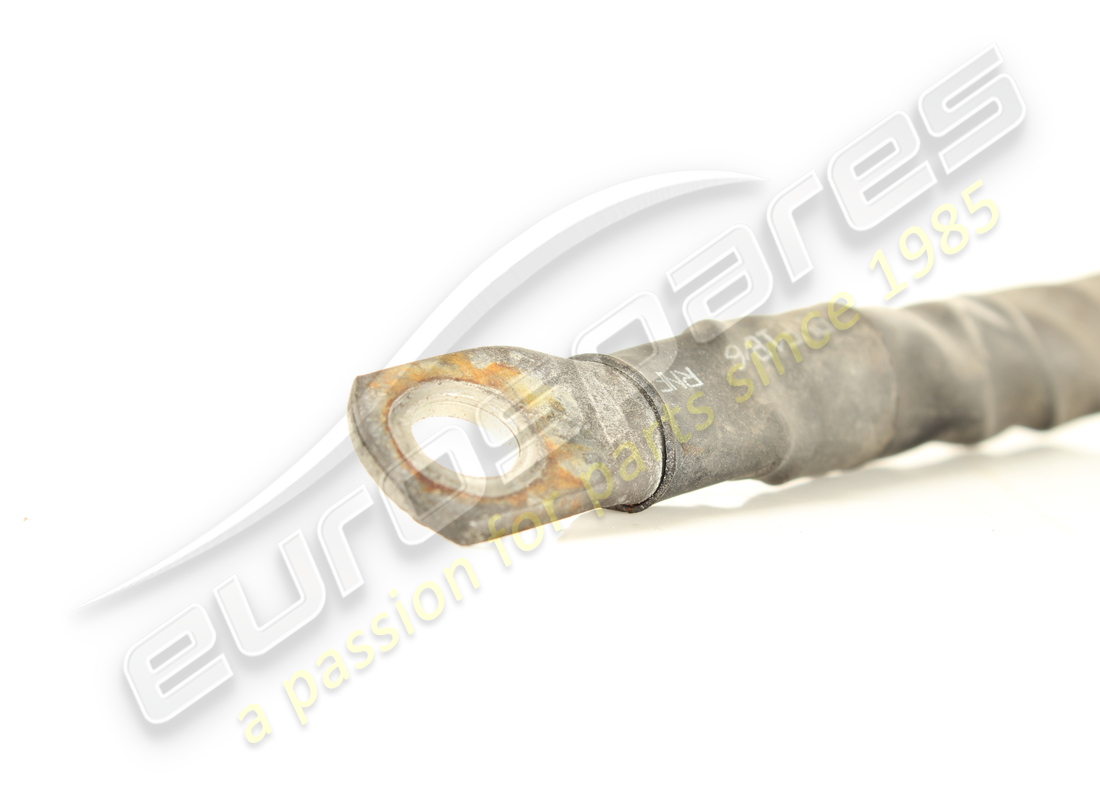

                                          # 011
                                          MPN: 167502
                                          COPPER PLAIT FROM BATTERY TO SWITCH
                                          from £253.37
                                          from £253.37
                                          # 012
                                          MPN: 167501
                                          COPPER PLAIT FROM SWITCH TO EARTH
                                          from £105.00
                                          from £105.00
                                          # 013
                                          MPN: 139607
                                          BATTERY CUT-OUT SWITCH
                                          Supersession
                                          Supersession
                                          # 014
                                          MPN: 15688275
                                          SCREW
                                          from £1.32
                                          from £1.32
                                          This part replaces part number 15688208 - and 1 more. Click to view details
                                          # 015
                                          MPN: 12637878
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12637806
                                          # 016
                                          MPN: 61067800
                                          BRACKET
                                          from £1.08
                                          from £1.08
                                          # 017
                                          MPN: 12646724
                                          WASHER
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12601571 - and 3 more. Click to view details
                                          # 018
                                          MPN: 144727
                                          PROTECTION BOOT
                                          Supersession
                                          Supersession
                                          This part replaces part number 123674/T - and 1 more. Click to view details
                                          # 019
                                          MPN: 16296421
                                          SCREW
                                          from £37.16
                                          from £37.16
                                          # 020
                                          MPN: 102741
                                          NUT
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12575411 - and 1 more. Click to view details

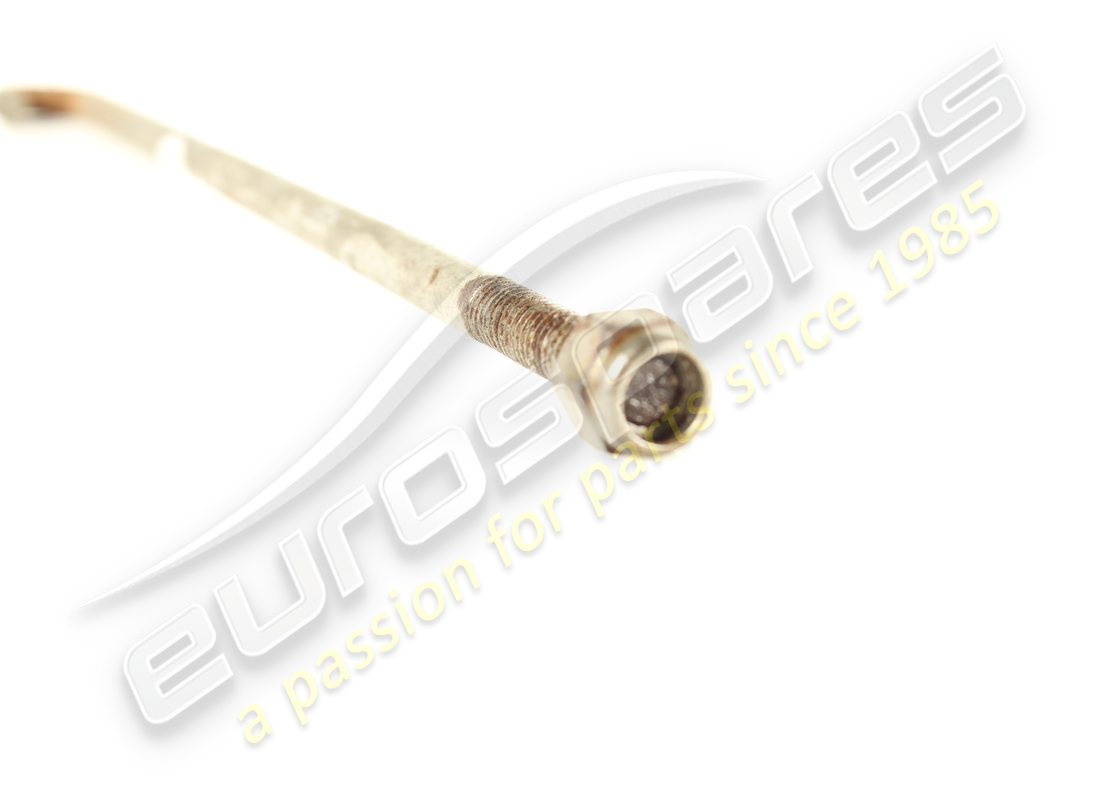

                                          # 021
                                          MPN: 189130
                                          TIE ROD
                                          from £40.20
                                          from £40.20
                                          This part replaces part number 171904
                                          # 022
                                          MPN: 171903
                                          ANGLE PIECE
                                          - Valid from Ass. Nr. 24713
                                          from £32.67
                                          from £32.67
                                          # 023
                                          MPN: 14496424
                                          WASHER
                                          - Valid from Ass. Nr. 24713
                                          Supersession
                                          Supersession
                                          This part replaces part number 14496401 - and 3 more. Click to view details
                                          # 024
                                          MPN: 102948
                                          NUT
                                          - Valid from Ass. Nr. 24713
                                          from £0.47
                                          from £0.47
                                          This part replaces part number 12574211 - and 4 more. Click to view details
                                          # 025
                                          MPN: 113404
                                          WARNING HIGH VOLTAGE PLATE
                                          from £6.83
                                          from £6.83
                                          # 026
                                          MPN: 184205
                                          BATTERY EXCLUSION PLATE
                                          - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                          from £4.77
                                          from £4.77
                                          # 027
                                          MPN: 70000904
                                          BATTERY CHARGER KIT
                                          - Not for USA, CDN, GB, Hong Kong and AUS - Optional
                                          from £424.77
                                          from £424.77
                                          # 027
                                          MPN: 70000905
                                          BATTERY CHARGER KIT
                                          - Valid for USA and CDN - Optional
                                          from £310.40
                                          from £310.40
                                          # 027
                                          MPN: 70000906
                                          BATTERY CHARGER KIT
                                          - Valid for AUS - Optional
                                          from £727.04
                                          from £727.04
                                          # 027
                                          MPN: 70000909
                                          BATTERY CHARGER KIT
                                          - Valid for GB and Hong Kong - Optional
                                          from £424.77
                                          from £424.77
                                          # 028
                                          MPN: 65699200
                                          BATTERY BAG CASE
                                          - optional
                                          from £414.21
                                          from £414.21
                                          # 029
                                          MPN: 177791
                                          BATTERY CHARGER-230V
                                          - Not for USA and CDN - Optional
                                          from £483.02
                                          from £483.02
                                          # 029
                                          MPN: 177792
                                          BATTERY CHARGER-110V
                                          - Valid for USA and CDN - Optional
                                          from £1,206.22
                                          from £1,206.22
                                          # 030
                                          MPN: 177793
                                          CABLE WITH TERMINAL
                                          - optional
                                          from £140.87
                                          from £140.87
                                          # 031
                                          MPN: 177794
                                          POWER SUPPLY CABLE
                                          - Not for USA, CDN, GB, Hong Kong and AUS - Optional
                                          from £16.44
                                          from £16.44
                                          # 031
                                          MPN: 177795
                                          POWER SUPPLY CABLE
                                          - Valid for USA and CDN - Optional
                                          from £12.33
                                          from £12.33
                                          # 031
                                          MPN: 177796
                                          POWER SUPPLY CABLE
                                          - Valid for AUS - Optional
                                          from £24.25
                                          from £24.25
                                          # 031
                                          MPN: 178294
                                          POWER SUPPLY CABLE
                                          - Valid for GB and Hong Kong - Optional
                                          from £39.48
                                          from £39.48
                                          # 032
                                          MPN: 178884
                                          BATTERY HEAT PROTECTION
                                          - Not for GD
                                          from £79.48
                                          from £79.48
                                          # 033
                                          MPN: 179906
                                          GASKET
                                          - Not for GD
                                          from £4.30
                                          from £4.30
                                          This part replaces part number 179907
                                          # 034
                                          MPN: 179906
                                          GASKET
                                          - Not for GD
                                          from £4.30
                                          from £4.30
                                          This part replaces part number 179907
                                          # 035
                                          MPN: 180056
                                          BATTERY ACID EXHAUST TUBE
                                          - Not for GD
                                          from £0.83
                                          from £0.83
                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
