104 - Flat Floor Pan

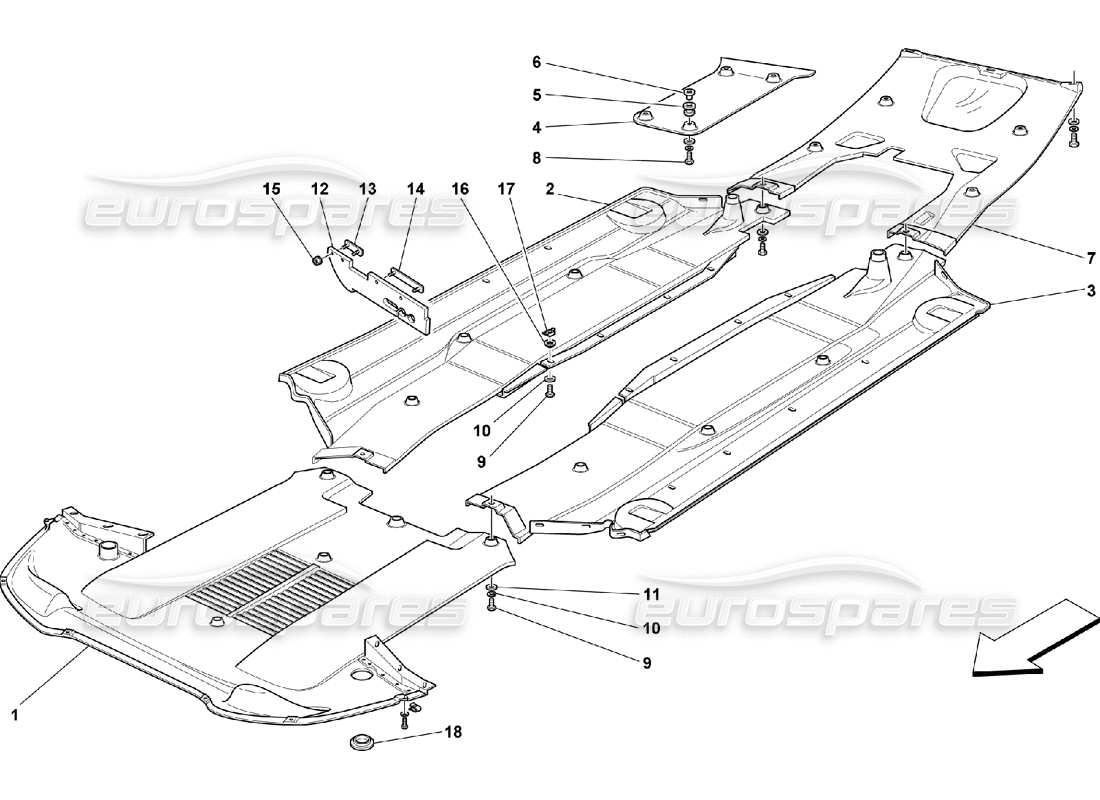

Ferrari 550 Maranello Flat Floor Pan Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65663900

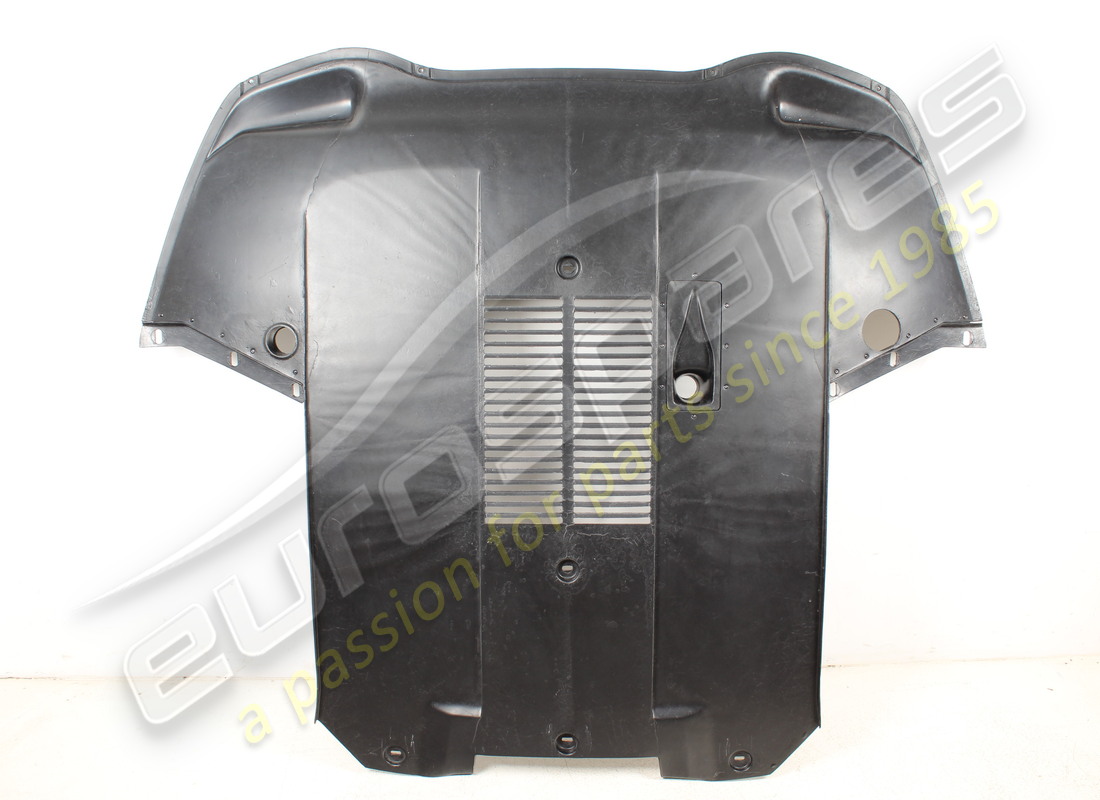

FRONT AERODYNAMIC BOTTOM
from £210.13
from £210.13
This part replaces part number 64779000 - and 2 more. Click to view details
# 002
MPN: 64678800

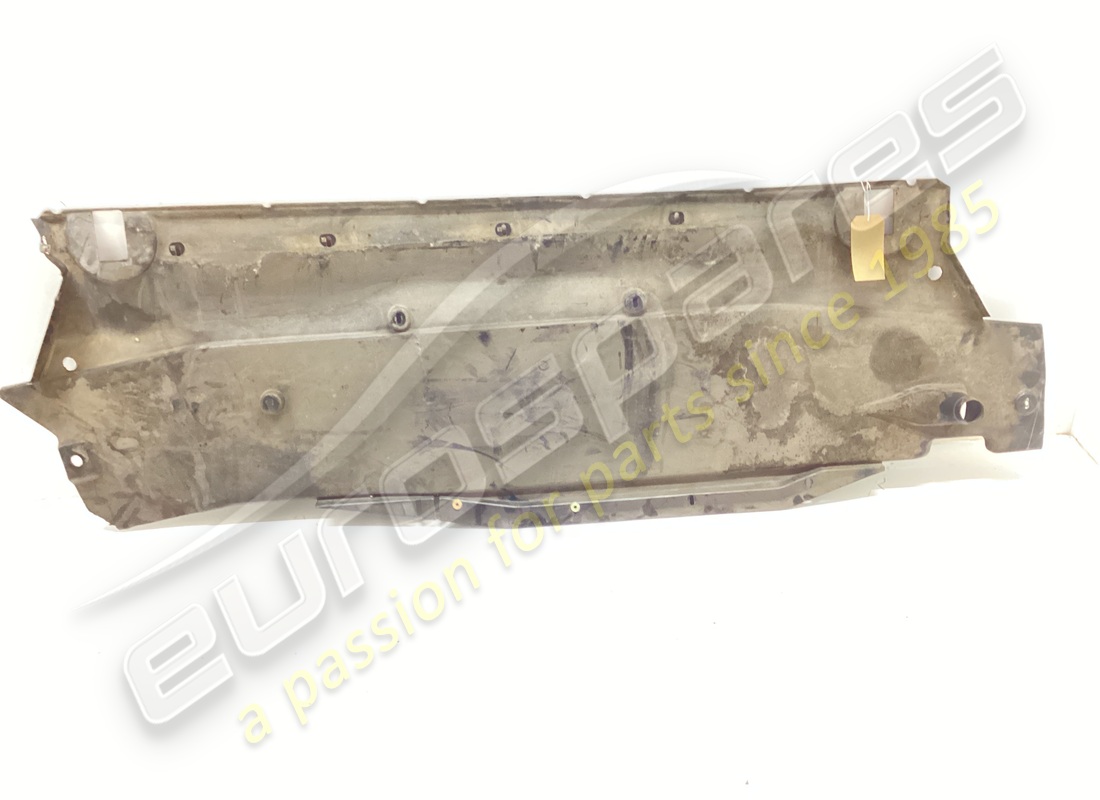

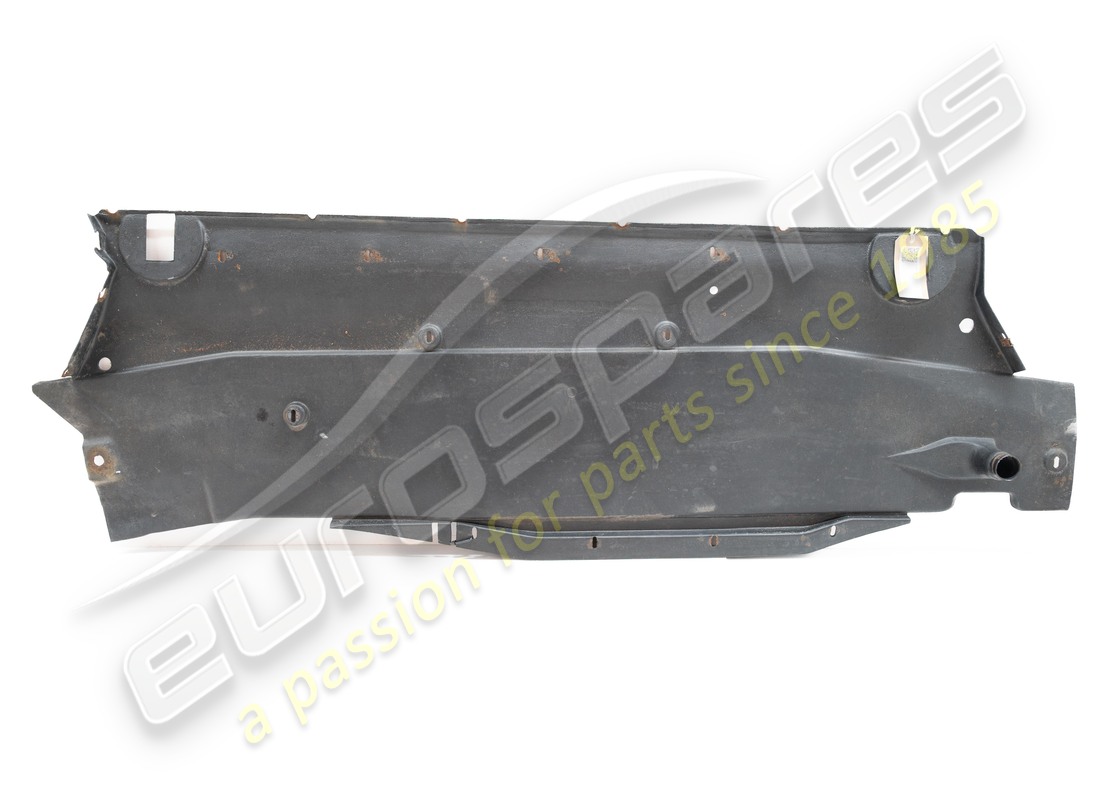

RH CENTRAL AERODYNAMIC BOTTOM
from £130.50
from £130.50
# 003
MPN: 64678900

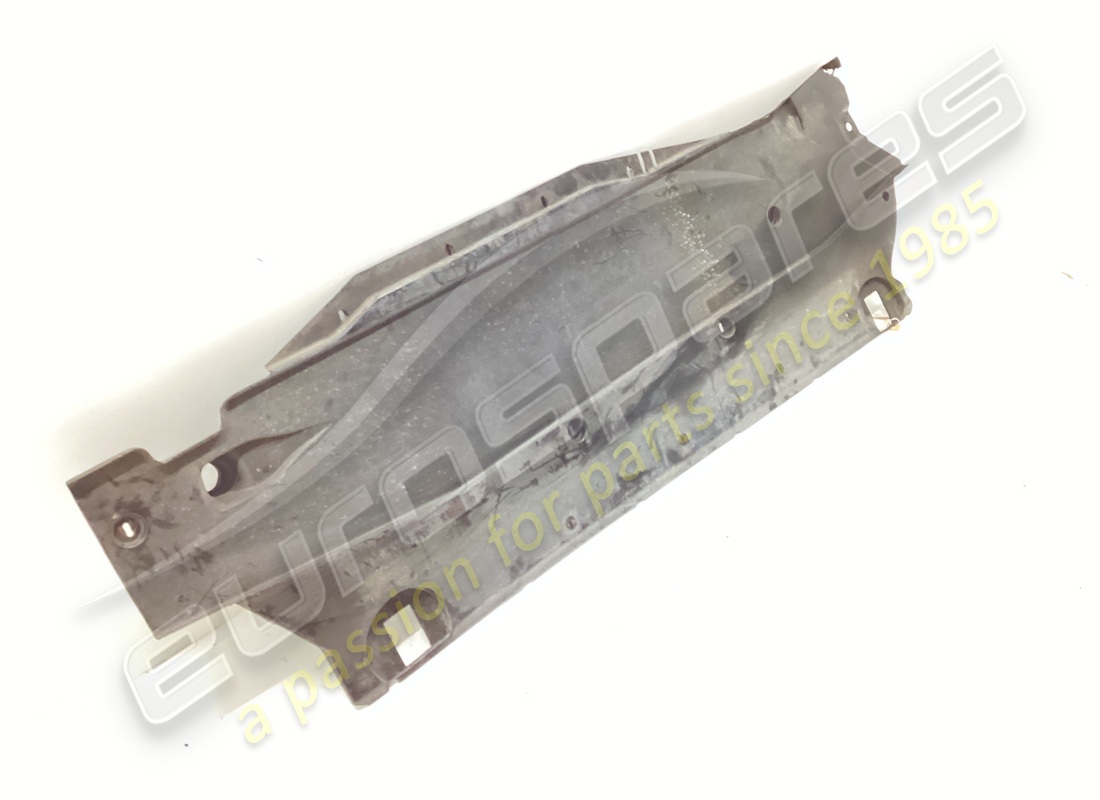

LH CENTRAL AERODYNAMIC BOTTOM
from £130.50
from £130.50
# 004
MPN: 64975300
UNDER GEARBOX AERODYNAMIC BOTTOM
from £66.38
from £66.38
# 005
MPN: 103549
CABLE GROMMET
from £0.69
from £0.69
# 006
MPN: 149707
SPACER
from £0.76
from £0.76
# 007
MPN: 64679000

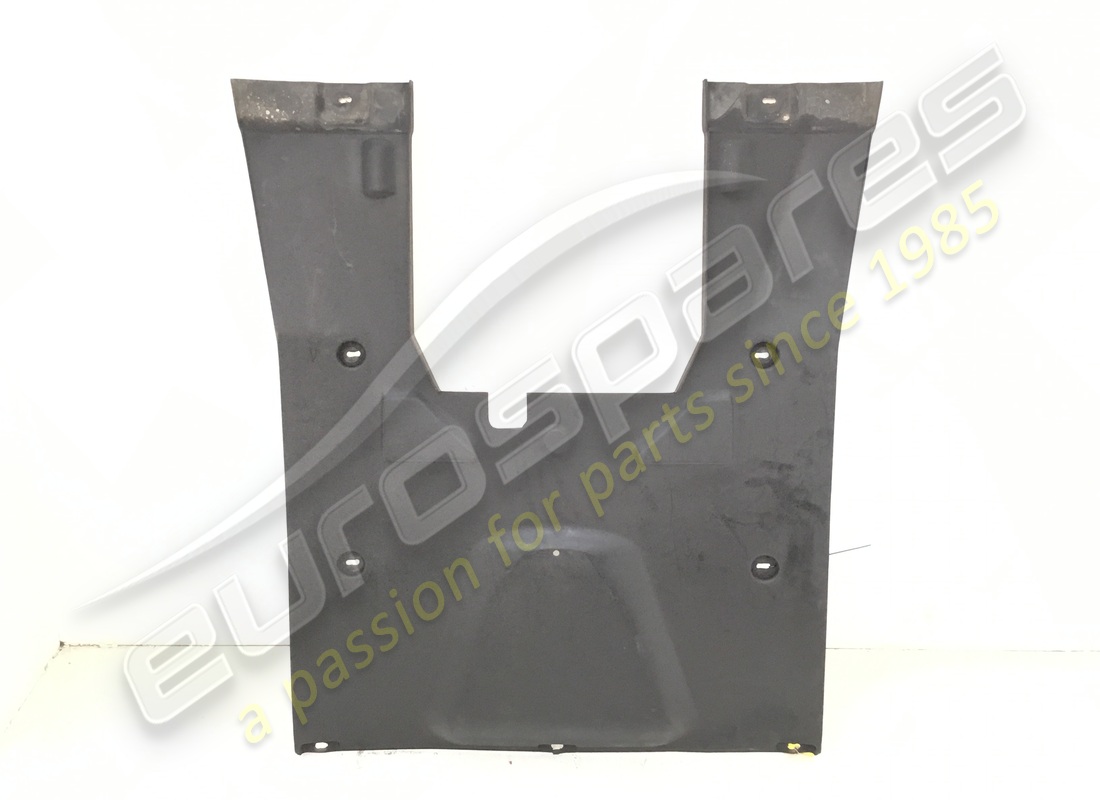

REAR AERODYNAMIC BOTTOM
from £86.97
from £86.97
# 008
MPN: 65377400
SCREW
from £1.28
from £1.28
This part replaces part number 156814 - and 3 more. Click to view details
# 009
MPN: 62940900
SCREW
from £0.77
from £0.77
This part replaces part number 67352400
# 010
MPN: 12640677
WASHER
not as spare part - use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 011
MPN: 12035674
WASHER
from £0.71
from £0.71
# 012
MPN: 65267400
RH INSULATION
from £147.00
from £147.00
# 012
MPN: 65267500
LH INSULATION
from £20.75
from £20.75
# 013
MPN: 65364100

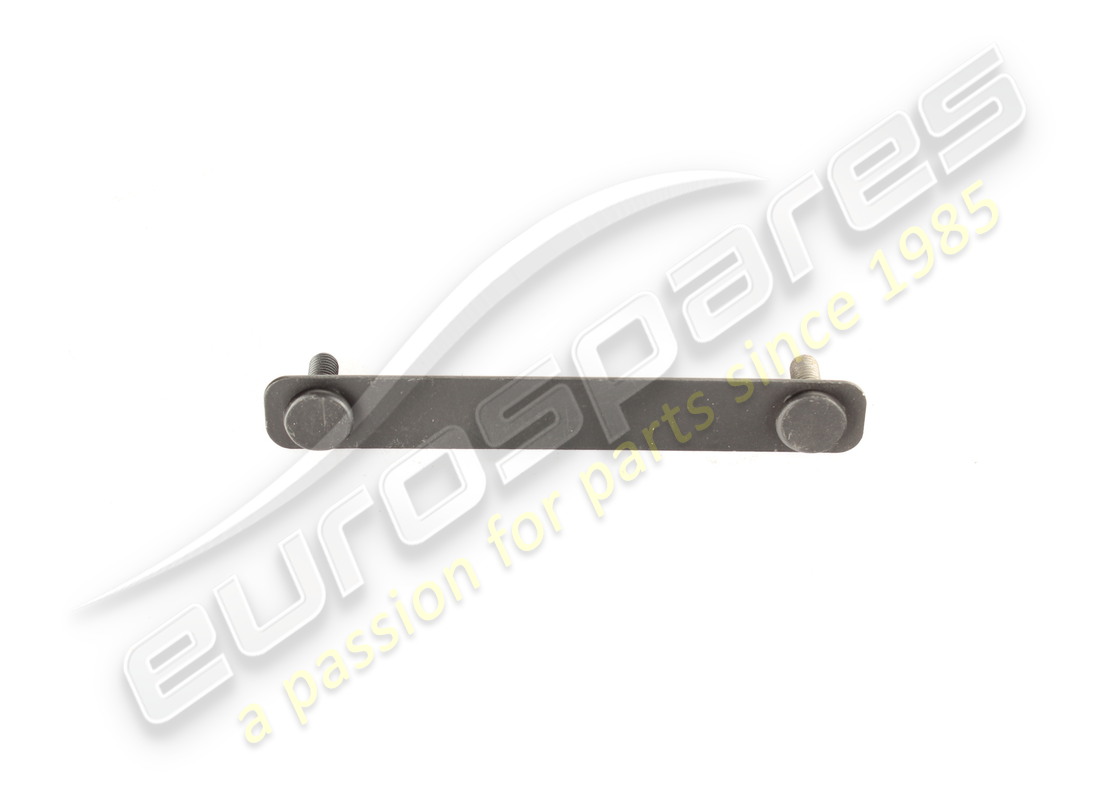

SMALL PLATE
from £2.83
from £2.83
# 014
MPN: 65364200
SMALL PLATE
from £2.88
from £2.88
# 015
MPN: 14058411
NUT
from £0.51
from £0.51
# 016
MPN: 65403300
SPACER
(minimum order quantity = 20)
from £0.74
from £0.74
# 017
MPN: 60659100
NUT WITH CAGE
from £0.58
from £0.58
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 018
MPN: 64783600
PLUG
from £3.09
from £3.09
