105 - FRONT BUMPER

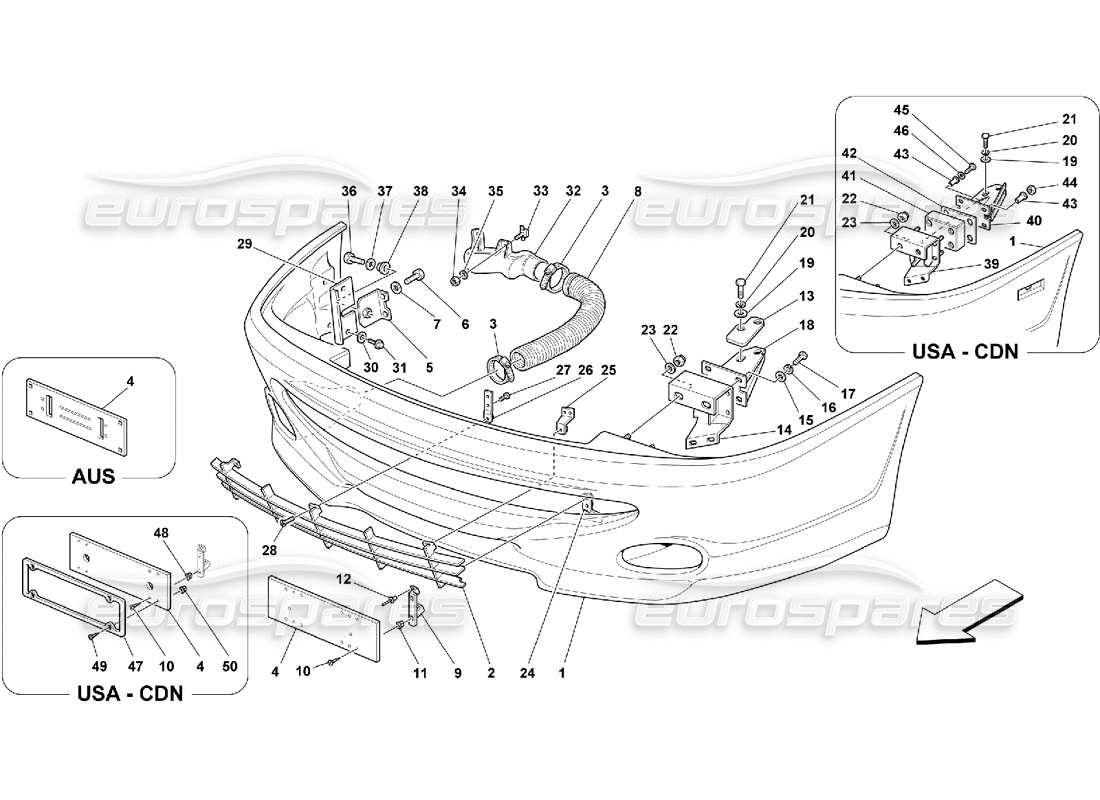

Ferrari 550 Maranello Front Bumper Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65047110

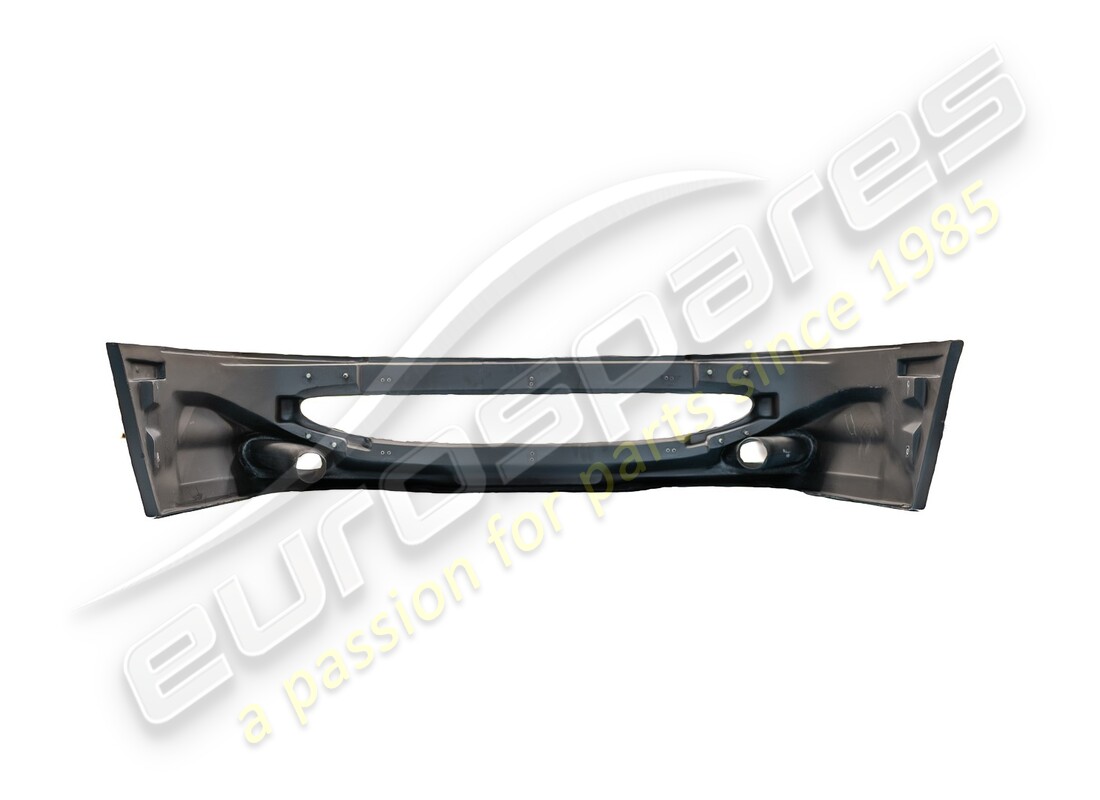

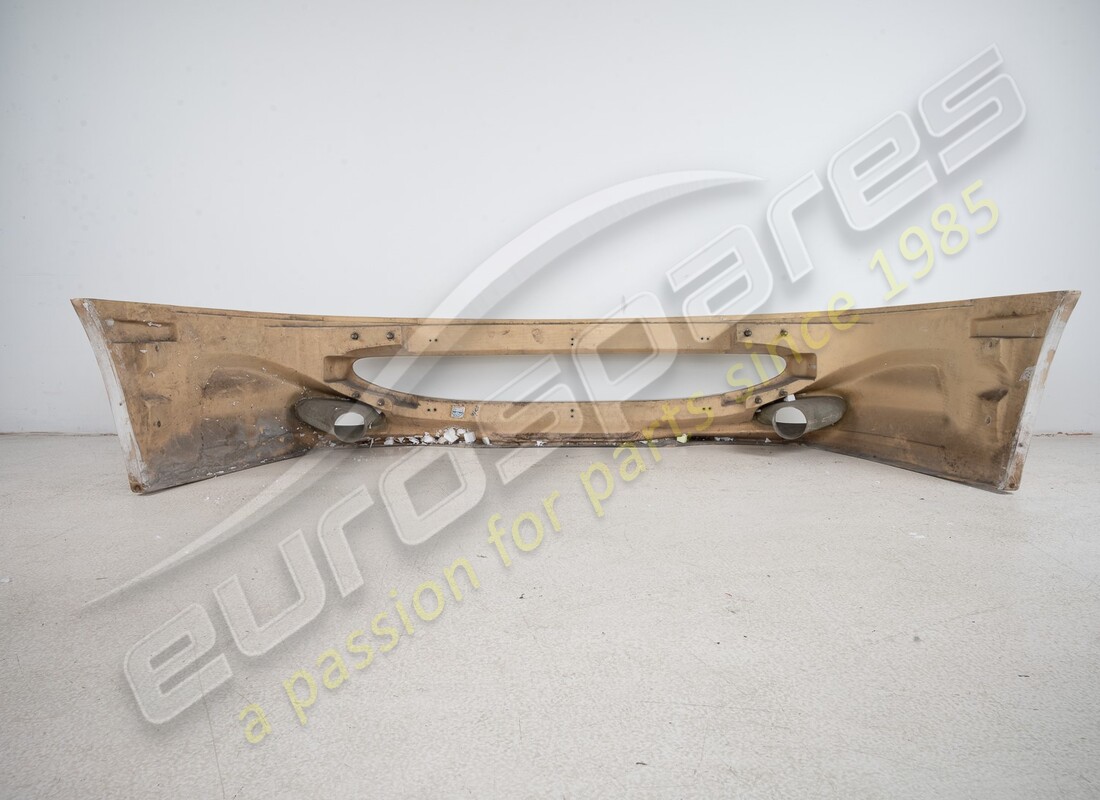

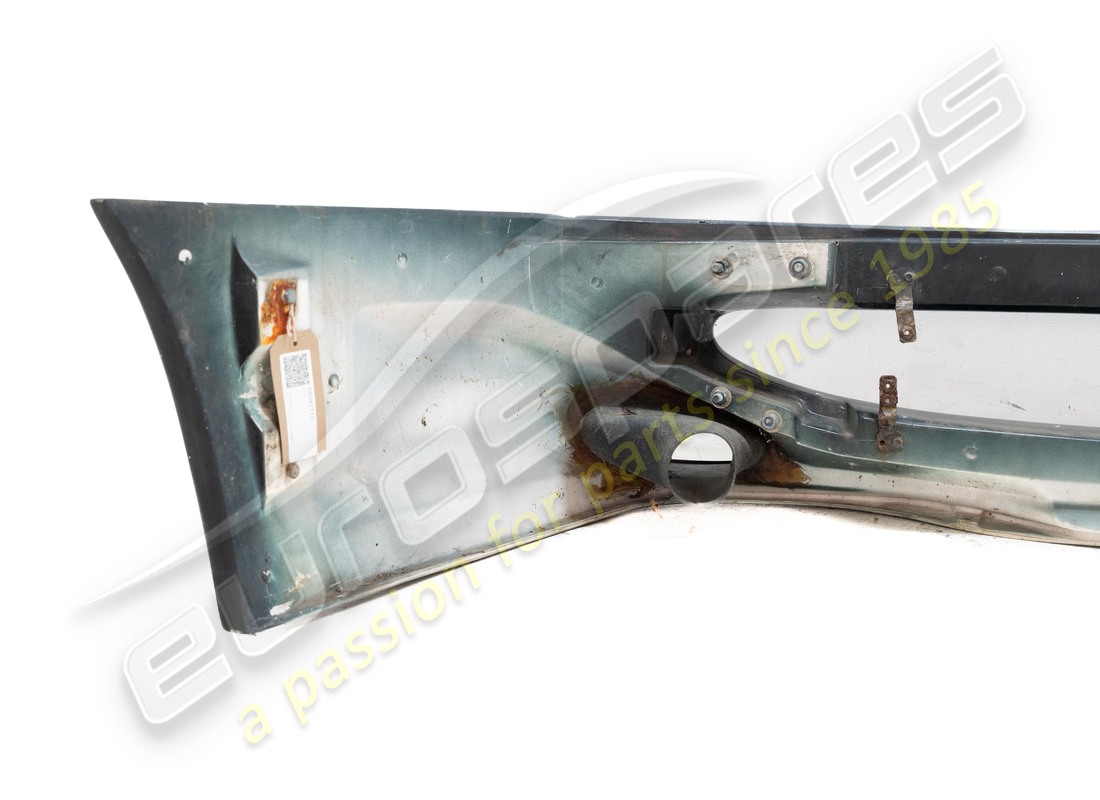

COMPLETE FRONT BUMPER
- Not for USA and CDN
from £2,953.21
from £2,953.21
# 001
MPN: 65186810
COMPLETE FRONT BUMPER
- Valid for USA
from £6,117.78
from £6,117.78
# 001
MPN: 65377610
COMPLETE FRONT BUMPER
- Valid for CDN
from £6,013.97
from £6,013.97
# 002
MPN: 64909900

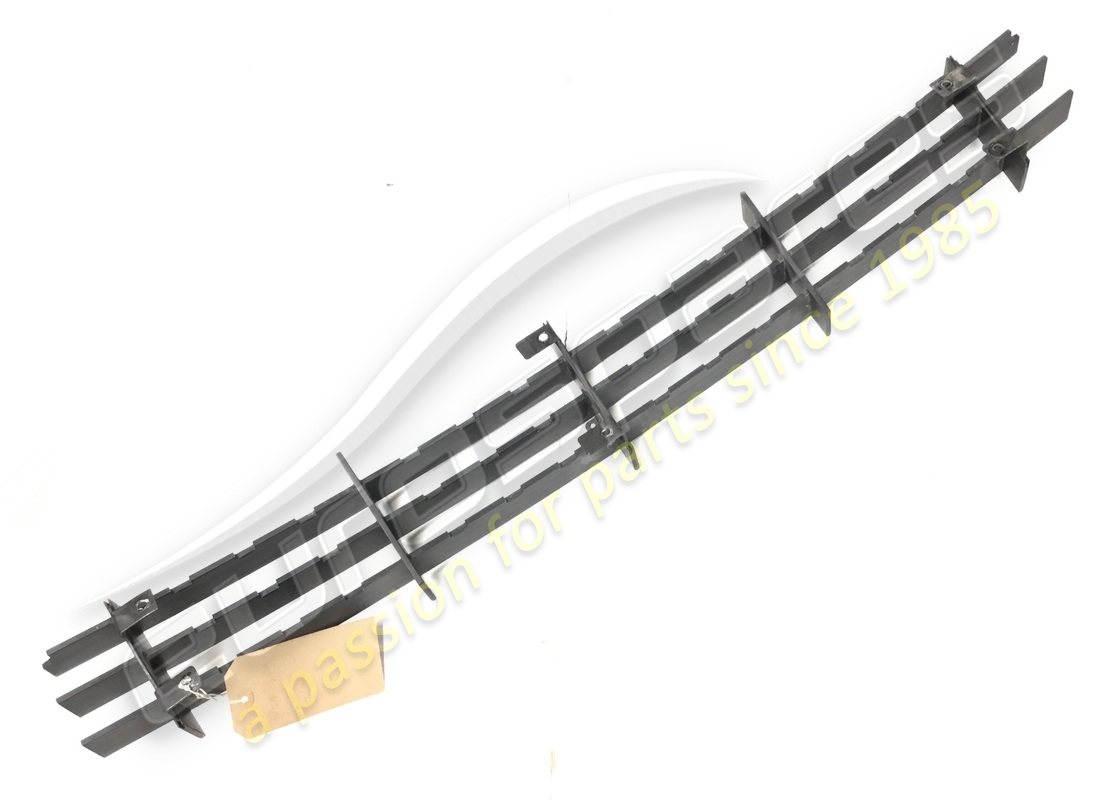

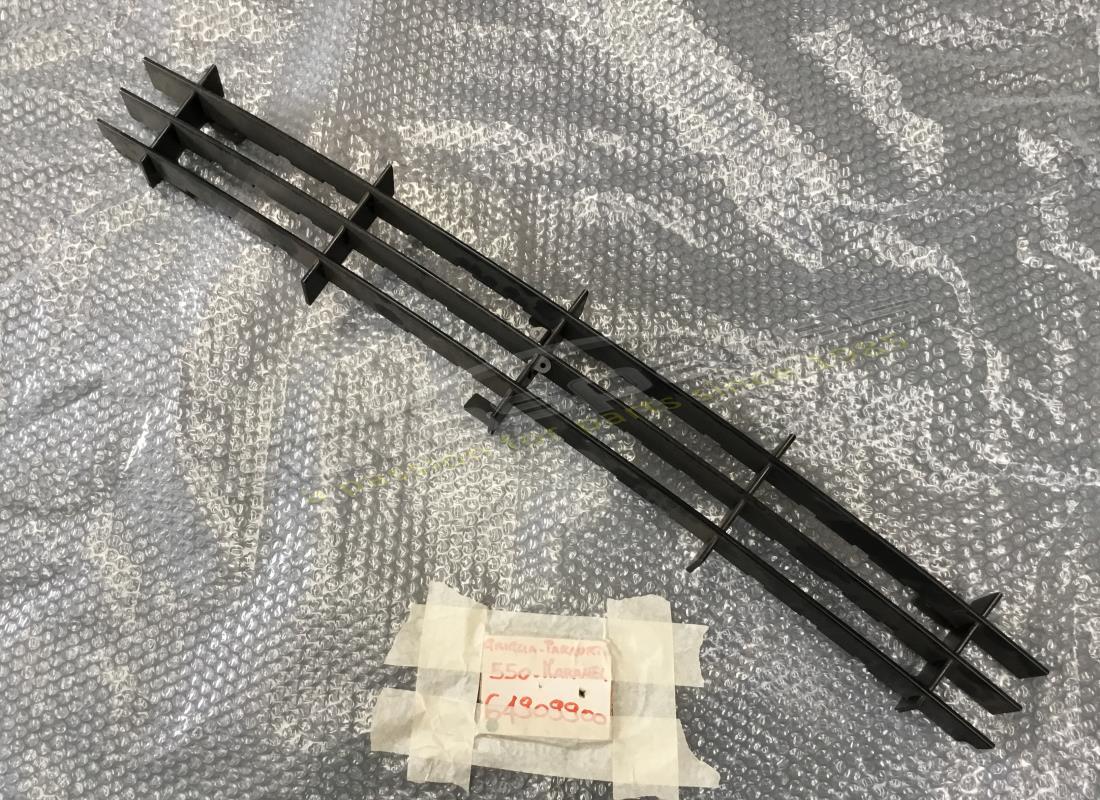

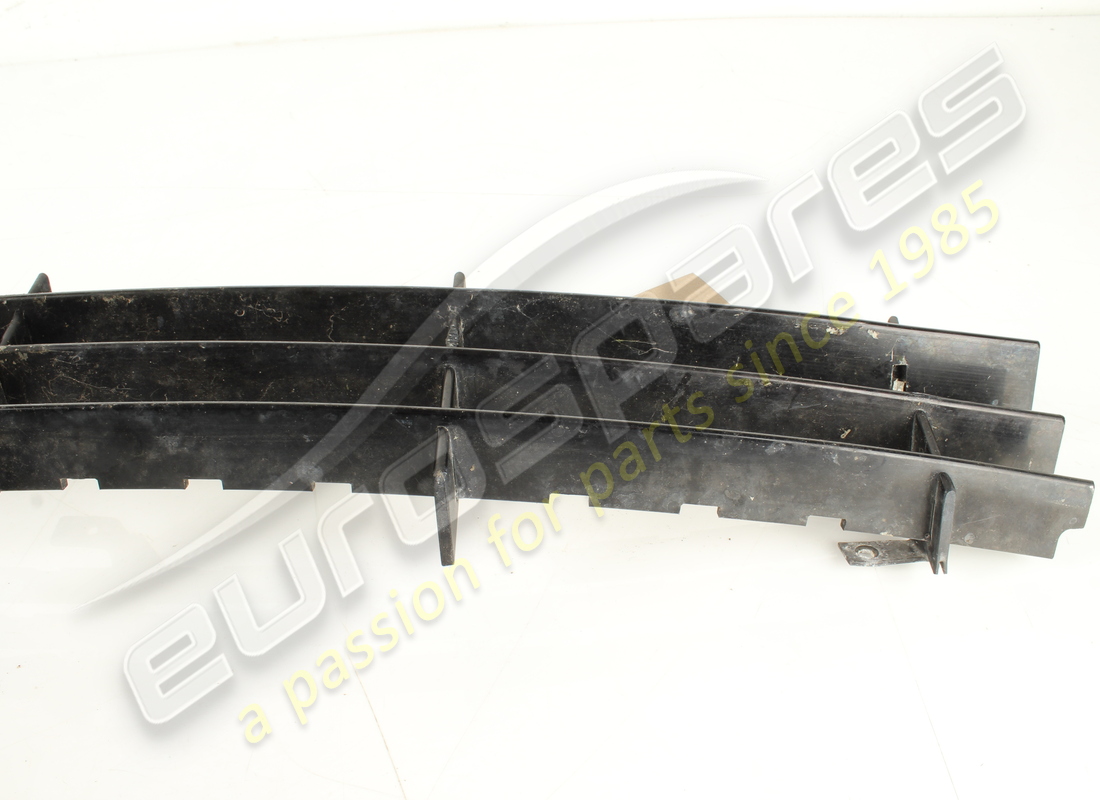

COMPLETE FRONT BUMPER GRILL
from £519.75
from £519.75
This part replaces part number 64564000 - and 1 more. Click to view details
# 003
MPN: 12177390
SCREW COLLAR
Supersession
Supersession
# 004
MPN: 63736400
FRONT PLATE FRAME
- Not for USA, CDN, AUS and J
from £38.84
from £38.84
# 004
MPN: 65271000
FRONT PLATE FRAME
- Valid for AUS
# 004
MPN: 65271400
FRONT PLATE FRAME
- Valid for USA and CDN
from £23.59
from £23.59
# 004
MPN: 65272100
FRONT PLATE FRAME
- Valid for J
from £34.50
from £34.50
# 005
MPN: 65238400
RH BRACKET
from £24.81
from £24.81
# 005
MPN: 65239000
LH BRACKET
from £45.10
from £45.10
# 006
MPN: 11343821
SCREW
from £0.61
from £0.61
# 007
MPN: 12642424
WASHER
from £0.53
from £0.53
# 008
MPN: 156403
PIPE FOR FRONT BRAKES COOLING
- Not as spare part now - Replaced by 174155
Supersession
Supersession
# 008
MPN: 174155
PIPE FOR FRONT BRAKES COOLING
from £109.23
from £109.23
This part replaces part number 156403
# 009
MPN: 64992300
RH BRACKET
from £50.53
from £50.53
# 009
MPN: 64992400
LH BRACKET
from £57.82
from £57.82
# 010
MPN: 15917777
SCREW
from £0.47
from £0.47
# 011
MPN: 14215480
NUT SCREW
from £0.53
from £0.53
This part replaces part number 14211580
# 012
MPN: 14296196
RIVET
from £0.51
from £0.51
# 013
MPN: 65219800
SPACER
- Not for USA and CDN
from £2.70
from £2.70
# 014
MPN: 65048600

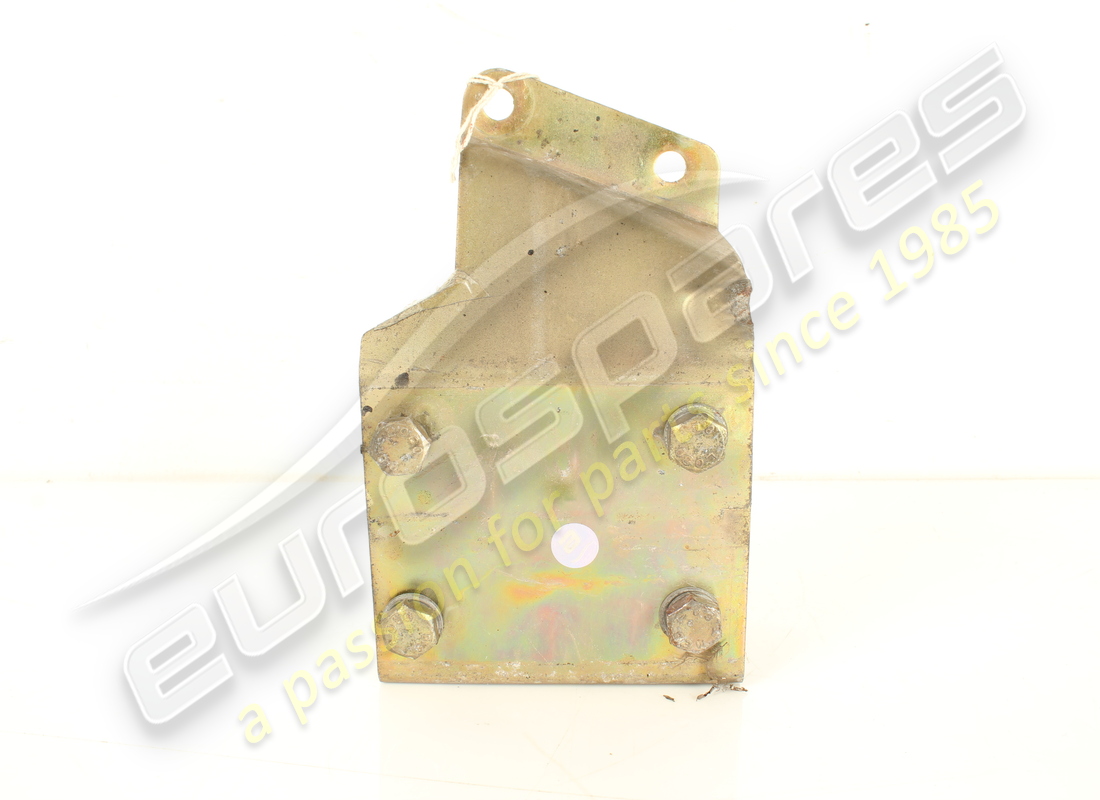

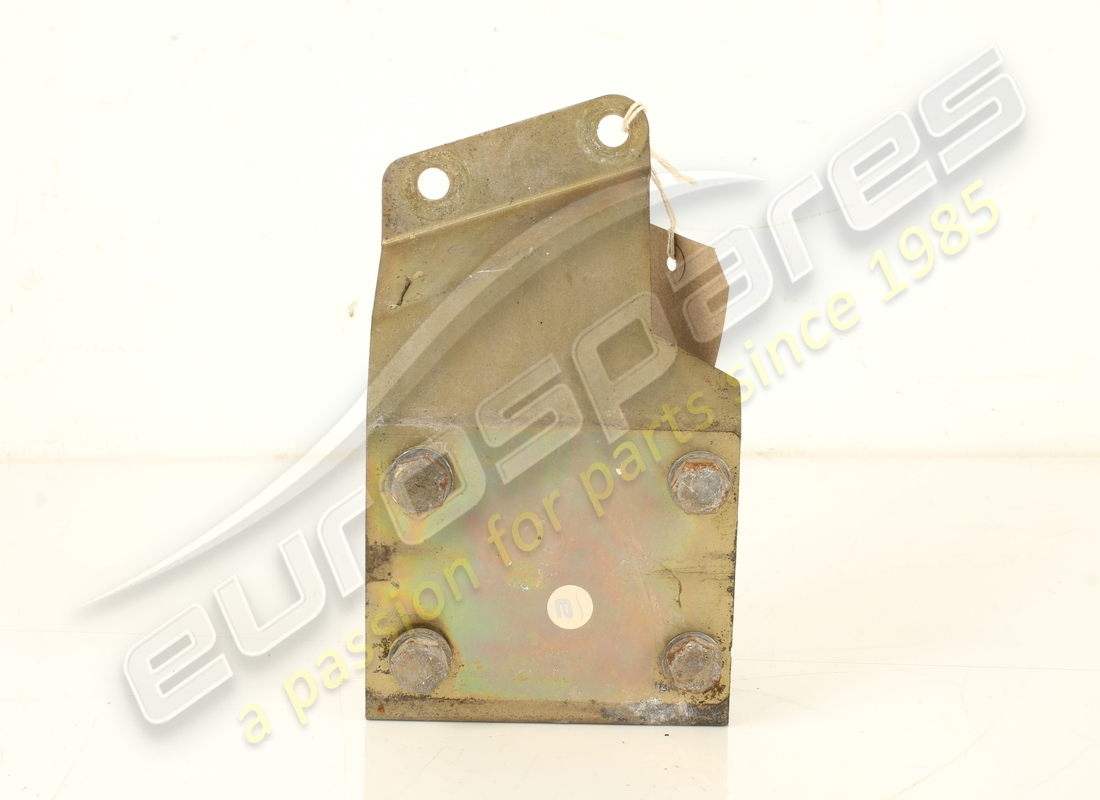

RH INNER BRACKET
- Not for USA and CDN
from £182.97
from £182.97
# 014
MPN: 65048700
LH INNER BRACKET
- Not for USA and CDN
from £182.97
from £182.97
# 015
MPN: 12646821
WASHER
- Not for USA and CDN - (minimum order quantity = 30)
from £0.52
from £0.52
# 016
MPN: 127497
WASHER
- Not for USA and CDN
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 017
MPN: 11227921
SCREW
from £0.48
from £0.48
# 018
MPN: 65033000
RH SUPPORT
- Not for USA and CDN
from £225.81
from £225.81
# 018
MPN: 65033100
LH SUPPORT
- Not for USA and CDN
from £149.16
from £149.16
# 019
MPN: 12648504
WASHER
from £0.48
from £0.48
This part replaces part number 64224300
# 020
MPN: 10571979
WASHER
from £0.53
from £0.53
This part replaces part number 64224400
# 021
MPN: 15540621
SCREW
from £2.16
from £2.16
This part replaces part number 64224200
# 022
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 023
MPN: 12646821
WASHER
(minimum order quantity = 30)
from £0.52
from £0.52
# 024
MPN: 65184000
RH BRACKET
from £82.85
from £82.85
# 024
MPN: 65184100
LH BRACKET
from £31.35
from £31.35
# 025
MPN: 65183800
RH BRACKET
from £63.90
from £63.90
# 025
MPN: 65183900
LH BRACKET
from £42.22
from £42.22
# 026
MPN: 65184200
UPPER BRACKET
from £19.50
from £19.50
# 026
MPN: 65184300
LOWER BRACKET
from £31.35
from £31.35
# 027
MPN: 16281824
SCREW
from £0.51
from £0.51
# 028
MPN: 13274177
SCREW
(minimum order quantity = 10)
from £0.50
from £0.50
This part replaces part number 13274172
# 029
MPN: 65270200
SIDE BRACKET
from £124.20
from £124.20
# 030
MPN: 12646821
WASHER
(minimum order quantity = 30)
from £0.53
from £0.53
# 031
MPN: 15970521
SCREW
from £0.51
from £0.51
# 032
MPN: 168355
RH BRAKES AIR INLET
from £38.76
from £38.76
# 032
MPN: 168356
LH BRAKES AIR INLET
from £38.82
from £38.82
# 033
MPN: 14662695
SCREW
from £2.52
from £2.52
# 034
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 035
MPN: 12646601
WASHER
from £0.71
from £0.71
# 036
MPN: 11343821
SCREW
from £0.61
from £0.61
# 037
MPN: 12642424
WASHER
from £0.53
from £0.53
# 038
MPN: 63215400
SPACER
from £1.34
from £1.34
# 039
MPN: 65170400
RH BRACKET
- Valid for USA and CDN
from £133.40
from £133.40
# 039
MPN: 65170500
LH BRACKET
- Valid for USA and CDN
from £56.08
from £56.08
# 040
MPN: 65170200
RH SUPPORT
- Valid for USA and CDN
from £112.39
from £112.39
# 040
MPN: 65170300
LH SUPPORT
- Valid for USA and CDN
from £112.39
from £112.39
# 041
MPN: 63214100
PAD
- Valid for USA and CDN
from £14.96
from £14.96
# 042
MPN: 63738800
PLATE
- Valid for USA and CDN
from £1.35
from £1.35
# 043
MPN: 65372900
SPACER
- Valid for USA and CDN
from £2.38
from £2.38
# 044
MPN: 104114
NUT
- Valid for USA and CDN
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 045
MPN: 15888721
SCREW
- Valid for USA and CDN
from £1.22
from £1.22
# 046
MPN: 12646821
WASHER
- Valid for USA and CDN - (minimum order quantity = 30)
from £0.54
from £0.54
# 047
MPN: 60987900
FRONT NUMBER PLATE RIM
- Valid for USA and CDN
from £38.94
from £38.94
# 048
MPN: 14115680
NUT SCREW
- Valid for USA and CDN
from £0.53
from £0.53
# 049
MPN: 15688175
SCREW
- Valid for USA and CDN
from £0.53
from £0.53
This part replaces part number 15688108
# 050
MPN: 14201980
BLOCK
- Valid for USA and CDN
from £0.53
from £0.53
