114 - Boot Upholstery

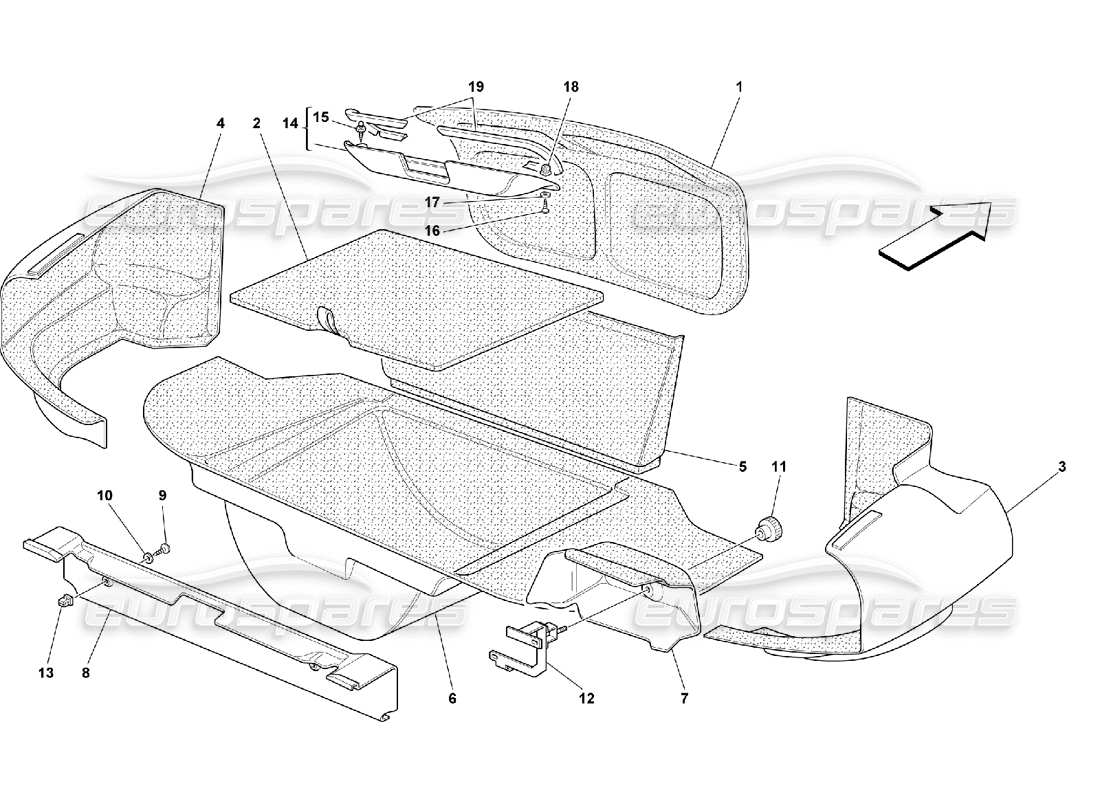

Ferrari 550 Maranello Boot Upholstery Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 000
                        MPN: 652580..
                        COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT
                        - Not for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 000
                        MPN: 662354..
                        COMPLETE CARPET SERIES FOR TRUNK COMPARTMENT
                        - Valid for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 001
                        MPN: 645690..
                        REAR HOOD INNER LINING
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        from £126.00
                        from £126.00
                        # 002
                        MPN: 649206..
                        COVER FOR LUGGAGE COMPARTMENT BOTTOM
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 003
                        MPN: 652076..
                        RH WHEEL PROTECTION CARPET
                        - Not for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 003
                        MPN: 659193..
                        RH WHEEL PROTECTION CARPET
                        - Valid for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 004
                        MPN: 652366..
                        LH WHEEL PROTECTION CARPET
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 005
                        MPN: 649217..
                        FUEL TANK WALL CARPET
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 006
                        MPN: 652075..
                        TRUNK BOTTOM CARPET
                        - Not for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
                        # 006
                        MPN: 660767..
                        TRUNK BOTTOM CARPET
                        - Valid for USA M.Y. 2000 and CDN M.Y. 2000 - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        from £178.50
                        from £178.50
                        # 007
                        MPN: 649211..
                        RH REAR LIGHT COVER
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        from £99.75
                        from £99.75
                        # 007
                        MPN: 649212..
                        LH REAR LIGHT COVER
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        from £84.00
                        from £84.00
                        # 008

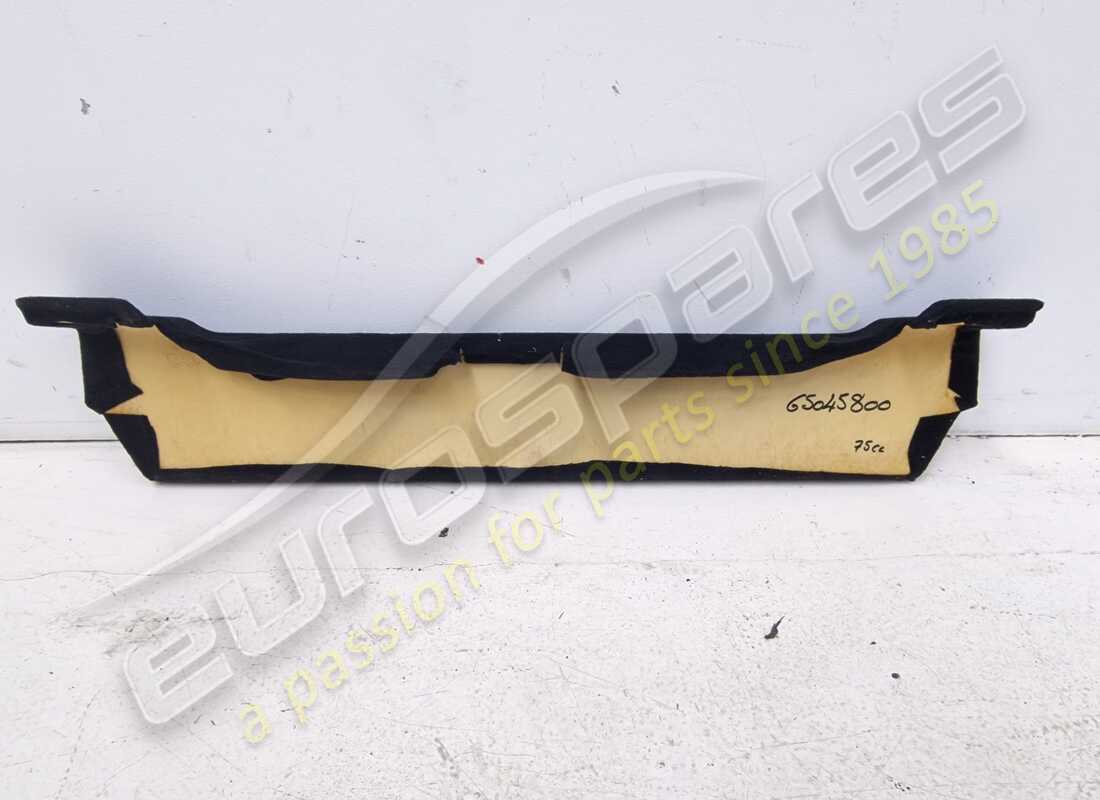

                        MPN: 65045800
                        MOULDING
                        from £99.75
                        from £99.75
                        This part replaces part number 65045801 - and 25 more. Click to view details
                        # 009
                        MPN: 12678707
                        SCREW
                        from £1.08
                        from £1.08
                        # 010
                        MPN: 12611307
                        WASHER
                        from £0.71
                        from £0.71
                        # 011
                        MPN: 62931000
                        KNOB
                        from £2.61
                        from £2.61
                        # 012
                        MPN: 65044200
                        RH BRACKET
                        from £4.95
                        from £4.95
                        # 012
                        MPN: 65044400
                        LH BRACKET
                        from £4.95
                        from £4.95

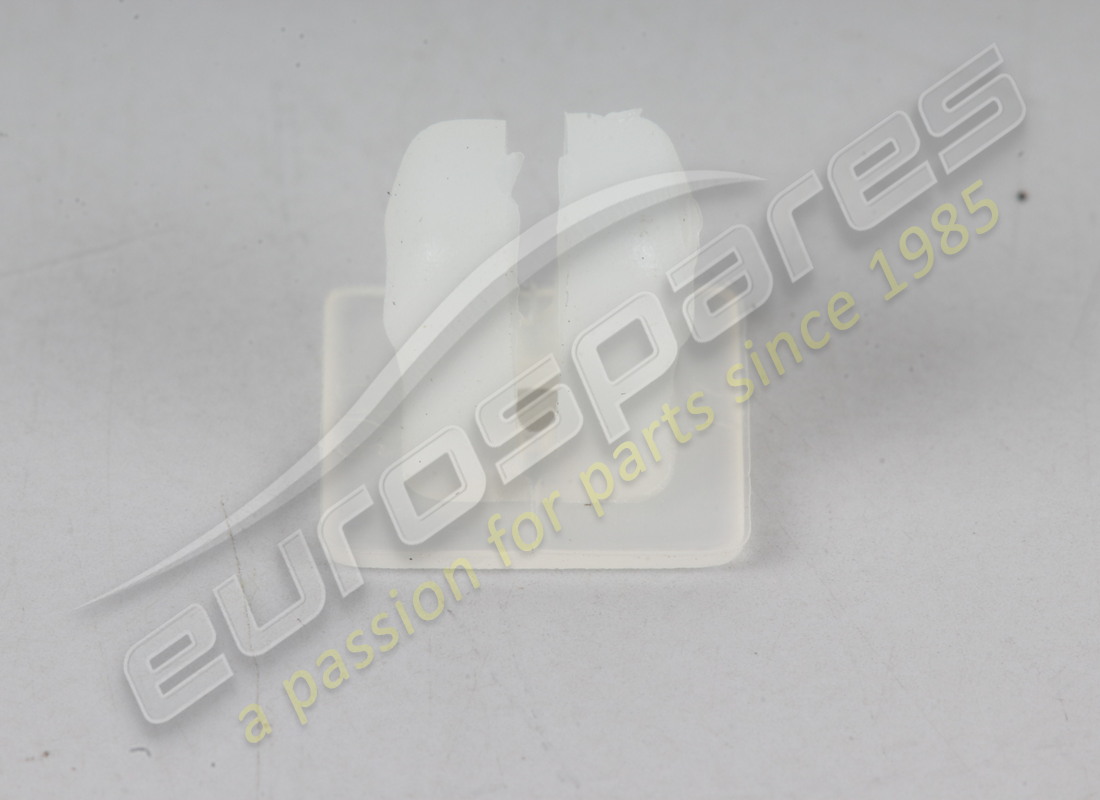

                        # 013
                        MPN: 65032900
                        BLOCK
                        from £0.47
                        from £0.47
                        # 014

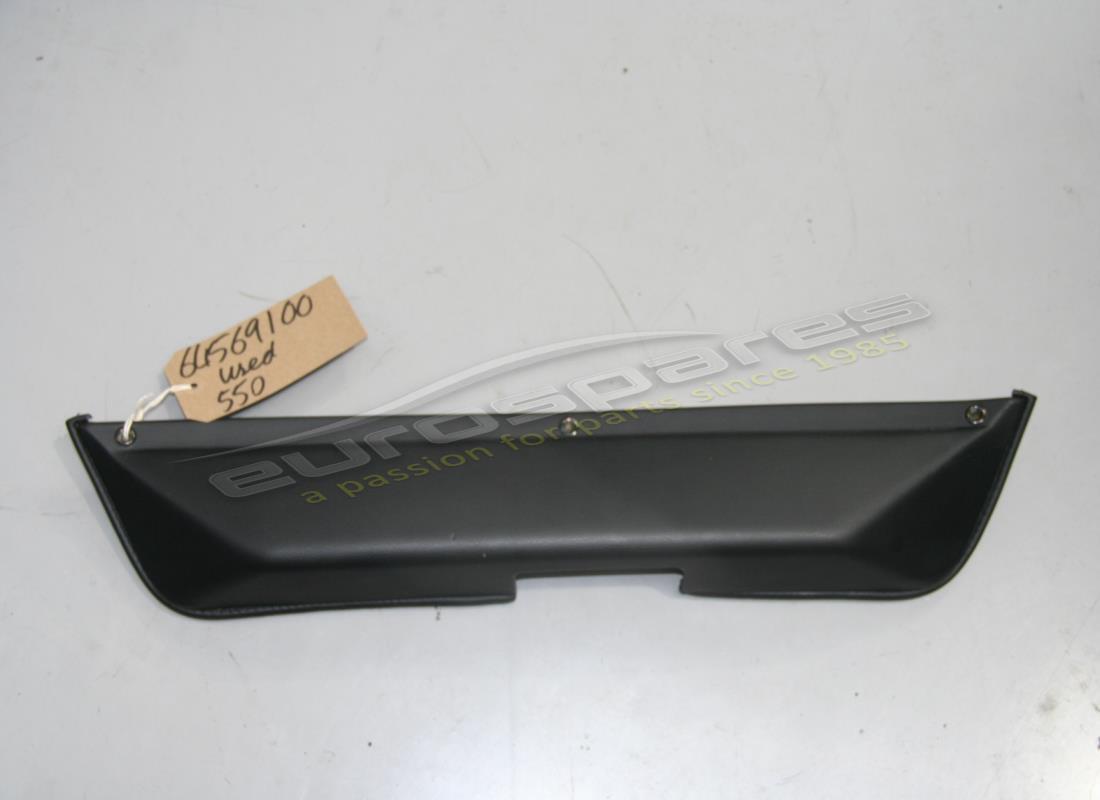

                        MPN: 64569100
                        HOOD LOCK COVER
                        from £103.76
                        from £103.76
                        This part replaces part number 66924500 - and 1 more. Click to view details
                        # 015
                        MPN: 65116200
                        THREADED PIN
                        from £1.37
                        from £1.37
                        # 016
                        MPN: 12674002
                        SCREW
                        Supersession
                        Supersession
                        # 017
                        MPN: 12611342
                        WASHER
                        from £0.71
                        from £0.71
                        # 018
                        MPN: 14215480
                        NUT SCREW
                        from £0.47
                        from £0.47
                        This part replaces part number 14211580
                        # 019
                        MPN: 654508..
                        LINING
                        - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                        Supersession
                        Supersession
