118 - Doors - Opening Control and Hinges

Ferrari 550 Maranello Doors - Opening Control and Hinges Parts Diagram

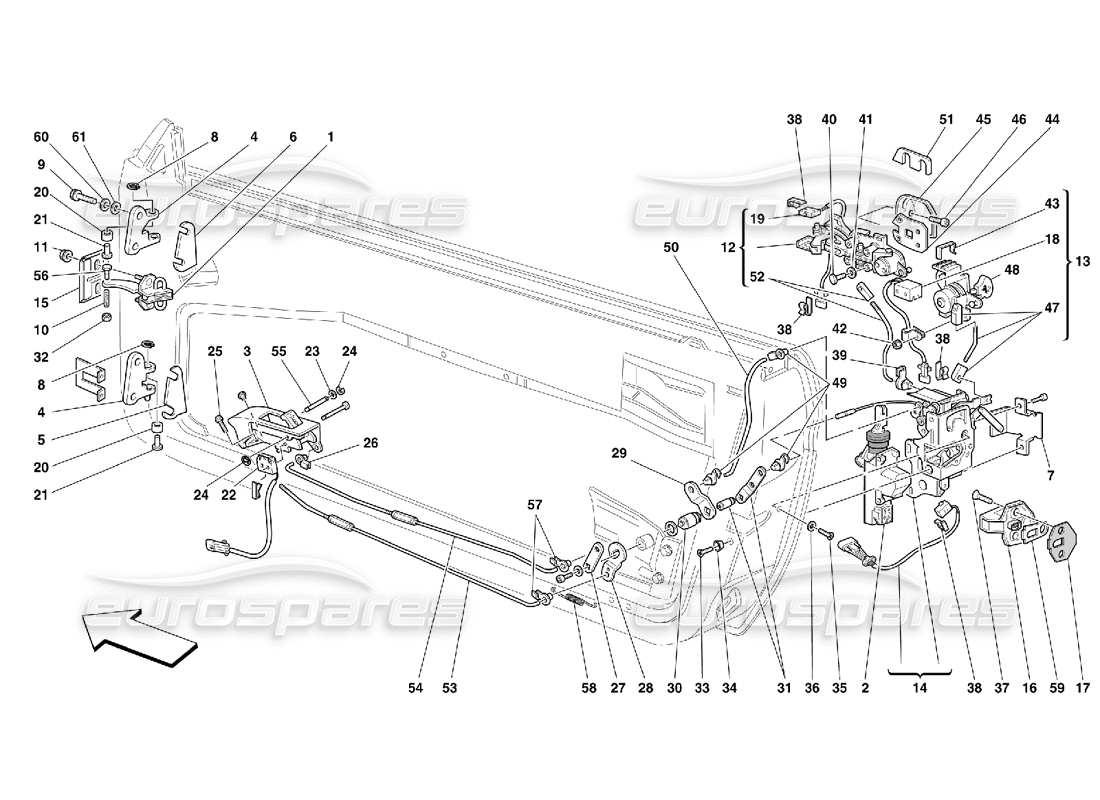

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 65195200
                                                                                                                    TIE ROD
                                                                                                                    from £171.98
                                                                                                                    from £171.98
                                                                                                                    This part replaces part number 63896900 - and 1 more. Click to view details
                                                                                                                    # 002
                                                                                                                    MPN: 63487400

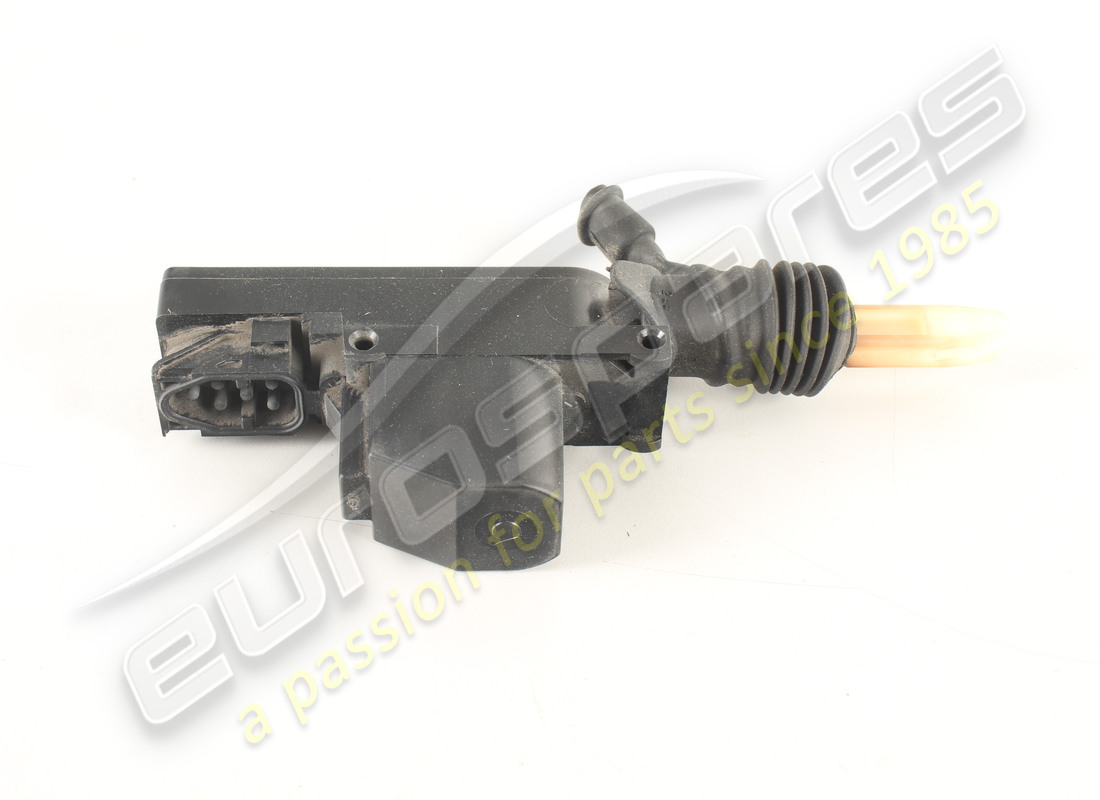

                                                                                                                    CENTRALIZED LOCKING DEVICE
                                                                                                                    from £272.25
                                                                                                                    from £272.25
                                                                                                                    # 003
                                                                                                                    MPN: 64719000
                                                                                                                    LH INNER HANDLE FOR DOOR OPENING
                                                                                                                    - Not as spare part now - Replaced by 66217200
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 003
                                                                                                                    MPN: 66217200
                                                                                                                    LH INNER HANDLE FOR DOOR OPENING
                                                                                                                    from £321.44
                                                                                                                    from £321.44
                                                                                                                    This part replaces part number 64719000 - and 1 more. Click to view details
                                                                                                                    # 003
                                                                                                                    MPN: 66217600
                                                                                                                    RH INNER HANDLE FOR DOOR OPENING
                                                                                                                    from £375.25
                                                                                                                    from £375.25
                                                                                                                    This part replaces part number 64585700 - and 1 more. Click to view details
                                                                                                                    # 003
                                                                                                                    MPN: 66217600
                                                                                                                    RH INNER HANDLE FOR DOOR OPENING
                                                                                                                    from £375.25
                                                                                                                    from £375.25
                                                                                                                    This part replaces part number 64585700 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 65184400

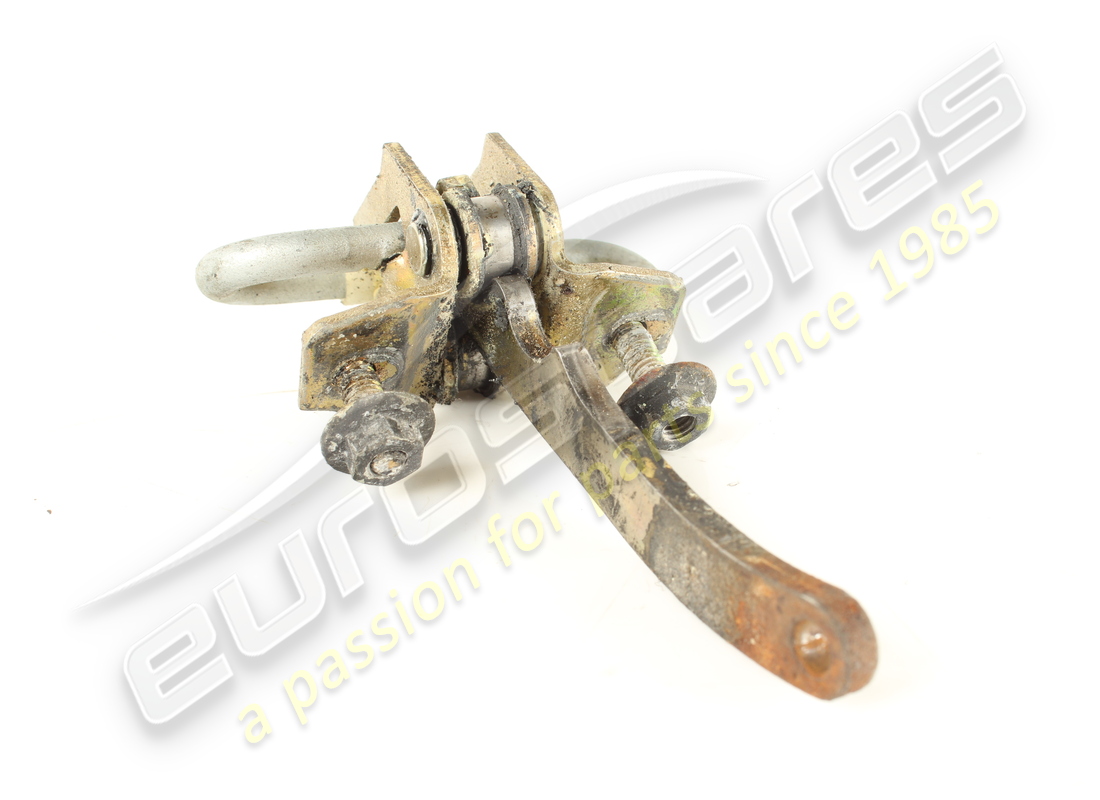

                                                                                                                    RH DOOR MOBILE HINGE
                                                                                                                    from £182.30
                                                                                                                    from £182.30
                                                                                                                    This part replaces part number 64579100 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 65184500
                                                                                                                    LH DOOR MOBILE HINGE
                                                                                                                    from £182.30
                                                                                                                    from £182.30
                                                                                                                    This part replaces part number 64579200 - and 1 more. Click to view details
                                                                                                                    # 005
                                                                                                                    MPN: 63747200
                                                                                                                    LOWER THICKNESS
                                                                                                                    - Valid till stock exhaustion
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 005
                                                                                                                    MPN: 65404200
                                                                                                                    LOWER THICKNESS
                                                                                                                    - Valid after stock exhaustion of 63747200
                                                                                                                    from £6.18
                                                                                                                    from £6.18
                                                                                                                    This part replaces part number 63747200
                                                                                                                    # 006
                                                                                                                    MPN: 63747100
                                                                                                                    UPPER THICKNESS
                                                                                                                    from £10.04
                                                                                                                    from £10.04
                                                                                                                    # 007
                                                                                                                    MPN: 169958
                                                                                                                    CONNECTOR FIXING BRACKET
                                                                                                                    from £2.30
                                                                                                                    from £2.30
                                                                                                                    # 008
                                                                                                                    MPN: 11087776
                                                                                                                    SEEGER RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 009
                                                                                                                    MPN: 16043934
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 16043921 - and 1 more. Click to view details
                                                                                                                    # 010
                                                                                                                    MPN: 62791700
                                                                                                                    PIN
                                                                                                                    - Not as spare part now - Replaced by 65274600
                                                                                                                    from £6.10
                                                                                                                    from £6.10
                                                                                                                    # 010
                                                                                                                    MPN: 66842800
                                                                                                                    PIN
                                                                                                                    from £2.09
                                                                                                                    from £2.09
                                                                                                                    This part replaces part number 65274600
                                                                                                                    # 011
                                                                                                                    MPN: 14039614
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 012
                                                                                                                    MPN: 64715600
                                                                                                                    RH OUTER HANDLE
                                                                                                                    from £206.81
                                                                                                                    from £206.81
                                                                                                                    # 012
                                                                                                                    MPN: 64715700
                                                                                                                    LH OUTER HANDLE
                                                                                                                    from £206.81
                                                                                                                    from £206.81
                                                                                                                    # 013
                                                                                                                    MPN: 64658000
                                                                                                                    RH COMPLETE LOCK CONTROL BLOCK
                                                                                                                    from £262.50
                                                                                                                    from £262.50
                                                                                                                    # 013
                                                                                                                    MPN: 64658100
                                                                                                                    LH COMPLETE LOCK CONTROL BLOCK
                                                                                                                    from £221.03
                                                                                                                    from £221.03
                                                                                                                    # 014
                                                                                                                    MPN: 64657600
                                                                                                                    RH COMPLETE DOOR LOCK
                                                                                                                    from £460.09
                                                                                                                    from £460.09
                                                                                                                    # 014
                                                                                                                    MPN: 64657700
                                                                                                                    LH COMPLETE DOOR LOCK
                                                                                                                    from £953.21
                                                                                                                    from £953.21
                                                                                                                    # 015
                                                                                                                    MPN: 63895200

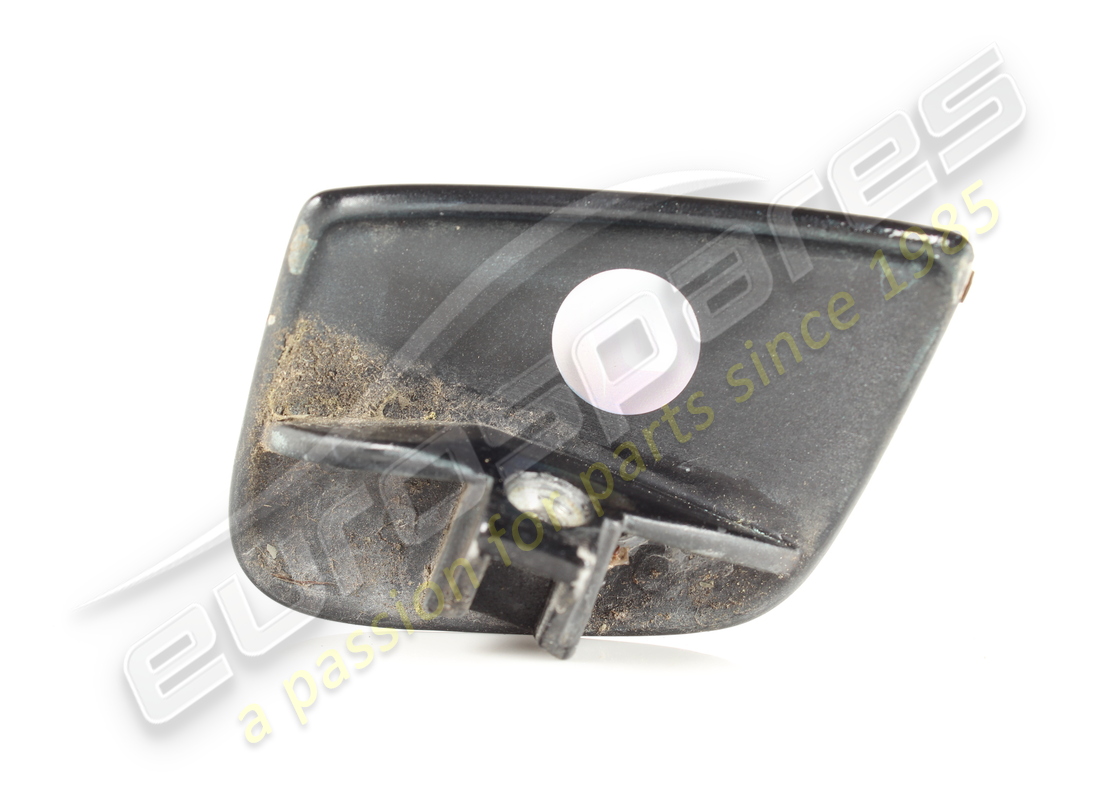

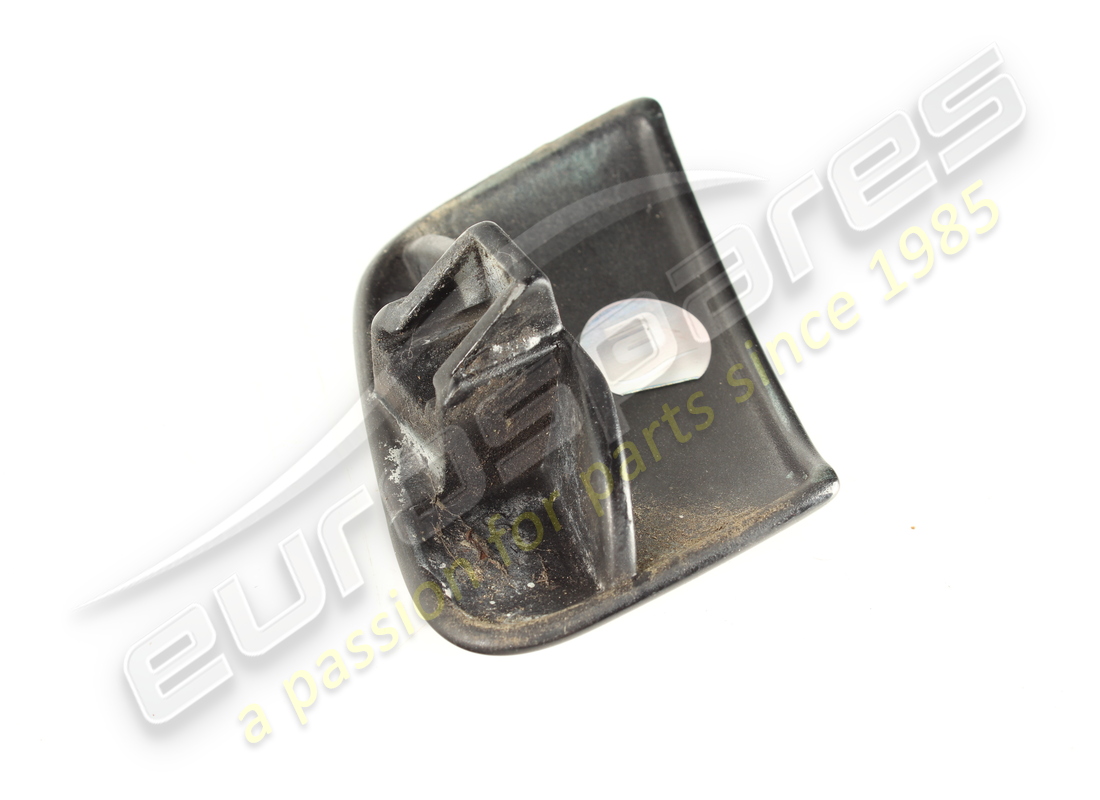

                                                                                                                    RH SMALL PLATE
                                                                                                                    from £9.04
                                                                                                                    from £9.04
                                                                                                                    This part replaces part number 63895400 - and 1 more. Click to view details
                                                                                                                    # 015
                                                                                                                    MPN: 63895300
                                                                                                                    LH SMALL PLATE
                                                                                                                    from £16.44
                                                                                                                    from £16.44
                                                                                                                    This part replaces part number 63895500
                                                                                                                    # 016
                                                                                                                    MPN: 63157000
                                                                                                                    DOOR CLOSING STRIKER
                                                                                                                    from £74.59
                                                                                                                    from £74.59
                                                                                                                    # 017
                                                                                                                    MPN: 63877300
                                                                                                                    PLATE
                                                                                                                    from £2.00
                                                                                                                    from £2.00
                                                                                                                    # 018
                                                                                                                    MPN: 63859200

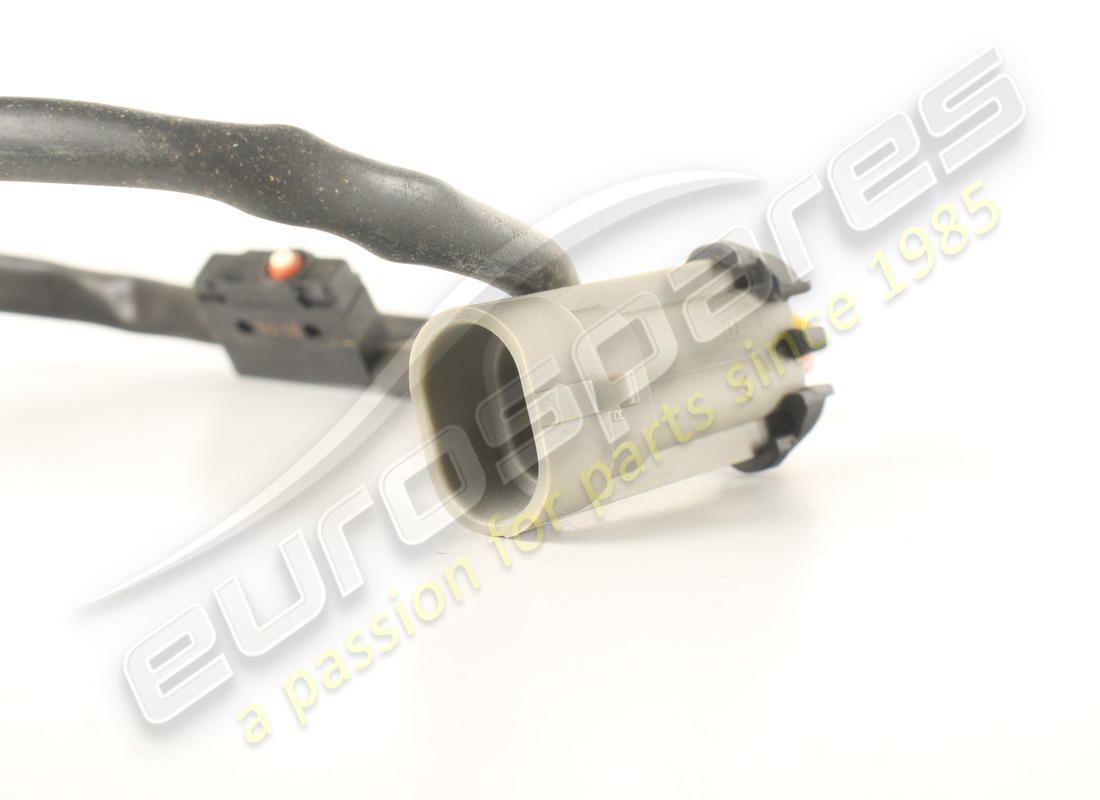

                                                                                                                    DOORS LOCKING MICRO-SWITCH
                                                                                                                    from £156.44
                                                                                                                    from £156.44
                                                                                                                    This part replaces part number 63859300
                                                                                                                    # 019
                                                                                                                    MPN: 63859800
                                                                                                                    OUTER DOOR HANDLE MICRO-SWITCH
                                                                                                                    from £224.18
                                                                                                                    from £224.18
                                                                                                                    # 020
                                                                                                                    MPN: 63189600
                                                                                                                    BUSHING
                                                                                                                    from £10.71
                                                                                                                    from £10.71
                                                                                                                    # 021
                                                                                                                    MPN: 63189800
                                                                                                                    PIN
                                                                                                                    from £6.17
                                                                                                                    from £6.17
                                                                                                                    # 022
                                                                                                                    MPN: 171120
                                                                                                                    INNER DOOR HANDLE MICRO-SWITCH
                                                                                                                    from £84.44
                                                                                                                    from £84.44
                                                                                                                    # 023
                                                                                                                    MPN: 64203800
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 024
                                                                                                                    MPN: 11087476
                                                                                                                    FLEXIBLE RING
                                                                                                                    from £3.00
                                                                                                                    from £3.00
                                                                                                                    # 025
                                                                                                                    MPN: 13309277
                                                                                                                    SCREW M4
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 13309211
                                                                                                                    # 025
                                                                                                                    MPN: 13311277
                                                                                                                    SCREW M5
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 026
                                                                                                                    MPN: 65700900
                                                                                                                    TIE ROD RETAINING CLIP
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 027
                                                                                                                    MPN: 65100500
                                                                                                                    HANDLE PRIMARY LEVER
                                                                                                                    from £5.33
                                                                                                                    from £5.33
                                                                                                                    # 028
                                                                                                                    MPN: 65046000
                                                                                                                    RH SAFETY DEVICE PRIMARY LEVER
                                                                                                                    from £10.27
                                                                                                                    from £10.27
                                                                                                                    # 028
                                                                                                                    MPN: 65046100
                                                                                                                    LH SAFETY DEVICE PRIMARY LEVER
                                                                                                                    from £41.55
                                                                                                                    from £41.55
                                                                                                                    # 029
                                                                                                                    MPN: 63167900
                                                                                                                    SAFETY DEVICE SECONDARY LEVER
                                                                                                                    from £60.12
                                                                                                                    from £60.12
                                                                                                                    # 030
                                                                                                                    MPN: 63168600
                                                                                                                    SAFETY DEVICE TRANSMISSION PIN
                                                                                                                    from £10.88
                                                                                                                    from £10.88
                                                                                                                    # 031
                                                                                                                    MPN: 65424400
                                                                                                                    COMPLETE HANDLE SECONDARY LEVER
                                                                                                                    from £27.85
                                                                                                                    from £27.85
                                                                                                                    This part replaces part number 65100600 - and 1 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    # 033
                                                                                                                    MPN: 62797600
                                                                                                                    SCREW
                                                                                                                    from £0.60
                                                                                                                    from £0.60
                                                                                                                    This part replaces part number 68989900
                                                                                                                    # 034
                                                                                                                    MPN: 62794700
                                                                                                                    WASHER
                                                                                                                    from £0.69
                                                                                                                    from £0.69
                                                                                                                    # 035
                                                                                                                    MPN: 13276077
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 036
                                                                                                                    MPN: 13550277
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 13550276
                                                                                                                    # 037
                                                                                                                    MPN: 14442034
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 13303521
                                                                                                                    # 038
                                                                                                                    MPN: 30076400
                                                                                                                    CLIP
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 039
                                                                                                                    MPN: 64215300
                                                                                                                    TIE ROD RETAINING CLIP
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    # 040
                                                                                                                    MPN: 10445224
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 041
                                                                                                                    MPN: 64222800
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 042
                                                                                                                    MPN: 14084011
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 043
                                                                                                                    MPN: 63179700
                                                                                                                    CLIP
                                                                                                                    from £7.25
                                                                                                                    from £7.25
                                                                                                                    # 044
                                                                                                                    MPN: 64659500
                                                                                                                    PLATE
                                                                                                                    from £19.14
                                                                                                                    from £19.14
                                                                                                                    # 045
                                                                                                                    MPN: 64657410
                                                                                                                    RH OUTER DOOR HANDLE
                                                                                                                    from £10.70
                                                                                                                    from £10.70
                                                                                                                    # 045
                                                                                                                    MPN: 64657510
                                                                                                                    LH OUTER DOOR HANDLE
                                                                                                                    from £7.54
                                                                                                                    from £7.54
                                                                                                                    # 046
                                                                                                                    MPN: 64214600
                                                                                                                    SCREW
                                                                                                                    from £1.32
                                                                                                                    from £1.32
                                                                                                                    # 047
                                                                                                                    MPN: 64658500
                                                                                                                    RH TIE ROD
                                                                                                                    from £8.89
                                                                                                                    from £8.89
                                                                                                                    This part replaces part number 64658700
                                                                                                                    # 047
                                                                                                                    MPN: 64658600
                                                                                                                    LH TIE ROD
                                                                                                                    from £13.16
                                                                                                                    from £13.16
                                                                                                                    This part replaces part number 64658800
                                                                                                                    # 049
                                                                                                                    MPN: 64215300
                                                                                                                    CLIP
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 050
                                                                                                                    MPN: 64657800
                                                                                                                    RH TIE ROD
                                                                                                                    from £3.79
                                                                                                                    from £3.79
                                                                                                                    # 050
                                                                                                                    MPN: 64657900
                                                                                                                    LH TIE ROD
                                                                                                                    from £3.79
                                                                                                                    from £3.79
                                                                                                                    # 051
                                                                                                                    MPN: 65249000
                                                                                                                    THICKNESS
                                                                                                                    from £1.21
                                                                                                                    from £1.21
                                                                                                                    # 052
                                                                                                                    MPN: 64658200
                                                                                                                    RH TIE ROD
                                                                                                                    from £6.85
                                                                                                                    from £6.85
                                                                                                                    This part replaces part number 64658400
                                                                                                                    # 052
                                                                                                                    MPN: 64658300
                                                                                                                    LH TIE ROD
                                                                                                                    from £6.85
                                                                                                                    from £6.85
                                                                                                                    # 053
                                                                                                                    MPN: 64595800
                                                                                                                    TIE ROD
                                                                                                                    from £53.34
                                                                                                                    from £53.34
                                                                                                                    # 054
                                                                                                                    MPN: 64595900
                                                                                                                    TIE ROD
                                                                                                                    from £17.01
                                                                                                                    from £17.01
                                                                                                                    # 055
                                                                                                                    MPN: 65582700
                                                                                                                    PIN
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 64203900
                                                                                                                    # 056
                                                                                                                    MPN: 10903280
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 057
                                                                                                                    MPN: 14578180
                                                                                                                    SPRINGS
                                                                                                                    from £8.99
                                                                                                                    from £8.99
                                                                                                                    This part replaces part number 14578283 - and 1 more. Click to view details
                                                                                                                    # 058
                                                                                                                    MPN: 64074200
                                                                                                                    SPRING
                                                                                                                    from £17.07
                                                                                                                    from £17.07
                                                                                                                    # 059
                                                                                                                    MPN: 64058500
                                                                                                                    PLATE
                                                                                                                    from £4.96
                                                                                                                    from £4.96
                                                                                                                    # 060
                                                                                                                    MPN: 127496
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                    # 061
                                                                                                                    MPN: 12646724
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12601571 - and 3 more. Click to view details
