119 - Doors - Power Window and Rearview Mirror

Ferrari 550 Maranello Doors - Power Window and Rearview Mirror Parts Diagram

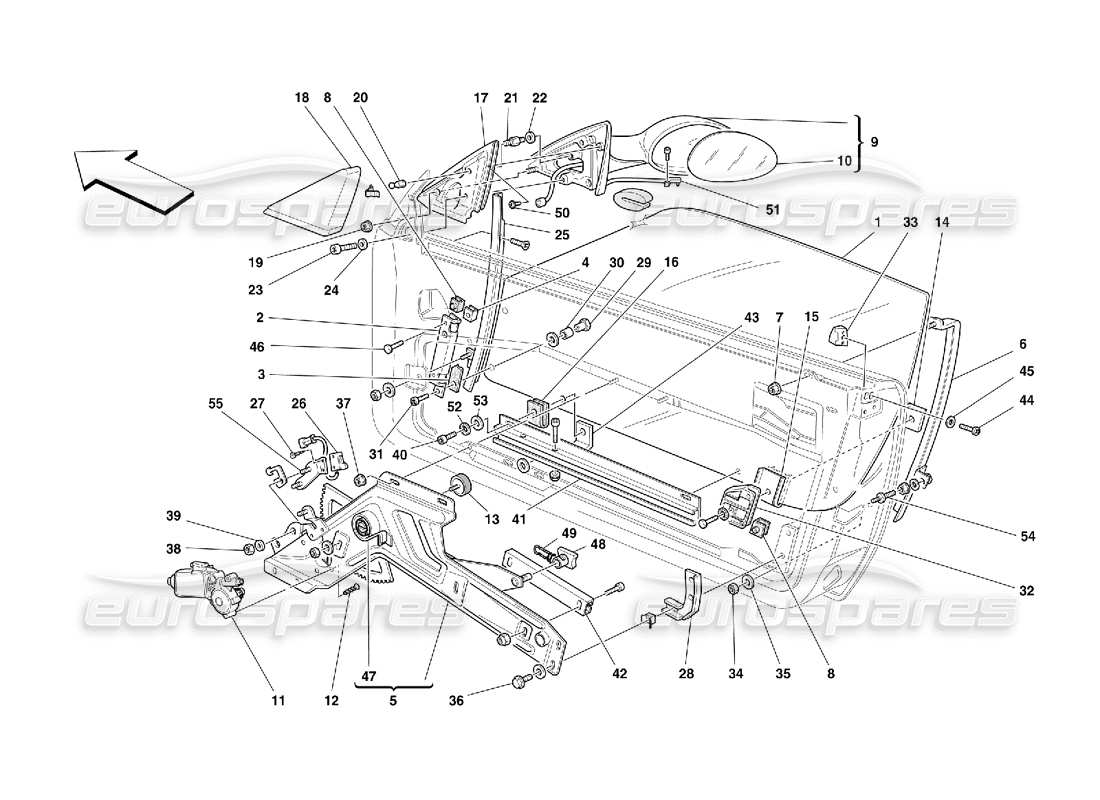

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                    #
                                                                                                    Part number
                                                                                                    Description
                                                                                                    Price
                                                                                                    # 001
                                                                                                    MPN: 64573500
                                                                                                    RH SIDE GLASS
                                                                                                    from £94.12
                                                                                                    from £94.12
                                                                                                    # 001
                                                                                                    MPN: 64573600
                                                                                                    LH SIDE GLASS
                                                                                                    from £94.12
                                                                                                    from £94.12
                                                                                                    # 002
                                                                                                    MPN: 63768100
                                                                                                    RH FRONT GUIDE SHOE
                                                                                                    from £27.99
                                                                                                    from £27.99
                                                                                                    # 002
                                                                                                    MPN: 63768200
                                                                                                    LH FRONT GUIDE SHOE
                                                                                                    from £27.99
                                                                                                    from £27.99
                                                                                                    # 003
                                                                                                    MPN: 63486900
                                                                                                    GASKET
                                                                                                    from £1.11
                                                                                                    from £1.11
                                                                                                    # 004
                                                                                                    MPN: 63767900
                                                                                                    CLIP
                                                                                                    from £8.66
                                                                                                    from £8.66
                                                                                                    # 005
                                                                                                    MPN: 64742800

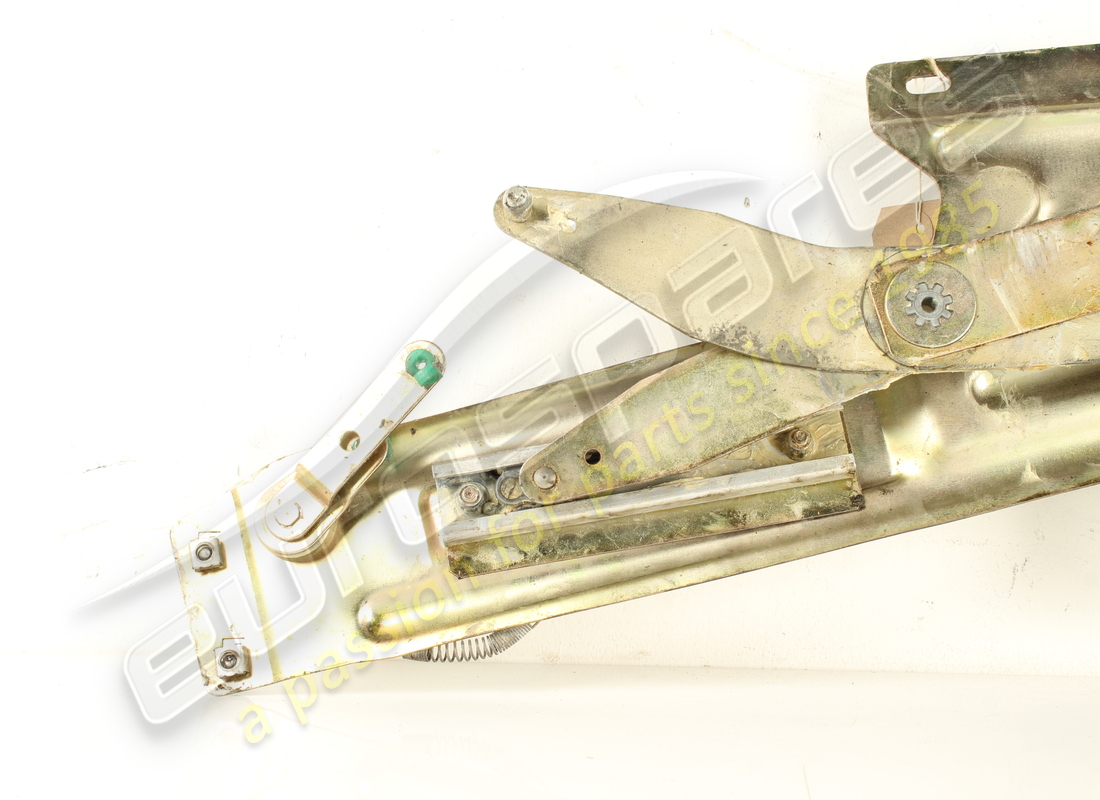

                                                                                                    COMPLETE RH DEVICE FOR GLASS LIFT
                                                                                                    from £1,981.10
                                                                                                    from £1,981.10
                                                                                                    # 005
                                                                                                    MPN: 64742900
                                                                                                    COMPLETE LH DEVICE FOR GLASS LIFT
                                                                                                    from £720.32
                                                                                                    from £720.32
                                                                                                    # 006
                                                                                                    MPN: 64579700
                                                                                                    RH REAR GUIDE
                                                                                                    from £32.00
                                                                                                    from £32.00
                                                                                                    # 006
                                                                                                    MPN: 64579800
                                                                                                    LH REAR GUIDE
                                                                                                    from £32.00
                                                                                                    from £32.00
                                                                                                    # 007
                                                                                                    MPN: 13046114
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 008
                                                                                                    MPN: 63890100
                                                                                                    GASKET
                                                                                                    from £7.84
                                                                                                    from £7.84
                                                                                                    # 009
                                                                                                    MPN: 64715210
                                                                                                    RH OUTER REAR VIEW MIRROR
                                                                                                    - Not for USA, CDN, AUS and GB
                                                                                                    from £888.62
                                                                                                    from £888.62
                                                                                                    This part replaces part number 64715200 - and 6 more. Click to view details
                                                                                                    # 009
                                                                                                    MPN: 64715310
                                                                                                    LH OUTER REAR VIEW MIRROR
                                                                                                    - Not for USA, CDN, AUS and GB
                                                                                                    from £467.90
                                                                                                    from £467.90
                                                                                                    This part replaces part number 64715300 - and 5 more. Click to view details
                                                                                                    # 009
                                                                                                    MPN: 65242310
                                                                                                    RH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for GB
                                                                                                    from £955.49
                                                                                                    from £955.49
                                                                                                    # 009
                                                                                                    MPN: 65242410
                                                                                                    LH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for GB
                                                                                                    from £935.65
                                                                                                    from £935.65
                                                                                                    # 009
                                                                                                    MPN: 65248710
                                                                                                    RH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for USA and CDN
                                                                                                    from £245.88
                                                                                                    from £245.88
                                                                                                    # 009
                                                                                                    MPN: 65248810
                                                                                                    LH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for USA and CDN
                                                                                                    from £273.17
                                                                                                    from £273.17
                                                                                                    # 009
                                                                                                    MPN: 65320210
                                                                                                    RH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for AUS
                                                                                                    from £702.51
                                                                                                    from £702.51
                                                                                                    # 009
                                                                                                    MPN: 65320310
                                                                                                    LH OUTER REAR VIEW MIRROR
                                                                                                    - Valid for AUS
                                                                                                    from £702.53
                                                                                                    from £702.53
                                                                                                    # 010
                                                                                                    MPN: 66213200
                                                                                                    RH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Not for USA, CDN, AUS and GB
                                                                                                    from £36.55
                                                                                                    from £36.55
                                                                                                    # 010
                                                                                                    MPN: 66213300
                                                                                                    LH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Not for USA, CDN, AUS and GB
                                                                                                    from £66.46
                                                                                                    from £66.46
                                                                                                    # 010
                                                                                                    MPN: 66213300
                                                                                                    LH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Valid for USA, CDN and AUS
                                                                                                    from £66.46
                                                                                                    from £66.46
                                                                                                    # 010
                                                                                                    MPN: 66213400
                                                                                                    RH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Valid for AUS
                                                                                                    from £66.46
                                                                                                    from £66.46
                                                                                                    # 010
                                                                                                    MPN: 66213400
                                                                                                    RH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Valid for GB
                                                                                                    from £66.46
                                                                                                    from £66.46
                                                                                                    # 010
                                                                                                    MPN: 66213500
                                                                                                    LH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Valid for GB
                                                                                                    from £59.51
                                                                                                    from £59.51
                                                                                                    # 010
                                                                                                    MPN: 66213600
                                                                                                    RH OUTER REAR VIEW MIRROR GLASS
                                                                                                    - Valid for USA and CDN
                                                                                                    from £59.51
                                                                                                    from £59.51
                                                                                                    # 011
                                                                                                    MPN: 63211800
                                                                                                    RH GLASS LIFTING MOTOR
                                                                                                    from £889.88
                                                                                                    from £889.88
                                                                                                    # 011
                                                                                                    MPN: 63211900
                                                                                                    LH LIFTING MOTOR
                                                                                                    from £414.75
                                                                                                    from £414.75
                                                                                                    # 012
                                                                                                    MPN: 15917904
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 013
                                                                                                    MPN: 65100400
                                                                                                    STOP BUFFER
                                                                                                    from £18.84
                                                                                                    from £18.84
                                                                                                    # 014
                                                                                                    MPN: 63768000
                                                                                                    FIXING PLATE
                                                                                                    from £2.96
                                                                                                    from £2.96
                                                                                                    # 015
                                                                                                    MPN: 63168800
                                                                                                    PRE-LOADING REGULATOR
                                                                                                    from £11.22
                                                                                                    from £11.22
                                                                                                    # 016
                                                                                                    MPN: 63120100
                                                                                                    GASKET
                                                                                                    - Valid till car Ass. Nr. 33498
                                                                                                    from £1.04
                                                                                                    from £1.04
                                                                                                    # 016
                                                                                                    MPN: 65807300
                                                                                                    GASKET
                                                                                                    - Valid from car Ass. Nr. 33499
                                                                                                    from £14.84
                                                                                                    from £14.84
                                                                                                    # 017
                                                                                                    MPN: 64740600
                                                                                                    RH GASKET
                                                                                                    from £221.41
                                                                                                    from £221.41
                                                                                                    # 017
                                                                                                    MPN: 64740700
                                                                                                    LH GASKET
                                                                                                    from £221.41
                                                                                                    from £221.41
                                                                                                    # 018
                                                                                                    MPN: 64586400
                                                                                                    LH INNER MOULDING TRIANGLE
                                                                                                    from £35.20
                                                                                                    from £35.20
                                                                                                    # 018
                                                                                                    MPN: 64586500
                                                                                                    RH INNER MOULDING TRIANGLE
                                                                                                    from £35.20
                                                                                                    from £35.20
                                                                                                    # 019
                                                                                                    MPN: 13046011
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 020
                                                                                                    MPN: 65048400
                                                                                                    PIVOT PIN
                                                                                                    from £2.67
                                                                                                    from £2.67
                                                                                                    # 021
                                                                                                    MPN: 64586300
                                                                                                    SCREW
                                                                                                    from £2.32
                                                                                                    from £2.32
                                                                                                    # 022
                                                                                                    MPN: 14496101
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 023
                                                                                                    MPN: 13026121
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 024
                                                                                                    MPN: 14497801
                                                                                                    WASHER
                                                                                                    Supersession
                                                                                                    Supersession
                                                                                                    # 025
                                                                                                    MPN: 63579500
                                                                                                    RH FRONT GLASS GUIDE
                                                                                                    from £21.70
                                                                                                    from £21.70
                                                                                                    # 025
                                                                                                    MPN: 63579600
                                                                                                    LH FRONT GLASS GUIDE
                                                                                                    from £21.70
                                                                                                    from £21.70
                                                                                                    # 026
                                                                                                    MPN: 168617
                                                                                                    MICRO-SWITCH
                                                                                                    from £43.95
                                                                                                    from £43.95
                                                                                                    # 027
                                                                                                    MPN: 13270811
                                                                                                    SCREW
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    # 028
                                                                                                    MPN: 65291400
                                                                                                    RH BRACKET
                                                                                                    from £6.82
                                                                                                    from £6.82
                                                                                                    # 028
                                                                                                    MPN: 65292000
                                                                                                    LH BRACKET
                                                                                                    from £6.82
                                                                                                    from £6.82
                                                                                                    # 029
                                                                                                    MPN: 62932900
                                                                                                    BUSHING
                                                                                                    from £1.46
                                                                                                    from £1.46
                                                                                                    This part replaces part number 62932500
                                                                                                    # 030
                                                                                                    MPN: 62932800
                                                                                                    SPACER
                                                                                                    from £0.71
                                                                                                    from £0.71
                                                                                                    # 031
                                                                                                    MPN: 13271811
                                                                                                    SCREW
                                                                                                    from £1.08
                                                                                                    from £1.08
                                                                                                    # 032
                                                                                                    MPN: 63853600
                                                                                                    RH MOVING GUIDE
                                                                                                    from £2.81
                                                                                                    from £2.81
                                                                                                    # 032
                                                                                                    MPN: 63853700
                                                                                                    LH MOVING GUIDE
                                                                                                    from £5.11
                                                                                                    from £5.11
                                                                                                    # 033
                                                                                                    MPN: 65174300
                                                                                                    RH SMALL BLOCK
                                                                                                    from £1.22
                                                                                                    from £1.22
                                                                                                    # 033
                                                                                                    MPN: 65174400
                                                                                                    LH SMALL BLOCK
                                                                                                    from £1.25
                                                                                                    from £1.25
                                                                                                    # 034
                                                                                                    MPN: 102948
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                    # 035
                                                                                                    MPN: 12643724
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                    # 036
                                                                                                    MPN: 11612424
                                                                                                    SCREW
                                                                                                    from £0.86
                                                                                                    from £0.86
                                                                                                    # 037
                                                                                                    MPN: 102948
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                                    # 038
                                                                                                    MPN: 16101711
                                                                                                    NUT
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 16101715
                                                                                                    # 039
                                                                                                    MPN: 14496101
                                                                                                    WASHER
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 040
                                                                                                    MPN: 14305224
                                                                                                    SCREW
                                                                                                    - Valid till car Ass. Nr. 33498
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    # 040
                                                                                                    MPN: 14305424
                                                                                                    SCREW
                                                                                                    - Valid from car Ass. Nr. 33499
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 14305421 - and 2 more. Click to view details
                                                                                                    # 041
                                                                                                    MPN: 65036100
                                                                                                    LH SLIDING GUIDE
                                                                                                    from £78.75
                                                                                                    from £78.75
                                                                                                    # 041
                                                                                                    MPN: 65036200
                                                                                                    RH SLIDING GUIDE
                                                                                                    from £105.57
                                                                                                    from £105.57
                                                                                                    # 042
                                                                                                    MPN: 65046600
                                                                                                    SLIDING GUIDE
                                                                                                    from £20.79
                                                                                                    from £20.79
                                                                                                    This part replaces part number 65100700 - and 3 more. Click to view details
                                                                                                    # 043
                                                                                                    MPN: 65044000
                                                                                                    PLATE
                                                                                                    from £4.20
                                                                                                    from £4.20
                                                                                                    # 044
                                                                                                    MPN: 15687870
                                                                                                    SCREW
                                                                                                    from £1.18
                                                                                                    from £1.18
                                                                                                    This part replaces part number 15687801
                                                                                                    # 045
                                                                                                    MPN: 10519278
                                                                                                    WASHER
                                                                                                    from £0.51
                                                                                                    from £0.51
                                                                                                    This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                                    # 046
                                                                                                    MPN: 10903224
                                                                                                    SCREW
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 10903221
                                                                                                    # 047
                                                                                                    MPN: 63206000
                                                                                                    HELICOIDAL SPRING
                                                                                                    from £3.00
                                                                                                    from £3.00
                                                                                                    # 048
                                                                                                    MPN: 64081100
                                                                                                    SMALL BLOCK FOR GLASS GUIDE
                                                                                                    from £1.51
                                                                                                    from £1.51
                                                                                                    This part replaces part number 63486200 - and 1 more. Click to view details
                                                                                                    # 049
                                                                                                    MPN: 64081100
                                                                                                    CLIP FOR SMALL BLOCK
                                                                                                    from £1.51
                                                                                                    from £1.51
                                                                                                    This part replaces part number 63486200 - and 1 more. Click to view details
                                                                                                    # 050
                                                                                                    MPN: 65408900
                                                                                                    SCREW
                                                                                                    from £0.93
                                                                                                    from £0.93
                                                                                                    # 051
                                                                                                    MPN: 65889400
                                                                                                    OUTSIDE TEMPERATURE FEELER - LH SIDE
                                                                                                    from £30.94
                                                                                                    from £30.94
                                                                                                    # 052
                                                                                                    MPN: 127494
                                                                                                    WASHER
                                                                                                    - Valid from car Ass. Nr. 33499 - (minimum order quantity = 20)
                                                                                                    from £0.53
                                                                                                    from £0.53
                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                    # 053
                                                                                                    MPN: 12643724
                                                                                                    WASHER
                                                                                                    - Valid from car Ass. Nr. 33499
                                                                                                    from £0.47
                                                                                                    from £0.47
                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                    # 054
                                                                                                    MPN: 62771300
                                                                                                    STUD
                                                                                                    from £5.58
                                                                                                    from £5.58
                                                                                                    # 055
                                                                                                    MPN: 64749300
                                                                                                    RH MICROSWITCH BRACKET
                                                                                                    from £117.05
                                                                                                    from £117.05
                                                                                                    # 055
                                                                                                    MPN: 64749400
                                                                                                    LH MICROSWITCH BRACKET
                                                                                                    from £212.81
                                                                                                    from £212.81
