ferrari 550 maranello glasses and gaskets parts diagram

120 - Glasses and Gaskets

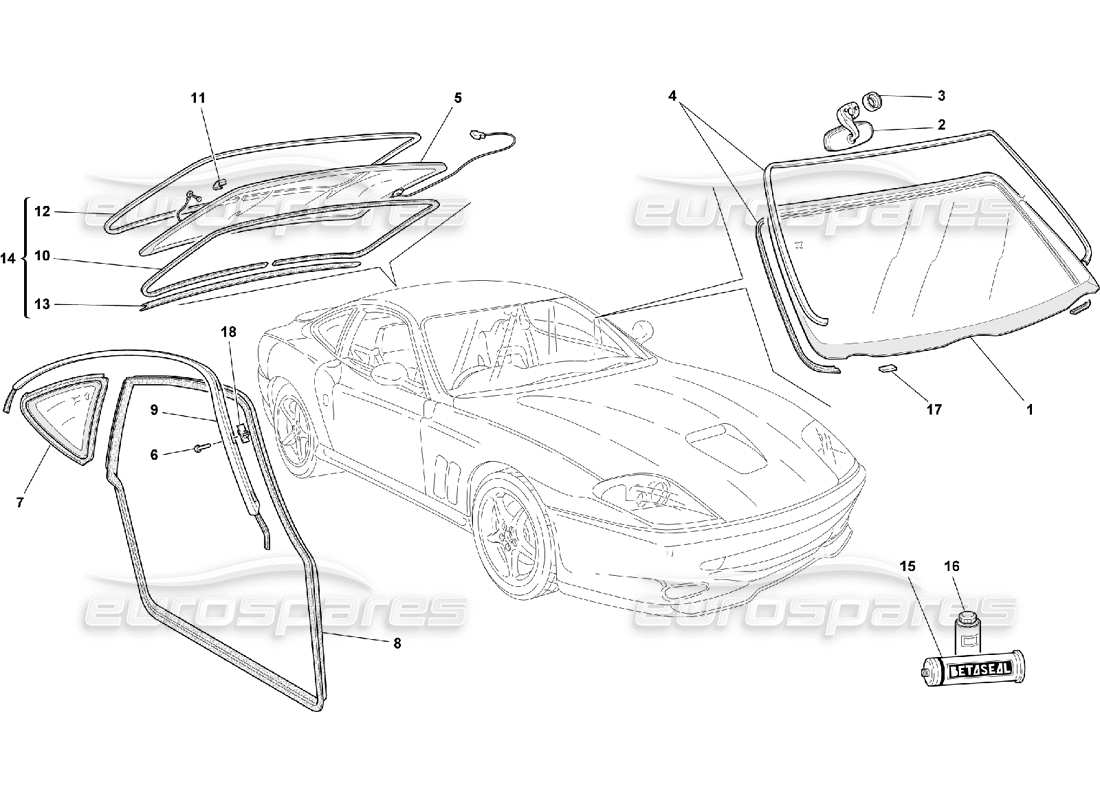

Ferrari 550 Maranello Glasses and Gaskets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 64573300

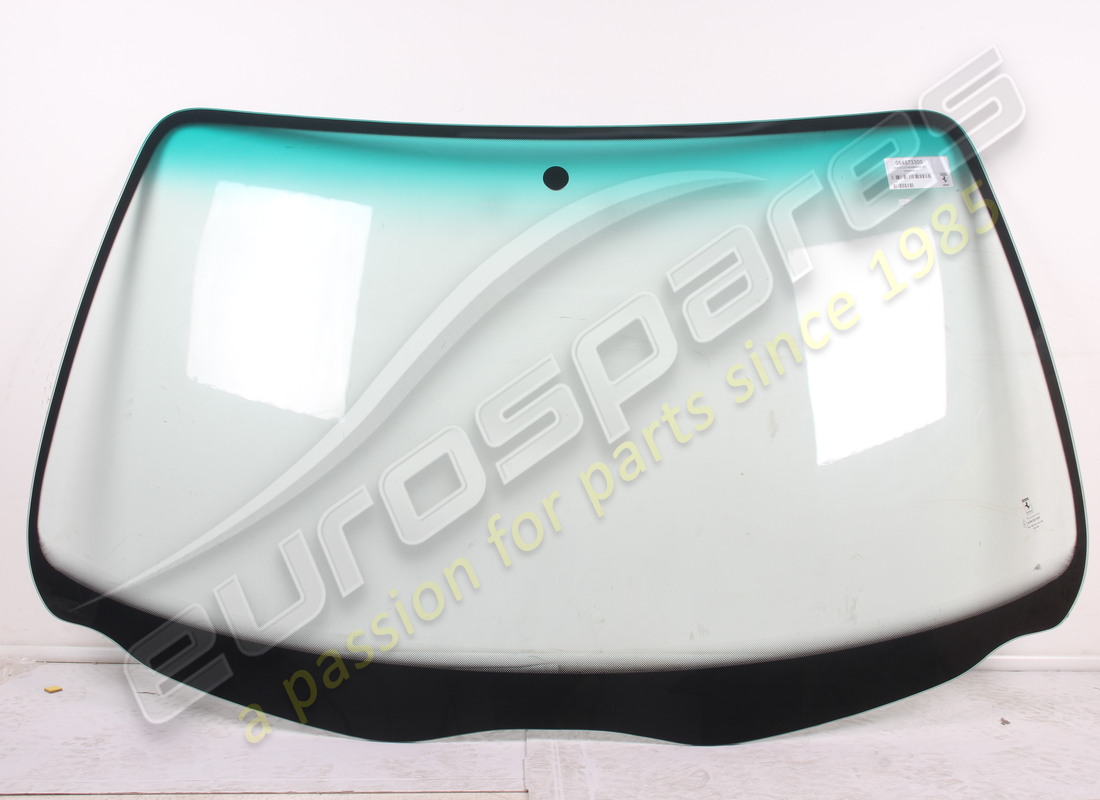

                              WINDSCREEN GLASS
                              from £1,197.60
                              from £1,197.60
                              # 002
                              MPN: 62876100
                              INNER REAR VIEW MIRROR
                              from £79.23
                              from £79.23
                              This part replaces part number 60715300
                              # 003
                              MPN: 63012600
                              MIRROR MOULDING
                              from £20.49
                              from £20.49
                              # 004
                              MPN: 67127000
                              GASKET
                              from £1,197.09
                              from £1,197.09
                              This part replaces part number 64837900
                              # 005
                              MPN: 64573400
                              REAR-WINDOW GLASS
                              from £881.30
                              from £881.30
                              # 006
                              MPN: 15957801
                              SCREW
                              from £0.71
                              from £0.71
                              # 007
                              MPN: 64573100
                              RH REAR SIDE GLASS
                              from £370.49
                              from £370.49
                              # 007
                              MPN: 64573200
                              LH REAR SIDE GLASS
                              from £370.49
                              from £370.49
                              # 008
                              MPN: 64740000
                              RH GASKET
                              from £484.23
                              from £484.23
                              # 008
                              MPN: 64740100
                              LH GASKET
                              from £484.23
                              from £484.23
                              # 009
                              MPN: 64943900
                              RH GASKET ASSEMBLY
                              from £142.88
                              from £142.88
                              # 009
                              MPN: 64944000
                              LH GASKET ASSEMBLY
                              from £142.88
                              from £142.88
                              # 010
                              MPN: 65113300
                              REAR-WINDOW MOULDING
                              - Valid till car Ass. Nr. 32711
                              from £341.06
                              from £341.06
                              # 010
                              MPN: 65648500
                              LOWER REAR WINDOW GASKET
                              - Valid from car Ass. Nr. 32712
                              # 011
                              MPN: 64711200
                              JOINT COVERING
                              - Valid till car Ass. Nr. 32711
                              from £34.22
                              from £34.22
                              # 012
                              MPN: 67010100
                              REAR WINDOW GASKET
                              Supersession
                              Supersession
                              This part replaces part number 65113400
                              # 013
                              MPN: 64785600
                              UNDER REAR WINDOW GASKET
                              - Valid till car Ass. Nr. 32711
                              from £103.45
                              from £103.45
                              This part replaces part number 65648400
                              # 013
                              MPN: 65648400
                              LOWER UNDER REAR WINDOW GASKET
                              - Valid from car Ass. Nr. 32712
                              Supersession
                              Supersession
                              # 014
                              MPN: 65649400
                              COMPLETE REAR-WINDOW MOULDING
                              from £914.22
                              from £914.22
                              This part replaces part number 64943400 - and 3 more. Click to view details
                              # 014
                              MPN: 65649400
                              COMPLETE REAR WINDOW GASKET
                              - Valid from car Ass. Nr. 32712
                              from £914.22
                              from £914.22
                              This part replaces part number 64943400 - and 3 more. Click to view details
                              # 015
                              MPN: 66091400
                              WINDSHIELD ADHESIVE
                              from £28.28
                              from £28.28
                              This part replaces part number 63301500
                              # 016
                              MPN: 62797300
                              SEALING
                              from £14.88
                              from £14.88
                              # 017
                              MPN: 65050600
                              SPACER
                              from £2.42
                              from £2.42
                              # 018
                              MPN: 64569500
                              CLIP
                              from £2.01
                              from £2.01
