ferrari 550 maranello electrical boards parts diagram

130 - Electrical Boards

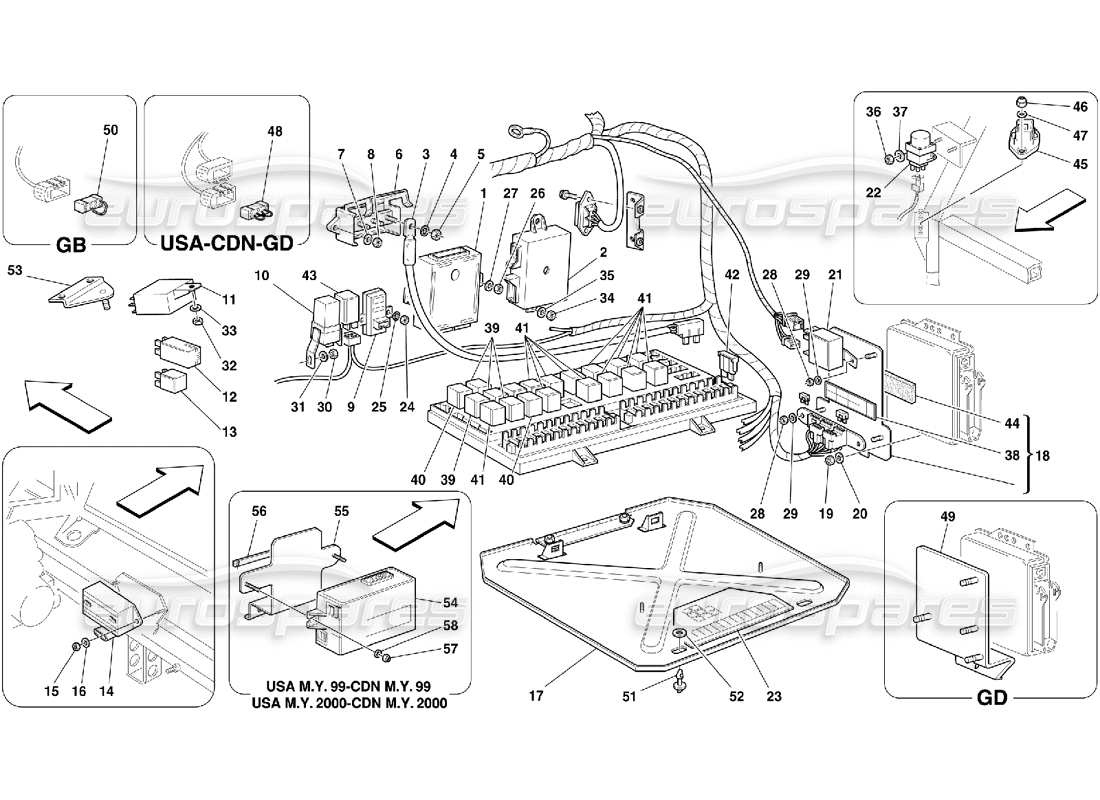

Ferrari 550 Maranello Electrical Boards Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 000
                                                                      MPN: 164673
                                                                      ELECTRIC CONTROL STATION
                                                                      (req. relay 157802)
                                                                      from £4,161.08
                                                                      from £4,161.08

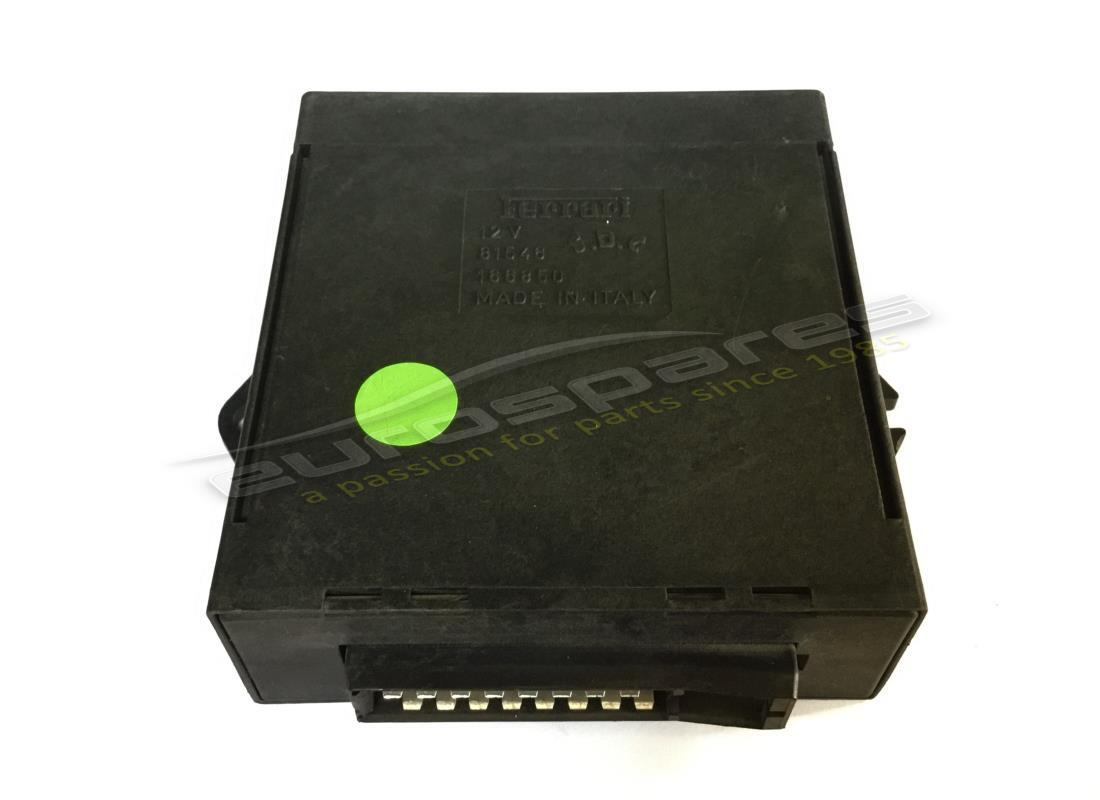

                                                                      # 001
                                                                      MPN: 166850
                                                                      GLASS LIFTING CONTROL ELECTRIC UNIT
                                                                      - Not for USA, CDN and AUS
                                                                      from £1,522.63
                                                                      from £1,522.63
                                                                      # 001
                                                                      MPN: 173606
                                                                      GLASS LIFTING CONTROL ELECTRIC UNIT
                                                                      - Valid for USA, CDN and AUS
                                                                      from £675.20
                                                                      from £675.20

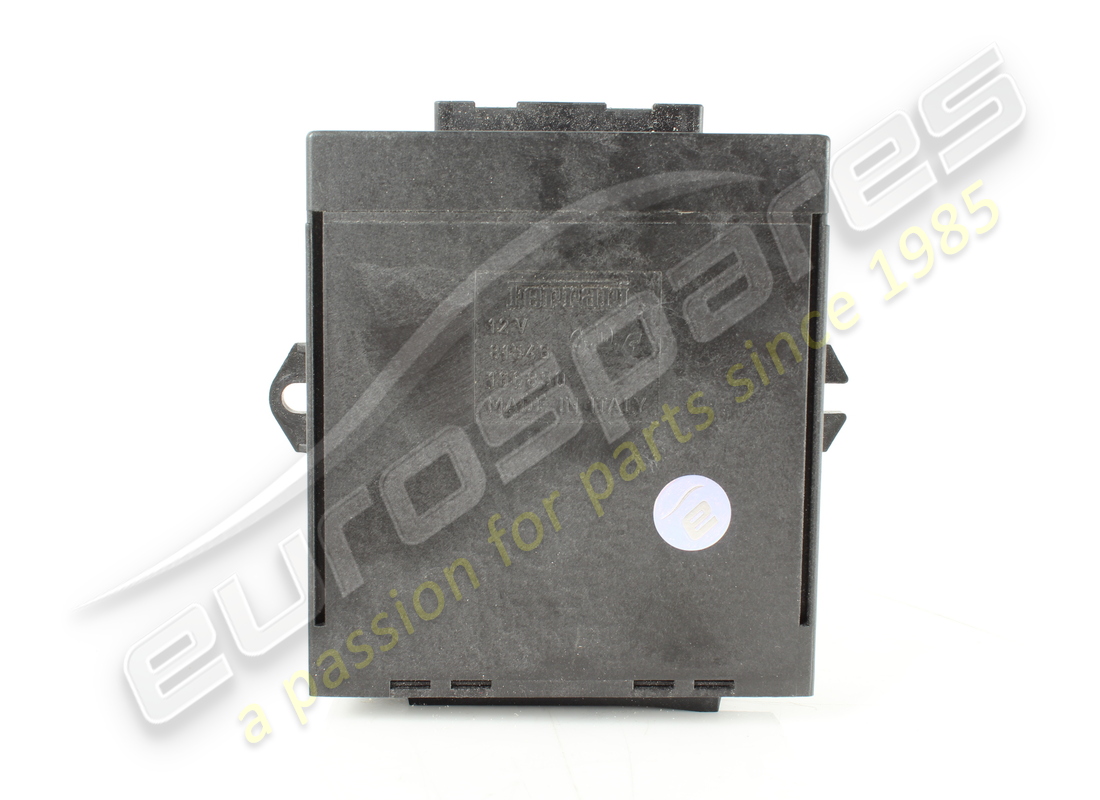

                                                                      # 002
                                                                      MPN: 164646
                                                                      SHOCK ABSORBERS ELECTRONIC CONTROL STATION
                                                                      - Not for cars with handling Fiorano equipment
                                                                      from £1,326.35
                                                                      from £1,326.35
                                                                      # 002
                                                                      MPN: 175949
                                                                      SHOCK ABSORBERS ELECTRONIC CONTROL STATION
                                                                      - Valid for cars with handling Fiorano equipment - Optional
                                                                      from £1,786.22
                                                                      from £1,786.22
                                                                      # 003
                                                                      MPN: 170528

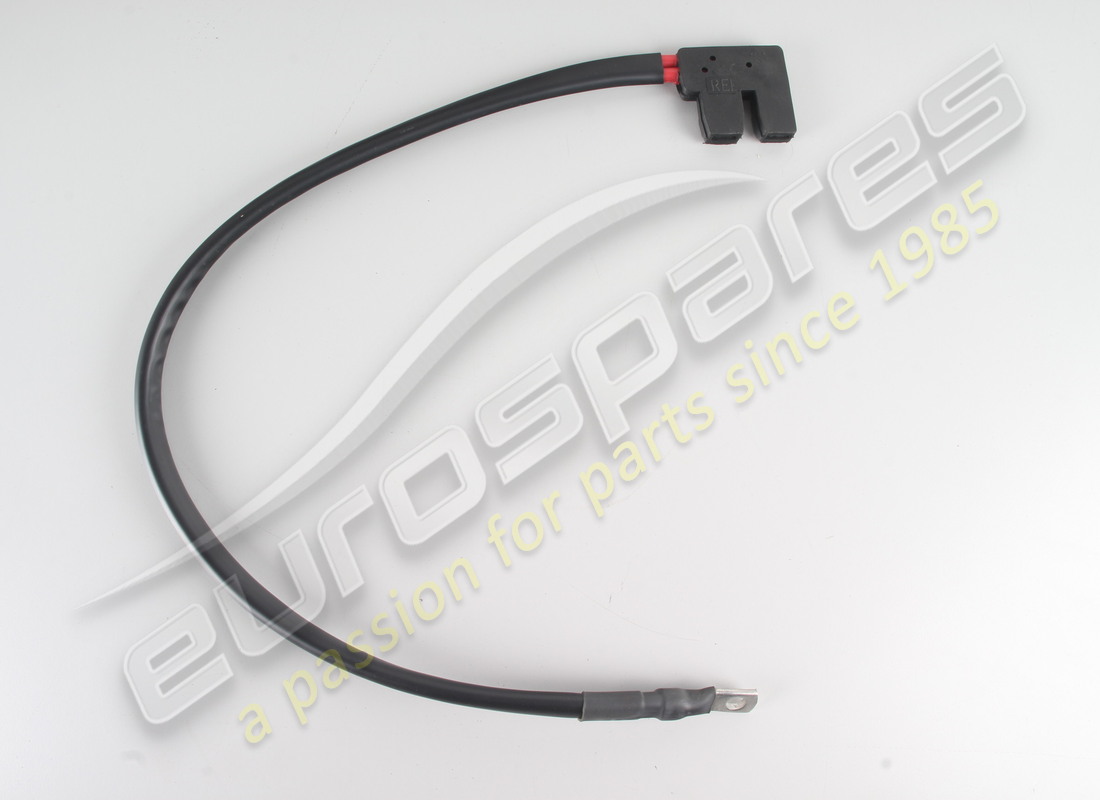

                                                                      CABLE FROM TERMINAL BOX TO CONTROL UNIT
                                                                      from £12.19
                                                                      from £12.19
                                                                      # 004
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                      # 005
                                                                      MPN: 101139
                                                                      NUT
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 16104425
                                                                      # 006
                                                                      MPN: 170114
                                                                      TERMINAL BOX
                                                                      from £7.02
                                                                      from £7.02
                                                                      This part replaces part number 153357 - and 2 more. Click to view details
                                                                      # 007
                                                                      MPN: 12642877
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 008
                                                                      MPN: 62790300
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                      # 009
                                                                      MPN: 168228
                                                                      ASR ESCLUSION CONTROL STATION
                                                                      - Valid till stock exhaustion
                                                                      Supersession
                                                                      Supersession
                                                                      # 009
                                                                      MPN: 179418
                                                                      ASR ESCLUSION CONTROL STATION
                                                                      - Valid after stock exhaustion of 168228
                                                                      from £136.14
                                                                      from £136.14
                                                                      This part replaces part number 168228
                                                                      # 010
                                                                      MPN: 168034
                                                                      POWER-STEERING CONTROL STATION
                                                                      - Not for cars with handling Fiorano equipment
                                                                      from £74.41
                                                                      from £74.41
                                                                      # 010
                                                                      MPN: 175891
                                                                      POWER-STEERING CONTROL STATION
                                                                      - Valid for cars with handling Fiorano equipment - Optional
                                                                      from £1,234.88
                                                                      from £1,234.88
                                                                      # 011
                                                                      MPN: 153095
                                                                      WINDSHIELD WIPER INTERMITTER
                                                                      - Valid for cars with car stereo SONY
                                                                      from £322.22
                                                                      from £322.22
                                                                      # 011
                                                                      MPN: 253060
                                                                      WINDSHIELD WIPER INTERMITTER
                                                                      - Valid for cars with car stereo BECKER
                                                                      from £53.03
                                                                      from £53.03
                                                                      This part replaces part number 180199 which we have in stock
                                                                      # 012
                                                                      MPN: 170762
                                                                      DIRECTION-EMERGENCY LIGHT RELAY
                                                                      - Not for USA and CDN
                                                                      from £116.39
                                                                      from £116.39
                                                                      This part replaces part number 153120 which we have in stock - and 2 more. Click to view details
                                                                      # 012
                                                                      MPN: 171375
                                                                      DIRECTION-EMERGENCY LIGHT RELAY
                                                                      - Valid for USA and CDN
                                                                      from £133.10
                                                                      from £133.10
                                                                      This part replaces part number 164368
                                                                      # 013
                                                                      MPN: 157991
                                                                      30 A.SWITCH RELAY
                                                                      from £22.25
                                                                      from £22.25
                                                                      # 014
                                                                      MPN: 154310
                                                                      FILTRATE ACCELEROMETER
                                                                      from £374.83
                                                                      from £374.83
                                                                      # 015
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 016
                                                                      MPN: 12646601
                                                                      WASHER
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 017
                                                                      MPN: 168919

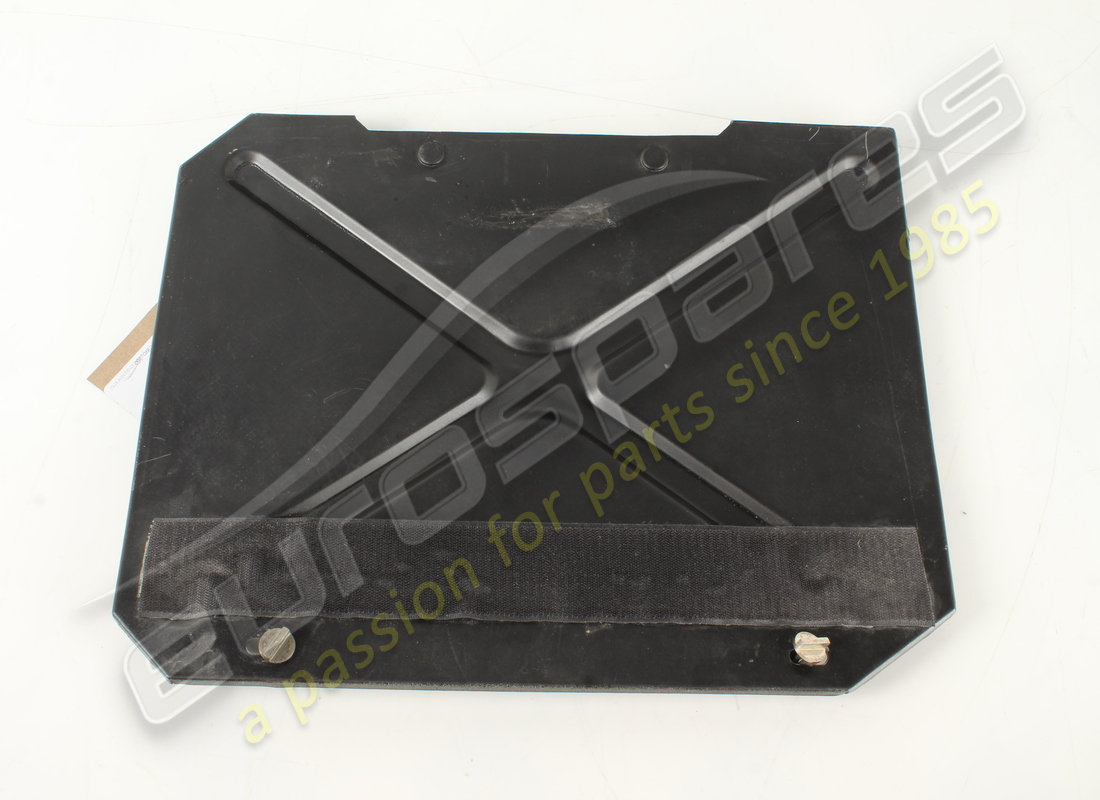

                                                                      PASSENGER FOOT-REST PLATE
                                                                      - Not for GD
                                                                      from £30.95
                                                                      from £30.95

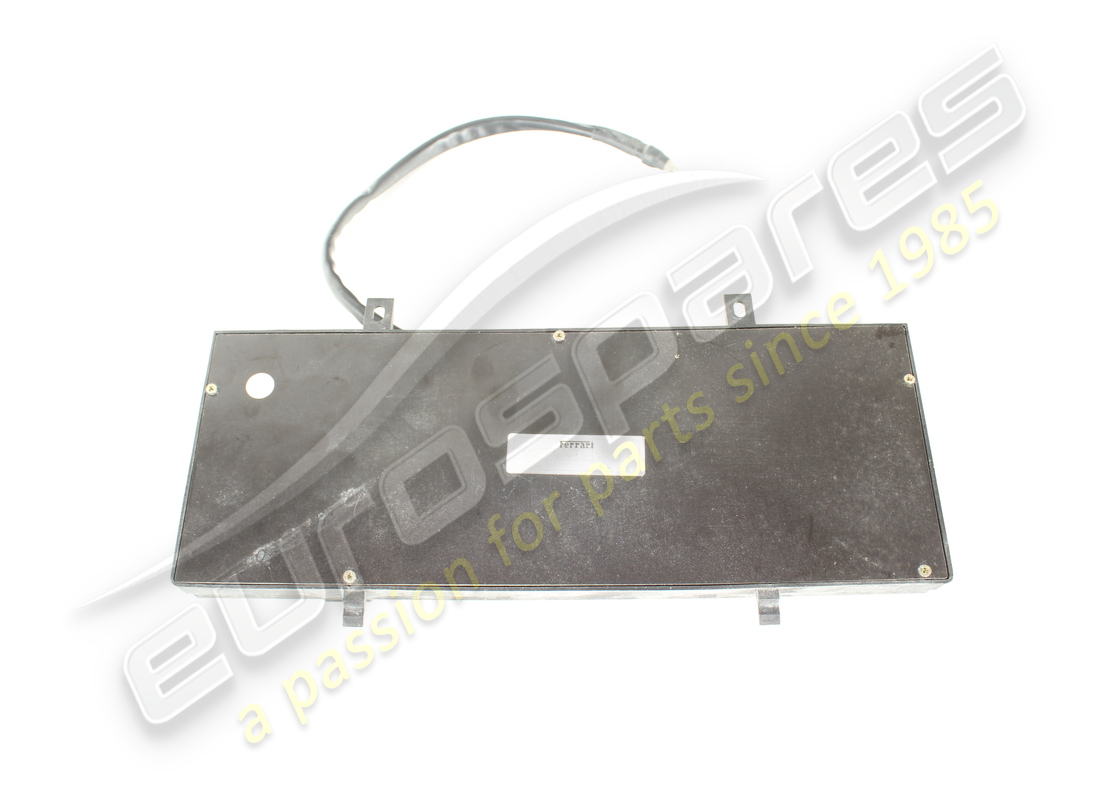

                                                                      # 017
                                                                      MPN: 172554
                                                                      PASSENGER FOOT-REST PLATE
                                                                      - Valid for GD
                                                                      from £364.90
                                                                      from £364.90
                                                                      # 018
                                                                      MPN: 170902
                                                                      BRACKET
                                                                      - Not for GD
                                                                      from £12.10
                                                                      from £12.10
                                                                      # 018
                                                                      MPN: 171332
                                                                      BRACKET
                                                                      - Valid for GD
                                                                      from £23.51
                                                                      from £23.51
                                                                      # 019
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.51
                                                                      from £0.51
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 020
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details

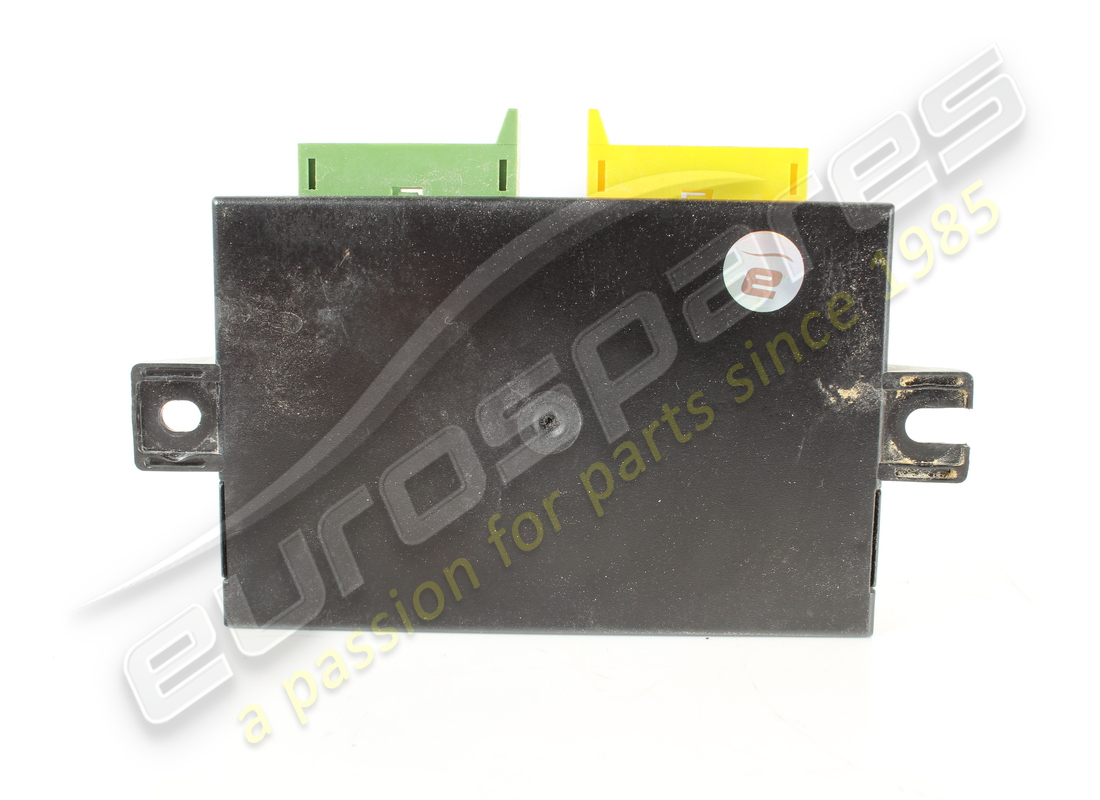

                                                                      # 021
                                                                      MPN: 166851
                                                                      LOCK/UNLOCK DOORS MODULE
                                                                      from £36.75
                                                                      from £36.75
                                                                      # 022
                                                                      MPN: 179087
                                                                      INERTIAL SWITCH
                                                                      from £34.47
                                                                      from £34.47
                                                                      This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
                                                                      # 022
                                                                      MPN: 179087
                                                                      INERTIAL SWITCH
                                                                      from £34.47
                                                                      from £34.47
                                                                      This part replaces part number 163675 which we have in stock - and 8 more. Click to view details
                                                                      # 023
                                                                      MPN: 170690
                                                                      RELAYS AND FUSES NAMEPLATE
                                                                      - Valid till car Ass. Nr. 27150
                                                                      from £3.20
                                                                      from £3.20
                                                                      # 023
                                                                      MPN: 177012
                                                                      RELAYS AND FUSES NAMEPLATE
                                                                      - Valid from car Ass. Nr. 27151
                                                                      from £6.71
                                                                      from £6.71
                                                                      # 024
                                                                      MPN: 62790300
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12574011 - and 1 more. Click to view details
                                                                      # 025
                                                                      MPN: 12642877
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      # 026
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 027
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                      # 028
                                                                      MPN: 113647
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 029
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                                      # 030
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 031
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                      # 032
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 033
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                      # 034
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                      # 036
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 037
                                                                      MPN: 10519424
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                      # 038
                                                                      MPN: 170691
                                                                      OUTER FUSES NAMEPLATE
                                                                      from £1.73
                                                                      from £1.73
                                                                      # 039
                                                                      MPN: 175318

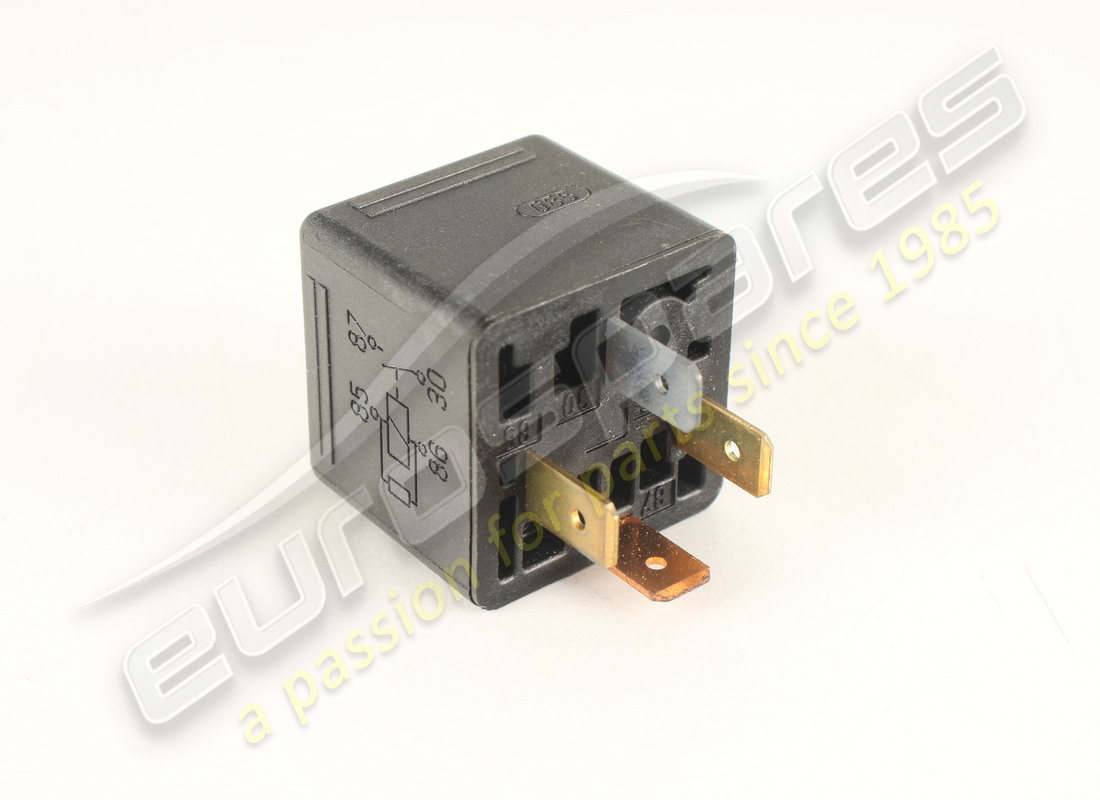

                                                                      RELAY
                                                                      from £19.26
                                                                      from £19.26
                                                                      This part replaces part number 139361
                                                                      # 039
                                                                      MPN: 175318
                                                                      RELAY
                                                                      - Valid after stock exhaustion of 139361
                                                                      from £19.26
                                                                      from £19.26
                                                                      This part replaces part number 139361
                                                                      # 040
                                                                      MPN: 157802
                                                                      DOUBLE SWITCH RELAY 2X15 A.
                                                                      from £28.62
                                                                      from £28.62
                                                                      # 041
                                                                      MPN: 157991
                                                                      SWITCH RELAY 30 A.
                                                                      from £22.25
                                                                      from £22.25
                                                                      # 042
                                                                      MPN: 125240
                                                                      FUSE 7,5 A.
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11054890 - and 1 more. Click to view details
                                                                      # 042
                                                                      MPN: 125241
                                                                      FUSE 10 A.
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 11054990 - and 1 more. Click to view details
                                                                      # 042
                                                                      MPN: 125242
                                                                      FUSE 15 A.
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 11055090 - and 1 more. Click to view details
                                                                      # 042
                                                                      MPN: 125243
                                                                      FUSE 20 A.
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 11055190 - and 1 more. Click to view details
                                                                      # 042
                                                                      MPN: 126031
                                                                      FUSE 25 A.
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number MC3742/5
                                                                      # 042
                                                                      MPN: 131941
                                                                      FUSE 30 A.
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number MC3742/6
                                                                      # 043
                                                                      MPN: 171596
                                                                      REAR FOG LIGHT CONTROL STATION
                                                                      - Not for USA and CDN
                                                                      from £27.26
                                                                      from £27.26
                                                                      # 044
                                                                      MPN: 170901
                                                                      ANTI-VIBRATIONS
                                                                      - Not for GD
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 044
                                                                      MPN: 171822
                                                                      ANTI-VIBRATIONS
                                                                      - Valid for GD
                                                                      from £0.61
                                                                      from £0.61
                                                                      # 045
                                                                      MPN: 166784
                                                                      ACCELERATION SENSOR
                                                                      - Valid for USA, CDN and AUS
                                                                      from £59.09
                                                                      from £59.09
                                                                      # 046
                                                                      MPN: 102741
                                                                      NUT
                                                                      - Valid for USA, CDN and AUS
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 047
                                                                      MPN: 14496424
                                                                      WASHER
                                                                      - Valid for USA, CDN and AUS
                                                                      Supersession
                                                                      Supersession
                                                                      This part replaces part number 14496401 - and 3 more. Click to view details
                                                                      # 048
                                                                      MPN: 172524
                                                                      21-WAYS CONNECTOR
                                                                      - Valid for USA, CDN and GD
                                                                      from £14.72
                                                                      from £14.72
                                                                      # 048
                                                                      MPN: 172525
                                                                      12-WAYS CONNECTOR
                                                                      - Valid for USA, CDN and GD
                                                                      from £68.40
                                                                      from £68.40
                                                                      # 049
                                                                      MPN: 171786
                                                                      BRACKET
                                                                      - Valid for GD
                                                                      from £27.70
                                                                      from £27.70
                                                                      # 050
                                                                      MPN: 172673
                                                                      ANTITHEFT CABLE BRIDGE WITHOUT CONTROL STATION
                                                                      - Valid for GB
                                                                      from £6.12
                                                                      from £6.12
                                                                      # 051
                                                                      MPN: 61530300
                                                                      PIN
                                                                      from £57.32
                                                                      from £57.32
                                                                      # 052
                                                                      MPN: 69969500
                                                                      GASKET
                                                                      from £0.95
                                                                      from £0.95
                                                                      This part replaces part number 61529400
                                                                      # 053
                                                                      MPN: 181583
                                                                      BRACKET
                                                                      - Valid for cars with car stereo BECKER
                                                                      from £3.19
                                                                      from £3.19
                                                                      # 054
                                                                      MPN: 179050
                                                                      ELECTRONIC CONTROL STATION FOR FUEL COOLING
                                                                      - Valid for USA M.Y. 99 and CDN M.Y. 99
                                                                      from £371.39
                                                                      from £371.39
                                                                      # 054
                                                                      MPN: 180628
                                                                      ELECTRONIC CONTROL STATION FOR FUEL COOLING
                                                                      - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £358.86
                                                                      from £358.86
                                                                      # 055
                                                                      MPN: 179052
                                                                      BRACKET FOR CONTROL UNIT FIXING
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £11.84
                                                                      from £11.84
                                                                      # 056
                                                                      MPN: 170901
                                                                      ANTI-VIBRATIONS
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £0.47
                                                                      from £0.47
                                                                      # 057
                                                                      MPN: 113647
                                                                      NUT
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £0.53
                                                                      from £0.53
                                                                      # 058
                                                                      MPN: 12637824
                                                                      WASHER
                                                                      - Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000 and CDN M.Y. 2000
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
