ferrari 575m maranello clutch and controls not for f1 parts diagram

028 - Clutch and Controls Not for F1

Ferrari 575M Maranello Clutch and Controls Not for F1 Parts Diagram

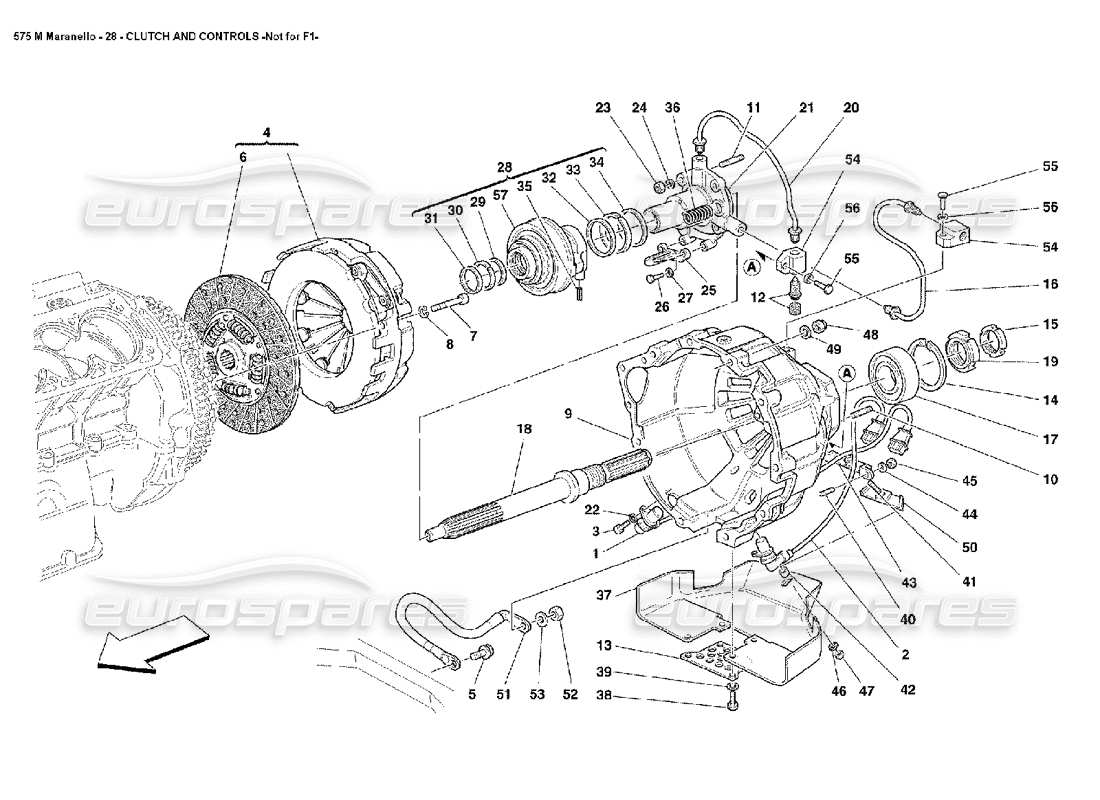

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                        #
                                                                                                        Part number
                                                                                                        Description
                                                                                                        Price
                                                                                                        # 001
                                                                                                        MPN: 189548
                                                                                                        RH SIDE ANGOLAR SPEED SENSOR
                                                                                                        from £53.10
                                                                                                        from £53.10
                                                                                                        # 002
                                                                                                        MPN: 189540
                                                                                                        LH SIDE ANGOLAR SPEED SENSOR
                                                                                                        from £107.73
                                                                                                        from £107.73
                                                                                                        # 003
                                                                                                        MPN: 14305124
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 14305121
                                                                                                        # 004
                                                                                                        MPN: 194775
                                                                                                        COMPLETE CLUTCH
                                                                                                        from £1,567.58
                                                                                                        from £1,567.58
                                                                                                        This part replaces part number 153724 - and 1 more. Click to view details
                                                                                                        # 005
                                                                                                        MPN: 16296421
                                                                                                        SCREW
                                                                                                        from £37.16
                                                                                                        from £37.16
                                                                                                        # 006
                                                                                                        MPN: 138961
                                                                                                        CLUTCH DISC
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 006
                                                                                                        MPN: 138961
                                                                                                        CLUTCH DISC
                                                                                                        Supersession
                                                                                                        Supersession
                                                                                                        # 007
                                                                                                        MPN: 14305974
                                                                                                        SCREW
                                                                                                        from £0.48
                                                                                                        from £0.48
                                                                                                        This part replaces part number 85611000
                                                                                                        # 008
                                                                                                        MPN: 127494
                                                                                                        WASHER
                                                                                                        (minimum order quantity = 20)
                                                                                                        from £0.51
                                                                                                        from £0.51
                                                                                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                        # 009
                                                                                                        MPN: 151601
                                                                                                        COMPLETE CLUTCH HOUSING
                                                                                                        from £2,524.58
                                                                                                        from £2,524.58
                                                                                                        # 009
                                                                                                        MPN: 168915
                                                                                                        CLUTCH HOUSING
                                                                                                        - With complete clutch housing
                                                                                                        # 010
                                                                                                        MPN: 13546334
                                                                                                        STUD
                                                                                                        from £0.60
                                                                                                        from £0.60
                                                                                                        This part replaces part number 13546331
                                                                                                        # 011
                                                                                                        MPN: 13543124
                                                                                                        STUD
                                                                                                        from £3.66
                                                                                                        from £3.66
                                                                                                        This part replaces part number 13543121
                                                                                                        # 012
                                                                                                        MPN: 121699
                                                                                                        BLEEDER SCREW
                                                                                                        from £11.66
                                                                                                        from £11.66
                                                                                                        # 013
                                                                                                        MPN: 144441
                                                                                                        CLUTCH HOUSING SMALL COVER
                                                                                                        from £0.99
                                                                                                        from £0.99
                                                                                                        # 014
                                                                                                        MPN: 144511
                                                                                                        STOP RING
                                                                                                        from £1.55
                                                                                                        from £1.55
                                                                                                        # 015
                                                                                                        MPN: 165576
                                                                                                        RING NUT
                                                                                                        from £29.79
                                                                                                        from £29.79
                                                                                                        # 016
                                                                                                        MPN: 165759
                                                                                                        OIL DELIVERY TUBE
                                                                                                        from £120.41
                                                                                                        from £120.41
                                                                                                        # 017
                                                                                                        MPN: 145805
                                                                                                        BEARING
                                                                                                        from £73.60
                                                                                                        from £73.60
                                                                                                        This part replaces part number 125934
                                                                                                        # 018
                                                                                                        MPN: 165573
                                                                                                        CLUTCH SHAFT
                                                                                                        from £379.44
                                                                                                        from £379.44
                                                                                                        # 019
                                                                                                        MPN: 165575
                                                                                                        RING NUT
                                                                                                        from £13.29
                                                                                                        from £13.29
                                                                                                        # 020
                                                                                                        MPN: 165733
                                                                                                        VENT PIPE
                                                                                                        from £36.90
                                                                                                        from £36.90
                                                                                                        # 021
                                                                                                        MPN: 169137
                                                                                                        FLANGE WITH SLEEVE
                                                                                                        from £677.96
                                                                                                        from £677.96
                                                                                                        # 022
                                                                                                        MPN: 12601274
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                        # 023
                                                                                                        MPN: 133989
                                                                                                        NUT
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 8 D 4-UNI 207
                                                                                                        # 024
                                                                                                        MPN: 127496
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                        # 025
                                                                                                        MPN: 151693
                                                                                                        PLATE
                                                                                                        from £65.93
                                                                                                        from £65.93
                                                                                                        # 026
                                                                                                        MPN: 10977524
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        # 027
                                                                                                        MPN: 127493
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                        # 028
                                                                                                        -
                                                                                                        THRUST BEARING
                                                                                                        (with seals)
                                                                                                        # 028
                                                                                                        MPN: 177201
                                                                                                        THRUST BEARING
                                                                                                        (without seals)
                                                                                                        from £495.00
                                                                                                        from £495.00
                                                                                                        This part replaces part number 177202
                                                                                                        # 029
                                                                                                        MPN: 154505
                                                                                                        SEAL RING
                                                                                                        from £6.89
                                                                                                        from £6.89
                                                                                                        # 030
                                                                                                        MPN: 154504
                                                                                                        RING
                                                                                                        from £3.63
                                                                                                        from £3.63
                                                                                                        # 031
                                                                                                        MPN: 154550
                                                                                                        SCRAPER RING
                                                                                                        from £12.51
                                                                                                        from £12.51
                                                                                                        This part replaces part number 144550
                                                                                                        # 032
                                                                                                        MPN: 154508
                                                                                                        SEAL RING
                                                                                                        from £22.87
                                                                                                        from £22.87
                                                                                                        # 033
                                                                                                        MPN: 154507
                                                                                                        RING
                                                                                                        from £2.01
                                                                                                        from £2.01
                                                                                                        This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
                                                                                                        # 034
                                                                                                        MPN: 154551
                                                                                                        SCRAPER RING
                                                                                                        from £16.63
                                                                                                        from £16.63
                                                                                                        # 035
                                                                                                        MPN: 13904970
                                                                                                        FLEXIBLE PIN
                                                                                                        from £0.80
                                                                                                        from £0.80
                                                                                                        # 036
                                                                                                        MPN: 155207
                                                                                                        PRELOAD SPRING
                                                                                                        from £2.25
                                                                                                        from £2.25
                                                                                                        # 037
                                                                                                        MPN: 170115
                                                                                                        SHIELD FOR FASE SENSOR PROTECTION
                                                                                                        from £253.16
                                                                                                        from £253.16
                                                                                                        # 038
                                                                                                        MPN: 10977824
                                                                                                        SCREW
                                                                                                        from £1.08
                                                                                                        from £1.08
                                                                                                        This part replaces part number 10977814 - and 1 more. Click to view details
                                                                                                        # 039
                                                                                                        MPN: 12601174
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
                                                                                                        # 040
                                                                                                        MPN: 13540824
                                                                                                        STUD
                                                                                                        from £14.21
                                                                                                        from £14.21
                                                                                                        This part replaces part number 13540821
                                                                                                        # 041
                                                                                                        MPN: 155177
                                                                                                        STUD
                                                                                                        from £4.22
                                                                                                        from £4.22
                                                                                                        # 042
                                                                                                        MPN: 155175
                                                                                                        SPACER
                                                                                                        from £1.18
                                                                                                        from £1.18
                                                                                                        # 043
                                                                                                        MPN: 154464
                                                                                                        SUPPORT
                                                                                                        from £14.60
                                                                                                        from £14.60
                                                                                                        # 044
                                                                                                        MPN: 12639724
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                        # 045
                                                                                                        MPN: 102741
                                                                                                        NUT
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                        # 046
                                                                                                        MPN: 11199274
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 047
                                                                                                        MPN: 15896470
                                                                                                        NUT
                                                                                                        (minimum order quantity = 20)
                                                                                                        from £0.77
                                                                                                        from £0.77
                                                                                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                        # 048
                                                                                                        MPN: 16100814
                                                                                                        NUT
                                                                                                        from £0.71
                                                                                                        from £0.71
                                                                                                        This part replaces part number 16100811 - and 1 more. Click to view details
                                                                                                        # 049
                                                                                                        MPN: 12601374
                                                                                                        WASHER
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                        # 050
                                                                                                        MPN: 146654
                                                                                                        SUPPORT
                                                                                                        from £46.33
                                                                                                        from £46.33
                                                                                                        # 051
                                                                                                        MPN: 155918
                                                                                                        GROUND CABLE
                                                                                                        from £7.27
                                                                                                        from £7.27
                                                                                                        # 052
                                                                                                        MPN: 15896470
                                                                                                        NUT
                                                                                                        (minimum order quantity = 20)
                                                                                                        from £0.77
                                                                                                        from £0.77
                                                                                                        This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                        # 053
                                                                                                        MPN: 11199274
                                                                                                        WASHER
                                                                                                        from £0.54
                                                                                                        from £0.54
                                                                                                        # 054
                                                                                                        MPN: 139471
                                                                                                        UNION
                                                                                                        from £12.84
                                                                                                        from £12.84
                                                                                                        # 055
                                                                                                        MPN: 10902624
                                                                                                        SCREW
                                                                                                        from £0.53
                                                                                                        from £0.53
                                                                                                        This part replaces part number 10902621
                                                                                                        # 056
                                                                                                        MPN: 11181874
                                                                                                        WASHER
                                                                                                        from £0.51
                                                                                                        from £0.51
                                                                                                        # 057
                                                                                                        MPN: 177201
                                                                                                        THRUST BEARING
                                                                                                        (without seals)
                                                                                                        from £495.00
                                                                                                        from £495.00
                                                                                                        This part replaces part number 177202
