033 - Lay Shaft Gears

Ferrari 575M Maranello Lay Shaft Gears Parts Diagram

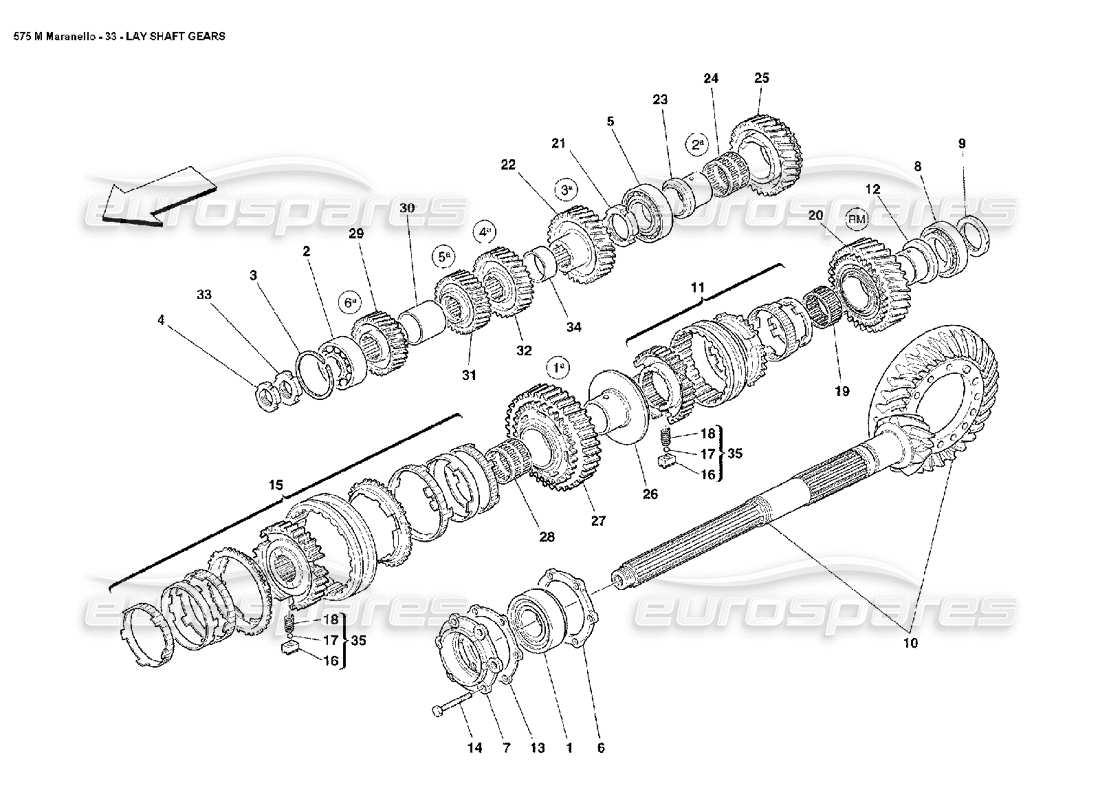

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 144498
                                                                  BEARING FOR DRIVEN SHAFT DIFFERENTIAL SIDE
                                                                  from £150.13
                                                                  from £150.13
                                                                  # 002
                                                                  MPN: 103030
                                                                  ROLLER BEARING
                                                                  from £128.26
                                                                  from £128.26
                                                                  This part replaces part number 101605 - and 2 more. Click to view details
                                                                  # 003
                                                                  MPN: 144511
                                                                  STOP RING
                                                                  from £1.55
                                                                  from £1.55
                                                                  # 004
                                                                  MPN: 163684
                                                                  RING NUT
                                                                  from £10.26
                                                                  from £10.26
                                                                  # 005
                                                                  MPN: 228055
                                                                  ROLLER BEARING
                                                                  from £47.37
                                                                  from £47.37
                                                                  This part replaces part number 131056 - and 1 more. Click to view details
                                                                  # 006
                                                                  MPN: 143924
                                                                  RING
                                                                  from £31.90
                                                                  from £31.90
                                                                  # 007
                                                                  MPN: 189460
                                                                  BUSHING
                                                                  from £111.55
                                                                  from £111.55
                                                                  # 008
                                                                  MPN: 189462
                                                                  ROLLER BEARING
                                                                  from £100.47
                                                                  from £100.47
                                                                  # 009
                                                                  MPN: 189459
                                                                  SPACER
                                                                  from £26.65
                                                                  from £26.65
                                                                  # 010
                                                                  MPN: 189455
                                                                  COMPLETE BEVEL GEAR PAIR R.11/43
                                                                  Supersession
                                                                  Supersession
                                                                  # 011
                                                                  MPN: 189522
                                                                  REVERSE GEAR COMPLETE SYNCHRONIZER
                                                                  from £261.29
                                                                  from £261.29
                                                                  # 012
                                                                  MPN: 189525
                                                                  BUSHING
                                                                  from £60.92
                                                                  from £60.92
                                                                  # 013
                                                                  MPN: 155722
                                                                  SPACER THICK. MM. 2,4
                                                                  from £10.49
                                                                  from £10.49
                                                                  # 014
                                                                  MPN: 16321430
                                                                  SCREW
                                                                  from £0.64
                                                                  from £0.64
                                                                  # 015
                                                                  MPN: 189587
                                                                  1TH AND 2TH GEAR COMPLETE SYNCHRONIZER
                                                                  from £768.67
                                                                  from £768.67
                                                                  # 016
                                                                  MPN: 184991
                                                                  SMALL BLOCK
                                                                  - Not as spare part - Replaced by 194029 - See ref. 35
                                                                  # 017
                                                                  MPN: 184997
                                                                  BALL
                                                                  - Not as spare part - Replaced by 194029 - See ref. 35
                                                                  # 018
                                                                  MPN: 189523
                                                                  SPRING
                                                                  - Not as spare part - Replaced by 194029 - See ref. 35
                                                                  Supersession
                                                                  Supersession
                                                                  # 019
                                                                  MPN: 150004
                                                                  ROLLER CAGE
                                                                  from £6.10
                                                                  from £6.10
                                                                  # 020
                                                                  MPN: 189524
                                                                  REVERSE GEAR
                                                                  from £387.40
                                                                  from £387.40
                                                                  # 021
                                                                  MPN: 189747
                                                                  RING NUT
                                                                  from £22.49
                                                                  from £22.49
                                                                  # 022
                                                                  MPN: 189655
                                                                  PINION FOR 3RD GEAR
                                                                  Supersession
                                                                  Supersession
                                                                  # 023
                                                                  MPN: 189590
                                                                  BUSHING
                                                                  from £116.47
                                                                  from £116.47
                                                                  # 024
                                                                  MPN: 189580
                                                                  ROLLER CAGE
                                                                  from £14.78
                                                                  from £14.78
                                                                  # 025
                                                                  MPN: 189589
                                                                  PINION FOR 2ND GEAR
                                                                  from £304.58
                                                                  from £304.58
                                                                  # 026
                                                                  MPN: 189579
                                                                  BUSHING
                                                                  from £242.13
                                                                  from £242.13
                                                                  # 027
                                                                  MPN: 189588
                                                                  PINION FOR 1ST GEAR
                                                                  from £304.58
                                                                  from £304.58
                                                                  # 028
                                                                  MPN: 189580
                                                                  ROLLER CAGE
                                                                  from £14.78
                                                                  from £14.78
                                                                  # 029
                                                                  MPN: 189703
                                                                  PINION FOR 6TH GEAR
                                                                  from £215.02
                                                                  from £215.02
                                                                  # 030
                                                                  MPN: 189702
                                                                  SPACER
                                                                  from £22.60
                                                                  from £22.60
                                                                  # 031
                                                                  MPN: 189670
                                                                  PINION FOR 5TH GEAR
                                                                  from £223.15
                                                                  from £223.15
                                                                  # 032
                                                                  MPN: 189668
                                                                  PINION FOR 4TH GEAR
                                                                  from £234.35
                                                                  from £234.35
                                                                  # 033
                                                                  MPN: 163670
                                                                  RING NUT
                                                                  from £19.86
                                                                  from £19.86
                                                                  # 034
                                                                  MPN: 189701
                                                                  SPACER
                                                                  from £22.60
                                                                  from £22.60
                                                                  # 035
                                                                  MPN: 194029
                                                                  PAD FOR SYNCHRONIZER/BALL/SPRING REPLACEMENT KIT
                                                                  from £11.28
                                                                  from £11.28
                                                                  This part replaces part number 189523
