046 - Caliper for Front Brake

Ferrari 575M Maranello Caliper for Front Brake Parts Diagram

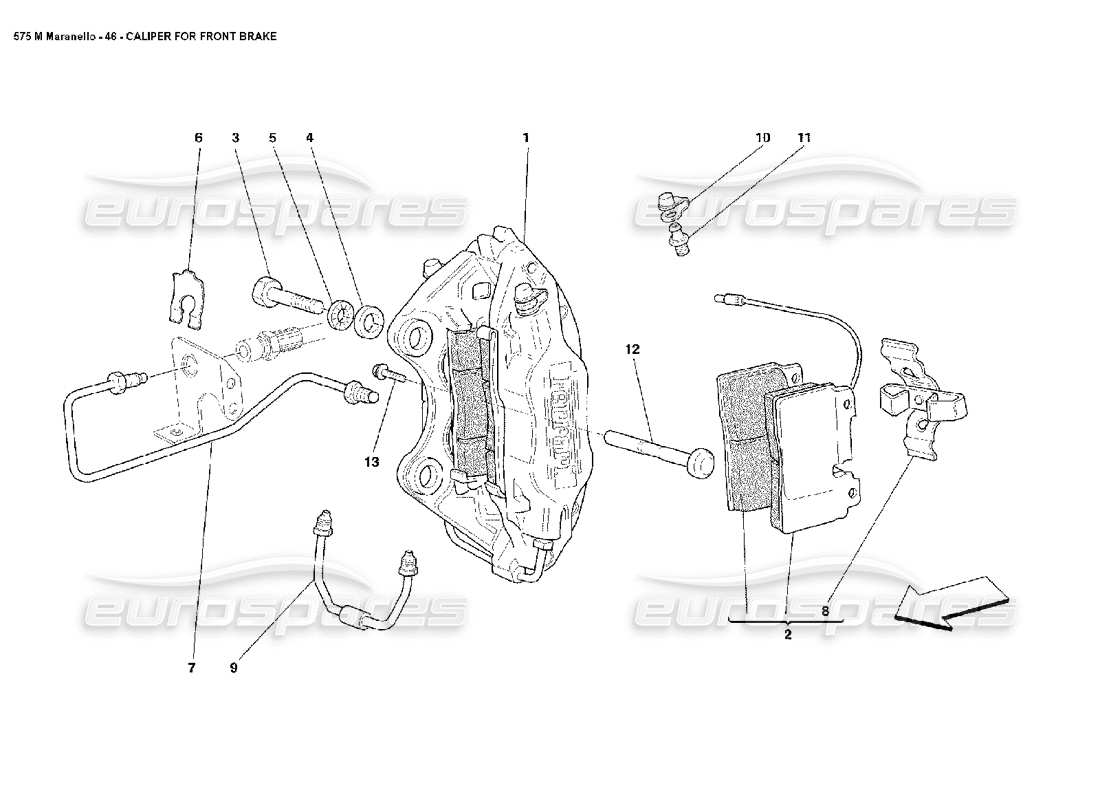

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
              #
              Part number
              Description
              Price
              # 001
              MPN: 184278

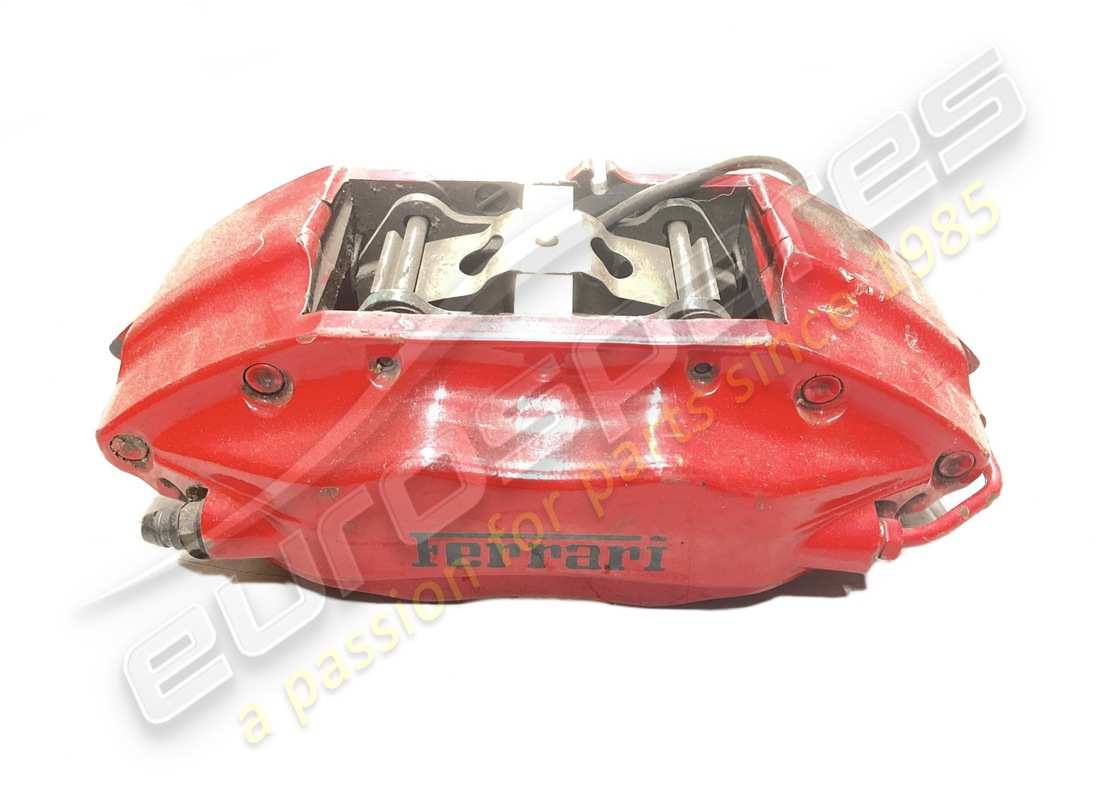

              RH FRONT CALIPER UNIT WITH PADS
              - Not for cars with handling Fiorano equipment
              from £1,308.84
              from £1,308.84
              # 001
              MPN: 184279

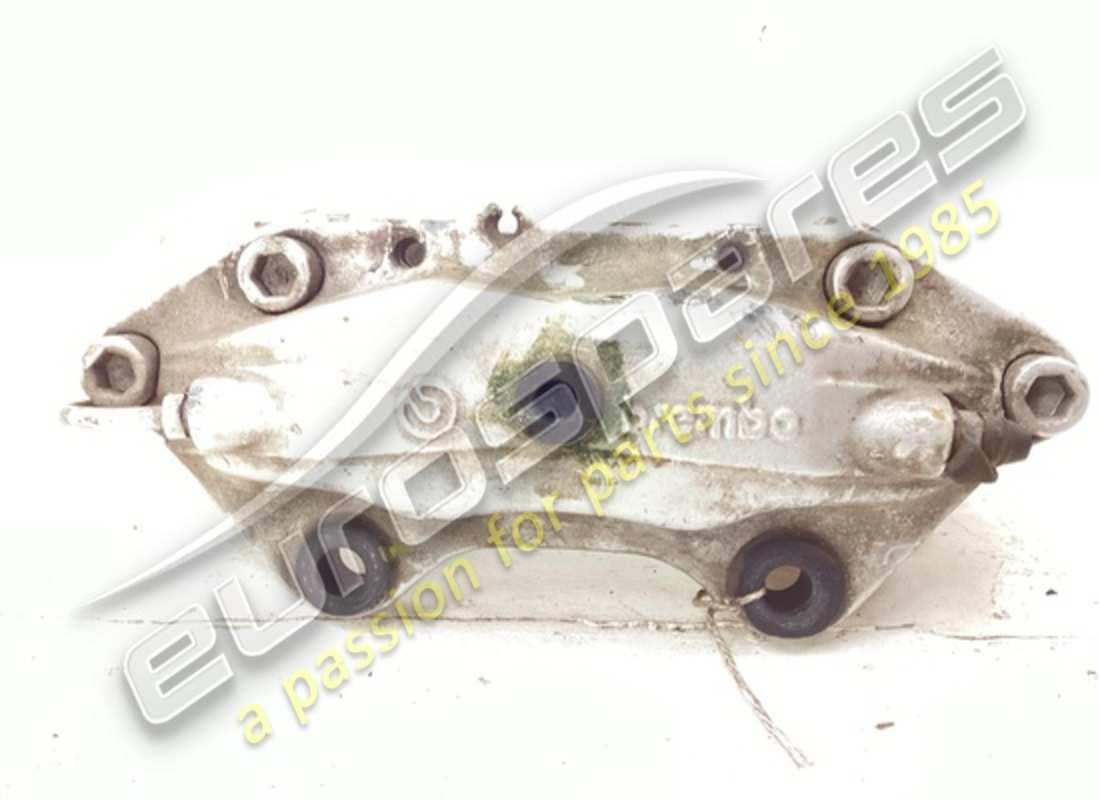

              LH FRONT CALIPER UNIT WITH PADS
              - Not for cars with handling Fiorano equipment
              from £719.86
              from £719.86
              # 001
              MPN: 184280
              RH FRONT CALIPER UNIT WITH PADS
              - Grey - Not for cars with handling Fiorano equipment
              from £781.80
              from £781.80
              # 001
              MPN: 184281
              LH FRONT CALIPER UNIT WITH PADS
              - Grey - Not for cars with handling Fiorano equipment
              from £423.28
              from £423.28
              # 001
              MPN: 184282
              RH FRONT CALIPER UNIT WITH PADS
              - Red Not for cars with handling Fiorano equipment
              from £1,212.20
              from £1,212.20
              # 001
              MPN: 184283
              LH FRONT CALIPER UNIT WITH PADS
              - Red - Not for cars with handling Fiorano equipment
              from £1,212.20
              from £1,212.20
              # 001
              MPN: 193087
              RH FRONT CALIPER UNIT WITH PADS
              - Modena yellow - Not for cars with handling Fiorano equipment
              from £1,025.63
              from £1,025.63
              # 001
              MPN: 193092
              LH FRONT CALIPER UNIT WITH PADS
              - Modena yellow - Not for cars with handling Fiorano equipment
              from £1,025.63
              from £1,025.63
              # 001
              MPN: 193126
              RH FRONT CALIPER UNIT WITH PADS
              - Red Valid for cars with handling Fiorano equipment - Optional
              from £886.92
              from £886.92
              # 001
              MPN: 193127
              RH FRONT CALIPER UNIT WITH PADS
              - Black - Valid for cars with handling Fiorano equipment - Optional
              # 001
              MPN: 193128
              RH FRONT CALIPER UNIT WITH PADS
              - Modena yellow - Valid for cars with handling Fiorano equipment - Optional
              from £1,181.93
              from £1,181.93
              # 001
              MPN: 193129
              RH FRONT CALIPER UNIT WITH PADS
              - Grey - Valid for cars with handling Fiorano equipment - Optional
              # 001
              MPN: 193130
              LH FRONT CALIPER UNIT WITH PADS
              - Red - Valid for cars with handling Fiorano equipment - Optional
              from £1,588.83
              from £1,588.83
              # 001
              MPN: 193131
              LH FRONT CALIPER UNIT WITH PADS
              - Black - Valid for cars with handling Fiorano equipment - Optional
              from £1,041.32
              from £1,041.32
              # 001
              MPN: 193132
              LH FRONT CALIPER UNIT WITH PADS
              - Modena yellow - Valid for cars with handling Fiorano equipment - Optional
              from £1,181.93
              from £1,181.93
              # 001
              MPN: 193133
              LH FRONT CALIPER UNIT WITH PADS
              - Grey - Valid for cars with handling Fiorano equipment - Optional
              # 001
              MPN: 211526
              RH FRONT CALIPER UNIT WITH PADS
              - Red CCM Version
              from £1,670.15
              from £1,670.15
              # 001
              MPN: 211527
              LH FRONT CALIPER UNIT WITH PADS
              - Red - CCM Version
              from £1,670.15
              from £1,670.15
              # 001
              MPN: 212363
              RH FRONT CALIPER UNIT WITH PADS
              - Black - CCM Version
              from £3,000.42
              from £3,000.42
              # 001
              MPN: 212364
              RH FRONT CALIPER UNIT WITH PADS
              - Yellow - CCM Version
              from £2,831.42
              from £2,831.42
              # 001
              MPN: 212365
              RH FRONT CALIPER UNIT WITH PADS
              - Grey - CCM Version
              from £2,721.72
              from £2,721.72
              # 001
              MPN: 212366
              LH FRONT CALIPER UNIT WITH PADS
              - Black - CCM Version
              from £3,000.42
              from £3,000.42
              # 001
              MPN: 212367
              LH FRONT CALIPER UNIT WITH PADS
              - Grey - CCM Version
              from £3,000.42
              from £3,000.42
              # 001
              MPN: 212368
              LH FRONT CALIPER UNIT WITH PADS
              - Yellow - CCM Version
              from £2,831.42
              from £2,831.42
              # 001
              MPN: 212369
              RH FRONT CALIPER UNIT WITH PADS
              - Scuderia red - CCM Version
              from £2,286.26
              from £2,286.26
              # 001
              MPN: 212370
              LH FRONT CALIPER UNIT WITH PADS
              - Scuderia red - CCM Version
              from £4,095.57
              from £4,095.57
              # 002
              MPN: 70000961
              KIT OF FRONT PADS WITH SPRING
              - Not for cars with handling Fiorano equipment
              from £244.13
              from £244.13
              # 002
              MPN: 70000962
              KIT OF FRONT PADS WITH SPRING
              - Valid for cars with handling Fiorano equipment - Optional - ON EXHAUSTION USE PART NUMBER: 70001079
              Supersession
              Supersession
              # 002
              MPN: 70001079
              KIT OF FRONT PADS WITH SPRING
              Valid after stock exhaustion of: 70000962
              from £474.48
              from £474.48
              This part replaces part number 70000962
              # 002
              MPN: 70001082
              KIT OF FRONT PADS WITH SPRING
              - CCM Version
              from £853.71
              from £853.71
              # 003
              MPN: 174214
              SCREW
              from £1.58
              from £1.58
              This part replaces part number 132213 which we have in stock - and 3 more. Click to view details
              # 004
              MPN: 106616
              WASHER
              Supersession
              Supersession
              # 005
              MPN: 10615874
              WASHER
              from £0.47
              from £0.47
              This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
              # 006
              MPN: 116374
              CLIP
              from £1.15
              from £1.15
              # 007
              MPN: 163151
              PIPE LH FRONT CALIPER
              - Not as spare part - Replaced by 212529
              Supersession
              Supersession
              # 007
              MPN: 212408
              PIPE RH FRONT CALIPER
              - CCM Version
              from £90.52
              from £90.52
              # 007
              MPN: 212409
              PIPE LH FRONT CALIPER
              from £15.26
              from £15.26
              # 007
              MPN: 212528
              PIPE RH FRONT CALIPER
              from £66.81
              from £66.81
              This part replaces part number 163150
              # 007
              MPN: 212528
              PIPE RH FRONT CALIPER
              from £66.81
              from £66.81
              This part replaces part number 163150
              # 007
              MPN: 212529
              PIPE LH FRONT CALIPER
              - CCM Version
              from £4,593.78
              from £4,593.78
              This part replaces part number 163151
              # 008
              MPN: 172348
              SPRING
              from £18.79
              from £18.79
              # 009
              MPN: 172868
              CONNECTION PIPE
              from £32.30
              from £32.30
              # 009
              MPN: 215667
              CONNECTION PIPE FOR LH FRONT PLIERS
              - CCM Version
              from £39.71
              from £39.71
              # 009
              MPN: 215761
              CONNECTION PIPE FOR RH FRONT PLIERS
              - CCM Version
              from £42.94
              from £42.94
              # 010
              MPN: 152955
              PROTECTION BOOT
              from £3.06
              from £3.06
              # 010
              MPN: 215666
              PROTECTION BOOT
              - CCM Version
              from £17.01
              from £17.01
              # 011
              MPN: 152954
              UNION WITH EXHAUST VALVE
              from £3.30
              from £3.30
              # 011
              MPN: 215665
              UNION WITH EXHAUST VALVE
              - CCM Version
              from £25.98
              from £25.98
              # 012
              MPN: 198015
              TIE ROD
              - CCM Version
              from £31.29
              from £31.29
              # 013
              MPN: 198014
              SCREW
              from £6.58
              from £6.58
