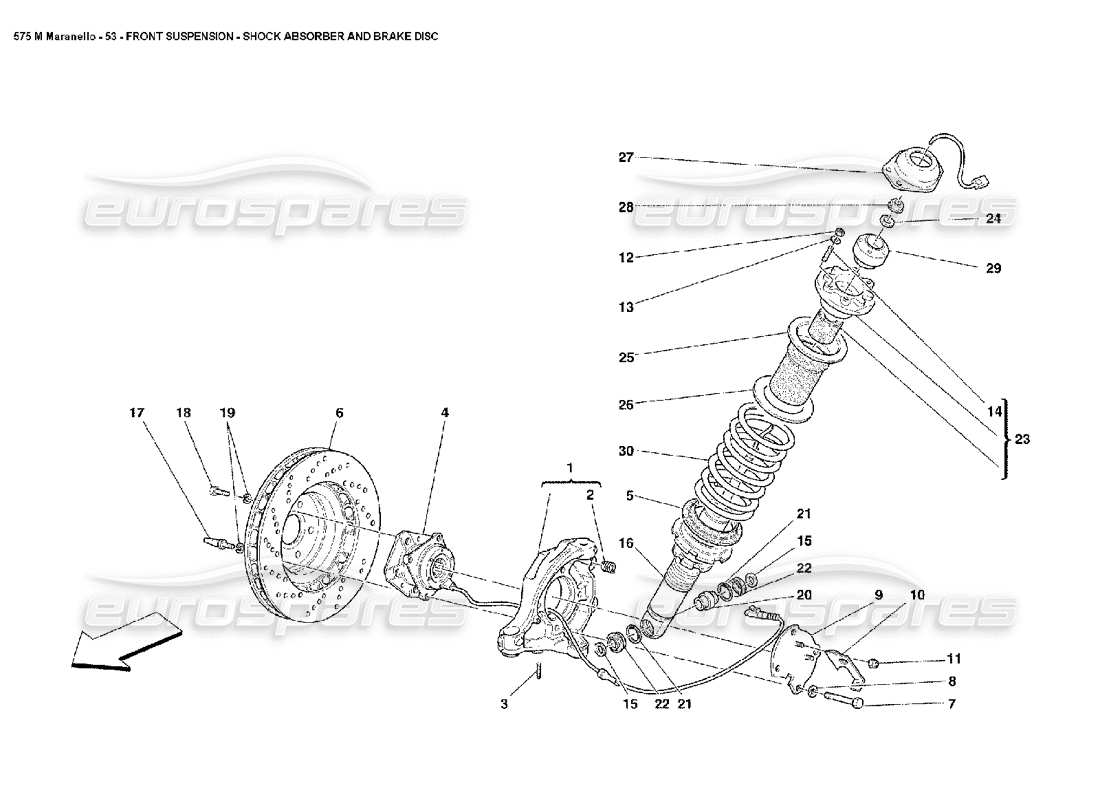

053 - Front Suspension Shock Absorber and Brake Disc

Ferrari 575M Maranello Front Suspension Shock Absorber and Brake Disc Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                        #
                                        Part number
                                        Description
                                        Price
                                        # 000
                                        MPN: 184626

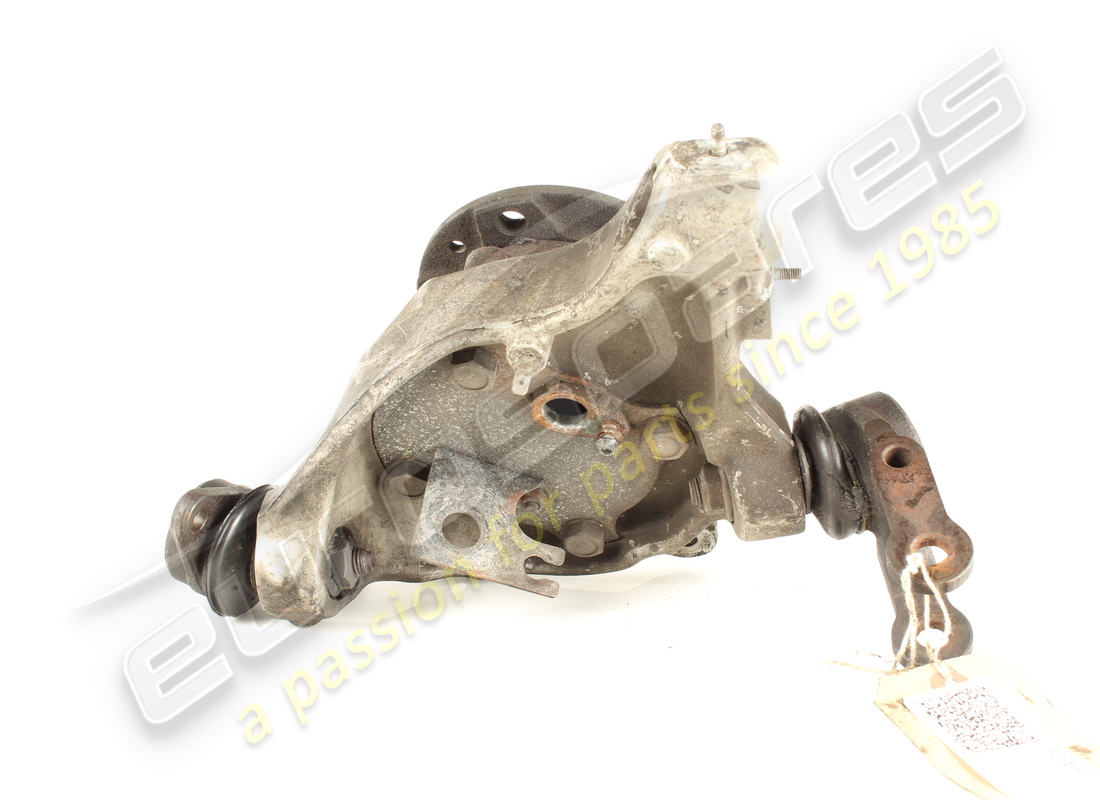

                                        COMPLETE RH STEERING KNUCKLE
                                        from £939.75
                                        from £939.75
                                        This part replaces part number 185818 - and 3 more. Click to view details
                                        # 000
                                        MPN: 184626
                                        COMPLETE RH STEERING KNUCKLE
                                        from £939.75
                                        from £939.75
                                        This part replaces part number 185818 - and 3 more. Click to view details
                                        # 000
                                        MPN: 184627
                                        COMPLETE LH STEERING KNUCKLE
                                        from £551.25
                                        from £551.25
                                        This part replaces part number 185819 - and 3 more. Click to view details
                                        # 000
                                        MPN: 185819
                                        COMPLETE LH STEERING KNUCKLE
                                        - Not as spare part - Replaced by 184627
                                        Supersession
                                        Supersession
                                        This part replaces part number 178887
                                        # 001
                                        MPN: 184621
                                        RH STEERING KNUCKLE
                                        - Not as spare part - With complete RH steering - knuckle 185818
                                        # 001
                                        MPN: 184622
                                        LH STEERING KNUCKLE
                                        - Not as spare part - With complete LH steering - knuckle 185819
                                        # 002
                                        MPN: 133771
                                        THREADED INSERT
                                        from £2.39
                                        from £2.39
                                        # 003
                                        MPN: 11000924
                                        STUD
                                        from £0.78
                                        from £0.78
                                        This part replaces part number 11000921 which we have in stock
                                        # 004
                                        MPN: 185561

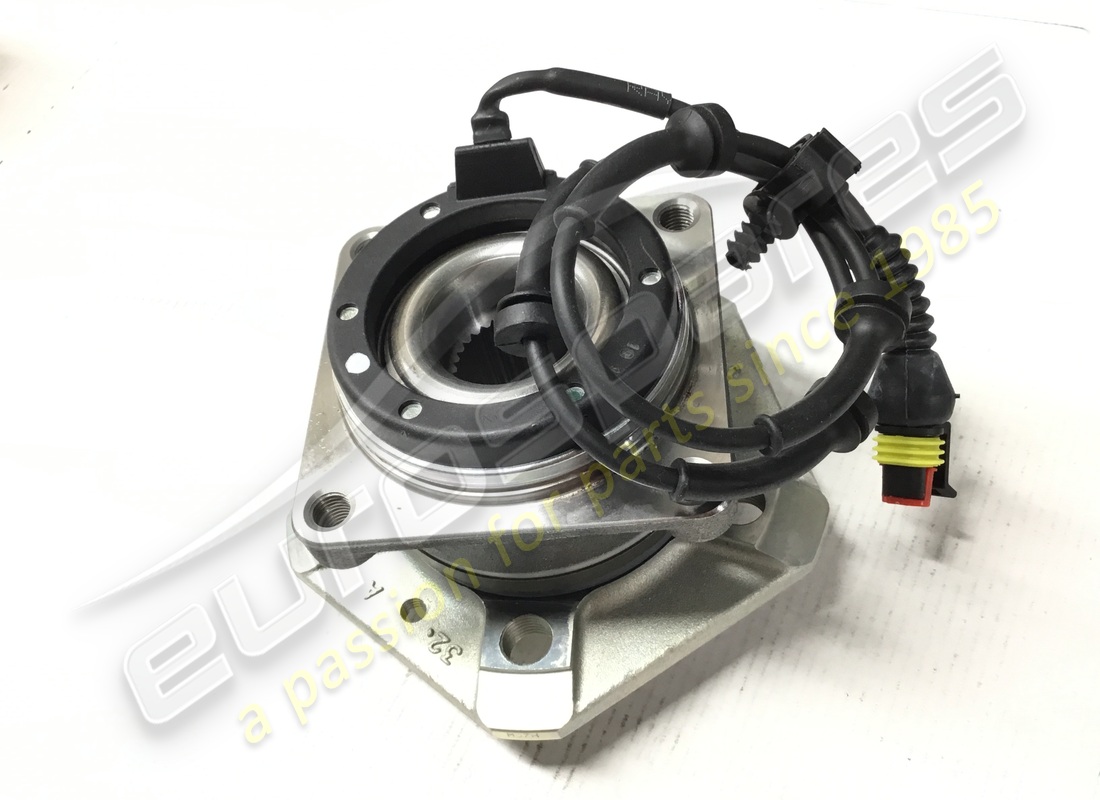

                                        BEARING FOR WHEEL
                                        - Valid till stock exhaustion - Replace in couple
                                        Supersession
                                        Supersession
                                        # 004
                                        MPN: 197271
                                        BEARING FOR WHEEL
                                        from £642.90
                                        from £642.90
                                        This part replaces part number 185561
                                        # 005
                                        MPN: 152842
                                        WASHER
                                        from £13.56
                                        from £13.56
                                        # 006
                                        MPN: 191981

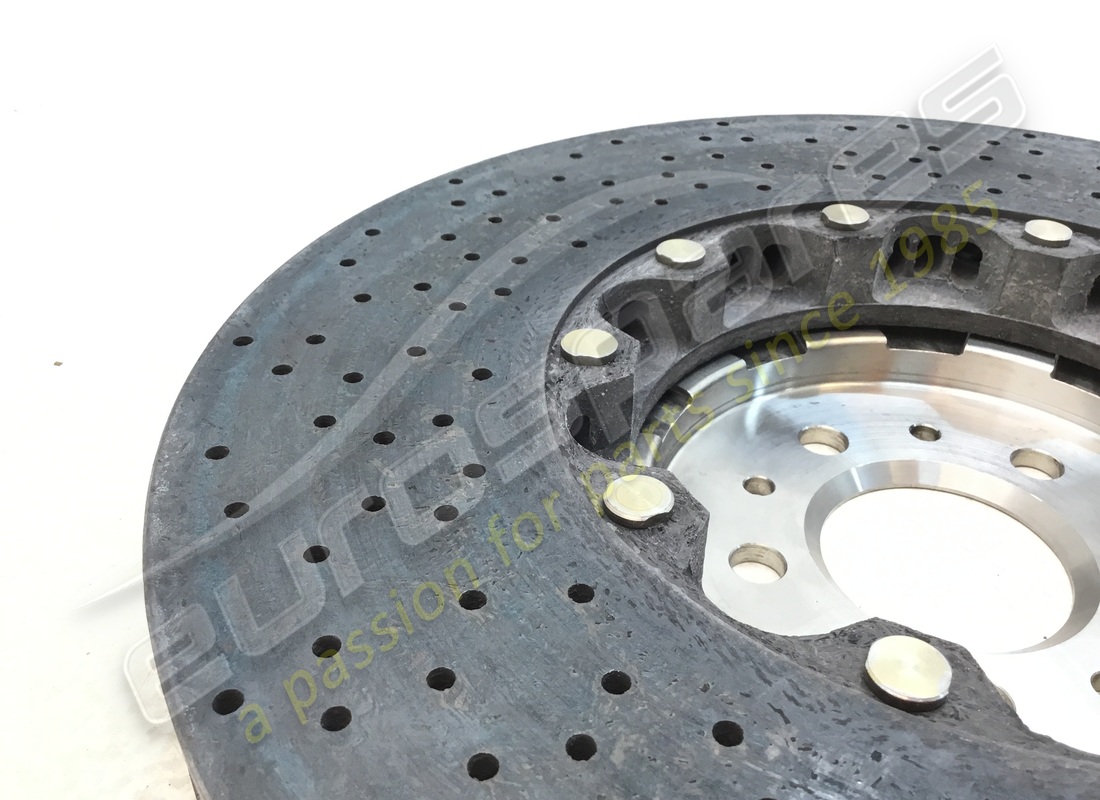

                                        FRONT BRAKE DISC
                                        from £246.34
                                        from £246.34
                                        # 006
                                        MPN: 225454
                                        FRONT BRAKE DISC
                                        CCM Version
                                        from £1,800.00
                                        from £1,800.00
                                        This part replaces part number 211525 - and 1 more. Click to view details
                                        # 007
                                        MPN: 16324034
                                        SCREW
                                        from £3.16
                                        from £3.16
                                        # 008
                                        MPN: 102901
                                        WASHER
                                        from £0.71
                                        from £0.71
                                        This part replaces part number 4146930
                                        # 009
                                        MPN: 183313
                                        RH COVER
                                        from £34.15
                                        from £34.15
                                        # 009
                                        MPN: 183314
                                        LH COVER
                                        from £34.51
                                        from £34.51
                                        # 010
                                        MPN: 183764
                                        RH SUPPORT
                                        from £40.28
                                        from £40.28
                                        # 010
                                        MPN: 183765
                                        LH SUPPORT
                                        from £40.28
                                        from £40.28
                                        # 011
                                        MPN: 102741
                                        NUT
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 12575411 - and 1 more. Click to view details
                                        # 012
                                        MPN: 104030
                                        NUT
                                        from £0.51
                                        from £0.51
                                        This part replaces part number 16104125
                                        # 013
                                        MPN: 12638524
                                        WASHER
                                        from £0.47
                                        from £0.47
                                        This part replaces part number 12638501 - and 2 more. Click to view details
                                        # 014
                                        MPN: 12354524
                                        STUD
                                        from £16.49
                                        from £16.49
                                        This part replaces part number 12354521
                                        # 015
                                        MPN: 153495
                                        SPACER WASHER MM. 3.00
                                        - As an alternative of 153495 -As an alternative of 153495
                                        from £2.40
                                        from £2.40
                                        # 015
                                        MPN: 153496
                                        SPACER WASHER MM. 2.90
                                        from £2.40
                                        from £2.40
                                        # 015
                                        MPN: 153497
                                        SPACER WASHER MM. 3.10
                                        from £2.42
                                        from £2.42
                                        # 016
                                        MPN: 182989
                                        FRONT SHOCK ABSORBER
                                        - Valid till Ass. Nr.55768
                                        from £2,044.24
                                        from £2,044.24
                                        # 016
                                        MPN: 205288
                                        FRONT SHOCK ABSORBER
                                        - Valid from Ass. Nr.55769 - use 217735 -
                                        Supersession
                                        Supersession
                                        # 017
                                        MPN: 104370
                                        BRAKE DISC FIXING SCREW
                                        from £5.66
                                        from £5.66
                                        This part replaces part number 139981
                                        # 018
                                        MPN: 16043424
                                        SCREW
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 16043421
                                        # 019
                                        MPN: 127496
                                        WASHER
                                        from £0.53
                                        from £0.53
                                        This part replaces part number 10516671 - and 2 more. Click to view details
                                        # 020
                                        MPN: 153285

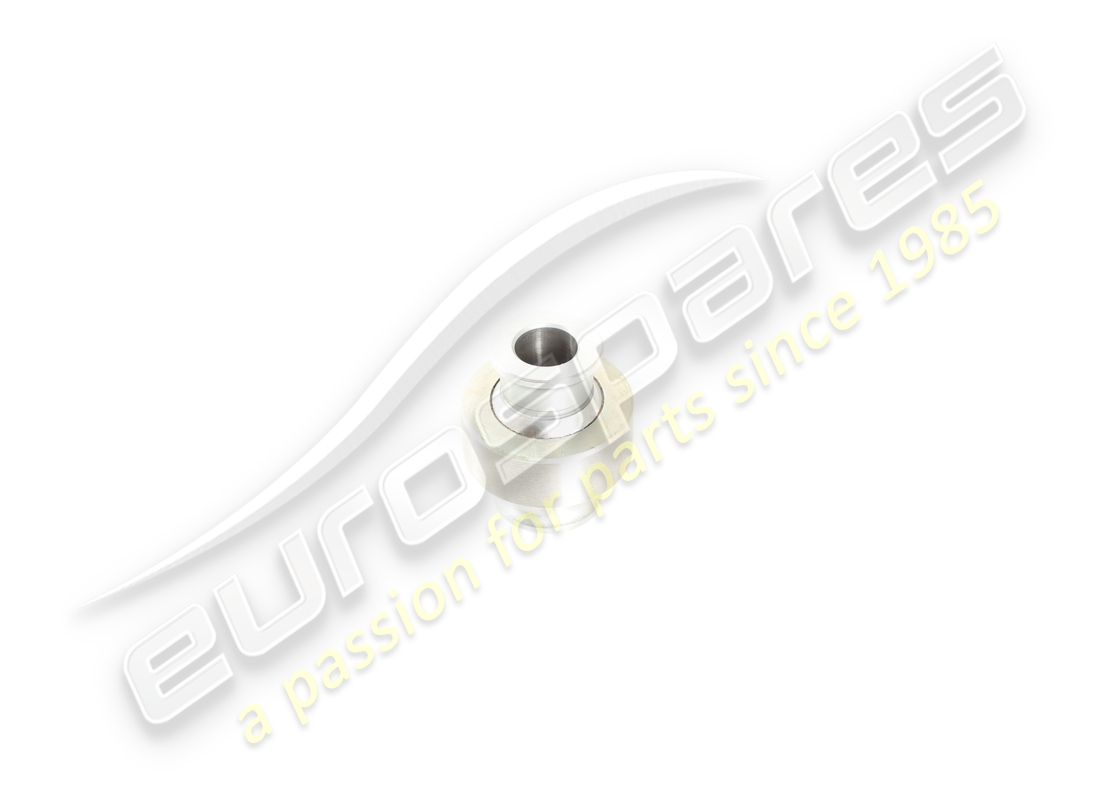

                                        BALL JOINT
                                        from £298.76
                                        from £298.76
                                        # 021
                                        MPN: 145478
                                        SEEGER RING
                                        from £2.42
                                        from £2.42
                                        This part replaces part number 11059370
                                        # 022
                                        MPN: 153286
                                        RUBBER
                                        from £1.27
                                        from £1.27
                                        # 023
                                        MPN: 183125

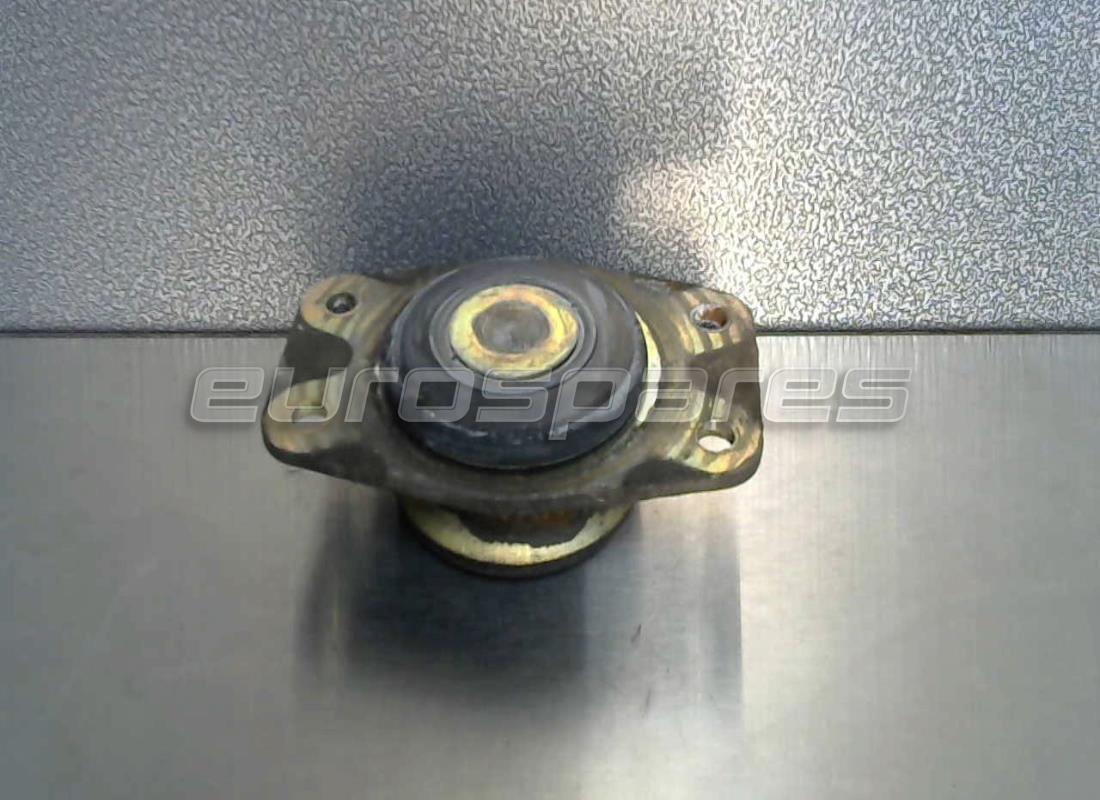

                                        COMPLETE FRONT SHOCK ABSORBER SUPPORT
                                        - Valid till Ass. Nr.55768
                                        from £347.99
                                        from £347.99
                                        # 023
                                        MPN: 209909
                                        COMPLETE FRONT SHOCK ABSORBER SUPPORT
                                        - Valid from Ass. Nr.55769
                                        from £79.19
                                        from £79.19
                                        # 024
                                        MPN: 10520124
                                        WASHER
                                        - Valid from Ass. Nr.55769
                                        from £0.53
                                        from £0.53
                                        # 024
                                        MPN: 183404
                                        WASHER
                                        - Valid till Ass. Nr.55768
                                        from £5.66
                                        from £5.66
                                        # 025
                                        MPN: 127991

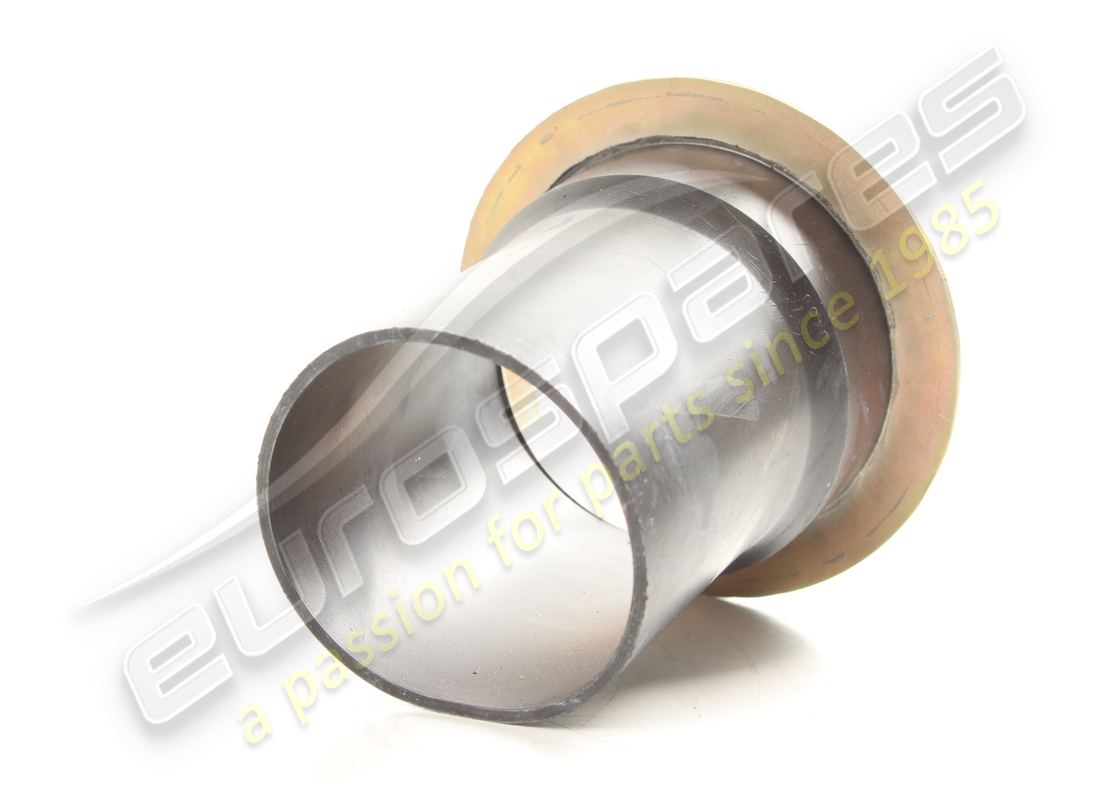

                                        COMPLETE SPACER
                                        from £41.10
                                        from £41.10
                                        # 026
                                        MPN: 152655
                                        WASHER
                                        from £3.11
                                        from £3.11
                                        # 027
                                        MPN: 188337
                                        SPACER WASHER
                                        - Valid till Ass. Nr.55768
                                        from £6.97
                                        from £6.97
                                        # 027
                                        MPN: 204627
                                        PAD FASTENING CUP
                                        - Valid from Ass. Nr.55769
                                        from £10.91
                                        from £10.91
                                        # 028
                                        MPN: 183417
                                        NUT
                                        - Valid till Ass. Nr.55768
                                        Supersession
                                        Supersession
                                        # 028
                                        MPN: 203795
                                        NUT
                                        - Valid from Ass. Nr.55769
                                        from £1.57
                                        from £1.57
                                        This part replaces part number 183417
                                        # 029
                                        MPN: 183047
                                        HYPERBLOCK
                                        - Valid till Ass. Nr.55768
                                        from £52.07
                                        from £52.07
                                        # 029
                                        MPN: 204606
                                        HYPERBLOCK
                                        - Valid from Ass. Nr.55769 - S - -
                                        from £68.23
                                        from £68.23
                                        # 030
                                        MPN: 163648

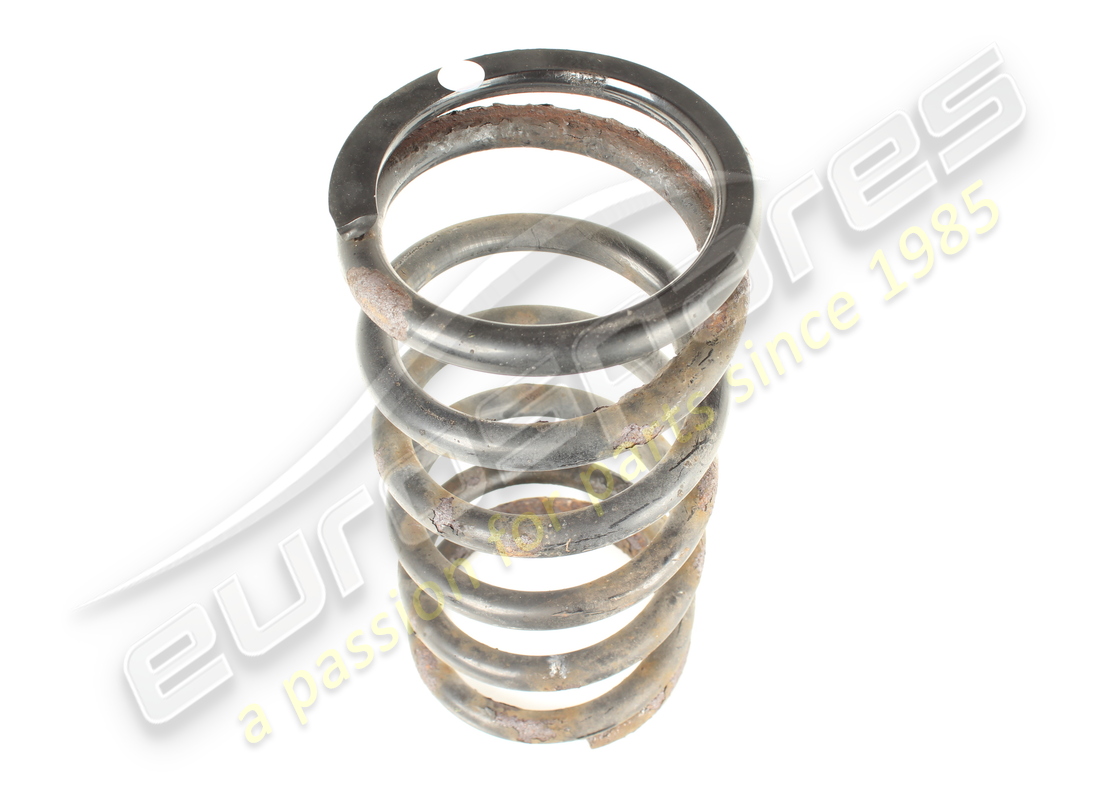

                                        SPRING
                                        Sold in pair Not for cars with handling Fiorano equipment
                                        from £288.60
                                        from £288.60
                                        # 030
                                        MPN: 169985
                                        SPRING
                                        Sold in pair - As an alternative - Not for cars with handling Fiorano equipment
                                        from £287.21
                                        from £287.21
                                        # 030
                                        MPN: 175886
                                        SPRING
                                        - Cagnola - Sold in pair - Valid for cars with handling Fiorano equipment - Optional
                                        from £288.60
                                        from £288.60
                                        # 030
                                        MPN: 208678
                                        SPRING
                                        -Cosmos - Sold in pair - As an alternativa - Valid for cars with handling Fiorano equipment!
                                        from £332.28
                                        from £332.28
