107 - REAR BUMPER

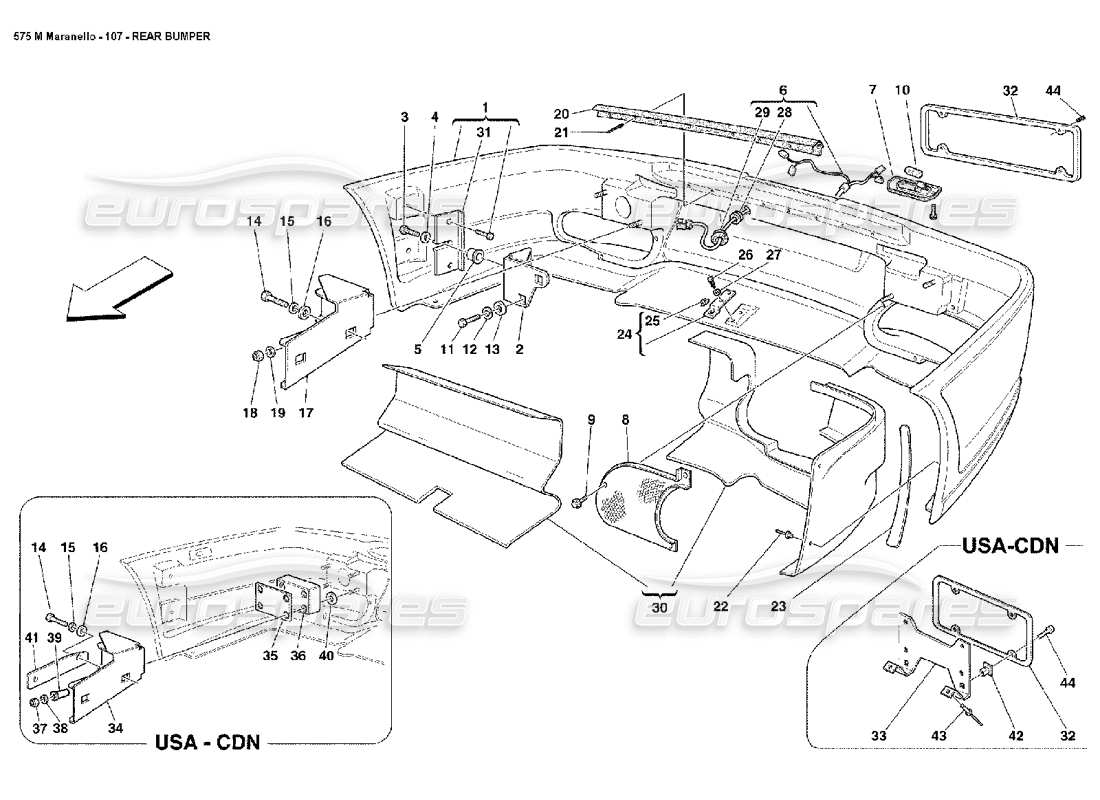

Ferrari 575M Maranello Rear Bumper Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                  #
                                                  Part number
                                                  Description
                                                  Price
                                                  # 001
                                                  MPN: 66169310

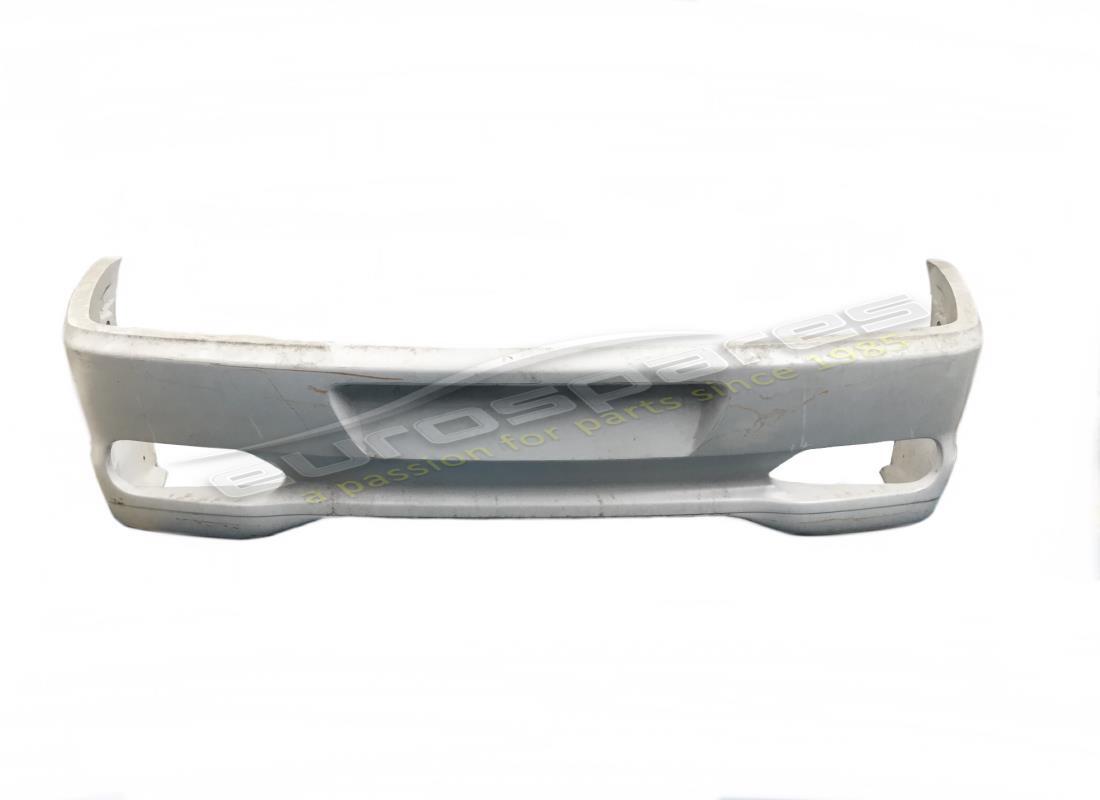

                                                  COMPLETE REAR BUMPER
                                                  - Not for USA and CDN
                                                  from £3,612.00
                                                  from £3,612.00
                                                  This part replaces part number 69273410
                                                  # 001
                                                  MPN: 66403610
                                                  COMPLETE REAR BUMPER
                                                  - Valid for USA
                                                  from £4,682.54
                                                  from £4,682.54
                                                  This part replaces part number 69272710
                                                  # 001
                                                  MPN: 66615310
                                                  COMPLETE REAR BUMPER
                                                  - Valid for CDN
                                                  from £3,952.20
                                                  from £3,952.20
                                                  This part replaces part number 69272910
                                                  # 002
                                                  MPN: 65236000

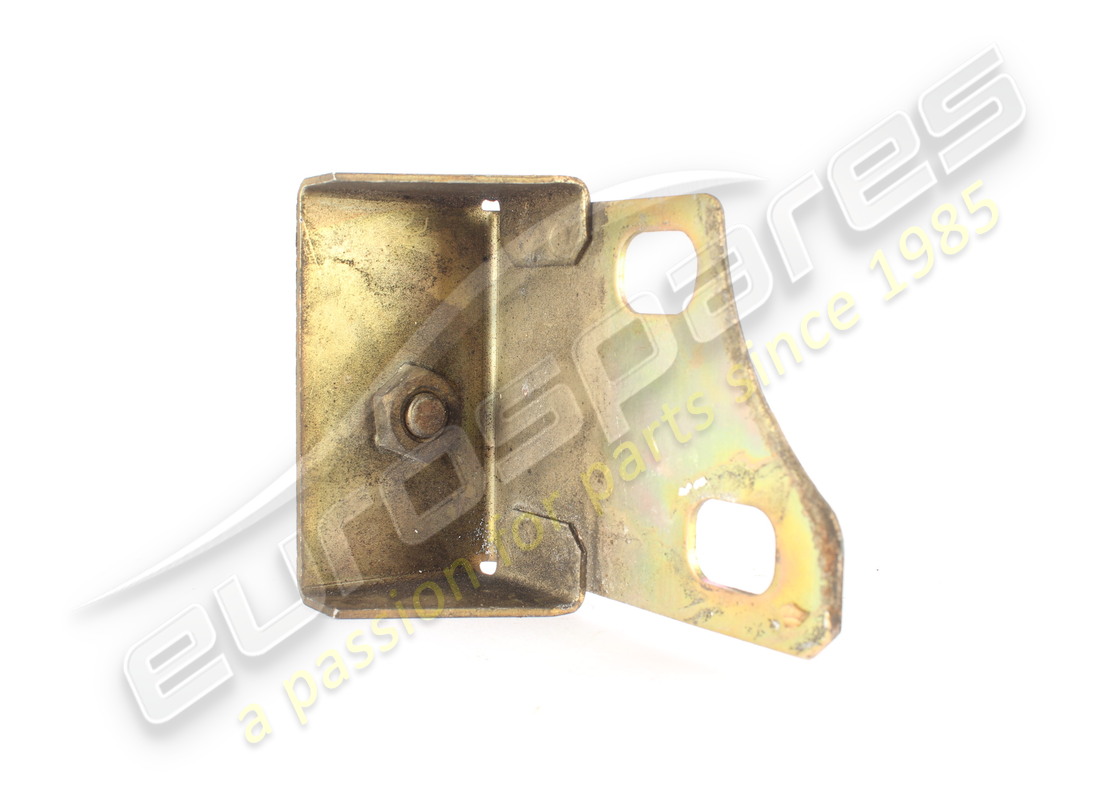

                                                  LH BRACKET
                                                  from £24.23
                                                  from £24.23
                                                  # 002
                                                  MPN: 65236300
                                                  RH BRACKET
                                                  from £24.23
                                                  from £24.23
                                                  # 003
                                                  MPN: 65228800
                                                  PIN
                                                  from £4.97
                                                  from £4.97
                                                  # 004
                                                  MPN: 65406400
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  # 005
                                                  MPN: 65228700
                                                  BUSHING
                                                  from £4.24
                                                  from £4.24
                                                  # 006
                                                  MPN: 174492
                                                  CABLES FOR NUMBER PLATE LIGHTS
                                                  - Not for USA and CDN - Not as spare part - Replaced by 200723
                                                  from £496.27
                                                  from £496.27
                                                  # 006
                                                  MPN: 193648
                                                  CABLES FOR NUMBER PLATE LIGHTS
                                                  - Valid for USA and CDN
                                                  from £74.63
                                                  from £74.63
                                                  # 006
                                                  MPN: 200723
                                                  CABLES FOR NUMBER PLATE LIGHTS
                                                  - Not for USA and CDN
                                                  from £17.09
                                                  from £17.09
                                                  # 007
                                                  MPN: 186180
                                                  NUMBER PLATE LIGHT
                                                  from £23.69
                                                  from £23.69
                                                  This part replaces part number 175204 - and 3 more. Click to view details
                                                  # 007
                                                  MPN: 186180
                                                  NUMBER PLATE LIGHT
                                                  from £23.69
                                                  from £23.69
                                                  This part replaces part number 175204 - and 3 more. Click to view details
                                                  # 008
                                                  MPN: 64717400

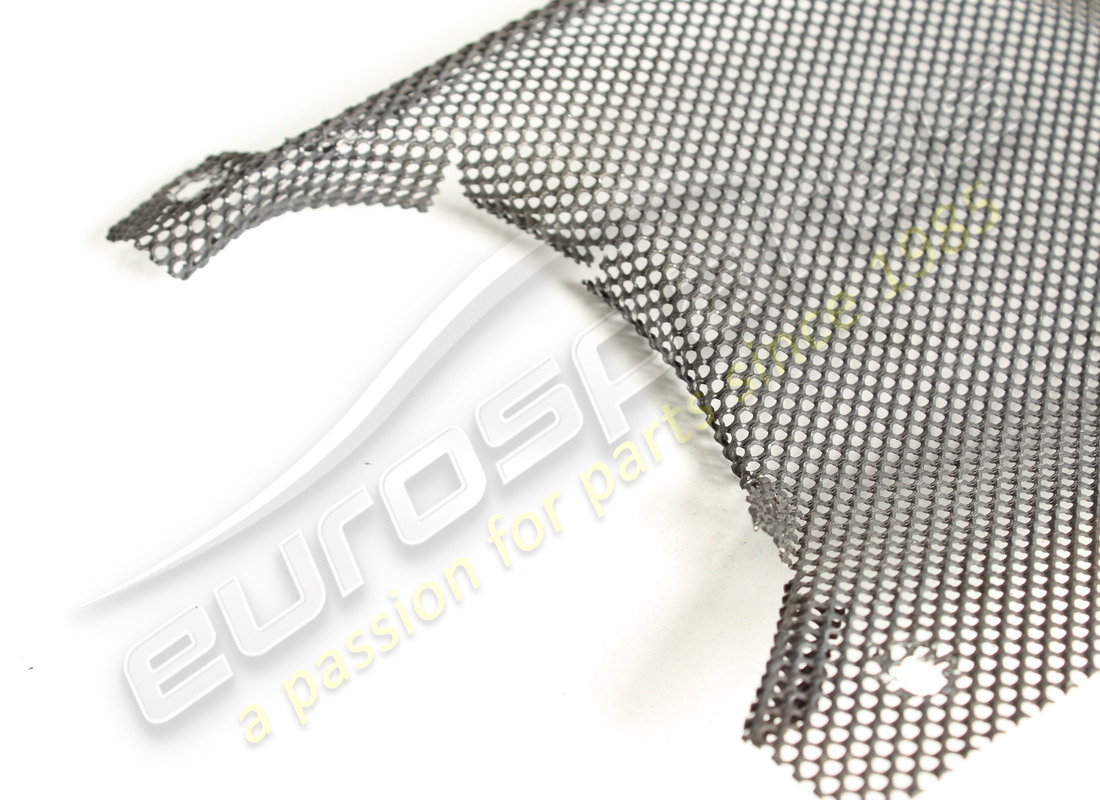

                                                  REAR BUMPER RH GRILL
                                                  from £127.77
                                                  from £127.77
                                                  # 008
                                                  MPN: 64717500
                                                  REAR BUMPER LH GRILL
                                                  from £70.27
                                                  from £70.27
                                                  # 009
                                                  MPN: 16285127
                                                  SCREW
                                                  (minimum order quantity = 10)
                                                  from £0.50
                                                  from £0.50
                                                  # 010
                                                  MPN: 10857790
                                                  12V 5W BULB
                                                  from £1.28
                                                  from £1.28
                                                  This part replaces part number 101524
                                                  # 011
                                                  MPN: 10902224
                                                  SCREW
                                                  from £0.51
                                                  from £0.51
                                                  # 012
                                                  MPN: 12601274
                                                  WASHER
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                  # 013
                                                  MPN: 12643724
                                                  WASHER
                                                  from £0.51
                                                  from £0.51
                                                  This part replaces part number 109684 - and 3 more. Click to view details
                                                  # 014
                                                  MPN: 15540224
                                                  SCREW
                                                  from £0.71
                                                  from £0.71
                                                  # 015
                                                  MPN: 10615874
                                                  WASHER
                                                  from £0.47
                                                  from £0.47
                                                  This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                                                  # 016
                                                  MPN: 12646901
                                                  WASHER
                                                  from £0.71
                                                  from £0.71
                                                  # 017
                                                  MPN: 65045300

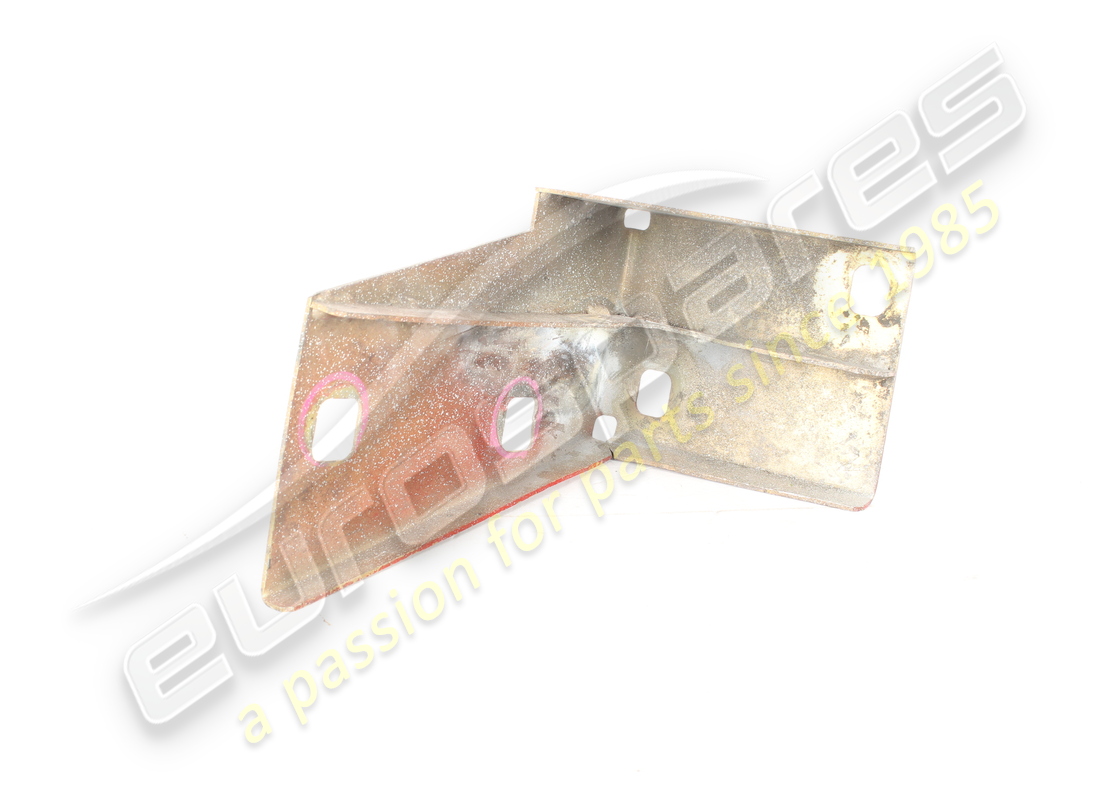

                                                  RH BRACKET
                                                  - Not for USA and CDN
                                                  from £76.45
                                                  from £76.45
                                                  # 017
                                                  MPN: 65045400
                                                  LH BRACKET
                                                  - Not for USA and CDN
                                                  from £76.45
                                                  from £76.45
                                                  # 018
                                                  MPN: 104114
                                                  NUT
                                                  - Not for USA and CDN
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15503711 - and 1 more. Click to view details
                                                  # 019
                                                  MPN: 12646821
                                                  WASHER
                                                  - Not for USA and CDN - (minimum order quantity = 30)
                                                  from £0.53
                                                  from £0.53
                                                  # 020
                                                  MPN: 65109300
                                                  BUMPER GASKET
                                                  from £16.73
                                                  from £16.73
                                                  # 021
                                                  MPN: 60853400
                                                  RIVET
                                                  from £0.87
                                                  from £0.87
                                                  # 022
                                                  MPN: 14296196
                                                  RIVET
                                                  from £0.47
                                                  from £0.47
                                                  # 023
                                                  MPN: 65513800
                                                  LH PROTECTION
                                                  from £13.88
                                                  from £13.88
                                                  This part replaces part number 65363800
                                                  # 023
                                                  MPN: 65513900
                                                  RH PROTECTION
                                                  from £13.88
                                                  from £13.88
                                                  This part replaces part number 65363700
                                                  # 024
                                                  MPN: 65118700
                                                  BRACKET
                                                  from £2.42
                                                  from £2.42
                                                  # 025
                                                  MPN: 60659100
                                                  NUT WITH CAGE
                                                  from £0.64
                                                  from £0.64
                                                  This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                  # 026
                                                  MPN: 10979414
                                                  SCREW
                                                  from £0.47
                                                  from £0.47
                                                  # 027
                                                  MPN: 10519424
                                                  WASHER
                                                  from £0.54
                                                  from £0.54
                                                  This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                  # 028
                                                  MPN: 10398280
                                                  CABLE GROMMET
                                                  from £2.13
                                                  from £2.13
                                                  # 029
                                                  MPN: 163163
                                                  CABLE BUSHING
                                                  from £2.03
                                                  from £2.03
                                                  # 030
                                                  MPN: 65366500

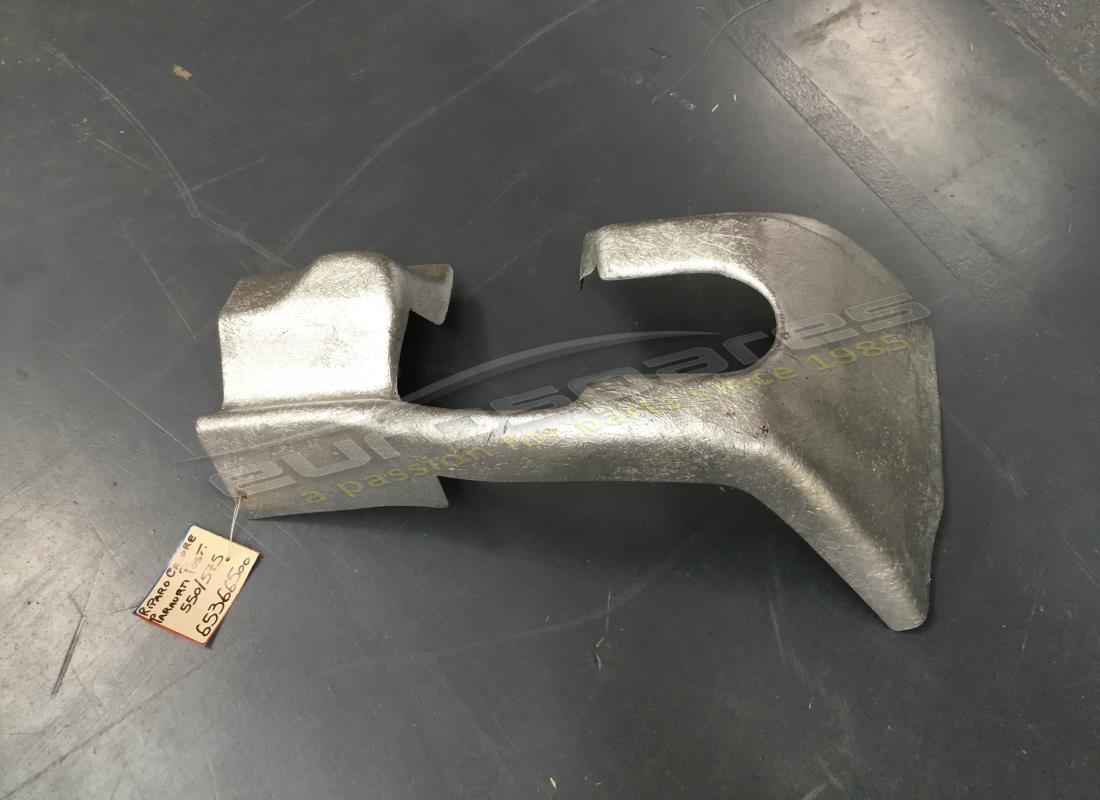

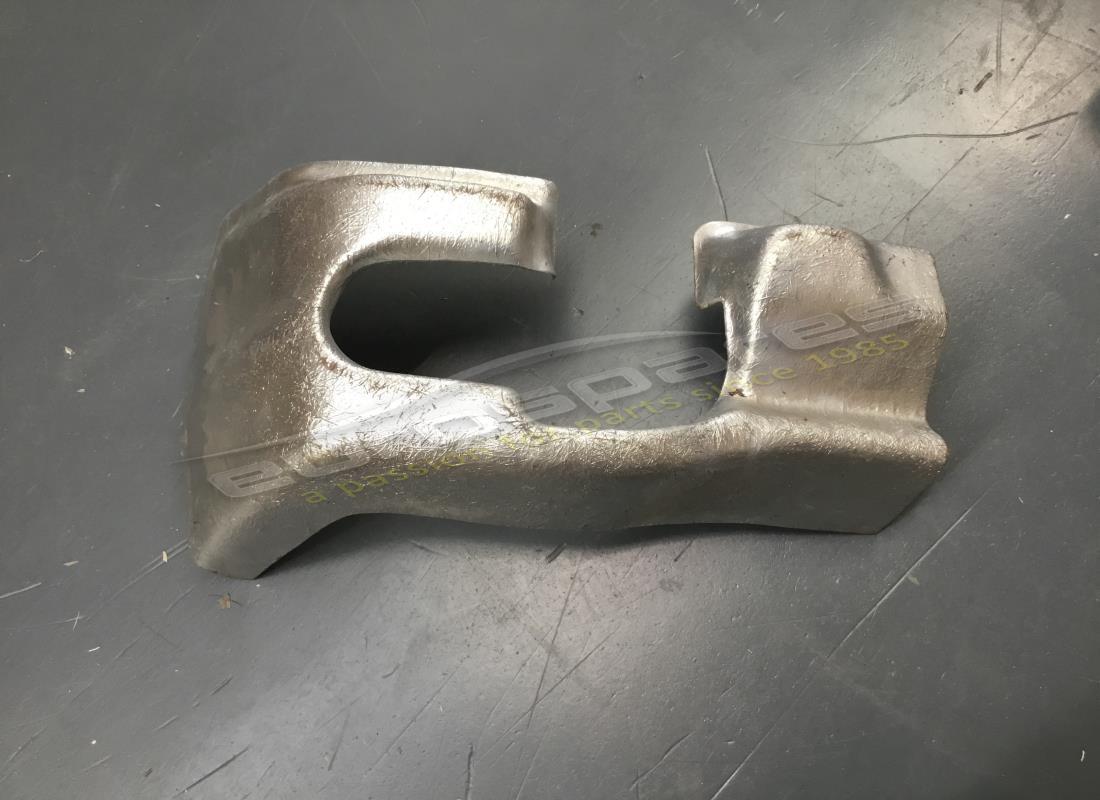

                                                  HEAT PROTECTION SERIES
                                                  - Not for USA and CDN - Not as spare part - Included in complete buper ref.1
                                                  from £1,143.03
                                                  from £1,143.03
                                                  # 030
                                                  MPN: 65366600
                                                  HEAT PROTECTION SERIES
                                                  - Valid for USA and CDN - Not as spare part - Included in complete buper ref.1
                                                  from £628.67
                                                  from £628.67
                                                  # 031
                                                  MPN: 65270200
                                                  SLIDING SIDE BRACKET
                                                  from £124.20
                                                  from £124.20
                                                  # 032
                                                  MPN: 60987900
                                                  REAR NUMBER PLATE RIM
                                                  - Valid for USA and CDN
                                                  from £38.94
                                                  from £38.94
                                                  # 032
                                                  MPN: 65252700
                                                  REAR NUMBER PLATE RIM
                                                  - Not for USA and CDN
                                                  from £23.51
                                                  from £23.51
                                                  # 033
                                                  MPN: 64839300
                                                  REAR PLATE FRAME
                                                  - Valid for USA and CDN
                                                  from £86.88
                                                  from £86.88
                                                  # 033
                                                  MPN: 67127400
                                                  REAR PLATE FRAME
                                                  - Valid for J
                                                  from £65.18
                                                  from £65.18
                                                  # 034
                                                  MPN: 64565000
                                                  RH BRACKET
                                                  - Valid for USA
                                                  from £47.67
                                                  from £47.67
                                                  # 034
                                                  MPN: 64717600
                                                  LH BRACKET
                                                  - Valid for USA
                                                  from £65.45
                                                  from £65.45
                                                  # 034
                                                  MPN: 65380800
                                                  RH BRACKET
                                                  - Valid for CDN
                                                  from £48.00
                                                  from £48.00
                                                  # 034
                                                  MPN: 65380900
                                                  LH BRACKET
                                                  - Valid for CDN
                                                  from £48.00
                                                  from £48.00
                                                  # 035
                                                  MPN: 63738800
                                                  PLATE
                                                  - Valid for USA and CDN
                                                  from £1.35
                                                  from £1.35
                                                  # 036
                                                  MPN: 63214100
                                                  PAD
                                                  - Valid for USA and CDN
                                                  from £14.96
                                                  from £14.96
                                                  # 037
                                                  MPN: 104114
                                                  NUT
                                                  - Valid for USA and CDN
                                                  Supersession
                                                  Supersession
                                                  This part replaces part number 15503711 - and 1 more. Click to view details
                                                  # 038
                                                  MPN: 12646821
                                                  WASHER
                                                  - Valid for USA and CDN - (minimum order quantity = 30)
                                                  from £0.52
                                                  from £0.52
                                                  # 039
                                                  MPN: 65372900
                                                  BUSHING
                                                  - Valid for USA and CDN
                                                  from £2.38
                                                  from £2.38
                                                  # 040
                                                  MPN: 12646821
                                                  WASHER
                                                  - Valid for USA and CDN - (minimum order quantity = 30)
                                                  from £0.52
                                                  from £0.52
                                                  # 041
                                                  MPN: 65280500
                                                  PLATE FIXING BUMPER
                                                  - Valid for USA and CDN
                                                  from £11.66
                                                  from £11.66
                                                  # 042
                                                  MPN: 14201980
                                                  BLOCK
                                                  - Valid for USA and CDN
                                                  from £0.54
                                                  from £0.54
                                                  # 043
                                                  MPN: 14296196
                                                  RIVET
                                                  - Valid for USA and CDN
                                                  from £0.51
                                                  from £0.51
                                                  # 044
                                                  MPN: 14071911
                                                  SCREW
                                                  - M5x12 - Valid for J
                                                  from £0.47
                                                  from £0.47
                                                  # 044
                                                  MPN: 14779611
                                                  SCREW
                                                  - M5x10 - Valid for J
                                                  from £1.82
                                                  from £1.82
                                                  # 044
                                                  MPN: 15688075
                                                  SCREW
                                                  - Not for USA and CDN
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
                                                  # 044
                                                  MPN: 15688175
                                                  SCREW
                                                  - Valid for USA and CDN
                                                  from £0.53
                                                  from £0.53
                                                  This part replaces part number 15688108
