128 - Dashboard Drawer

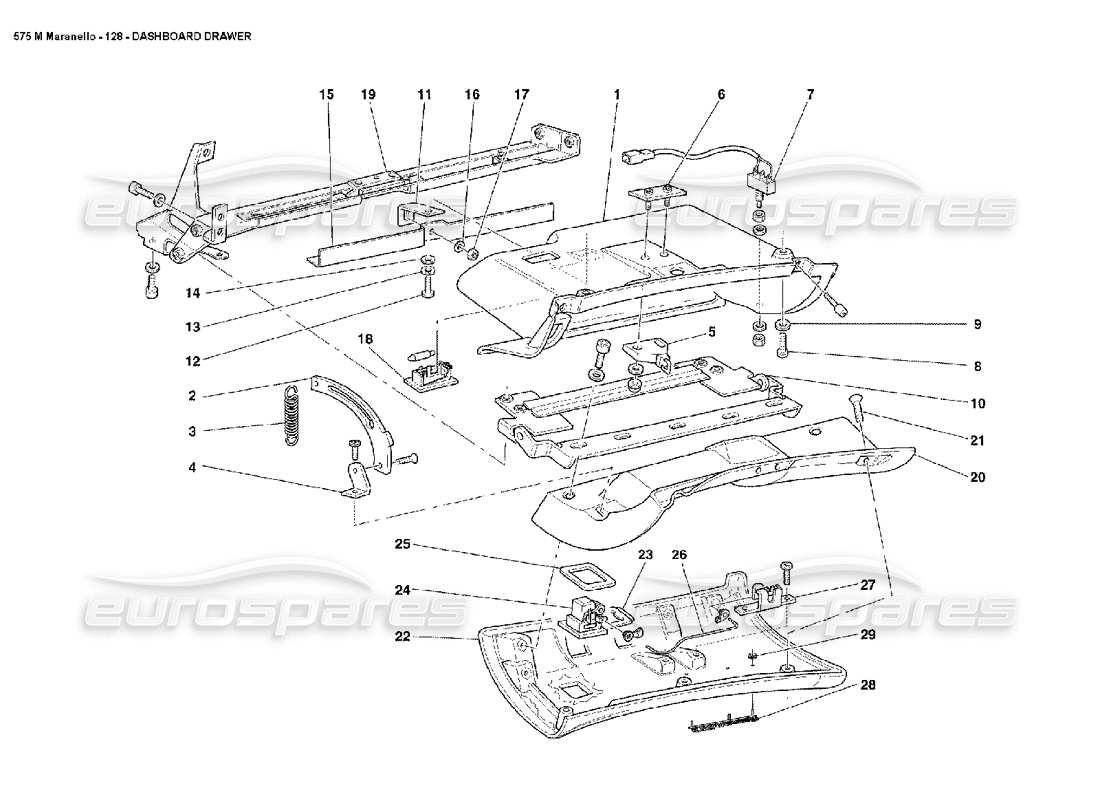

Ferrari 575M Maranello Dashboard Drawer Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                            #
                                            Part number
                                            Description
                                            Price
                                            # 001
                                            MPN: 66283100
                                            Dashboard Drawer
                                            - Valid for cars with passenger air - exclusion - Optional - Not for GD
                                            from £170.59
                                            from £170.59
                                            # 001
                                            MPN: 66617500
                                            Dashboard Drawer
                                            - Not for GD
                                            from £306.81
                                            from £306.81
                                            # 001
                                            MPN: 66632200
                                            Dashboard Drawer
                                            - Valid for cars with passenger air - exclusion - Valid for GD
                                            from £868.32
                                            from £868.32
                                            # 001
                                            MPN: 66638600
                                            Dashboard Drawer
                                            - Vale for GD
                                            from £200.33
                                            from £200.33
                                            This part replaces part number 66638700 - and 1 more. Click to view details
                                            # 002
                                            MPN: 63765700
                                            LEVER
                                            from £8.56
                                            from £8.56
                                            # 003
                                            MPN: 63876700
                                            DOOR SPRING
                                            from £3.54
                                            from £3.54
                                            # 004
                                            MPN: 64580800
                                            BRACKET
                                            - Not for GD
                                            from £46.29
                                            from £46.29
                                            # 004
                                            MPN: 65024600
                                            BRACKET
                                            - Valid for GD
                                            from £26.52
                                            from £26.52
                                            # 005
                                            MPN: 65258900
                                            STRIKER
                                            from £29.94
                                            from £29.94
                                            # 006
                                            MPN: 63765300
                                            STRIKER FIXING PLATE
                                            - SWITCH WITH CABLE
                                            from £2.60
                                            from £2.60
                                            # 007
                                            MPN: 184403
                                            MICRO
                                            from £35.46
                                            from £35.46
                                            # 008
                                            MPN: 13275977
                                            SCREW
                                            from £1.05
                                            from £1.05
                                            # 009
                                            MPN: 10519478
                                            WASHER
                                            from £1.08
                                            from £1.08
                                            This part replaces part number 14496478
                                            # 010
                                            MPN: 65026800
                                            BOX HINGE
                                            - Valid for GD
                                            from £112.83
                                            from £112.83
                                            # 010
                                            MPN: 66839700
                                            BOX HINGE
                                            - Not for GD
                                            from £69.89
                                            from £69.89
                                            # 011
                                            MPN: 65115900
                                            BRACKET
                                            from £6.26
                                            from £6.26
                                            # 012
                                            MPN: 13272272
                                            SCREW
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 13272216
                                            # 013
                                            MPN: 12599076
                                            WASHER
                                            # 014
                                            MPN: 12643724
                                            WASHER
                                            from £0.53
                                            from £0.53
                                            This part replaces part number 109684 - and 4 more. Click to view details
                                            # 015
                                            MPN: 65366000
                                            ANGLE PIECE
                                            from £9.19
                                            from £9.19
                                            # 016
                                            MPN: 12638178
                                            WASHER
                                            from £0.47
                                            from £0.47
                                            This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
                                            # 017
                                            MPN: 113647
                                            NUT
                                            from £0.54
                                            from £0.54
                                            # 018
                                            MPN: 139517
                                            ROOF LIGHT
                                            from £7.52
                                            from £7.52
                                            # 019
                                            MPN: 66831800
                                            RH SIDE BRACKET
                                            - Valid for GD
                                            from £175.70
                                            from £175.70
                                            # 019
                                            MPN: 66839400
                                            LH SIDE BRACKET
                                            - Not for GD
                                            from £127.95
                                            from £127.95
                                            # 020
                                            MPN: 65024900
                                            Door Frame
                                            - Valid for GD
                                            from £64.20
                                            from £64.20
                                            # 020
                                            MPN: 67292300
                                            Door Frame
                                            - Not for GD
                                            from £85.90
                                            from £85.90
                                            # 021
                                            MPN: 65212000
                                            SCREW
                                            from £0.77
                                            from £0.77
                                            # 022
                                            MPN: 671252..
                                            GLOVE BOX SHUTTER
                                            - Not for GD
                                            from £143.85
                                            from £143.85
                                            # 022
                                            MPN: 671257..
                                            GLOVE BOX SHUTTER
                                            - Valid for GD
                                            from £143.85
                                            from £143.85
                                            # 023
                                            MPN: 63769000
                                            FORK
                                            from £3.54
                                            from £3.54
                                            # 024
                                            MPN: 64926500
                                            PUSH BUTTON
                                            from £84.00
                                            from £84.00
                                            # 025
                                            MPN: 63768900
                                            PLATE
                                            from £0.42
                                            from £0.42
                                            # 026
                                            MPN: 64653900
                                            TIE ROD
                                            - Not for GD
                                            from £7.77
                                            from £7.77
                                            # 026
                                            MPN: 65166800
                                            TIE ROD
                                            - Valid for GD
                                            from £16.53
                                            from £16.53
                                            # 027
                                            MPN: 63768800
                                            GLOVE BOX LOCK
                                            from £135.05
                                            from £135.05
                                            # 028
                                            MPN: 66284000

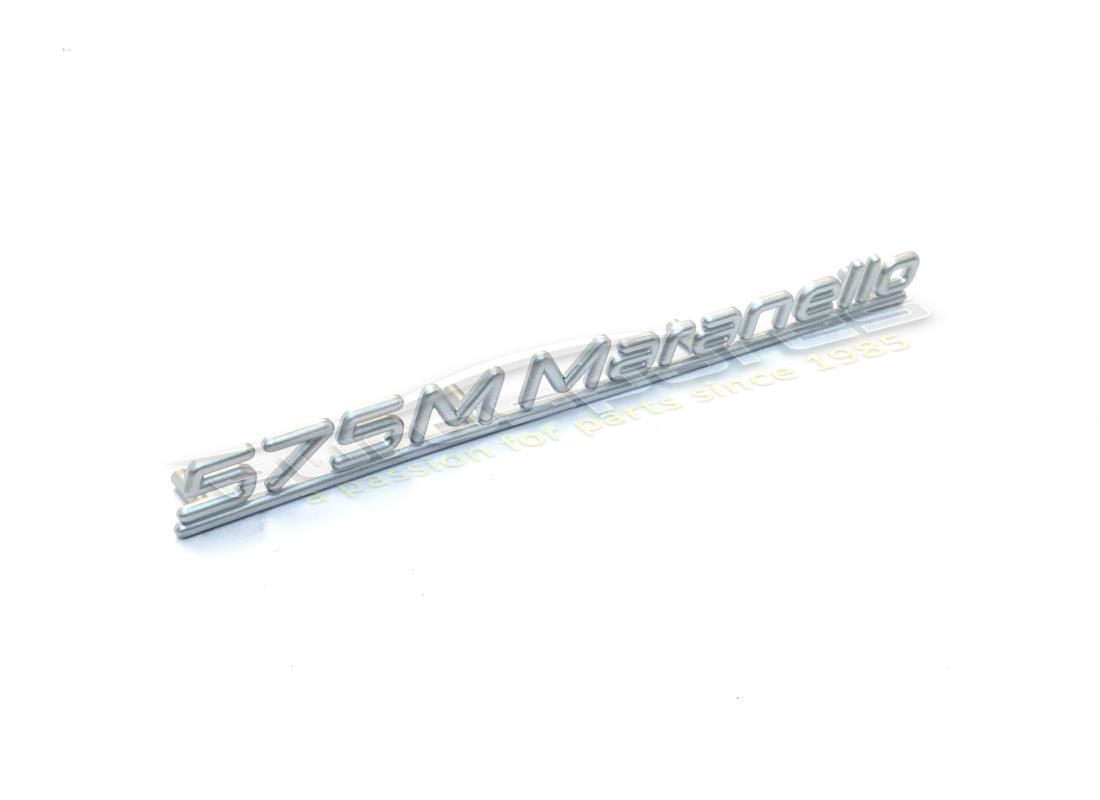

                                            575MMARANELLO MARK
                                            from £71.42
                                            from £71.42
                                            # 029
                                            MPN: 65993800
                                            CLIP
                                            from £0.52
                                            from £0.52
