140 - Windscreen Wiper, Windscreen Washer and Horns

Ferrari 575M Maranello Windscreen Wiper, Windscreen Washer and Horns Parts Diagram

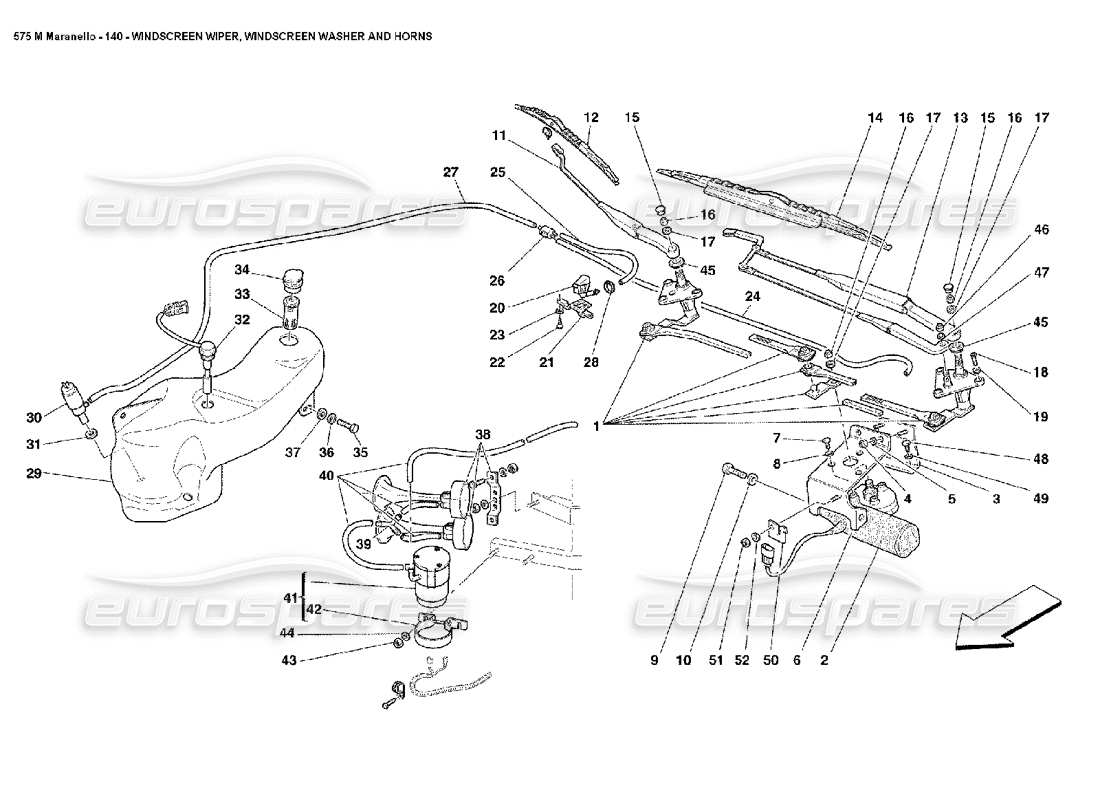

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                  #
                                                                                  Part number
                                                                                  Description
                                                                                  Price
                                                                                  # 001
                                                                                  MPN: 65081300

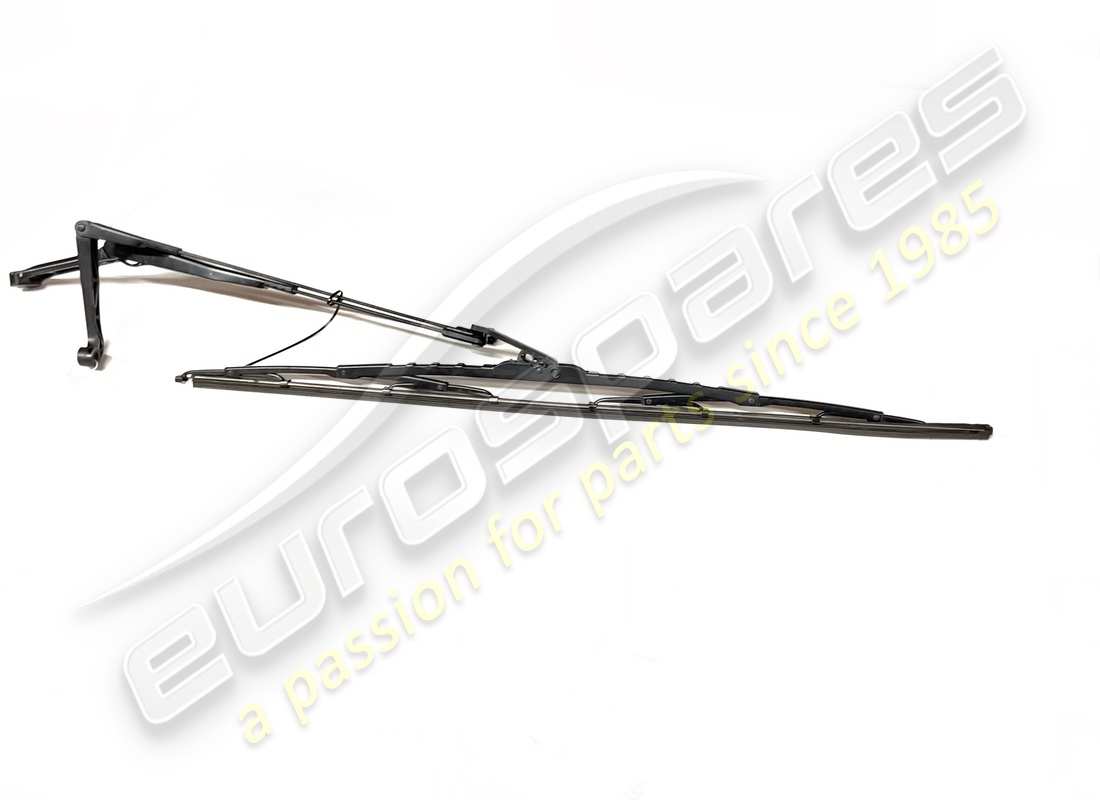

                                                                                  COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                  - Not for GD
                                                                                  from £317.77
                                                                                  from £317.77
                                                                                  # 001
                                                                                  MPN: 65202600
                                                                                  COMPLETE WINDSHIELD WIPER LEVERAGE
                                                                                  - Valid for GD
                                                                                  from £510.21
                                                                                  from £510.21
                                                                                  # 002
                                                                                  MPN: 63780200
                                                                                  LHD WINDSHIELD WIPER MOTOR
                                                                                  - Not for GD
                                                                                  from £293.08
                                                                                  from £293.08
                                                                                  # 002
                                                                                  MPN: 64275500
                                                                                  WINDSHIELD WIPER MOTOR
                                                                                  - Valid for GD
                                                                                  from £173.42
                                                                                  from £173.42
                                                                                  # 003
                                                                                  MPN: 63878800

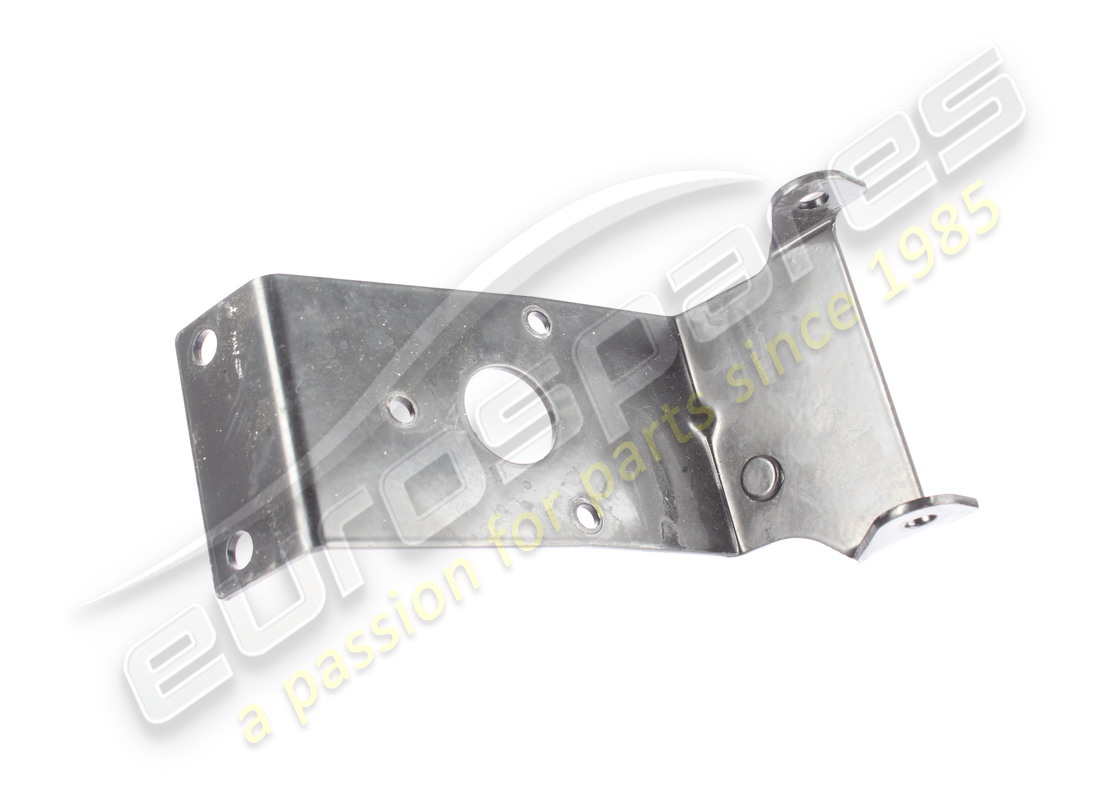

                                                                                  WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                  - Not for GD
                                                                                  from £42.00
                                                                                  from £42.00
                                                                                  # 003
                                                                                  MPN: 65206000
                                                                                  WINDSHIELD WIPER MOTOR REAR BRACKET
                                                                                  - Valid for GD
                                                                                  from £282.95
                                                                                  from £282.95
                                                                                  # 004
                                                                                  MPN: 104030
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 16104125
                                                                                  # 005
                                                                                  MPN: 14499401
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  # 006
                                                                                  MPN: 65098800
                                                                                  WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                  - Not for GD
                                                                                  from £36.97
                                                                                  from £36.97
                                                                                  # 006
                                                                                  MPN: 65454400
                                                                                  WINDSHIELD WIPER MOTOR FRONT BRACKET
                                                                                  - Valid for GD
                                                                                  from £68.45
                                                                                  from £68.45
                                                                                  # 007
                                                                                  MPN: 10902224
                                                                                  SCREW
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  # 008
                                                                                  MPN: 127494
                                                                                  WASHER
                                                                                  (minimum order quantity = 20)
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                  # 009
                                                                                  MPN: 16043324
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 16043321
                                                                                  # 010
                                                                                  MPN: 127496
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                  # 011
                                                                                  MPN: 65081400

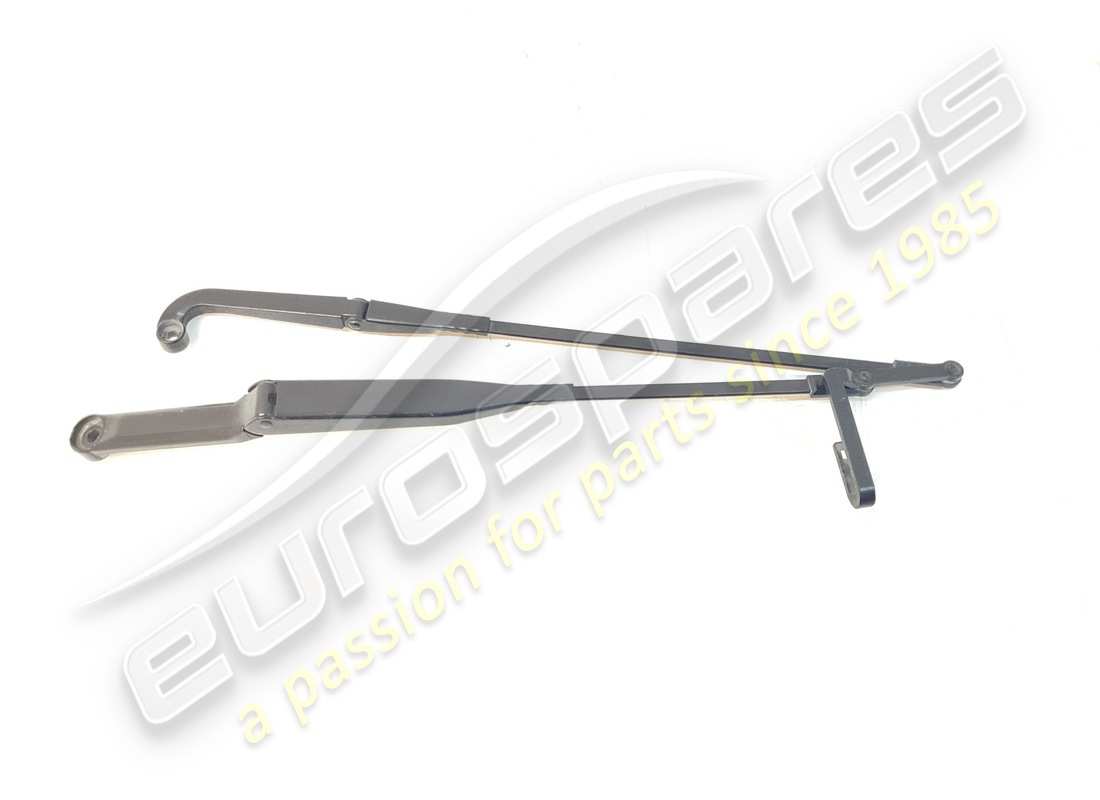

                                                                                  PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                  - Not for GD
                                                                                  from £86.37
                                                                                  from £86.37
                                                                                  # 011
                                                                                  MPN: 65202800
                                                                                  PASSENGER SIDE WINDSHIELD WIPER ARM
                                                                                  - Valid for GD
                                                                                  from £187.69
                                                                                  from £187.69
                                                                                  # 012
                                                                                  MPN: 65081600

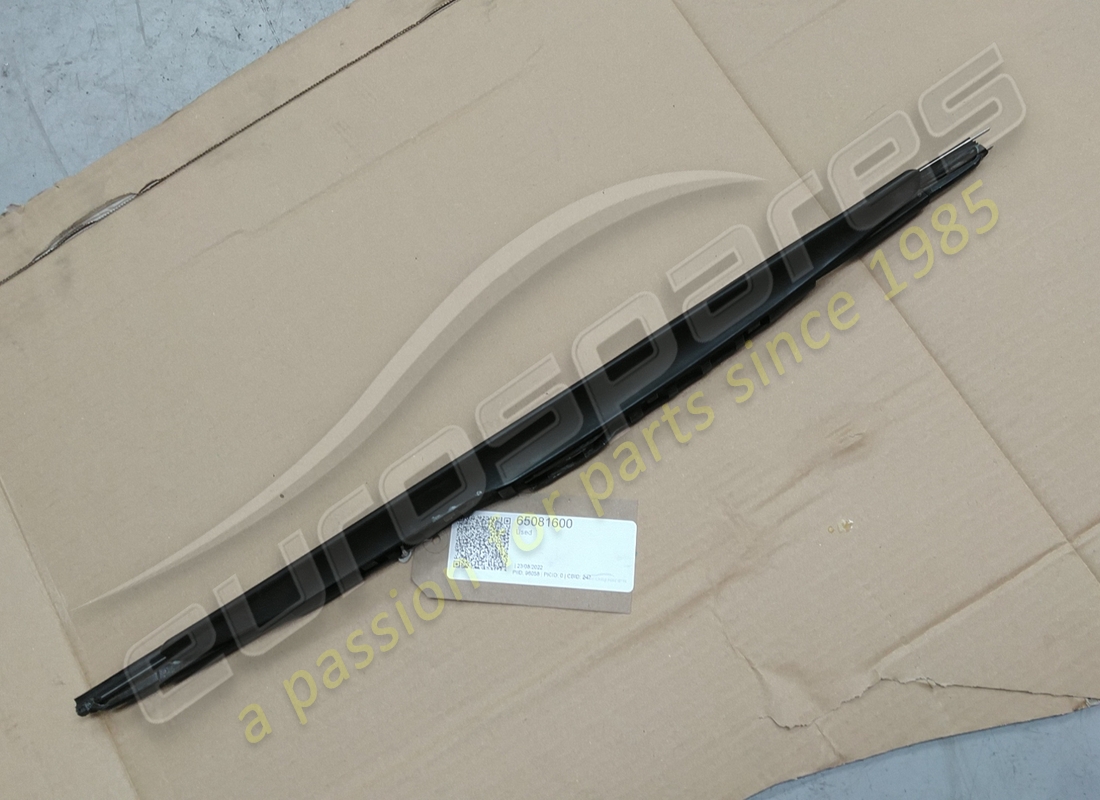

                                                                                  PASSENGER SIDE WIPER BRUSH
                                                                                  from £62.73
                                                                                  from £62.73
                                                                                  This part replaces part number 63756100 - and 1 more. Click to view details
                                                                                  # 013
                                                                                  MPN: 65081500
                                                                                  DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                  - Not for GD
                                                                                  from £232.81
                                                                                  from £232.81
                                                                                  # 013
                                                                                  MPN: 65202700
                                                                                  DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                  - Valid for GD - Not as spare part for GB
                                                                                  from £463.35
                                                                                  from £463.35
                                                                                  # 013
                                                                                  MPN: 65849400
                                                                                  DRIVER SIDE WINDSHIELD WIPER ARM
                                                                                  - Valid for GB
                                                                                  from £249.27
                                                                                  from £249.27
                                                                                  # 015
                                                                                  MPN: 65081700
                                                                                  SMALL COVER
                                                                                  - Valid for GD
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 015
                                                                                  MPN: 65190900
                                                                                  SMALL COVER
                                                                                  - Not for GD
                                                                                  from £0.71
                                                                                  from £0.71
                                                                                  # 016
                                                                                  MPN: 147985
                                                                                  NUT
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 017
                                                                                  MPN: 12601374
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                  # 018
                                                                                  MPN: 13312970
                                                                                  SCREW
                                                                                  from £0.50
                                                                                  from £0.50
                                                                                  # 019
                                                                                  MPN: 62794700
                                                                                  WASHER
                                                                                  from £0.69
                                                                                  from £0.69
                                                                                  # 020
                                                                                  MPN: 65191000
                                                                                  JET FOR WINDOW WASHING
                                                                                  from £1.03
                                                                                  from £1.03
                                                                                  This part replaces part number 80131500 - and 3 more. Click to view details
                                                                                  # 021
                                                                                  MPN: 65191700

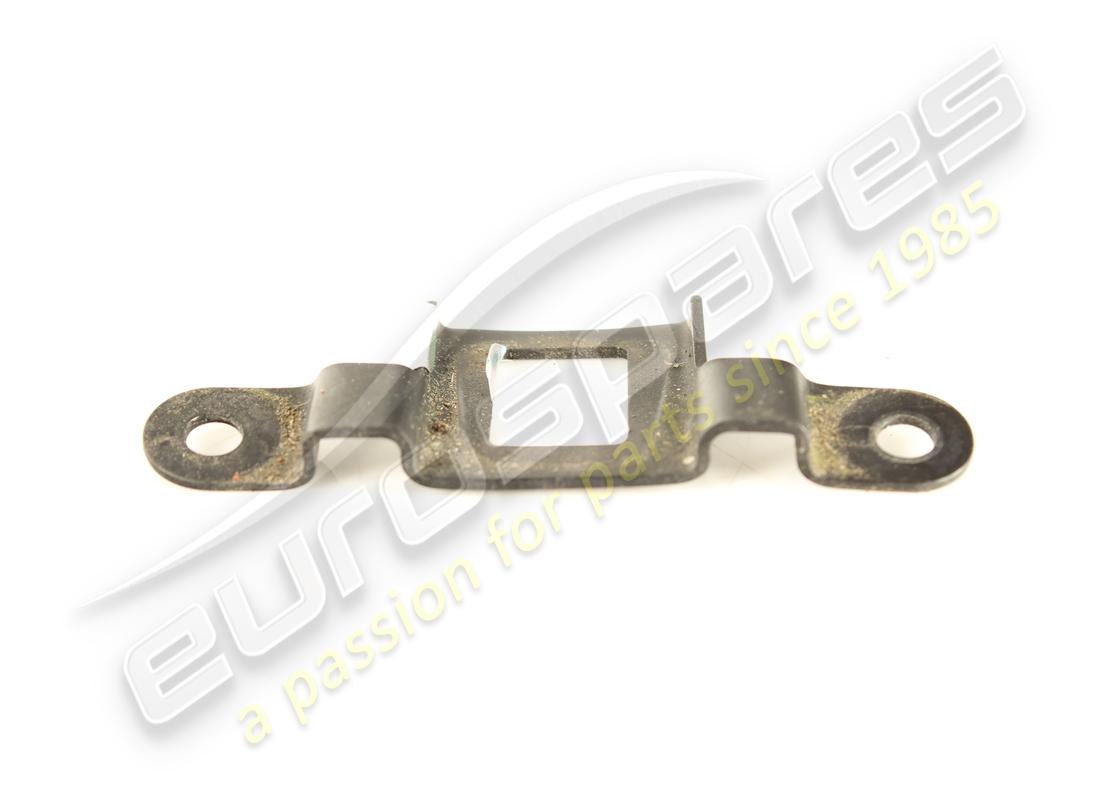

                                                                                  BRACKET
                                                                                  from £3.93
                                                                                  from £3.93
                                                                                  # 022
                                                                                  MPN: 15957077
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 023
                                                                                  MPN: 10519278
                                                                                  WASHER
                                                                                  from £0.48
                                                                                  from £0.48
                                                                                  This part replaces part number 10519206 - and 1 more. Click to view details
                                                                                  # 024
                                                                                  MPN: 65191400
                                                                                  PIPE FROM VALVE TO LH JET
                                                                                  from £3.39
                                                                                  from £3.39
                                                                                  # 025
                                                                                  MPN: 65191500
                                                                                  PIPE FROM VALVE TO RH JET
                                                                                  from £3.30
                                                                                  from £3.30
                                                                                  # 026
                                                                                  MPN: 61648100
                                                                                  NONRETURN VALVE
                                                                                  from £16.32
                                                                                  from £16.32
                                                                                  # 027
                                                                                  MPN: 65191600
                                                                                  PIPE FROM PUMP TO VALVE
                                                                                  from £1.69
                                                                                  from £1.69
                                                                                  # 028
                                                                                  MPN: 157990
                                                                                  SCREW COLLAR
                                                                                  from £1.02
                                                                                  from £1.02
                                                                                  This part replaces part number 12179090
                                                                                  # 029
                                                                                  MPN: 66285600
                                                                                  WINDSHIELD WIPER AND HEAD LIGHT WASHER CONTAINER
                                                                                  - Not for USA and CDN
                                                                                  from £205.44
                                                                                  from £205.44
                                                                                  # 029
                                                                                  MPN: 66533600
                                                                                  WINDSHIELD WIPER CONTAINER
                                                                                  - Valid for USA and CDN
                                                                                  from £350.30
                                                                                  from £350.30
                                                                                  # 030
                                                                                  MPN: 65358700
                                                                                  WIPER PUMP
                                                                                  from £20.25
                                                                                  from £20.25
                                                                                  # 031
                                                                                  MPN: 66645000
                                                                                  GASKET
                                                                                  from £3.93
                                                                                  from £3.93
                                                                                  # 033
                                                                                  MPN: 66645100
                                                                                  FILTER
                                                                                  from £5.50
                                                                                  from £5.50
                                                                                  # 034
                                                                                  MPN: 65374000
                                                                                  PLUG FOR LIQUID
                                                                                  from £5.10
                                                                                  from £5.10
                                                                                  # 035
                                                                                  MPN: 10902324
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                  # 036
                                                                                  MPN: 12640624
                                                                                  WASHER
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 12640601 - and 1 more. Click to view details
                                                                                  # 037
                                                                                  MPN: 127494
                                                                                  WASHER
                                                                                  (minimum order quantity = 20)
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                  # 038
                                                                                  MPN: 189428
                                                                                  ELECTRO
                                                                                  from £33.58
                                                                                  from £33.58
                                                                                  This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
                                                                                  # 039
                                                                                  MPN: 60741100
                                                                                  3-WAY UNION
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 61741100
                                                                                  # 040
                                                                                  MPN: 183273
                                                                                  PIPE FOR COMPRESSOR
                                                                                  - COMPRESSOR
                                                                                  from £11.99
                                                                                  from £11.99
                                                                                  # 041
                                                                                  MPN: 225757
                                                                                  ELECTRO
                                                                                  from £134.90
                                                                                  from £134.90
                                                                                  This part replaces part number 139920
                                                                                  # 042
                                                                                  MPN: 60741200
                                                                                  BRACKET
                                                                                  from £0.70
                                                                                  from £0.70
                                                                                  # 043
                                                                                  MPN: 102741
                                                                                  NUT
                                                                                  from £0.52
                                                                                  from £0.52
                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                  # 044
                                                                                  MPN: 12644424
                                                                                  WASHER
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                  # 045
                                                                                  MPN: 65504100
                                                                                  GASKET
                                                                                  from £1.33
                                                                                  from £1.33
                                                                                  # 046
                                                                                  MPN: 15896472
                                                                                  NUT
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 15896416 which we have in stock
                                                                                  # 047
                                                                                  MPN: 12601176
                                                                                  WASHER
                                                                                  Supersession
                                                                                  Supersession
                                                                                  # 048
                                                                                  MPN: 10902224
                                                                                  SCREW
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  # 049
                                                                                  MPN: 127494
                                                                                  WASHER
                                                                                  (minimum order quantity = 20)
                                                                                  from £0.53
                                                                                  from £0.53
                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                  # 050
                                                                                  MPN: 156198
                                                                                  CLIP
                                                                                  from £10.41
                                                                                  from £10.41
                                                                                  # 051
                                                                                  MPN: 113647
                                                                                  NUT
                                                                                  from £0.54
                                                                                  from £0.54
                                                                                  # 052
                                                                                  MPN: 12637824
                                                                                  WASHER
                                                                                  from £0.47
                                                                                  from £0.47
                                                                                  This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
