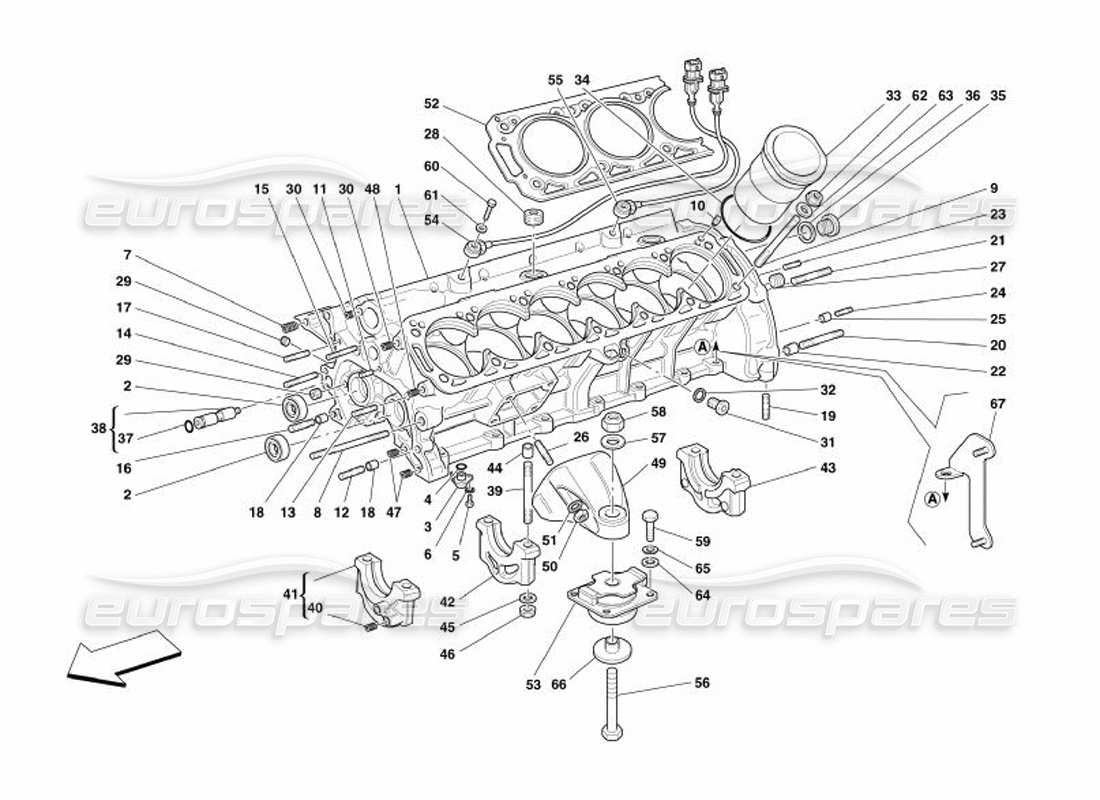

Ferrari 575 Superamerica Crankcase Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 221080
COMPLETE CRANKCASE
# 001
MPN: 204254
ENGINE BASE-PLATE
With the complete crankcase
# 002
MPN: 171177
BEARING
from £10.01
from £10.01
This part replaces part number 144713
# 003
MPN: 170749
PISTONS COOLING NOZZLE
Supersession
Supersession
# 004
MPN: 143856
O.R. GASKET
from £0.47
from £0.47
# 005
MPN: 14303021
SCREW
from £1.08
from £1.08
# 006
MPN: 12601074
WASHER
from £0.52
from £0.52
This part replaces part number 12601070 which we have in stock
# 007
MPN: 13526170
THREADED INSERT
from £2.39
from £2.39
This part replaces part number 105197
# 008
MPN: 13972234
STUD
from £2.97
from £2.97
# 009
MPN: 140591
STUD
from £33.88
from £33.88
# 010
MPN: 163121
DOWEL
from £1.92
from £1.92
# 011
MPN: 13541224
STUD
from £34.93
from £34.93
This part replaces part number 13541221
# 012
MPN: 13543924
STUD
from £0.92
from £0.92
This part replaces part number 13543921 which we have in stock
# 013
MPN: 13543524
STUD
from £2.01
from £2.01
This part replaces part number 13543521
# 014
MPN: 13541924
STUD
from £0.83
from £0.83
This part replaces part number 13541921
# 015
MPN: 13541724
STUD
from £1.55
from £1.55
This part replaces part number 13541721
# 016
MPN: 13543424
STUD
from £1.08
from £1.08
This part replaces part number 13543421
# 017
MPN: 13543824
STUD
from £2.26
from £2.26
This part replaces part number 13543821
# 018
MPN: 100041
DOWEL
from £4.66
from £4.66
# 019
MPN: 13517224
STUD
from £2.08
from £2.08
This part replaces part number 13517221
# 020
MPN: 13543924
STUD
from £0.89
from £0.89
This part replaces part number 13543921 which we have in stock
# 021
MPN: 13543824
STUD
from £2.14
from £2.14
This part replaces part number 13543821
# 022
MPN: 102704
DOWEL
from £1.77
from £1.77
This part replaces part number 500805
# 023
MPN: 13541024
STUD
from £0.47
from £0.47
This part replaces part number 13541021
# 024
MPN: 13541224
STUD
from £34.93
from £34.93
This part replaces part number 13541221
# 025
MPN: 103038
DOWEL
from £0.76
from £0.76
# 026
MPN: 13546524
STUD
from £0.67
from £0.67
This part replaces part number 13546521
# 027
MPN: 163528
THREADED PLUG
from £2.39
from £2.39
This part replaces part number 10268450 - and 1 more. Click to view details
# 028
MPN: 14325540
THREADED PLUG
from £4.17
from £4.17
# 029
MPN: 10275550
THREADED PLUG
from £0.78
from £0.78
# 030
MPN: 13525870
THREADED INSERT
from £1.85
from £1.85
This part replaces part number 105510
# 031
MPN: 200988
THREADED PLUG
from £5.03
from £5.03
# 032
MPN: 10280060
GASKET
from £0.53
from £0.53
This part replaces part number 100501 - and 3 more. Click to view details
# 033
MPN: 180387
CYLINDER LINER
from £449.83
from £449.83
# 034
MPN: 140321
GASKET
from £5.57
from £5.57
# 035
MPN: 10304640
THREADED PLUG
from £3.36
from £3.36
# 036
MPN: 10264560
GASKET
from £0.53
from £0.53
# 037
MPN: 134232
O.R. GASKET
from £0.65
from £0.65
This part replaces part number 153718 which we have in stock
# 038
MPN: 151160
OIL PRESSURE RELIEF VALVE
from £140.87
from £140.87
# 039
MPN: 180263
STUD
from £3.26
from £3.26
# 040
MPN: 13525770
THREADED INSERT
from £1.55
from £1.55
This part replaces part number 103830
# 041
MPN: 185302
FRONT CAP
With complete crankcase
# 042
MPN: 185303
INTERMEDIATE CAP
With complete crankcase
# 043
MPN: 185304
REAR CAP
With complete crankcase
# 044
MPN: 125317
DOWEL
from £0.76
from £0.76
# 045
MPN: 103842
WASHER
Supersession
Supersession
# 046
MPN: 103841
NUT
Supersession
Supersession
This part replaces part number 4146542
# 047
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 048
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 049
MPN: 141892
ENGINE FIXING SUPPORT
from £79.11
from £79.11
# 050
MPN: 133988
NUT
from £0.47
from £0.47
This part replaces part number 12164711 - and 2 more. Click to view details
# 051
MPN: 11190574
WASHER
from £0.47
from £0.47
This part replaces part number 14499504
# 052
MPN: 204528
GASKET
from £155.65
from £155.65
This part replaces part number 185558
# 053
MPN: 192022
SUPPORT MOUNTS
from £125.00
from £125.00
This part replaces part number 187666
# 054
MPN: 181809
SENSOR FOR FIRING
L=650
from £36.48
from £36.48
# 055
MPN: 182266
SENSOR FOR FIRING
L=400
from £40.93
from £40.93
# 056
MPN: 15981634
SCREW
from £21.06
from £21.06
This part replaces part number 154811 - and 1 more. Click to view details
# 057
MPN: 12601774
WASHER
from £0.71
from £0.71
This part replaces part number 12601779
# 058
MPN: 176573
NUT
from £1.08
from £1.08
This part replaces part number 158307
# 059
MPN: 15970634
SCREW
from £1.55
from £1.55
# 060
MPN: 16043834
SCREW
from £0.51
from £0.51
This part replaces part number 16043824
# 061
MPN: 11198074
WASHER
from £0.53
from £0.53
This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
# 062
MPN: 140664
NUT
from £31.49
from £31.49
# 063
MPN: 140603
WASHER
from £4.40
from £4.40
# 064
MPN: 14496624
WASHER
from £0.51
from £0.51
This part replaces part number 14496601 - and 2 more. Click to view details
# 065
MPN: 127497
WASHER
from £0.53
from £0.53
This part replaces part number 10516871 - and 2 more. Click to view details
# 066
MPN: 204086
RETAINING WASHER
from £21.32
from £21.32
# 067
MPN: 212777
INJECTION CABLE SSUPPORTING
from £19.59
from £19.59
This part replaces part number 169136
