003 - driving shaft - connecting rods and pistons

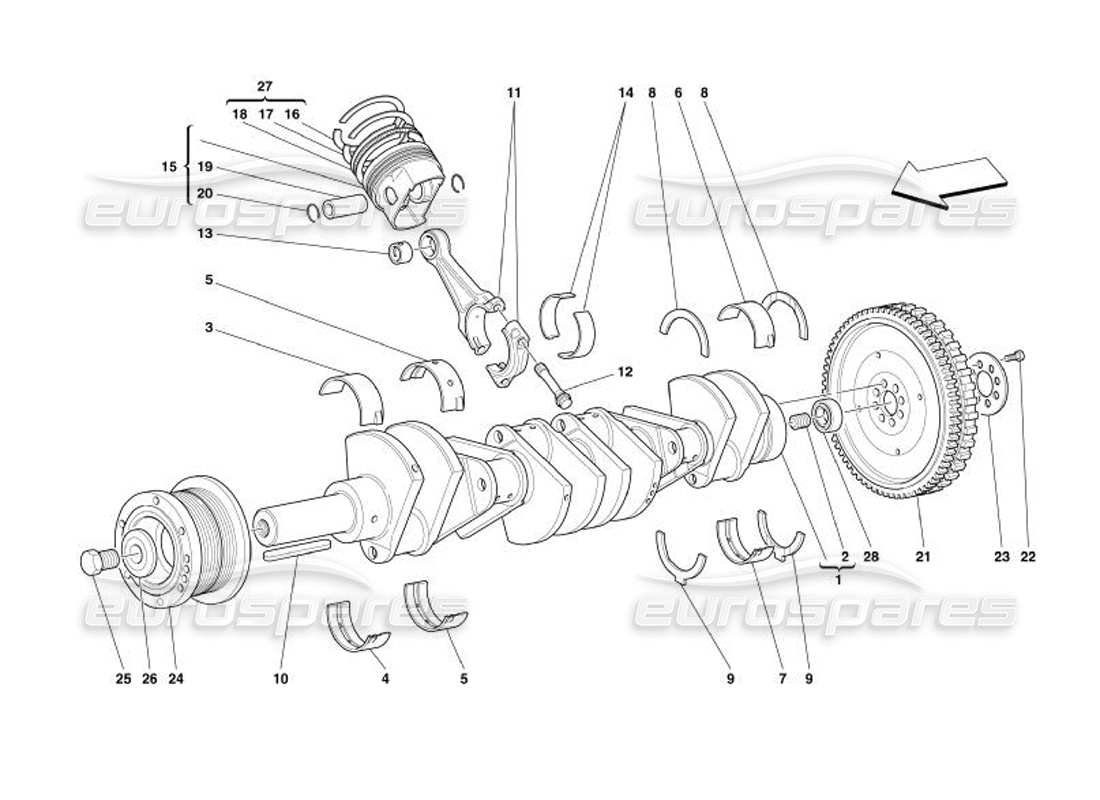

Ferrari 575 Superamerica Driving Shaft - Connecting Rods and Pistons Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 182735
crankshaft
from £1,859.85
from £1,859.85
# 002
MPN: 176396
THREADED PLUG
from £3.36
from £3.36
# 003
-
UPPER FRONT HALF BEARING
# 003
MPN: 173485
HALF-BEARINGS COMPLETE SERIES
1 st UNDERSIZE mm. 0,254
from £1,167.16
from £1,167.16
# 003
MPN: 173486
HALF-BEARINGS COMPLETE SERIES
2 nd UNDERSIZE mm. 0,508
from £1,167.16
from £1,167.16
# 003
MPN: 194251
HALF-BEARINGS COMPLETE SERIES
NOMINAL - Red
from £591.66
from £591.66
# 004
-
LOWER FRONT HALF BEARING
# 005
-
INTERMEDIATE FRONT HALF
# 006
-
UPPER REAR HALF BEARING
# 007
-
UPPER REAR HALF BEARING
# 008
MPN: 164111
UPPER SHIM
from £71.58
from £71.58
# 008
MPN: 164112
UPPER SHIM
1 st OVERSIZE mm. 0,127 - Not as spare part - With the half-bearings complete series
# 008
MPN: 164113
UPPER SHIM
2 nd OVERSIZE mm. 0,254 - Not as spare part - With the half-bearings complete series
# 009
MPN: 164108
LOWER SHIM
Not as spare part - With the half-bearings complete series
from £71.58
from £71.58
# 009
MPN: 164109
LOWER SHIM
1 st OVERSIZE mm. 0,127 - Not as spare part - With the half-bearings complete series
# 009
MPN: 164110
LOWER SHIM
2 nd OVERSIZE mm. 0,254 - Not as spare part - With the half-bearings complete series
# 010
MPN: 144876
Key
from £1.81
from £1.81
# 011
-
CONNECTING ROD WITH CAP
# 011
MPN: 184426
COMPLETE CONNECTING ROD AND CAP
from £157.30
from £157.30
# 012
MPN: 177159
CONNECTING ROD
from £22.16
from £22.16
# 013
MPN: 184909
BUSHING
from £23.11
from £23.11
# 014
MPN: 173550
CONNECTING ROD HALF BEARING
red
from £9.82
from £9.82
# 015
MPN: 189515
PISTON WITH RINGS
from £230.03
from £230.03
# 016
MPN: 180445
SEAL RING
1st groove - With complete series 194252
# 017
MPN: 180446
SEAL RING
2nd groove - With complete series 194252
# 018
MPN: 180447
OIL SCRAPING RING
3rd groove - With complete series 194252
# 019
MPN: 154717
PIN
from £11.41
from £11.41
# 020
MPN: 178890
STOP RING
from £3.21
from £3.21
This part replaces part number 189521
# 021
MPN: 193051
engine flywheel
from £446.75
from £446.75
This part replaces part number 173760 - and 2 more. Click to view details
# 022
MPN: 201755
SCREW
from £1.16
from £1.16
This part replaces part number 103875
# 023
MPN: 103876
WASHER
from £2.74
from £2.74
This part replaces part number 12833 - and 1 more. Click to view details
# 024
MPN: 168565
torsion damper
from £1,390.09
from £1,390.09
This part replaces part number 155410
# 025
MPN: 140925
SCREW
from £33.63
from £33.63
# 026
MPN: 140922
WASHER
from £6.89
from £6.89
# 027
MPN: 194252
PISTONS RINGS SET
from £180.35
from £180.35
# 028
MPN: 103877
PILOT BEARING
from £18.43
from £18.43
This part replaces part number 24940440
