004 - RH cylinder head

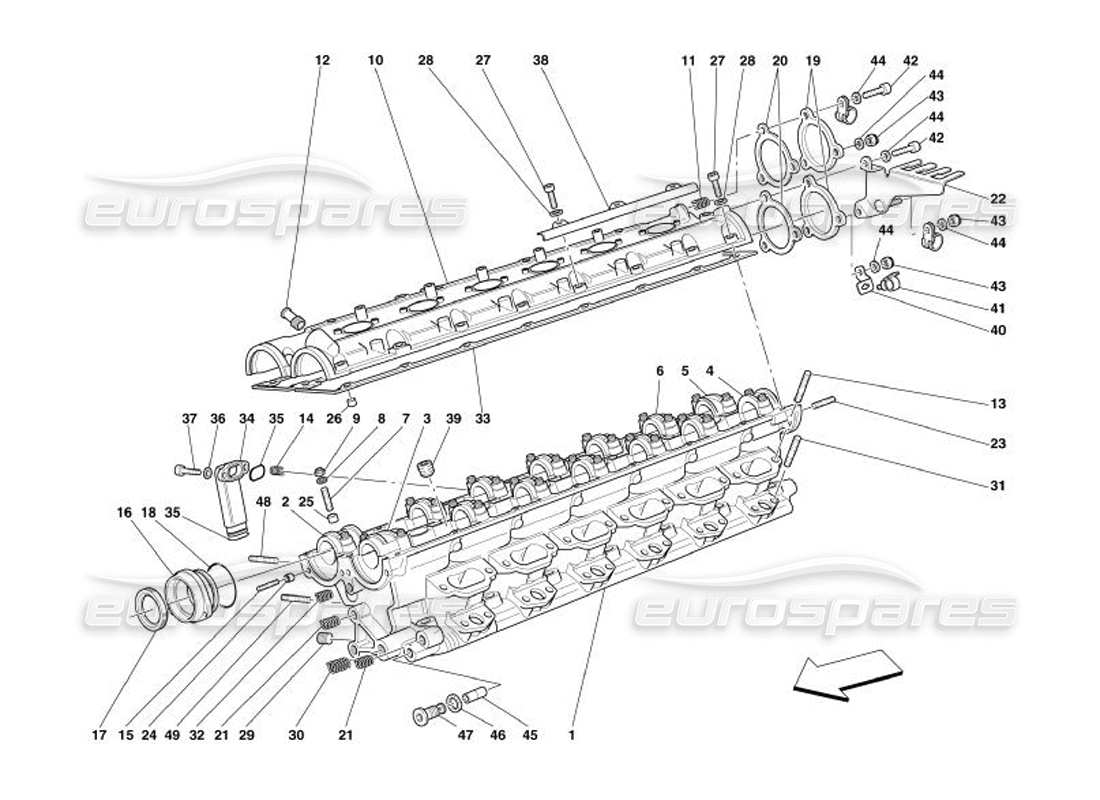

Ferrari 575 Superamerica R.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 221081
COMPLETE RH CYLINDERS HEAD
# 001
MPN: 203507
RH HEAD
With complete cylinder head
from £2,978.82
from £2,978.82
# 002
MPN: 154203
RIGHT FRONT CAP
With complete cylinder head
# 003
MPN: 154205
LEFT FRONT CAP
With complete cylinder head
# 004
MPN: 154204
LEFT REAR CAP
With complete cylinder head
# 005
MPN: 154206
RIGHT REAR CAP
With complete cylinder head
# 006
MPN: 154207
INTERMEDIATE CAP
With complete cylinder head
# 007
MPN: 13541424
STUD
from £0.47
from £0.47
This part replaces part number 13541421
# 008
MPN: 11197774
WASHER
from £0.50
from £0.50
This part replaces part number 11197770 - and 3 more. Click to view details
# 009
MPN: 15896214
NUT
from £0.50
from £0.50
This part replaces part number 15896211
# 010
MPN: 198890
RH CYLINDERS HEAD COVER
With complete cylinder head
# 011
MPN: 13525570
THREADED INSERT
from £3.26
from £3.26
This part replaces part number 109668
# 012
MPN: 154525
THREADED UNION
from £24.94
from £24.94
# 013
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 014
MPN: 13525170
THREADED INSERT
from £0.51
from £0.51
# 015
MPN: 13539424
STUD
from £1.18
from £1.18
# 016
MPN: 182409
FRONT COVER
from £32.70
from £32.70
# 017
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 018
MPN: 158349
O.R. GASKET
from £2.51
from £2.51
# 019
MPN: 182126
REAR SMALL COVER
from £18.17
from £18.17
# 020
MPN: 182127
COVER GASKET
from £5.30
from £5.30
# 021
MPN: 13525770
THREADED INSERT
from £1.55
from £1.55
This part replaces part number 103830
# 022
MPN: 185306
LH BRACKET
from £10.67
from £10.67
# 023
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 024
MPN: 182434
CENTERING DOWEL
from £1.27
from £1.27
# 025
MPN: 102725
DOWEL
from £0.59
from £0.59
# 026
MPN: 102725
DOWEL
from £0.64
from £0.64
# 027
MPN: 156834
SCREW
from £1.55
from £1.55
# 028
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 14326101
THREADED PLUG
from £0.72
from £0.72
# 030
MPN: 13524670
THREADED INSERT
from £0.71
from £0.71
# 031
MPN: 11500224
STUD
from £0.48
from £0.48
This part replaces part number 11500221 - and 1 more. Click to view details
# 032
MPN: 13525470
THREADED INSERT
from £0.51
from £0.51
This part replaces part number 107333
# 033
MPN: 182931
COVER GASKET
from £24.36
from £24.36
# 034
MPN: 154647
OIL EXHAUST DUCTING
from £27.93
from £27.93
# 035
MPN: 142599
O.R. GASKET
from £0.66
from £0.66
# 036
MPN: 12601174
WASHER
from £0.54
from £0.54
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 037
MPN: 14304224
SCREW
from £0.53
from £0.53
# 038
MPN: 182703
CABLES SUPPORTING
from £5.78
from £5.78
# 039
MPN: 127635
THREADED PLUG
from £1.48
from £1.48
This part replaces part number 183447
# 040
MPN: 178555
RH BRACKET
from £6.09
from £6.09
# 041
MPN: 164565
FIXING CLIP
from £0.71
from £0.71
# 042
MPN: 14432224
SCREW
from £0.53
from £0.53
This part replaces part number 14432221
# 043
MPN: 102948
NUT
from £0.53
from £0.53
This part replaces part number 12574211 - and 3 more. Click to view details
# 044
MPN: 12604274
WASHER
from £0.53
from £0.53
This part replaces part number 12604271 - and 1 more. Click to view details
# 045
MPN: 156862
NONRETURN VALVE
from £5.14
from £5.14
# 046
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 047
MPN: 163714
PLUG
from £17.35
from £17.35
# 048
MPN: 13516824
STUD
from £0.48
from £0.48
This part replaces part number 13516821
# 049
MPN: 13517024
STUD
from £0.51
from £0.51
