ferrari 575 superamerica lubrication system - tank parts diagram

023 - Lubrication System - Tank

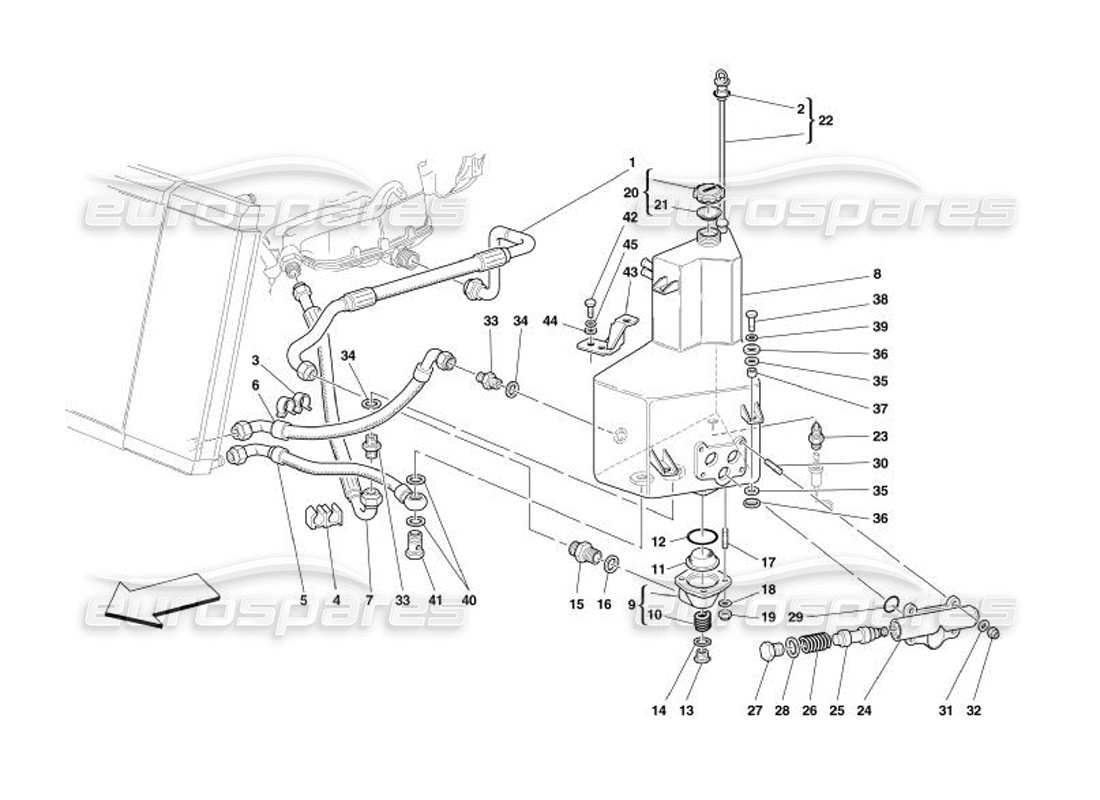

Ferrari 575 Superamerica Lubrication System - Tank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 165910

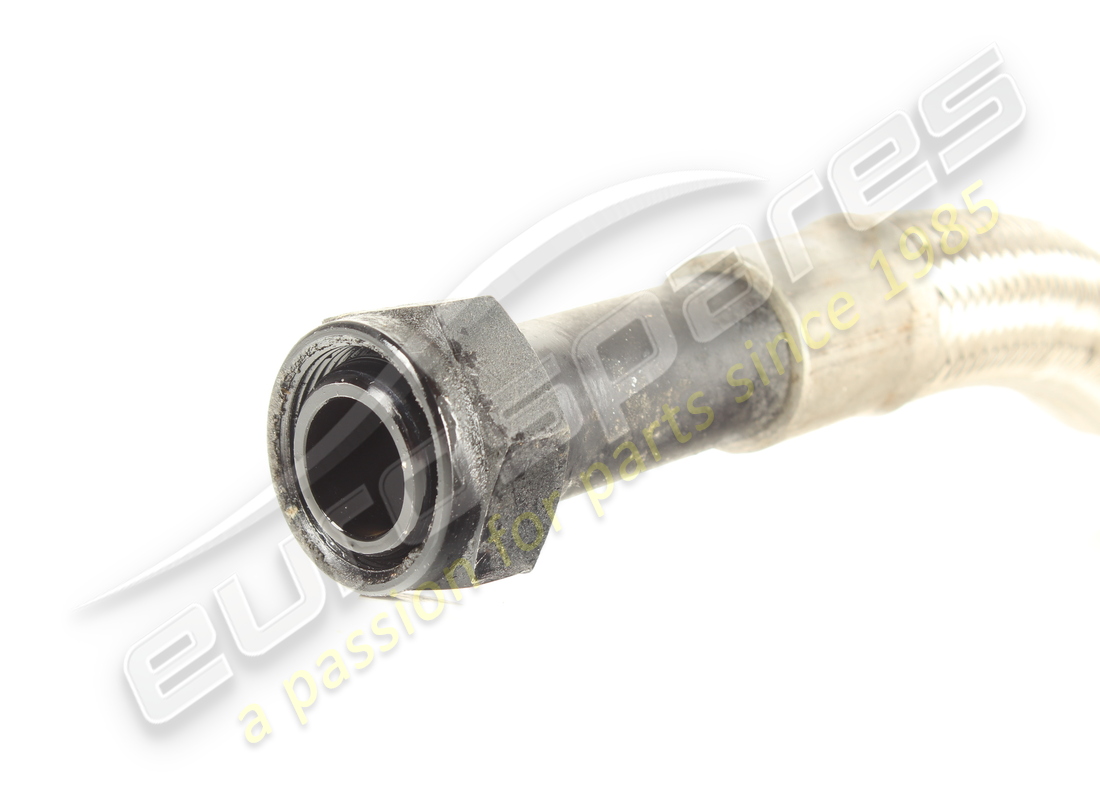

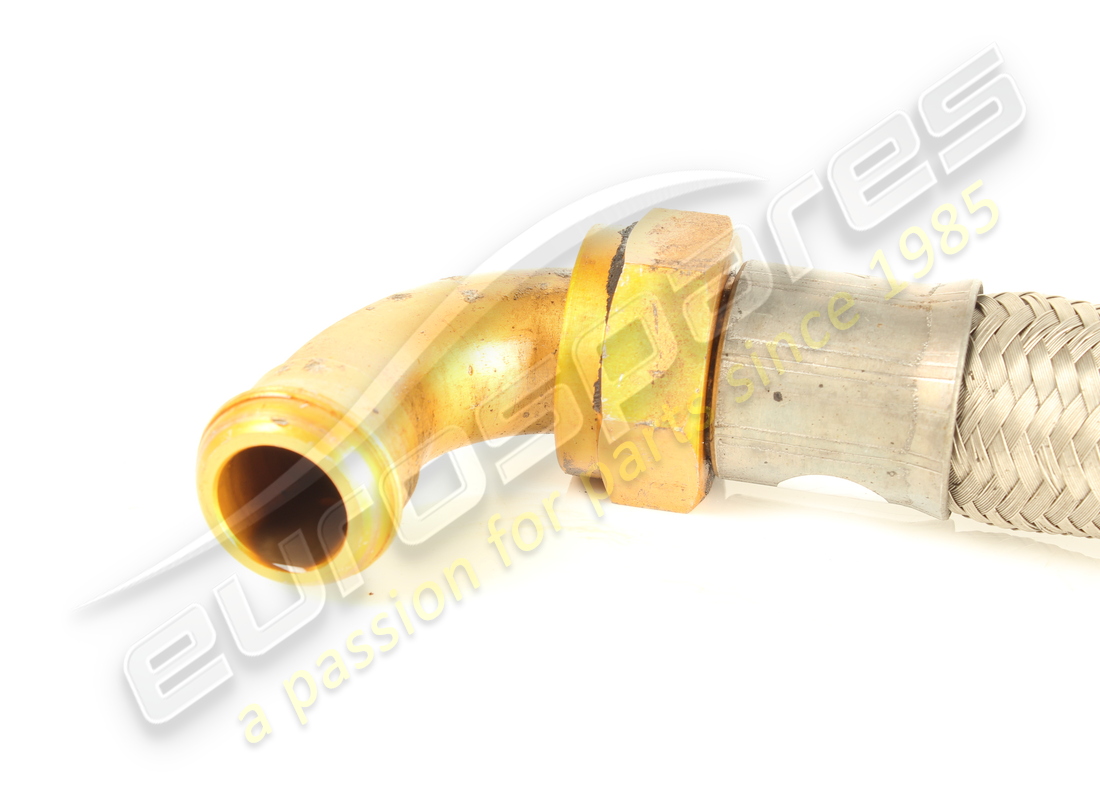

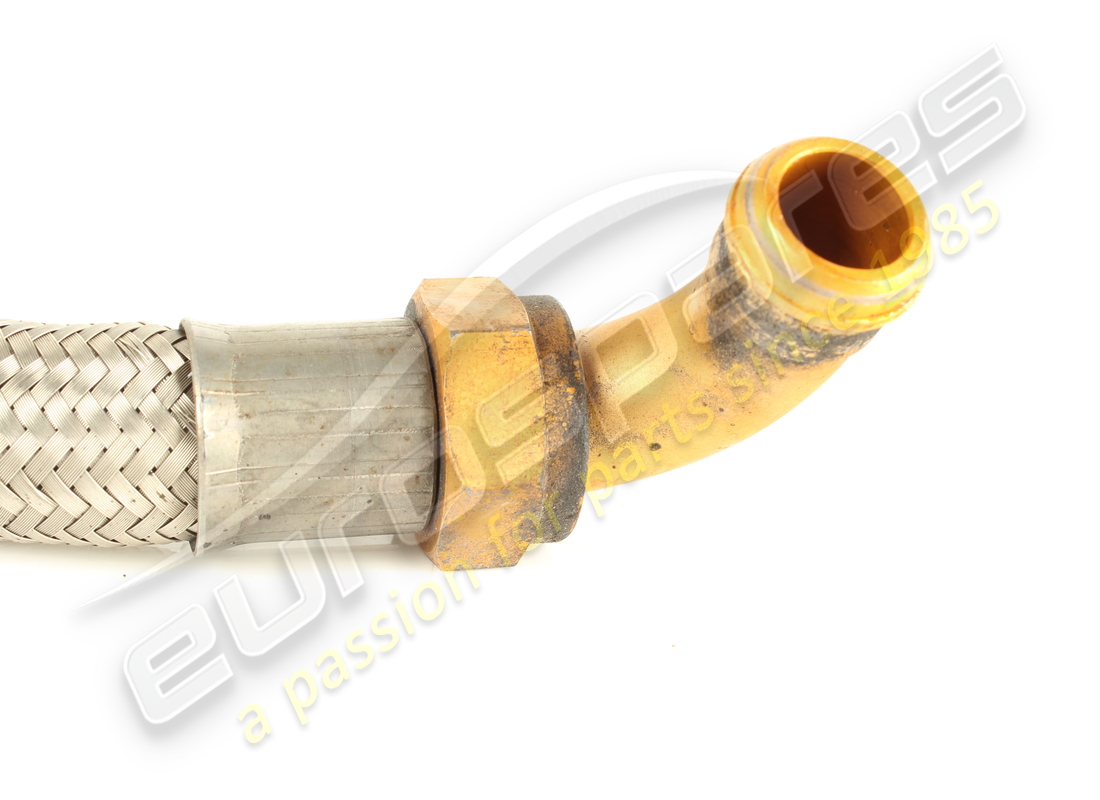

                                                                                      DELIVERY HOSE FROM TANK TO PUMP
                                                                                      from £966.76
                                                                                      from £966.76
                                                                                      # 002
                                                                                      MPN: 166432
                                                                                      O.R. GASKET
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 003
                                                                                      MPN: 155960
                                                                                      FLEXIBLE CLIP
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      # 004
                                                                                      MPN: 190219
                                                                                      SPRINGS
                                                                                      from £2.88
                                                                                      from £2.88
                                                                                      # 005
                                                                                      MPN: 180809
                                                                                      DELIVERY HOSE FROM RESERVOIR TO RADIATOR
                                                                                      from £206.27
                                                                                      from £206.27
                                                                                      This part replaces part number 168330
                                                                                      # 006
                                                                                      MPN: 180810
                                                                                      RETURN HOSE FROM RADIATOR TO RESERVOIR
                                                                                      from £626.48
                                                                                      from £626.48
                                                                                      This part replaces part number 168329
                                                                                      # 007
                                                                                      MPN: 180811
                                                                                      RETURN HOSE FROM OIL SUMP TO TANK
                                                                                      from £417.90
                                                                                      from £417.90
                                                                                      This part replaces part number 168328
                                                                                      # 008
                                                                                      MPN: 184482
                                                                                      OIL TANK
                                                                                      from £2,189.37
                                                                                      from £2,189.37
                                                                                      # 009
                                                                                      MPN: 151684
                                                                                      OIL SUCTION FAN
                                                                                      from £102.81
                                                                                      from £102.81
                                                                                      # 010
                                                                                      MPN: 111352
                                                                                      THREADED INSERT
                                                                                      use part number: 111352/A
                                                                                      from £67.48
                                                                                      from £67.48
                                                                                      # 011
                                                                                      MPN: 100332
                                                                                      SUMP FILTER
                                                                                      from £9.15
                                                                                      from £9.15
                                                                                      This part replaces part number 240387 - and 9 more. Click to view details
                                                                                      # 012
                                                                                      MPN: 125521
                                                                                      O.R. GASKET
                                                                                      (minimum order quantity = 2)
                                                                                      from £7.42
                                                                                      from £7.42
                                                                                      # 013
                                                                                      MPN: 10300771
                                                                                      FUEL DRAIN PLUG
                                                                                      from £0.69
                                                                                      from £0.69
                                                                                      # 014
                                                                                      MPN: 10257060
                                                                                      GASKET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                      # 015
                                                                                      MPN: 138149
                                                                                      UNION
                                                                                      from £17.64
                                                                                      from £17.64
                                                                                      # 016
                                                                                      MPN: 144485
                                                                                      GASKET
                                                                                      from £12.40
                                                                                      from £12.40
                                                                                      # 017
                                                                                      MPN: 11500424
                                                                                      STUD
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      This part replaces part number 11500421
                                                                                      # 018
                                                                                      MPN: 12601274
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                      # 019
                                                                                      MPN: 102948
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                      # 020
                                                                                      MPN: 180590
                                                                                      COMPLETE PLUG
                                                                                      from £60.93
                                                                                      from £60.93
                                                                                      # 021
                                                                                      MPN: 180585
                                                                                      GASKET
                                                                                      from £46.12
                                                                                      from £46.12
                                                                                      This part replaces part number 145625
                                                                                      # 022
                                                                                      MPN: 156667
                                                                                      COMPLETE OIL LEVEL INDICATOR ROD
                                                                                      from £3.35
                                                                                      from £3.35
                                                                                      # 023
                                                                                      MPN: 104628
                                                                                      TEMPERATURE SENDER UNIT
                                                                                      from £31.92
                                                                                      from £31.92
                                                                                      This part replaces part number 4108672 - and 3 more. Click to view details
                                                                                      # 024
                                                                                      MPN: 160759
                                                                                      VALVE BODY
                                                                                      from £97.89
                                                                                      from £97.89
                                                                                      This part replaces part number 145043 - and 3 more. Click to view details
                                                                                      # 025
                                                                                      MPN: 163951
                                                                                      THERMOSTAT VALVE
                                                                                      not as spare part - use part number: 235648
                                                                                      Supersession
                                                                                      Supersession
                                                                                      This part replaces part number 157413
                                                                                      # 025
                                                                                      MPN: 235648
                                                                                      THERMOSTAT VALVE
                                                                                      replaces: 163951
                                                                                      from £419.45
                                                                                      from £419.45
                                                                                      This part replaces part number 163951
                                                                                      # 026
                                                                                      MPN: 136867
                                                                                      SPRING
                                                                                      from £5.23
                                                                                      from £5.23
                                                                                      # 027
                                                                                      MPN: 136868
                                                                                      PLUG
                                                                                      from £20.20
                                                                                      from £20.20
                                                                                      # 028
                                                                                      MPN: 10303460
                                                                                      GASKET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 029
                                                                                      MPN: 139934
                                                                                      O.R. GASKET
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      # 030
                                                                                      MPN: 13540924
                                                                                      STUD
                                                                                      from £0.68
                                                                                      from £0.68
                                                                                      This part replaces part number 13540921
                                                                                      # 031
                                                                                      MPN: 10519424
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
                                                                                      # 032
                                                                                      MPN: 102741
                                                                                      NUT
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                      # 033
                                                                                      MPN: 138150
                                                                                      UNION
                                                                                      from £17.34
                                                                                      from £17.34
                                                                                      # 034
                                                                                      MPN: 144487
                                                                                      GASKET
                                                                                      from £18.15
                                                                                      from £18.15
                                                                                      # 035
                                                                                      MPN: 107978
                                                                                      PAD
                                                                                      from £1.06
                                                                                      from £1.06
                                                                                      # 036
                                                                                      MPN: 107979
                                                                                      CAP
                                                                                      from £1.07
                                                                                      from £1.07
                                                                                      # 037
                                                                                      MPN: 107980
                                                                                      SPACER
                                                                                      from £1.54
                                                                                      from £1.54
                                                                                      # 038
                                                                                      MPN: 16043834
                                                                                      SCREW
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      This part replaces part number 16043824
                                                                                      # 039
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 040
                                                                                      MPN: 144487
                                                                                      GASKET
                                                                                      from £18.15
                                                                                      from £18.15
                                                                                      # 041
                                                                                      MPN: 129809
                                                                                      UNION
                                                                                      from £33.73
                                                                                      from £33.73
                                                                                      # 042
                                                                                      MPN: 16043434
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 13825824 - and 1 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 166931
                                                                                      BRACKET
                                                                                      from £5.38
                                                                                      from £5.38
                                                                                      # 044
                                                                                      MPN: 14496524
                                                                                      WASHER
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                      # 045
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
