027 - WATER PUMP

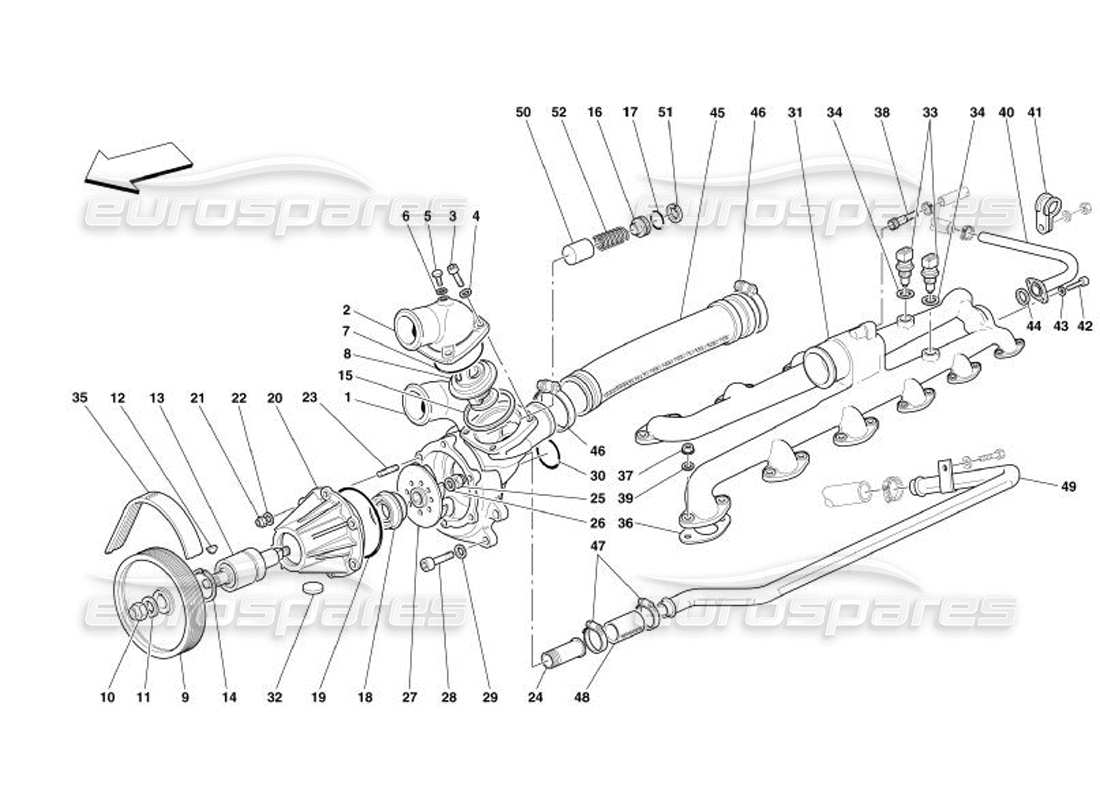

Ferrari 575 Superamerica Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 184038
COMPLETE WATER PUMP
from £1,271.52
from £1,271.52
This part replaces part number 177925
# 001
MPN: 184002
WATER PUMP BODY
from £371.28
from £371.28
This part replaces part number 174668 - and 3 more. Click to view details
# 002
MPN: 163952
THERMOSTATIC VALVE COVER
from £76.43
from £76.43
This part replaces part number 157565 which we have in stock
# 003
MPN: 14433124
SCREW
from £0.51
from £0.51
This part replaces part number 14433121
# 004
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 005
MPN: 132349
UNION
from £9.81
from £9.81
# 006
MPN: 10297760
GASKET
from £0.53
from £0.53
# 007
MPN: 149279
O.R. GASKET
from £2.49
from £2.49
# 008
MPN: 183758
THERMOSTAT
from £49.94
from £49.94
This part replaces part number 167473
# 009
MPN: 169924
PULLEY 93 MM
from £132.90
from £132.90
# 010
MPN: 102742
NUT
from £0.54
from £0.54
This part replaces part number 12557621 - and 2 more. Click to view details
# 011
MPN: 12646824
WASHER
from £0.53
from £0.53
# 012
MPN: 10202320
DISC KEY
from £0.67
from £0.67
# 013
MPN: 143742
BEARING WITH SHAFT
from £141.30
from £141.30
# 014
MPN: 11059976
SEEGER RING
from £0.63
from £0.63
This part replaces part number 11059975 which we have in stock
# 015
MPN: 137873
GASKET
from £2.95
from £2.95
# 016
MPN: 176048
PLUG FOR BY-PASS SPRING
from £8.63
from £8.63
# 017
MPN: 147278
O.R. GASKET
from £0.98
from £0.98
# 018
MPN: 183759
SEAL RING
from £22.77
from £22.77
This part replaces part number 130932 - and 1 more. Click to view details
# 019
MPN: 137868
O.R. GASKET
from £8.06
from £8.06
# 020
MPN: 176173
WATER PUMP COVER
use part number: 176173/A for complete pump (change pulley)
from £265.75
from £265.75
This part replaces part number 154546
# 021
MPN: 102741
NUT
from £0.50
from £0.50
This part replaces part number 12575411 - and 1 more. Click to view details
# 022
MPN: 12601274
WASHER
from £0.52
from £0.52
This part replaces part number 12601221 - and 5 more. Click to view details
# 023
MPN: 13540924
STUD
from £0.69
from £0.69
This part replaces part number 13540921
# 024
MPN: 141068
UNION
from £121.62
from £121.62
# 025
MPN: 100436
CAP NUT
from £7.64
from £7.64
This part replaces part number 92896
# 026
MPN: 11194074
WASHER
from £0.47
from £0.47
This part replaces part number 11194071 - and 2 more. Click to view details
# 027
MPN: 176045
WATER PUMP IMPELLER
from £82.36
from £82.36
# 028
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
# 029
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 030
MPN: 141250
O.R. GASKET
from £0.54
from £0.54
This part replaces part number 227203
# 031
MPN: 184255
HEAD WATER MANIFOLD
from £416.10
from £416.10
# 032
MPN: 10158801
PLUG
from £0.81
from £0.81
This part replaces part number 10158800
# 033
MPN: 180137
WATER TEMPERATURE SENSOR
from £9.88
from £9.88
# 034
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 035
MPN: 201456
BELT
from £18.79
from £18.79
This part replaces part number 177511
# 036
MPN: 141332
GASKET
(minimum order quantity = 8)
from £0.83
from £0.83
# 037
MPN: 194031
NUT
from £0.49
from £0.49
# 038
MPN: 155093
UNION
from £7.46
from £7.46
# 039
MPN: 12604274
WASHER
from £0.51
from £0.51
This part replaces part number 12604271 - and 1 more. Click to view details
# 040
MPN: 189984
PIPE FROM DUCT
Not for GD
from £31.88
from £31.88
# 040
MPN: 191905
PIPE FROM DUCT
Valid for GD
from £106.07
from £106.07
# 041
MPN: 145661
BRACKET WITH SHEATH
Valid for GD
from £4.67
from £4.67
# 041
MPN: 189983
BRACKET WITH SHEATH
Not for GD
from £2.09
from £2.09
# 042
MPN: 14433124
SCREW
from £0.53
from £0.53
This part replaces part number 14433121
# 043
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 044
MPN: 145352
O.R. GASKET
from £0.54
from £0.54
# 045
MPN: 181599
CONNECTION SLEEVE BEETWEN MANIFOLD AND WATER PUMP
from £186.27
from £186.27
This part replaces part number 154480
# 046
MPN: 134109
SCREW COLLAR
from £2.88
from £2.88
This part replaces part number 178203 - and 1 more. Click to view details
# 047
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 048
MPN: 175223
RUBBER PIPE
from £4.93
from £4.93
This part replaces part number 122842
# 049
MPN: 191906
PIPE FROM WATER PUMP
from £132.58
from £132.58
# 049
MPN: 191916
PIPE FROM WATER PUMP
from £27.55
from £27.55
# 050
MPN: 176046
BUSHING FOR BY-PASS
from £16.85
from £16.85
# 051
MPN: 11058376
SEEGER RING
from £1.50
from £1.50
# 052
MPN: 176047
SPRING FOR BY-PASS
from £12.03
from £12.03
