041 - Pedals

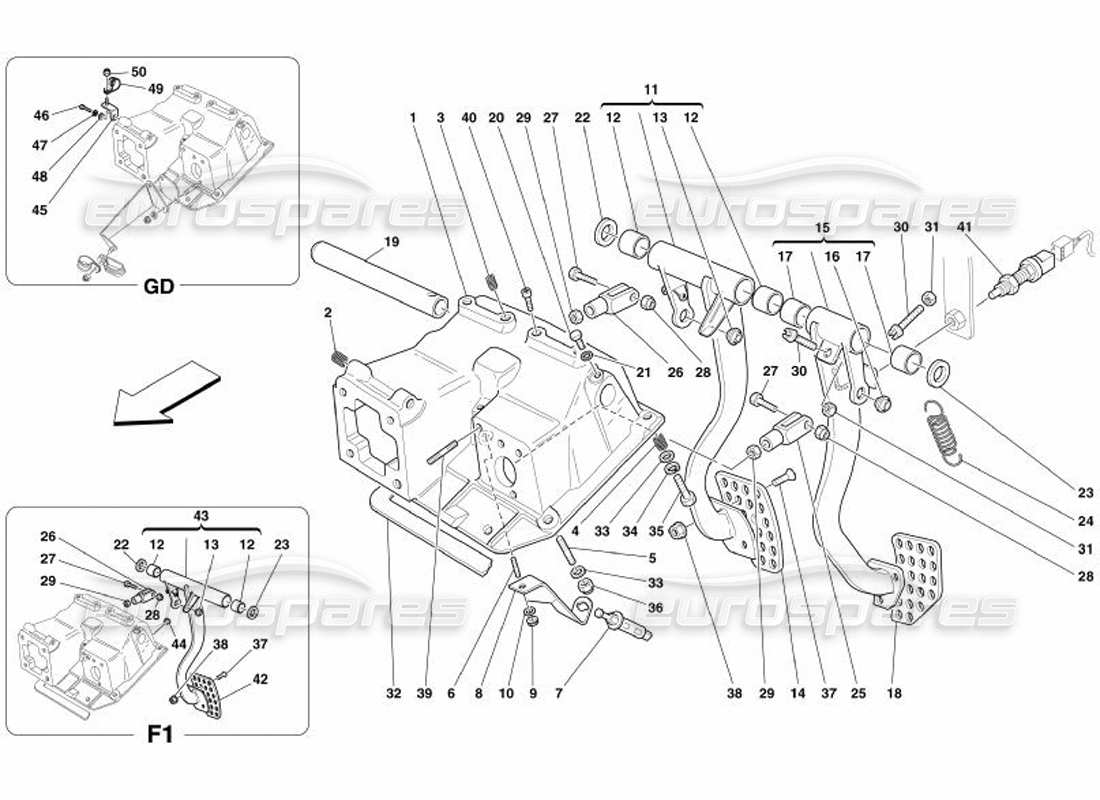

Ferrari 575 Superamerica Pedals Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 178879
COMPLETE PEDAL SUPPORT
from £446.41
from £446.41
This part replaces part number 175097 - and 1 more. Click to view details
# 001
MPN: 175097
PEDAL SUPPORT
Not as spare parts - With complete pedal support 178879
Supersession
Supersession
# 002
MPN: 13525770
THREADED INSERT
from £1.60
from £1.60
This part replaces part number 103830
# 003
MPN: 13525470
THREADED INSERT
from £0.51
from £0.51
This part replaces part number 107333
# 004
MPN: 13525770
THREADED INSERT
from £1.60
from £1.60
This part replaces part number 103830
# 005
MPN: 13516824
STUD
from £0.51
from £0.51
This part replaces part number 13516821
# 006
MPN: 11500224
STUD
from £0.53
from £0.53
This part replaces part number 11500221 - and 1 more. Click to view details
# 007
MPN: 334064
STOP LIGHT SWITCH
from £16.98
from £16.98
This part replaces part number 183433
# 008
MPN: 190942
SMALL PLATE
from £13.20
from £13.20
# 009
MPN: 14058411
NUT
from £0.54
from £0.54
# 010
MPN: 12646601
WASHER
from £0.71
from £0.71
# 011
MPN: 184134
BRAKE PEDAL
Not for F1
# 012
MPN: 103163

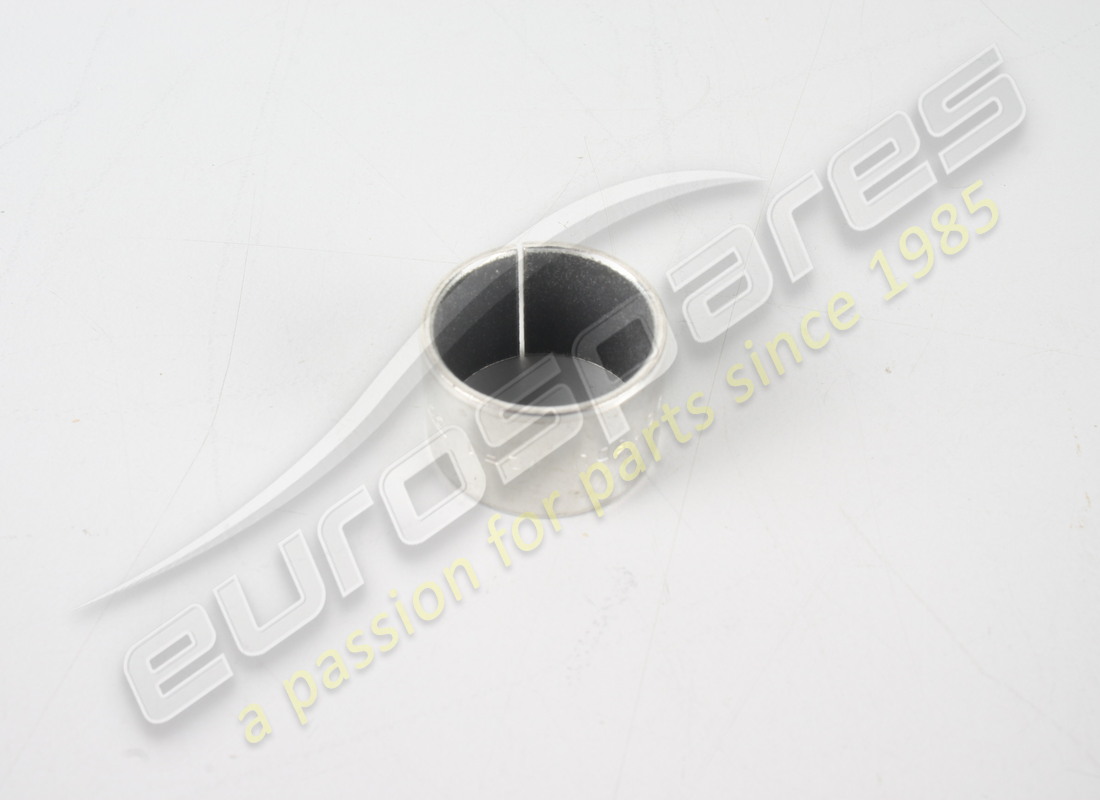

BUSHING
from £2.96
from £2.96
# 013
MPN: 109407
BALL JOINT
from £22.69
from £22.69
# 014
MPN: 163865
BRAKE PEDAL DRILLED PLATE
Not for F1
from £78.42
from £78.42
# 015
MPN: 182160
CLUTCH PEDAL
Not for F1 - Not for GD
from £419.48
from £419.48
# 015
MPN: 188889
CLUTCH PEDAL
Not for F1 - Valid for GD
from £266.68
from £266.68
# 016
MPN: 109407
BALL JOINT
Not for F1
from £22.69
from £22.69
# 017
MPN: 103163
BUSHING
Not for F1
from £2.96
from £2.96
# 018
MPN: 163871
CLUTCH PEDAL DRILLED PLATE
Not for F1
from £81.18
from £81.18
# 019
MPN: 129954
PEDALS SUPPORT PIN
from £207.62
from £207.62
# 020
MPN: 10902224
SCREW
from £0.53
from £0.53
# 021
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 022
MPN: 106083
SPACER WASHER
from £0.71
from £0.71
# 023
MPN: 106083
WASHER
Thickness mm. 1.0 - Possible fitting
from £0.71
from £0.71
# 023
MPN: 113833
WASHER
Thickness mm. 1.1 - Possible fitting
from £1.91
from £1.91
# 023
MPN: 113834
WASHER
Thickness mm. 1.2 - Possible fitting
from £2.07
from £2.07
# 023
MPN: 113835
WASHER
Thickness mm. 1.3 - Possible fitting
from £1.91
from £1.91
# 023
MPN: 113836
WASHER
Thickness mm. 1.4 - Possible fitting
from £2.39
from £2.39
# 024
MPN: 101305
SPRING
Not for F1
from £8.34
from £8.34
This part replaces part number 660343
# 025
MPN: 164393
FORK FOR CLUTCH LEVER
Not for F1
from £30.77
from £30.77
# 026
MPN: 10248271
FORK FOR BRAKE LEVER
from £12.90
from £12.90
# 027
MPN: 16043621
SCREW
For F1 Q.ty 1
from £1.12
from £1.12
# 028
MPN: 147985
NUT
For F1 Q.ty 1
from £0.54
from £0.54
# 029
MPN: 16102314
NUT
For F1 Q.ty 1
from £0.54
from £0.54
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 030
MPN: 144011
PIN
Not for F1
Supersession
Supersession
# 031
MPN: 16102314
NUT
Not for F1
from £0.54
from £0.54
This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
# 032
MPN: 170706
GASKET
from £7.44
from £7.44
# 033
MPN: 14499401
WASHER
from £0.47
from £0.47
# 034
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 035
MPN: 16043324
SCREW
from £0.53
from £0.53
This part replaces part number 16043321
# 036
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 037
MPN: 14441324
SCREW
from £0.51
from £0.51
# 038
MPN: 14058411
NUT
from £0.53
from £0.53
# 039
MPN: 13516824
STUD
from £0.51
from £0.51
This part replaces part number 13516821
# 040
MPN: 13276011
SCREW
from £13.53
from £13.53
# 041
MPN: 133555
PUSH-BUTTON SWITCH
from £11.08
from £11.08
# 042
MPN: 167299
BRAKE PEDAL DRILLED PLATE
Valid for F1
from £295.87
from £295.87
# 043
MPN: 184761
BRAKE PEDAL
Valid for F1
from £321.83
from £321.83
# 044
MPN: 14591687
button
Valid for F1
from £0.54
from £0.54
This part replaces part number 69767700
# 045
MPN: 149694
PIPE FIXING BRACKET
Valid for GD
from £3.27
from £3.27
This part replaces part number 223375
# 046
MPN: 16043224
SCREW
Valid for GD
from £0.53
from £0.53
# 047
MPN: 127496
WASHER
Valid for GD
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 048
MPN: 14499424
WASHER
Valid for GD
Supersession
Supersession
This part replaces part number 14499401 which we have in stock
# 049
MPN: 10441790
BRACKET WITH SHEATH
Valid for GD
from £0.54
from £0.54
# 050
MPN: 102741
NUT
Valid for GD
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
