105 - Flat Floor Pan

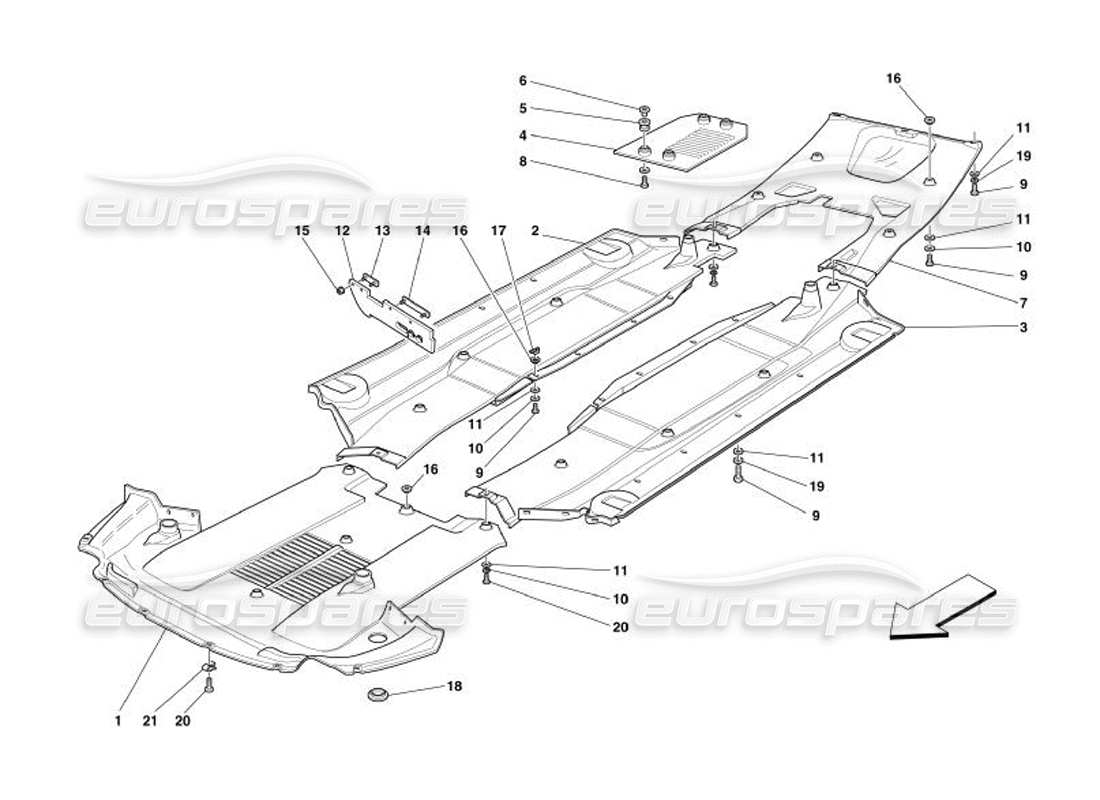

Ferrari 575 Superamerica Flat Floor Pan Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 66084600
FRONT AERODYNAMIC BOTTOM
from £560.87
from £560.87
# 001
MPN: 68595500
FRONT AEREODYNAMIC BOTTOM
CCM Version
from £937.13
from £937.13
# 002
MPN: 64678800
RH CENTRAL AERODYNAMIC BOTTOM
from £130.50
from £130.50
# 003
MPN: 64678900
LH CENTRAL AERODYNAMIC BOTTOM
from £130.50
from £130.50
# 004
MPN: 66402800
UNDER GEARBOX AERODYNAMIC BOTTOM
from £72.25
from £72.25
# 005
MPN: 103549
CABLE GROMMET
from £0.69
from £0.69
# 006
MPN: 149707
SPACER
from £0.76
from £0.76
# 007
MPN: 64679000
REAR AERODYNAMIC BOTTOM
from £86.97
from £86.97
# 008
MPN: 10902624
SCREW
from £0.51
from £0.51
This part replaces part number 10902621
# 009
MPN: 10902224
SCREW
M6x25
from £0.47
from £0.47
# 009
MPN: 10902324
SCREW
M6x18
from £0.53
from £0.53
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 009
MPN: 10902424
SCREW
M6x20
from £0.51
from £0.51
This part replaces part number 10902324 which we have in stock - and 3 more. Click to view details
# 010
MPN: 12640677
WASHER
not as spare part - use part number: 12640678
Supersession
Supersession
This part replaces part number 12640606 - and 1 more. Click to view details
# 011
MPN: 12035674
WASHER
from £0.71
from £0.71
# 011
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.48
from £0.48
This part replaces part number 10516470 - and 4 more. Click to view details
# 012
MPN: 65267400
RH INSULATION
Not for GD
from £147.00
from £147.00
# 012
MPN: 65267500
LH INSULATION
Not for GD
from £20.75
from £20.75
# 012
MPN: 65380600
RH INSULATION
Valid for GD
from £20.09
from £20.09
# 012
MPN: 65380700
LH INSULATION
Valid for GD
from £20.09
from £20.09
# 013
MPN: 65364100
SMALL PLATE
from £2.83
from £2.83
# 014
MPN: 65364200
SMALL PLATE
from £2.88
from £2.88
# 015
MPN: 14058411
NUT
from £0.51
from £0.51
# 016
MPN: 65403300
SPACER
(minimum order quantity = 20)
from £0.74
from £0.74
# 017
MPN: 65774200
NUT WITH CAGE
from £0.58
from £0.58
# 018
MPN: 64783600
PLUG
from £3.09
from £3.09
# 019
MPN: 12643778
WASHER
(minimum order quantity = 20)
from £0.47
from £0.47
This part replaces part number 12643777 - and 1 more. Click to view details
# 020
MPN: 15903475
SCREW
(minimum order quantity = 30)
from £0.60
from £0.60
This part replaces part number 15903417
# 021
MPN: 61789700
BRACKET
from £0.52
from £0.52
