124 - Electrical Seat - Safety Belts

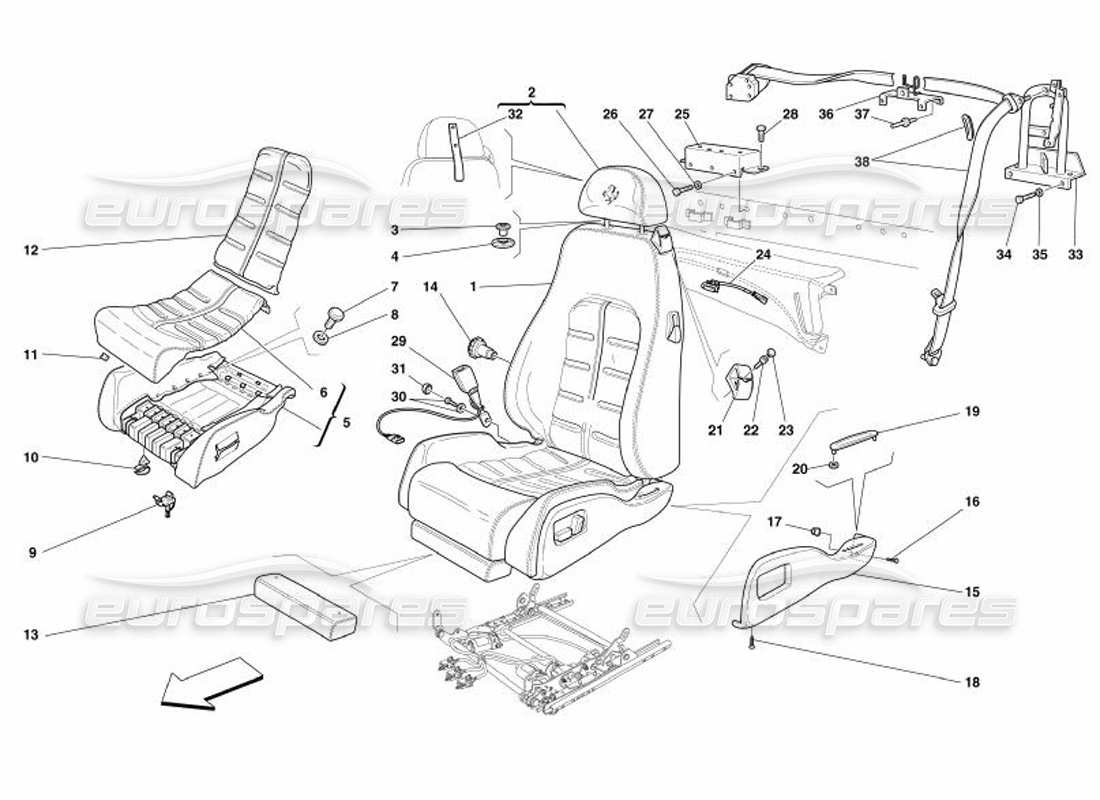

Ferrari 575 Superamerica Electrical Seat - Safety Belts Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 672813..
SEAT BACK TRIM
DAYTONA - Optional
Supersession
Supersession
# 001
MPN: 686059..
RH SEAT COMPLETE WITH GUIDES
DAYTONA - Optional - Valid for GD
# 001
MPN: 686062..
RH SEAT COMPLETE WITH
GUIDES -DAYTONA - Valid for GD - Carbon - Optional
# 001
MPN: 686068..
LH SEAT COMPLETE WITH GUIDES
DAYTONA - Optional - Valid for GD
# 001
MPN: 686071..
LH SEAT COMPLETE WITH
GUIDES -DAYTONA - Valid for GD - Carbon - Optional
# 001
MPN: 686077..
LH SEAT COMPLETE WITH GUIDES
Not for GD - Carbon - Optional
# 001
MPN: 687017..
RH SEAT COMPLETE WITH GUIDES
Not for GD
# 001
MPN: 687018..
LH SEAT COMPLETE WITH GUIDES
Not for GD
Supersession
Supersession
# 001
MPN: 687020..
RH SEAT COMPLETE WITH GUIDES
DAYTONA - Optional - Not for GD
Supersession
Supersession
# 001
MPN: 687022..
RH SEAT COMPLETE WITH
GUIDES -DAYTONA - Not for GD - Carbon - Optional
Supersession
Supersession
# 001
MPN: 687024..
LH SEAT COMPLETE WITH GUIDES
DAYTONA - Optional - Not for GD
Supersession
Supersession
# 001
MPN: 687026..
LH SEAT COMPLETE WITH
GUIDES -DAYTONA - Not for GD - Carbon - Optional
Supersession
Supersession
# 001
MPN: 690791..
RH SEAT COMPLETE WITH GUIDES
Not for GD - Carbon - Optional
# 001
MPN: 690792..
RH SEAT COMPLETE WITH GUIDES
Valid for GD - Carbon - Optional
# 001
MPN: 690793..
LH SEAT COMPLETE WITH GUIDES
Valid for GD - Carbon - Optional
# 001
MPN: 690795..
LH SEAT COMPLETE WITH GUIDES
Valid for GD
Supersession
Supersession
# 001
MPN: 690796..
RH SEAT COMPLETE WITH GUIDES
Valid for GD
Supersession
Supersession
# 002
MPN: 693397..
COMPLETE HEAD-REST
Supersession
Supersession
# 002
MPN: 693398..
LINING
# 003
MPN: 64025400
BUSHING
from £17.37
from £17.37
# 004
MPN: 64025500
WASHER
from £6.03
from £6.03
# 005
MPN: 672819..
COMPLETE RH CUSHION
DAYTONA - Optional
Supersession
Supersession
# 005
MPN: 672820..
COMPLETE LH CUSHION
DAYTONA - Optional
Supersession
Supersession
# 005
MPN: 672821..
RH INNER SIDE SHIELD
Supersession
Supersession
# 005
MPN: 672822..
LH INNER SIDE SHIELD
Supersession
Supersession
# 005
MPN: 672823..
RH OUTER SIDE SHIELD
Supersession
Supersession
# 005
MPN: 672824..
LH OUTER SIDE SHIELD
Supersession
Supersession
# 005
MPN: 693399..
COMPLETE LH CUSHION
# 005
MPN: 693400..
COMPLETE RH CUSHION
# 006
MPN: 672830..
CENTRAL CUSHION
DAYTONA - Optional
Supersession
Supersession
# 006
MPN: 693401..
CENTRAL CUSHION
Supersession
Supersession
# 007
MPN: 67282500
CLIP
from £0.48
from £0.48
# 008
MPN: 67282600
WASHER
from £0.48
from £0.48
# 009
MPN: 66324000
CLIP
from £3.96
from £3.96
# 010
MPN: 67286400
CLIP
from £0.51
from £0.51
# 011
MPN: 67283300
CLIP
from £0.65
from £0.65
# 012
MPN: 672832..
SEAT BACK CENTRAL
DAYTONA - Optional
Supersession
Supersession
# 012
MPN: 693402..
SEAT BACK CENTRAL
# 013
MPN: 672836..
CENTRAL MEMORY COVER
Driver side
Supersession
Supersession
# 014
MPN: 66325600
ADJUSTING KNOB
from £65.85
from £65.85
# 015
MPN: 67126700
OUTER CARBON MOULDING RH SEAT
Valid for carbon seat version - Optional
from £573.81
from £573.81
# 015
MPN: 67126800
OUTER CARBON MOULDING LH SEAT
Valid for carbon seat version - Optional
from £573.81
from £573.81
# 015
MPN: 672834..
OUTER MOULDING RH SEAT
Supersession
Supersession
# 015
MPN: 672835..
OUTER MOULDING LH SEAT
Supersession
Supersession
# 016
MPN: 67283800
SCREW
from £0.77
from £0.77
# 017
MPN: 67283900
NUT
from £1.51
from £1.51
# 018
MPN: 67284000
SCREW
from £0.53
from £0.53
# 019
MPN: 67284200
PLATE
from £35.34
from £35.34
# 020
MPN: 67284300
WASHER
from £0.53
from £0.53
# 021
MPN: 64331600
BELT-SLIDING
from £5.27
from £5.27
# 022
MPN: 67281600
SCREW
from £0.53
from £0.53
# 023
MPN: 64341400
PLUG FOR SCREW
from £0.55
from £0.55
# 024
MPN: 68915600
STOP BUTTON
from £110.39
from £110.39
# 025
MPN: 68691700
BRACKET SUPPORT BELTS
from £80.50
from £80.50
# 026
MPN: 15970934
SCREW
from £0.91
from £0.91
# 027
MPN: 12601474
WASHER
from £0.54
from £0.54
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 028
MPN: 16288321
SCREW
from £0.53
from £0.53
# 029
MPN: 65629100
PASSENGER SIDE BUCKLE BRANCH
from £134.83
from £134.83
# 029
MPN: 65924600
PILOT SIDE BUCKLE BRANCH
from £134.56
from £134.56
# 030
MPN: 65911400
SCREW
from £5.42
from £5.42
# 031
MPN: 66155100
SMALL COVER
from £3.40
from £3.40
# 032
MPN: 693403..
BRACKET
Supersession
Supersession
# 033
MPN: 68851700
RH BRACKET
from £97.39
from £97.39
# 033
MPN: 68851800
LH BRACKET
from £203.45
from £203.45
# 034
MPN: 15970934
SCREW
from £0.85
from £0.85
# 035
MPN: 12601474
WASHER
from £0.52
from £0.52
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 036
MPN: 68922800
UPPER BRACKET
from £26.22
from £26.22
# 037
MPN: 14642091
RIVET
from £2.22
from £2.22
# 038
MPN: 69313100
SAFETY 3 POINT BELTS KIT
Not for USA and CDN
from £1,138.47
from £1,138.47
This part replaces part number 68548000
# 038
MPN: 69313200
SAFETY 3 POINT BELTS KIT
Valid for USA and CDN
from £688.55
from £688.55
